3900HP Model Bow Tug - Built 1976 / Rebuilt 2018 - ID 1014

Product Description

Class ABS A-1 Towing All Oceans ISM Full ISM & SMC USCG Sub Chapter M Compliant with COI issued August 2019

Dimensions LOA 133'

GRT 198

Beam 34'

NRT 135

PROPULSION

Main Engines Two (2) EMD 16-645-E6

Gears Reinjes WAV-2600

4.45:1 Ratio

Horsepower 3900

BHP Bollard Pull 62 tons

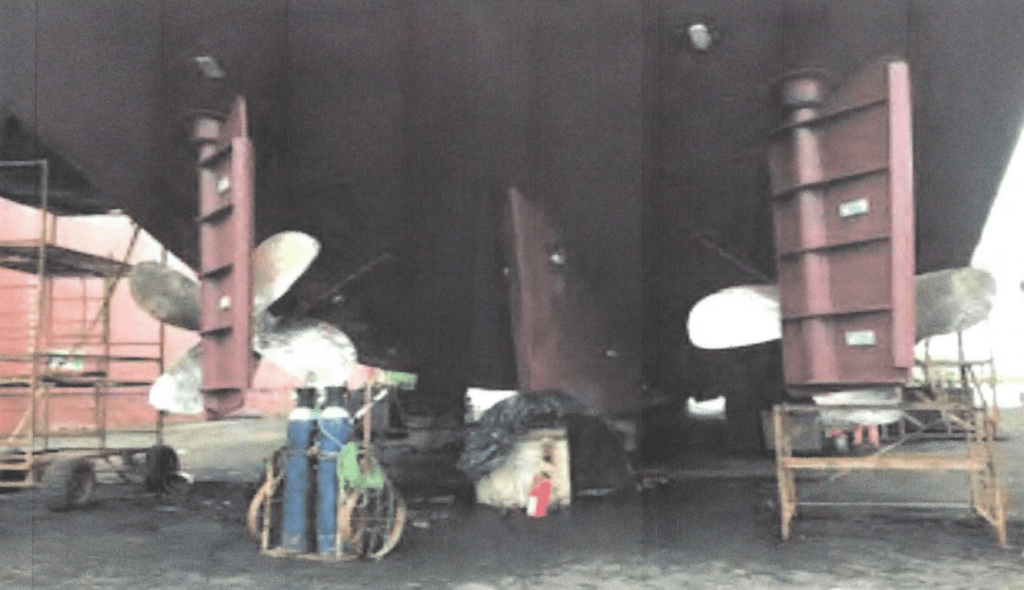

Propellers Two (2) 4-Blade 115"x 84"

Props Generators (2) Detroit V871 (1200 RPM) 99 KW Each

CAPACITY

Diesel 129,600 us gal

Lube Oil : 1,500 us gal

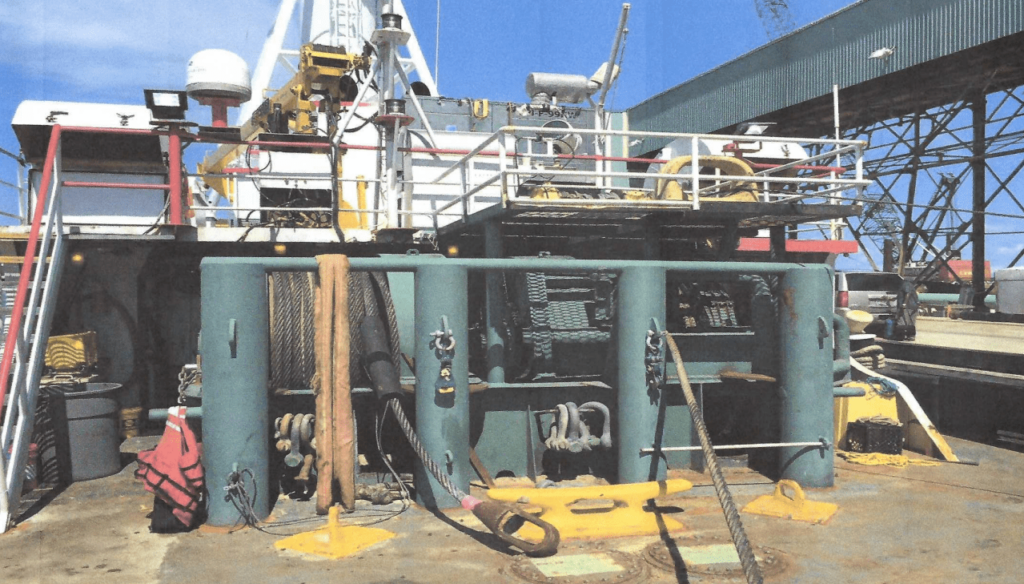

WINCHES

Tow Winch Primary Intercon 2000' of 2.25" Tow Wire 125T line pull. Tow Winch Secondary Intercon 2000' of 2.25" Tow Wire ELECTRONICS Gyro compass w/Auto Pilot, 4 Radars, AIS, SSB w/encoder, 6 VHFs, 2 GPSs, 2 Loud hailers Cellular phone, Satellite phone w/email, Weather Fax, Navtex, Magnetic Compass,

UPPER PILOT HOUSE

64' Eye level

Very good fuel economy

Categories:
Engine Model 16-645-E6
Additional Information Extensive Rebuilt. All Certs up to Date. Price available upon Request.
