Product Description:

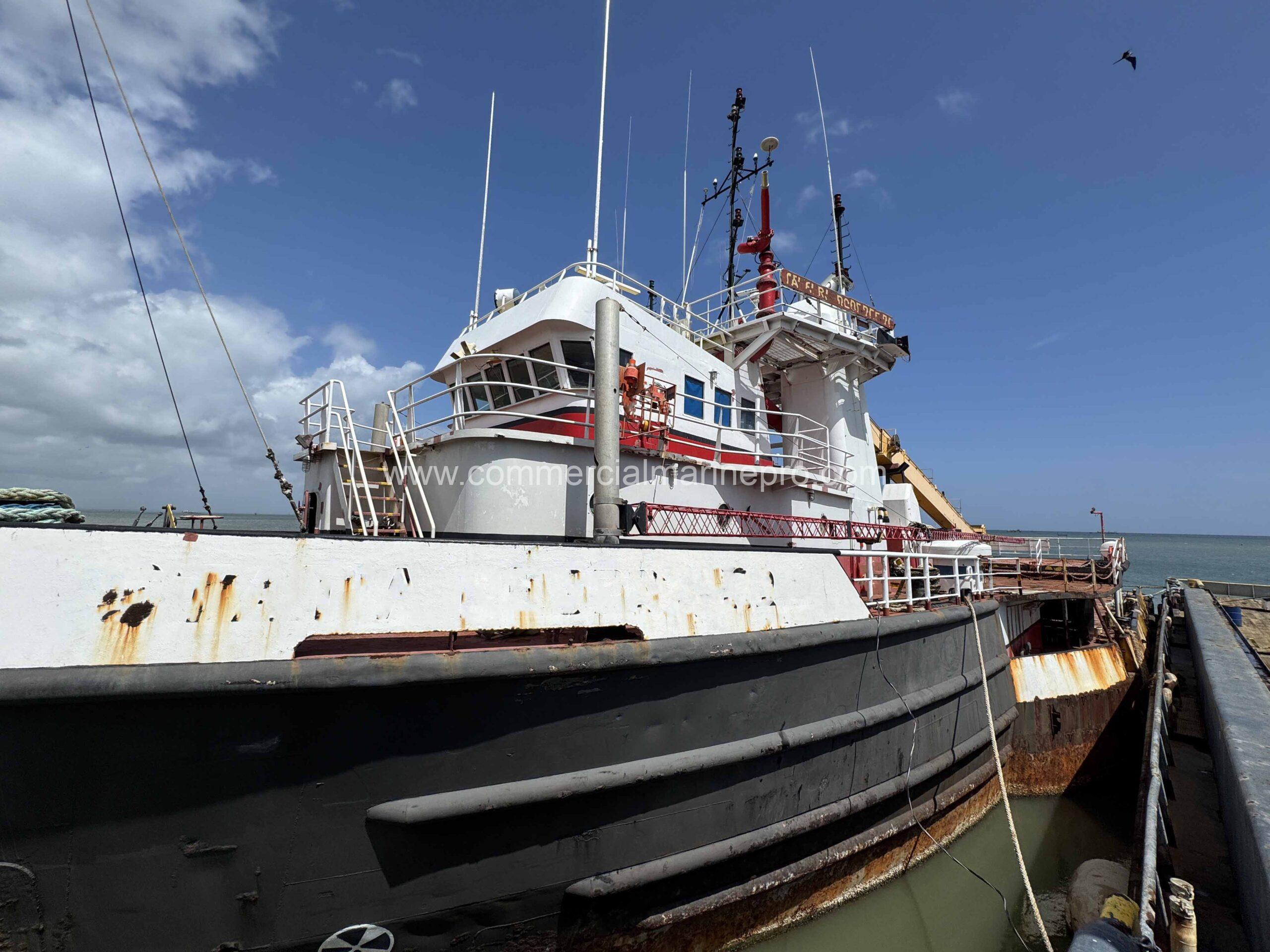

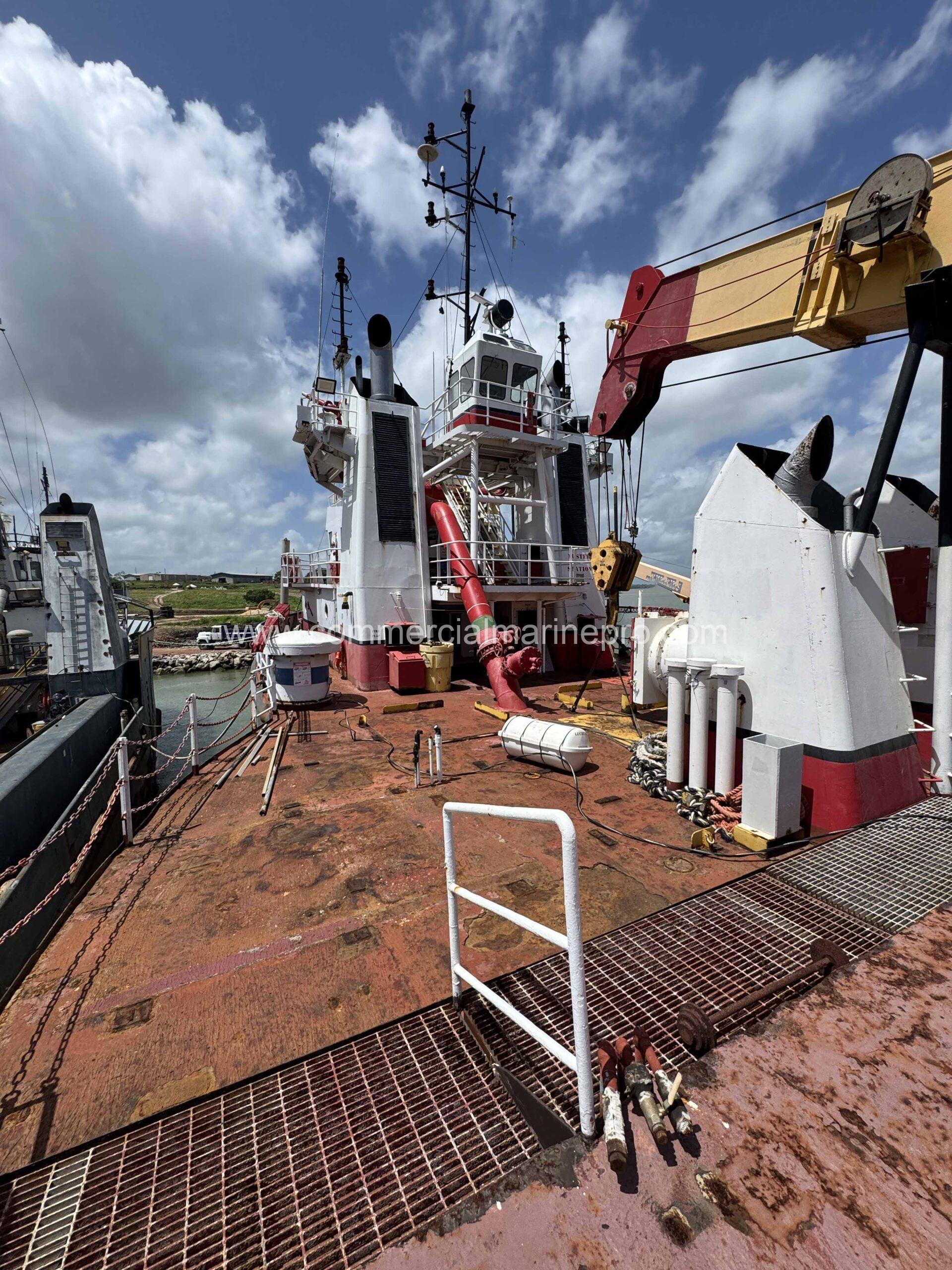

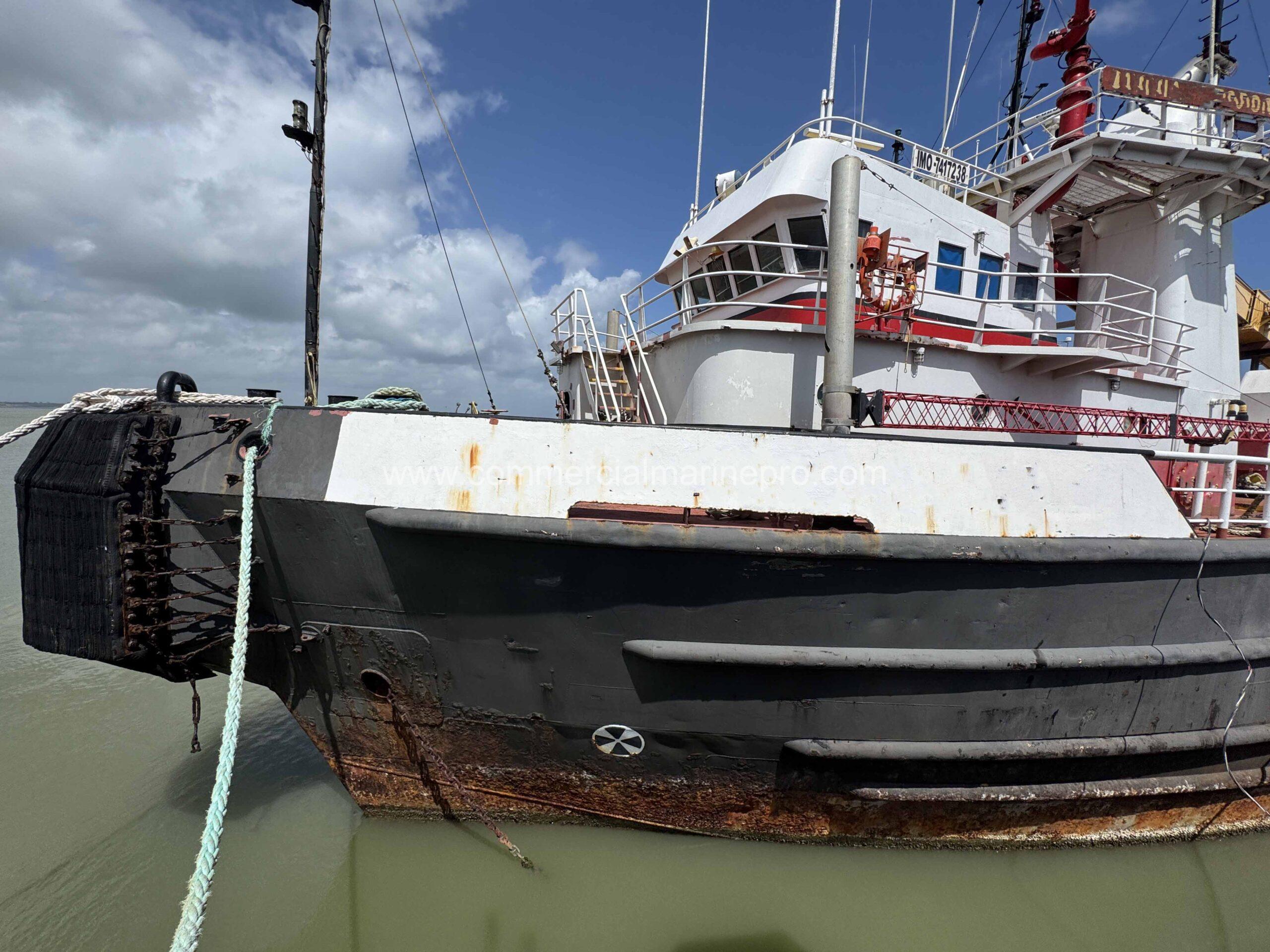

194′ Emergency Response Vessel
Length Overall 194 ft
Beam 55 ft
Depth 14ft
Light Draft 9 ft
Loaded Draft 12 ft
Tonnage 300 mt

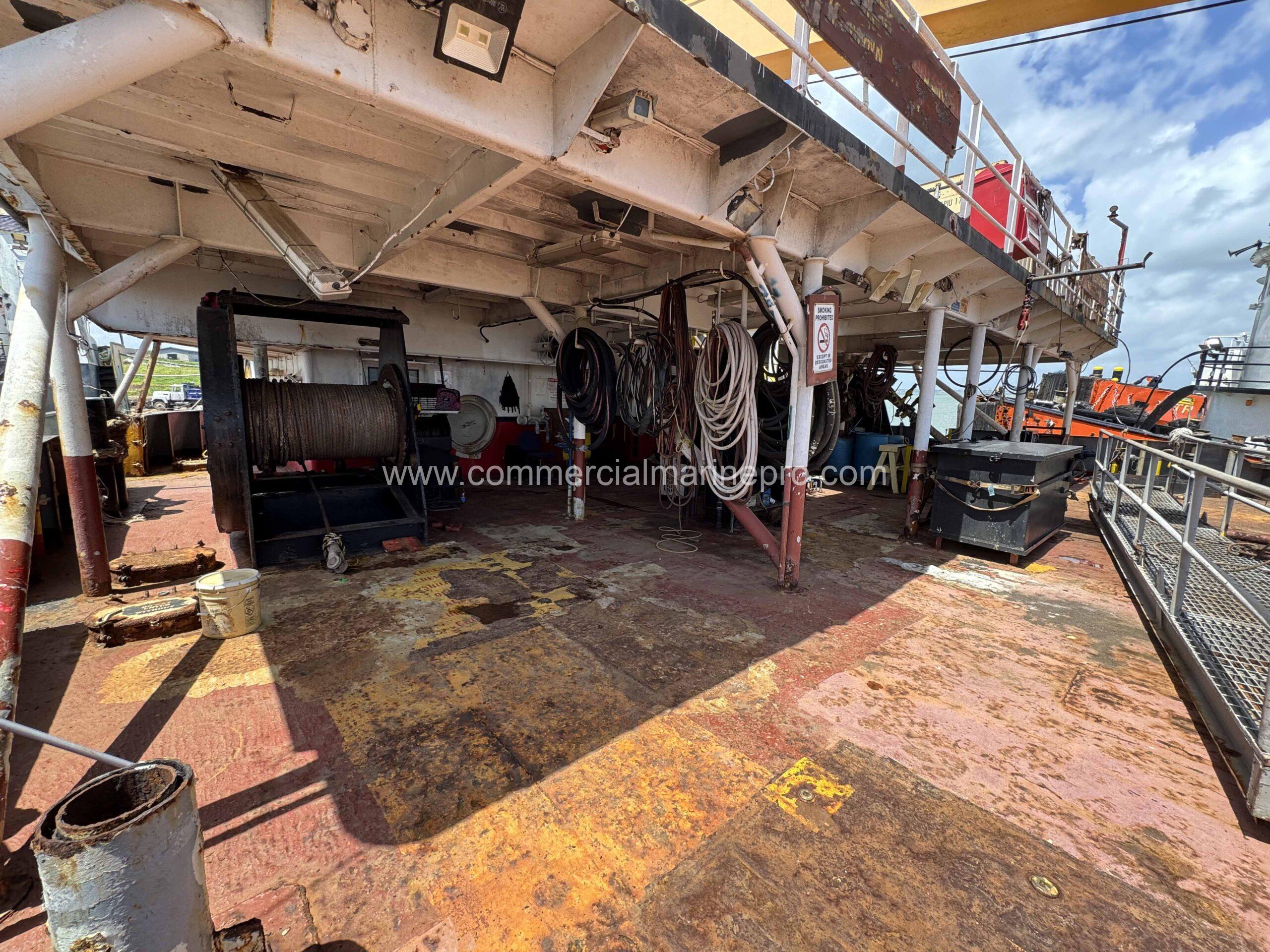

Length 65 ft
Width 40 ft

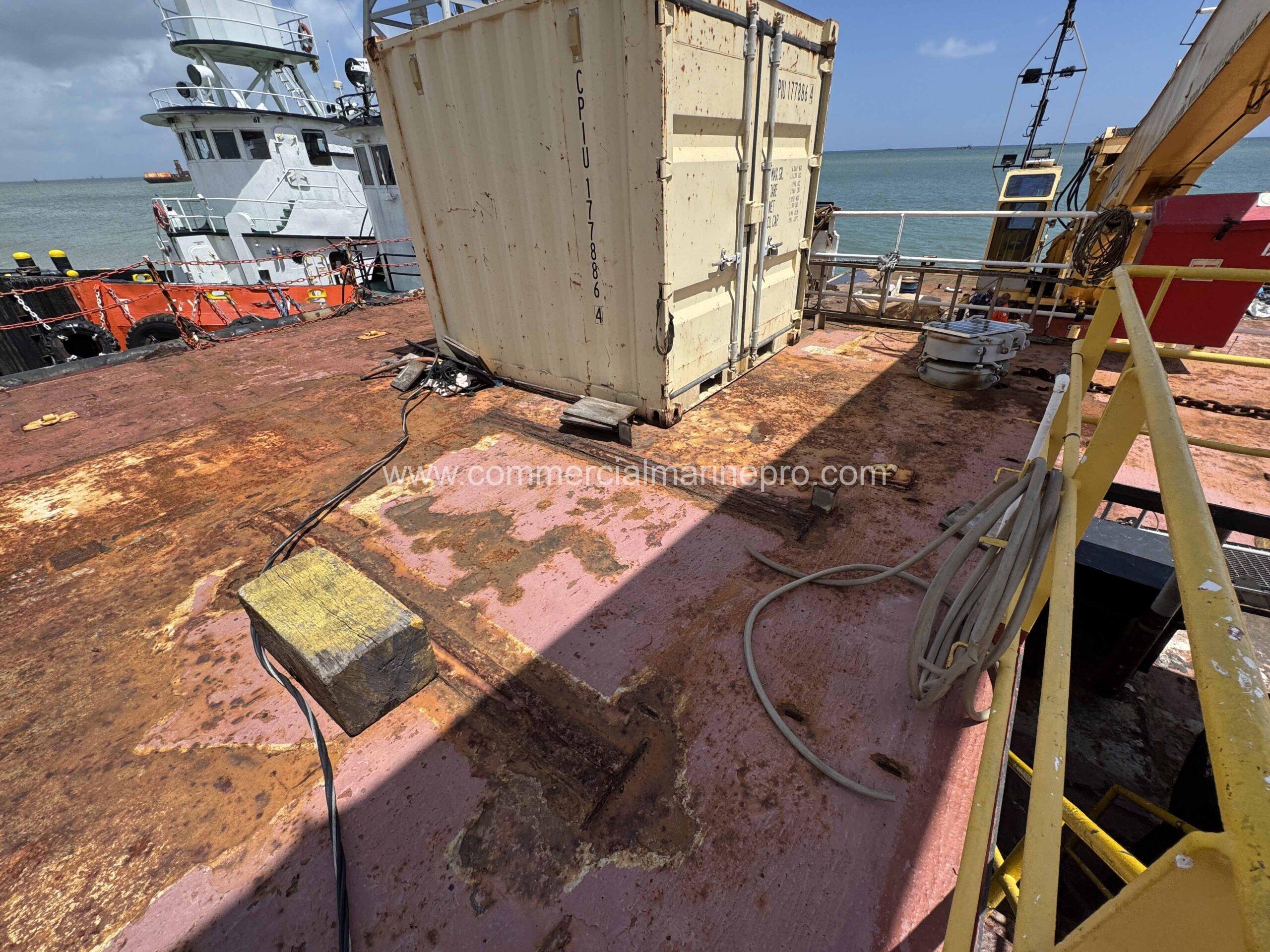

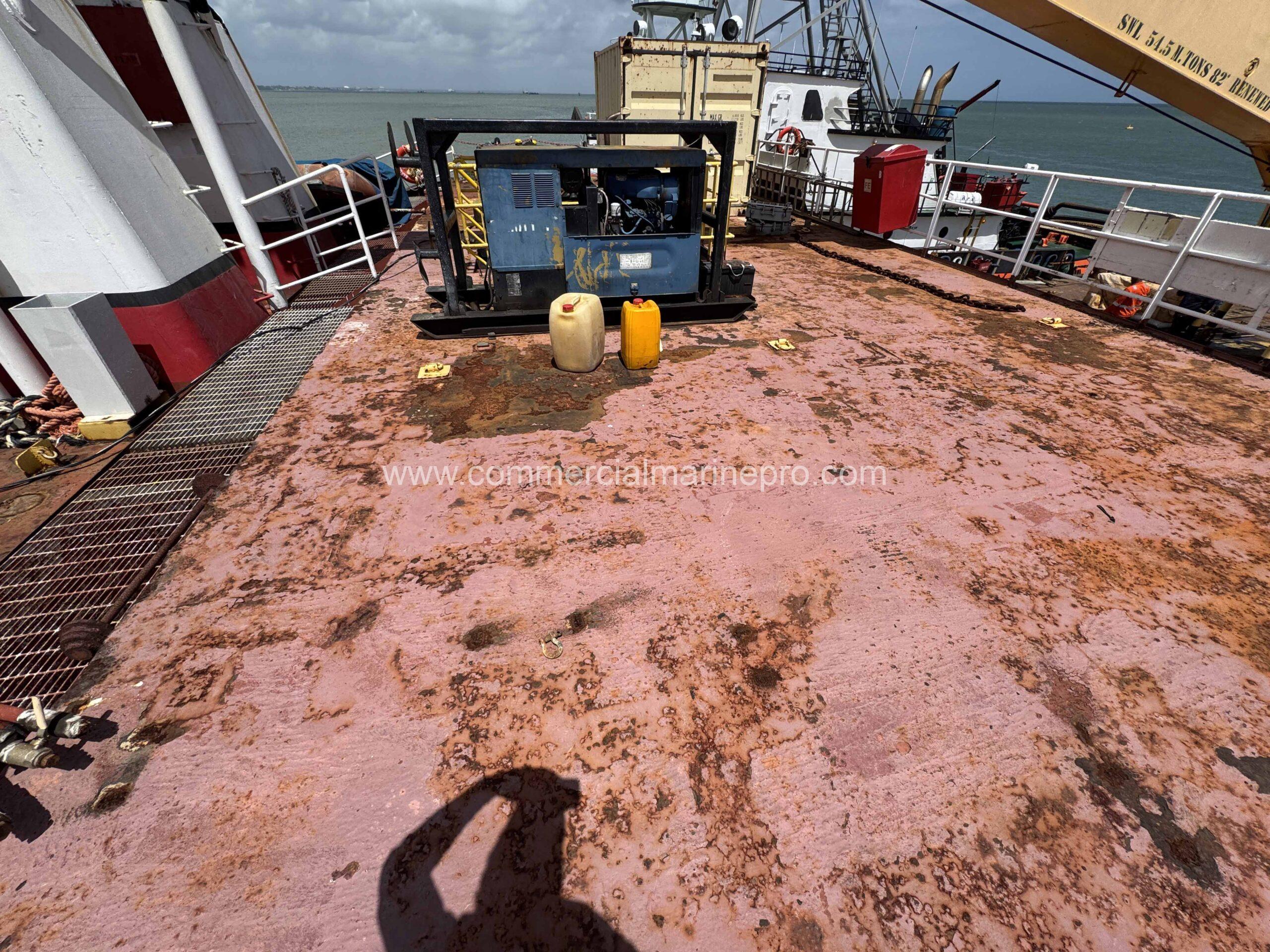

Clear Area 2,600 sqft

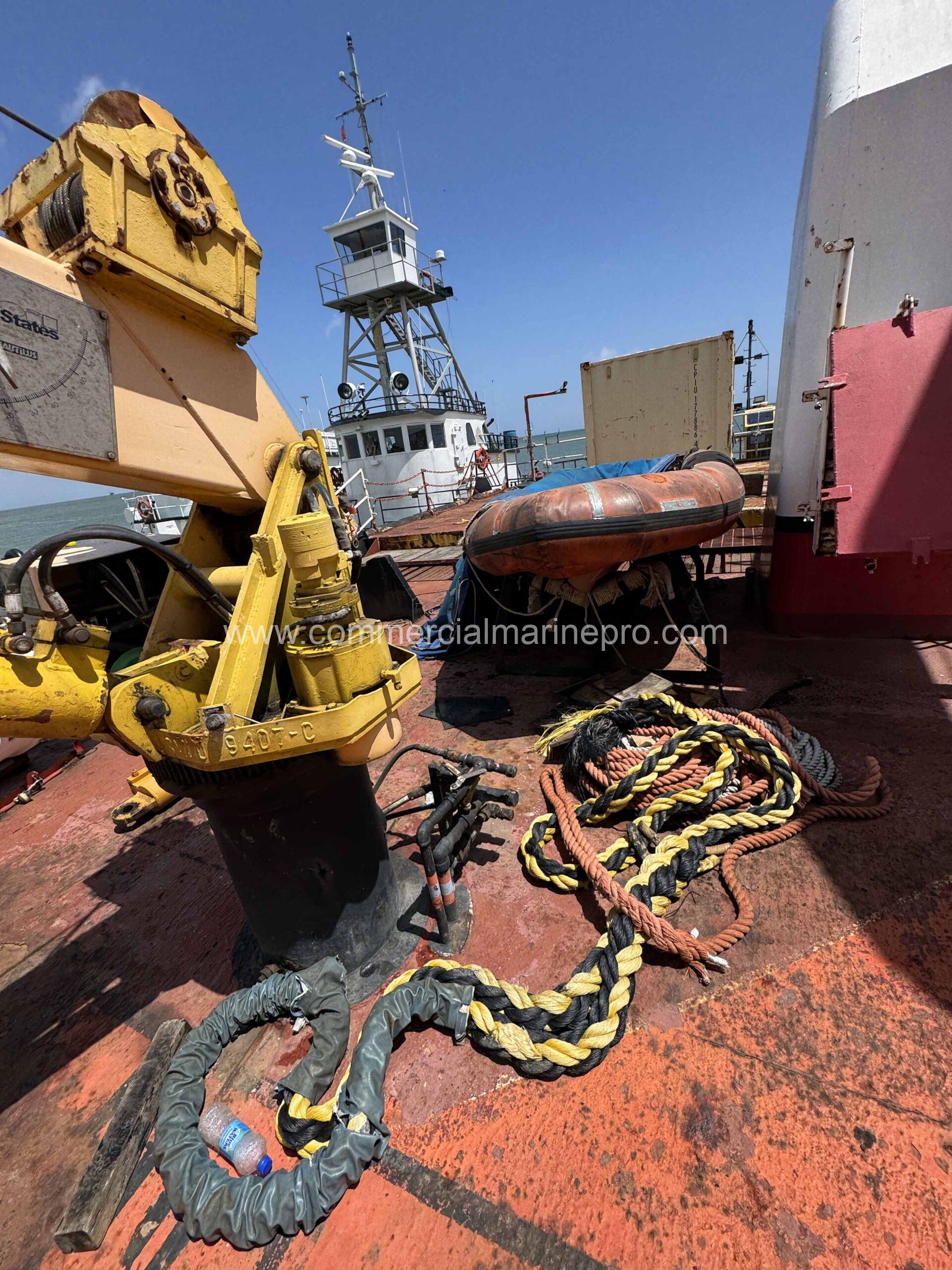

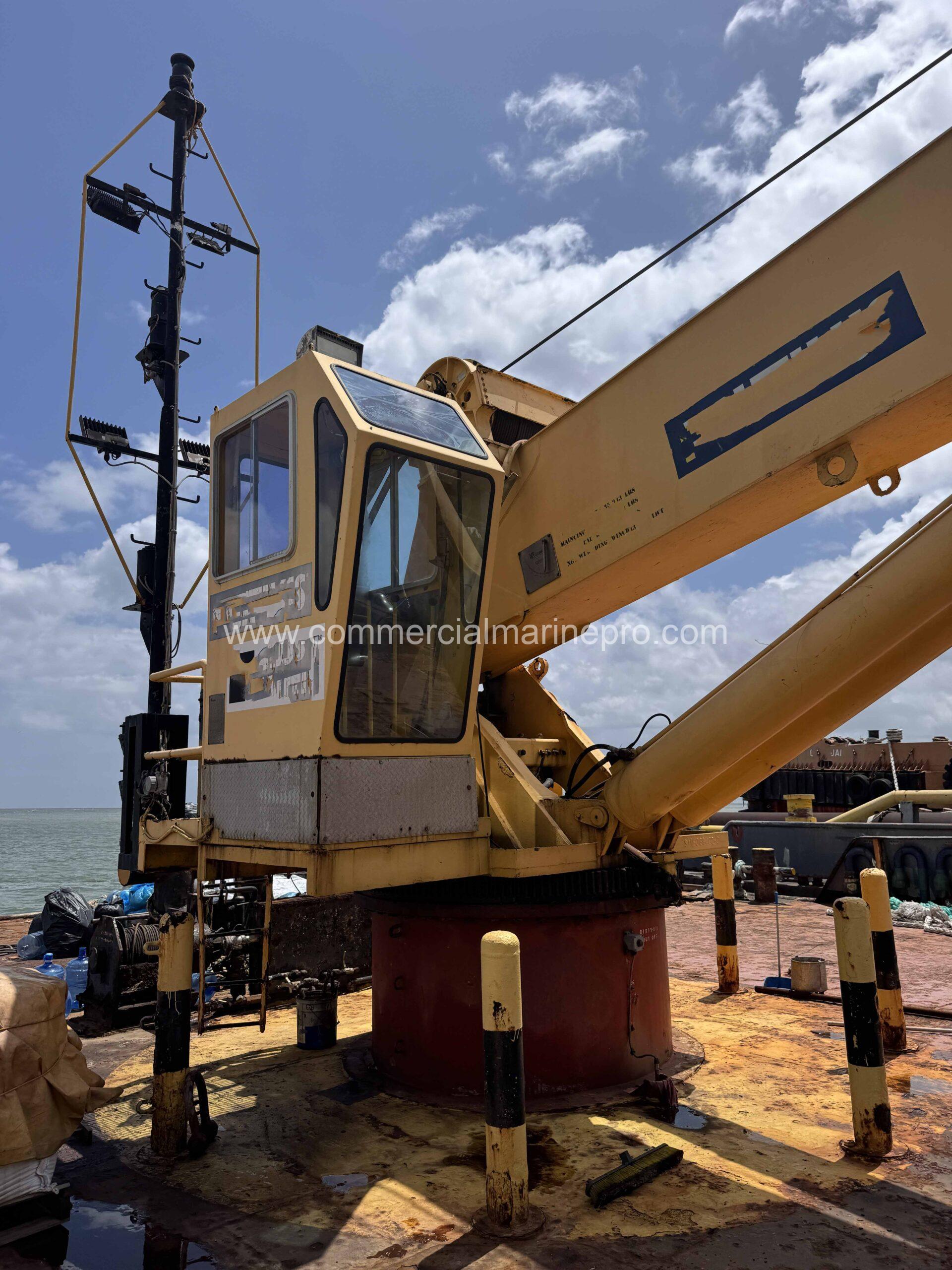

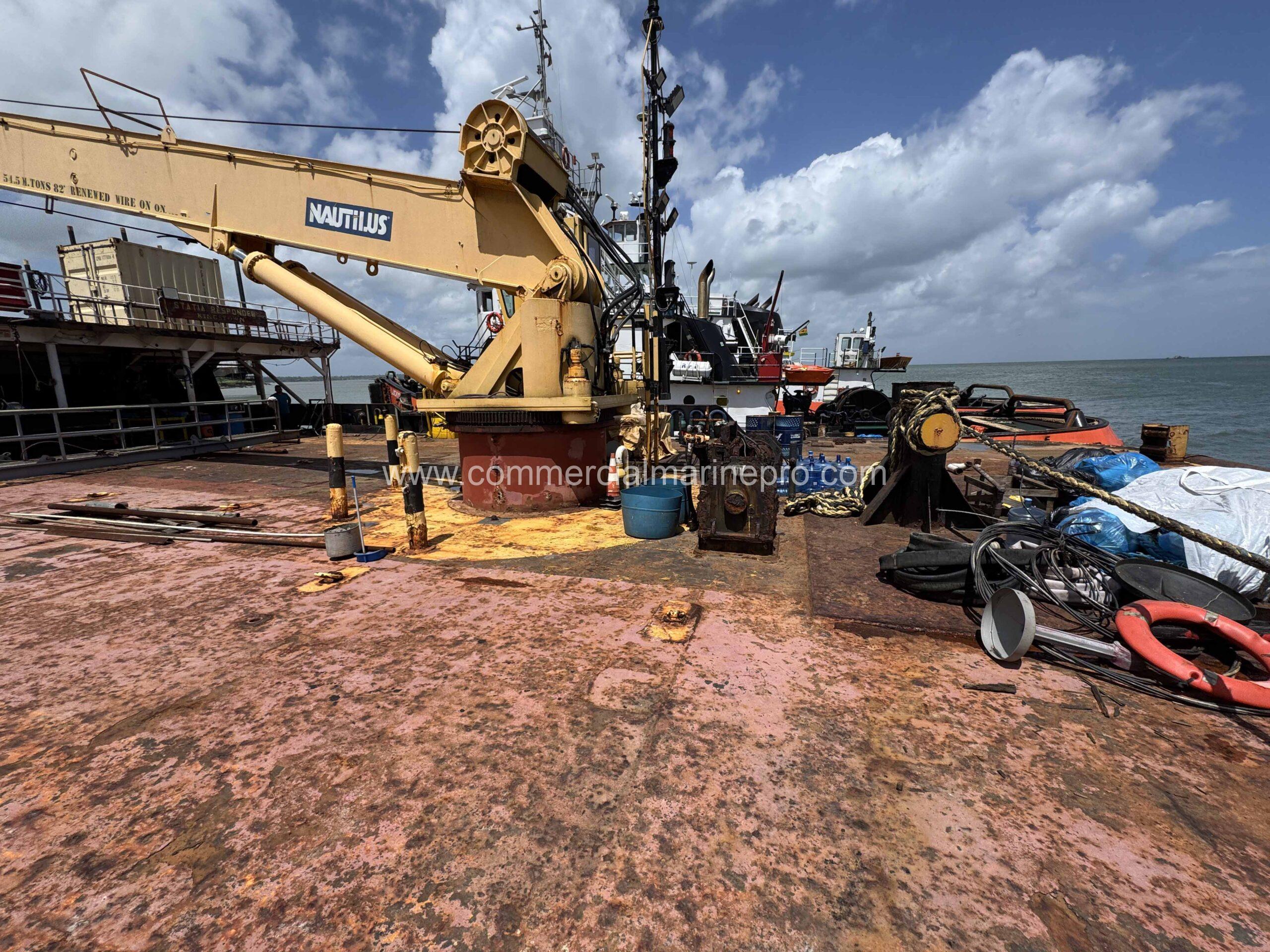

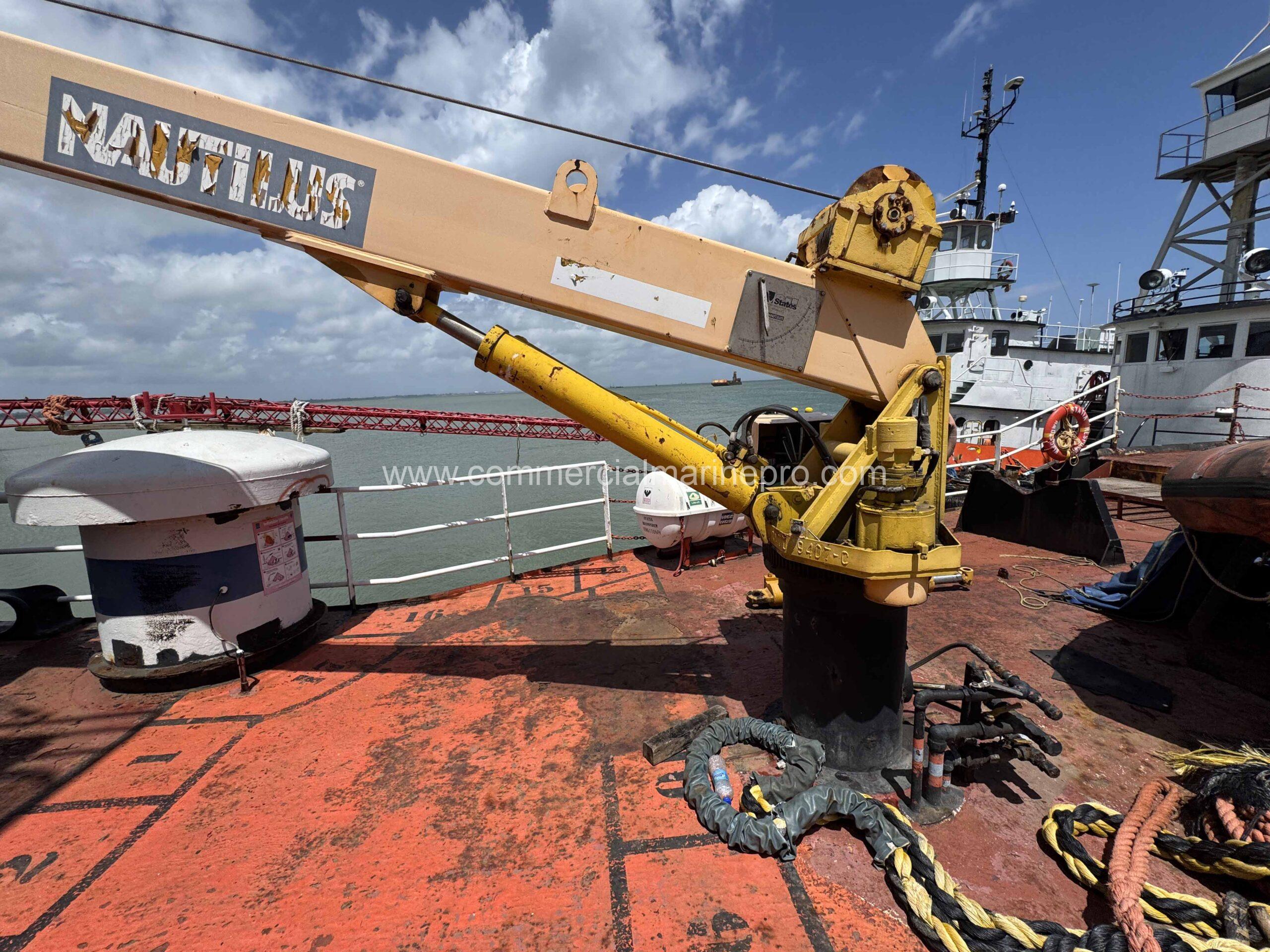

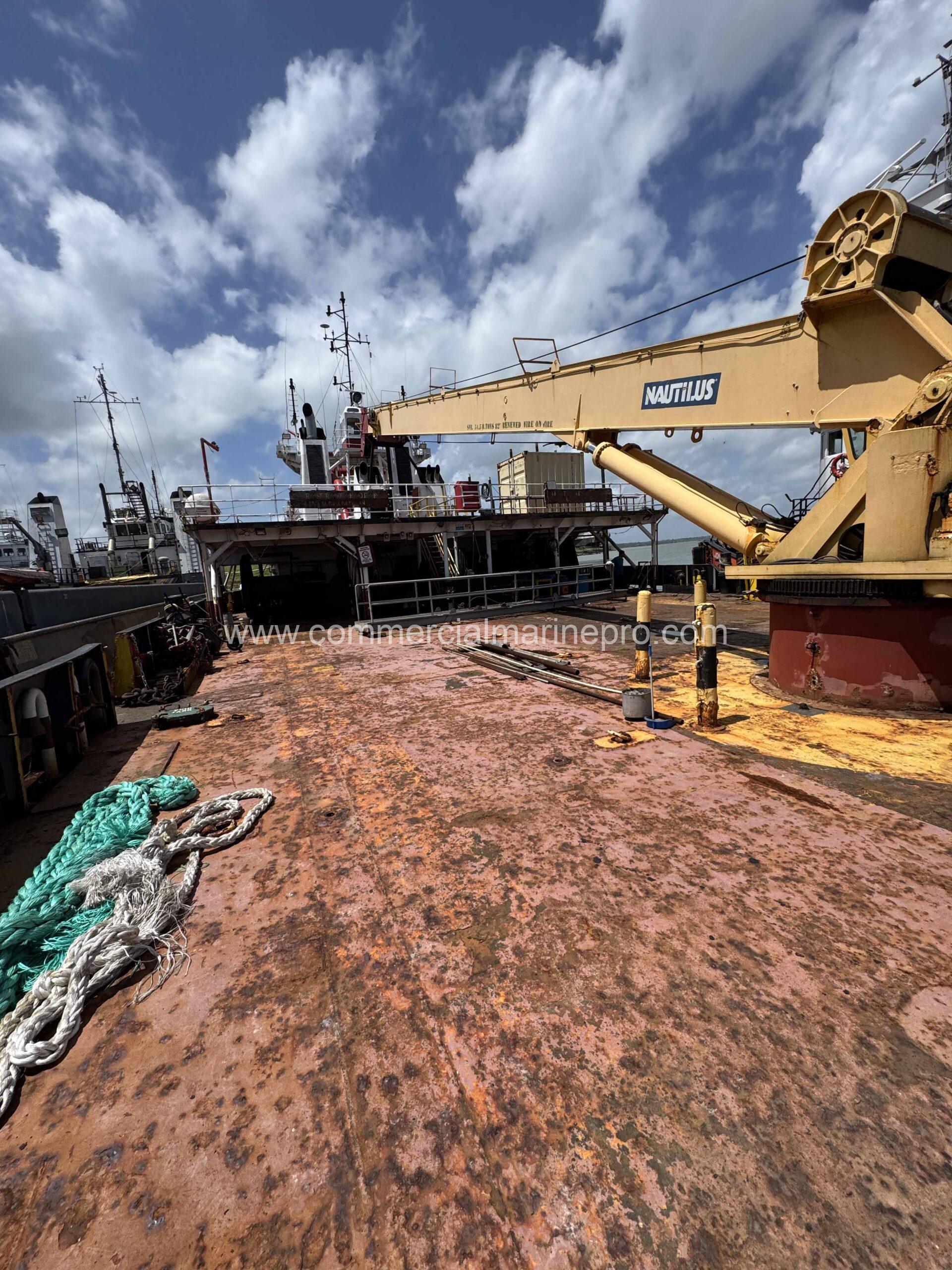

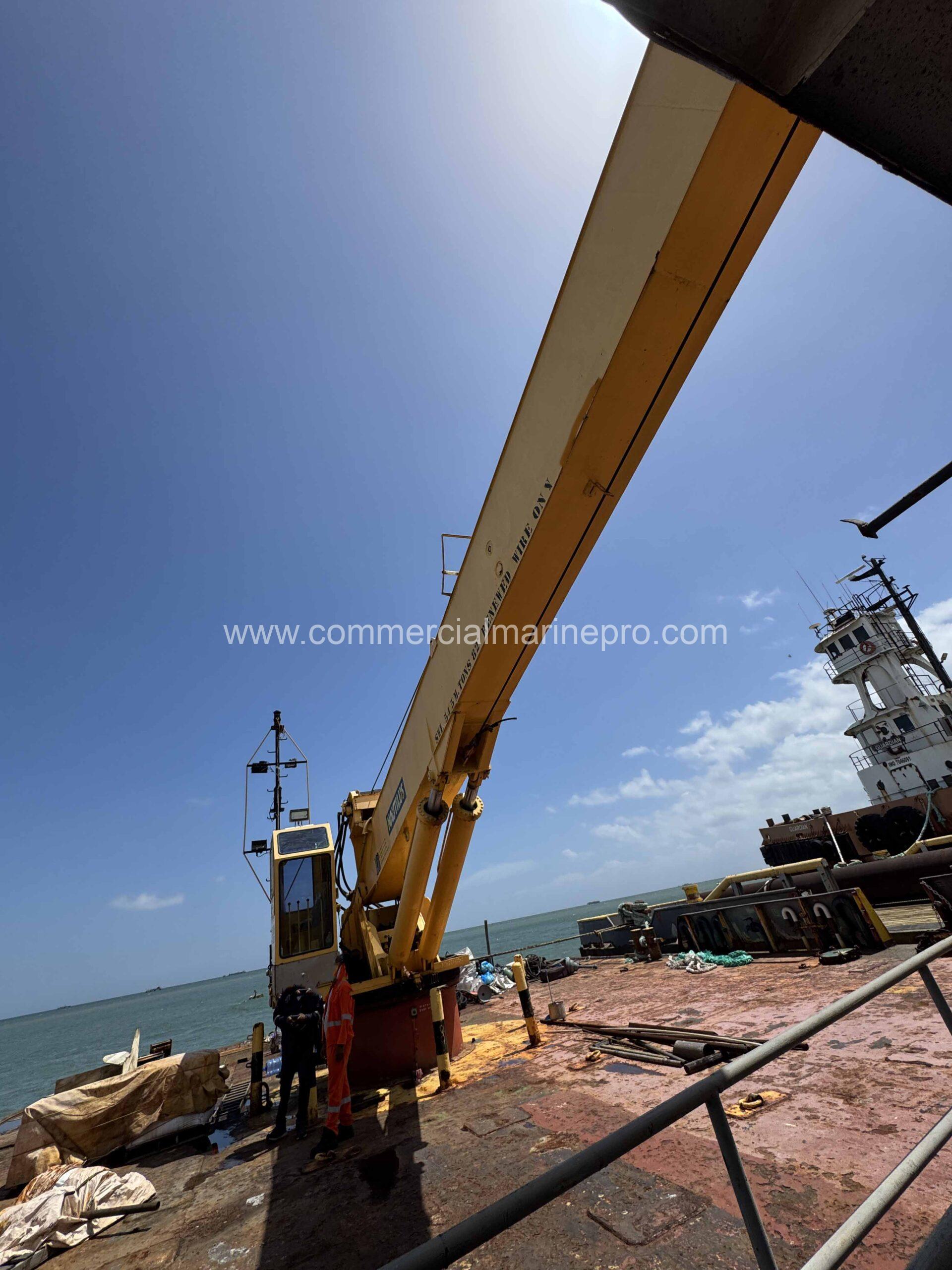

Crane Nautilus 54 ton

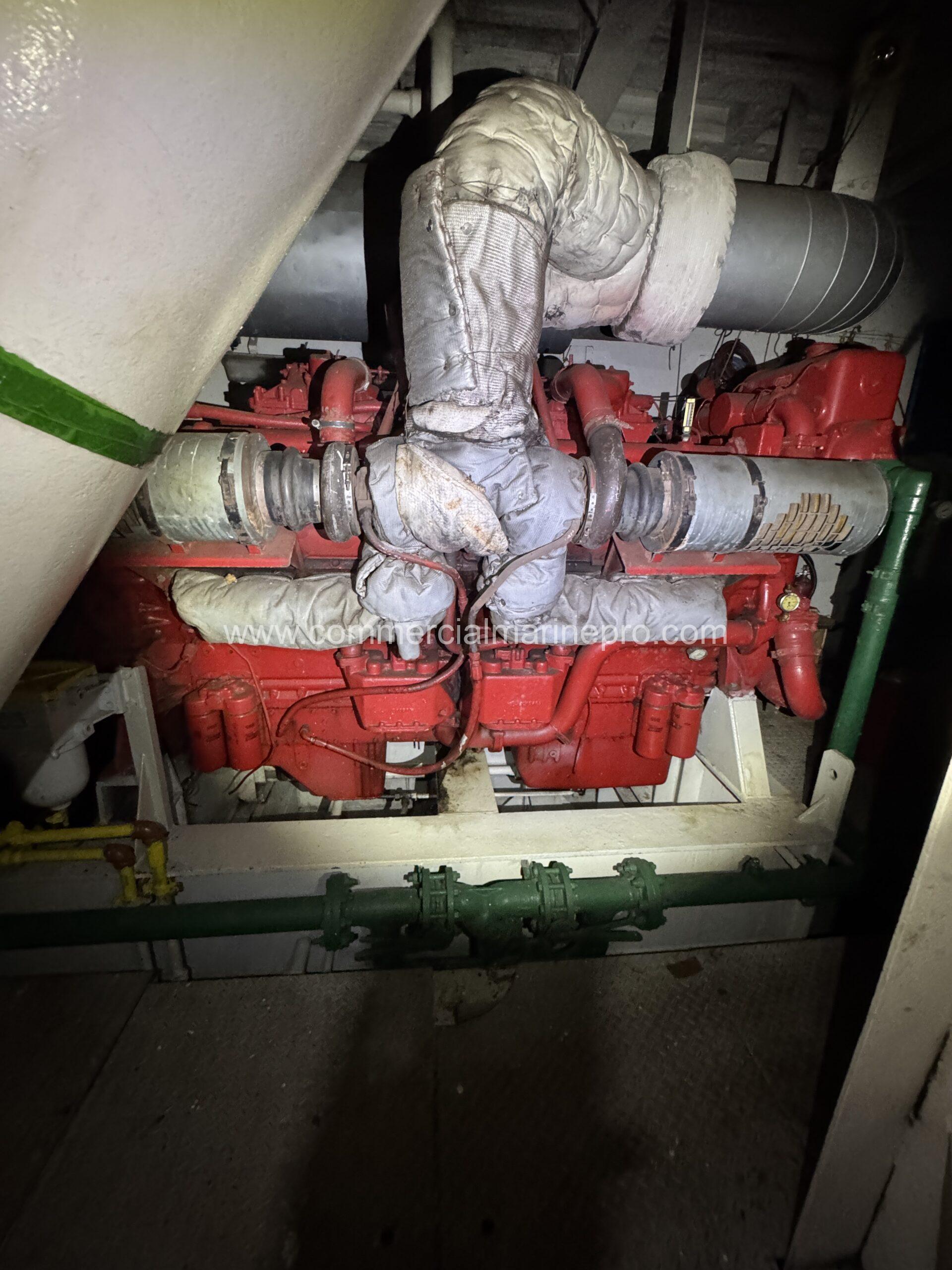

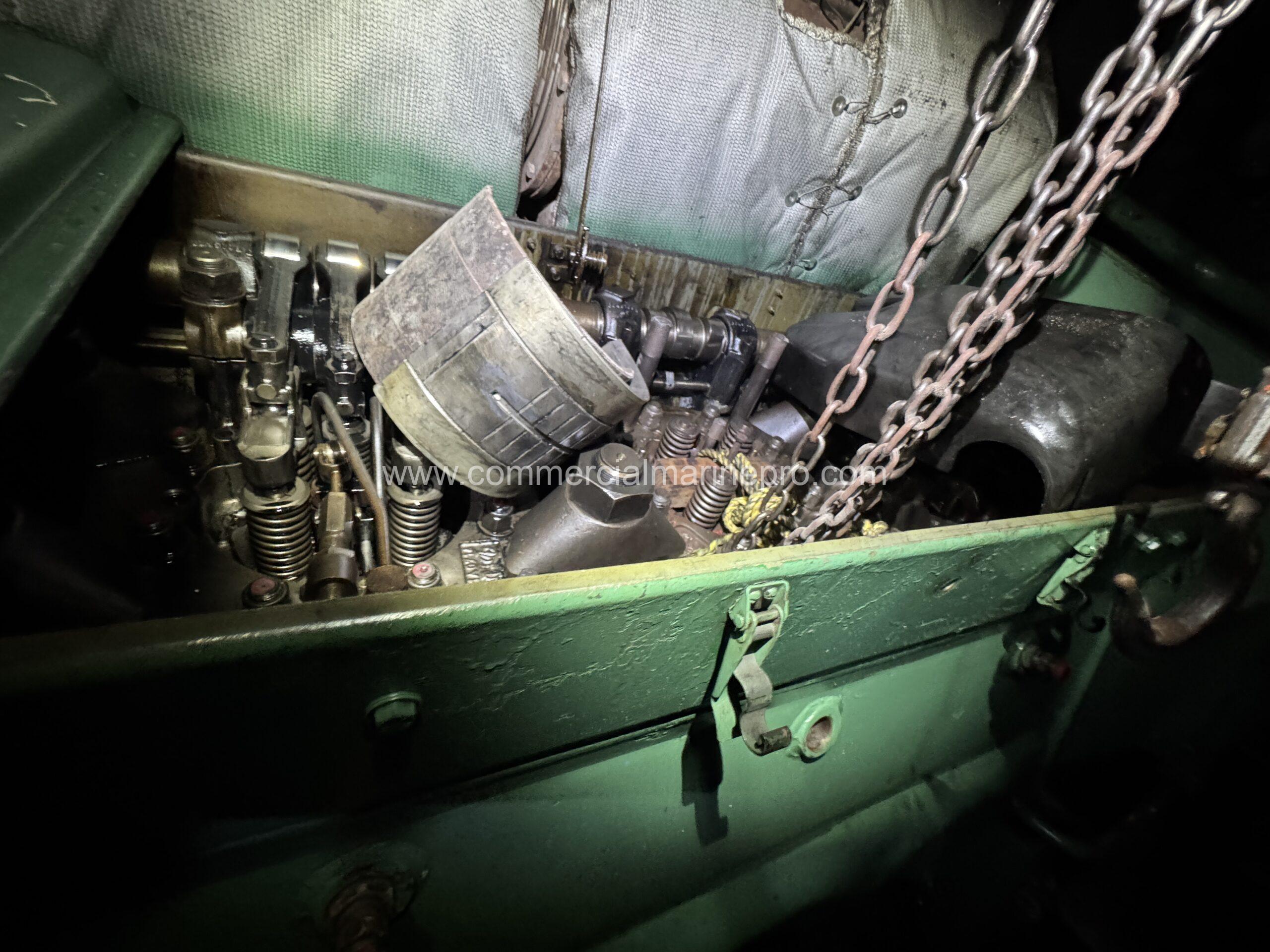

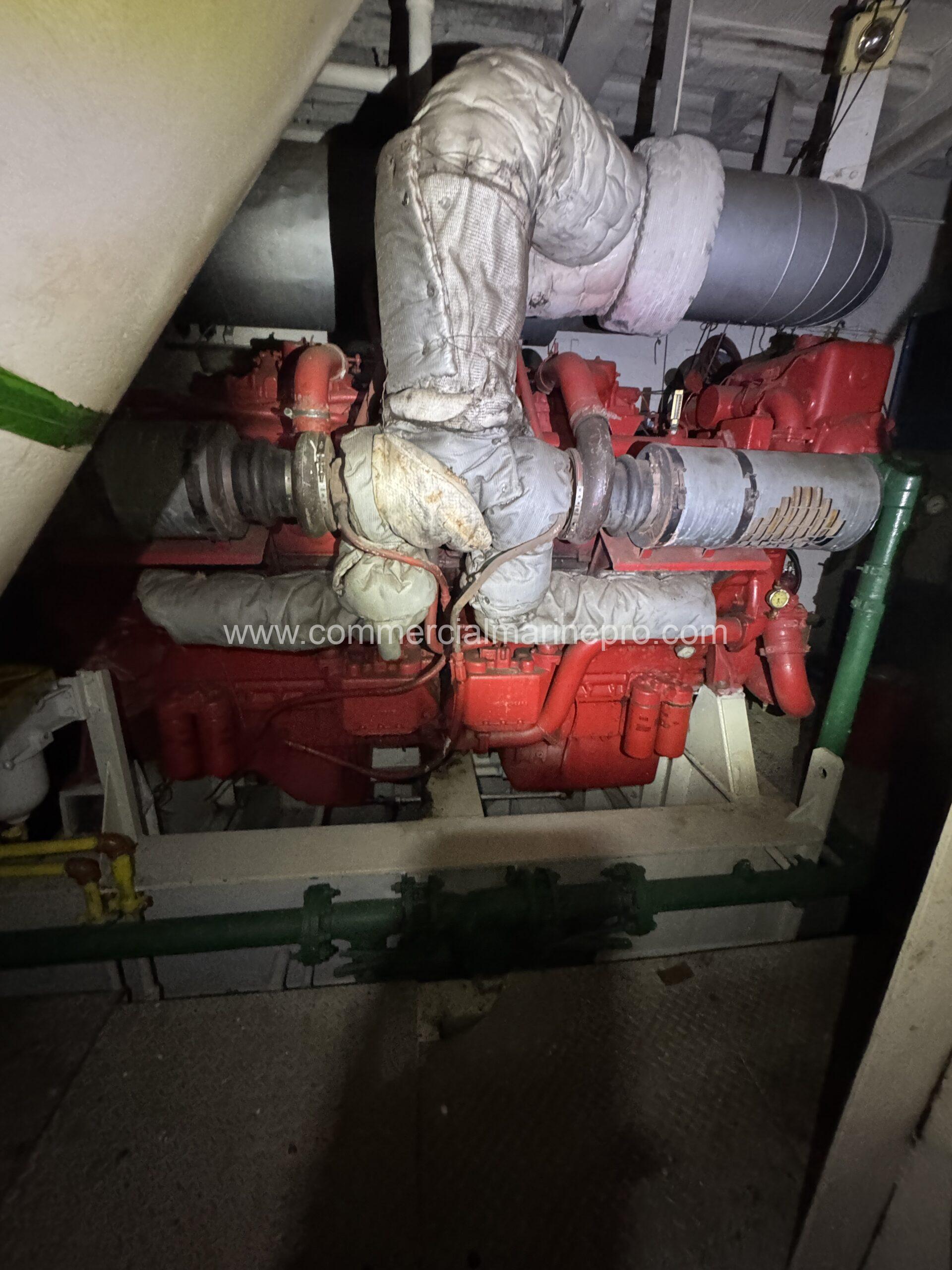

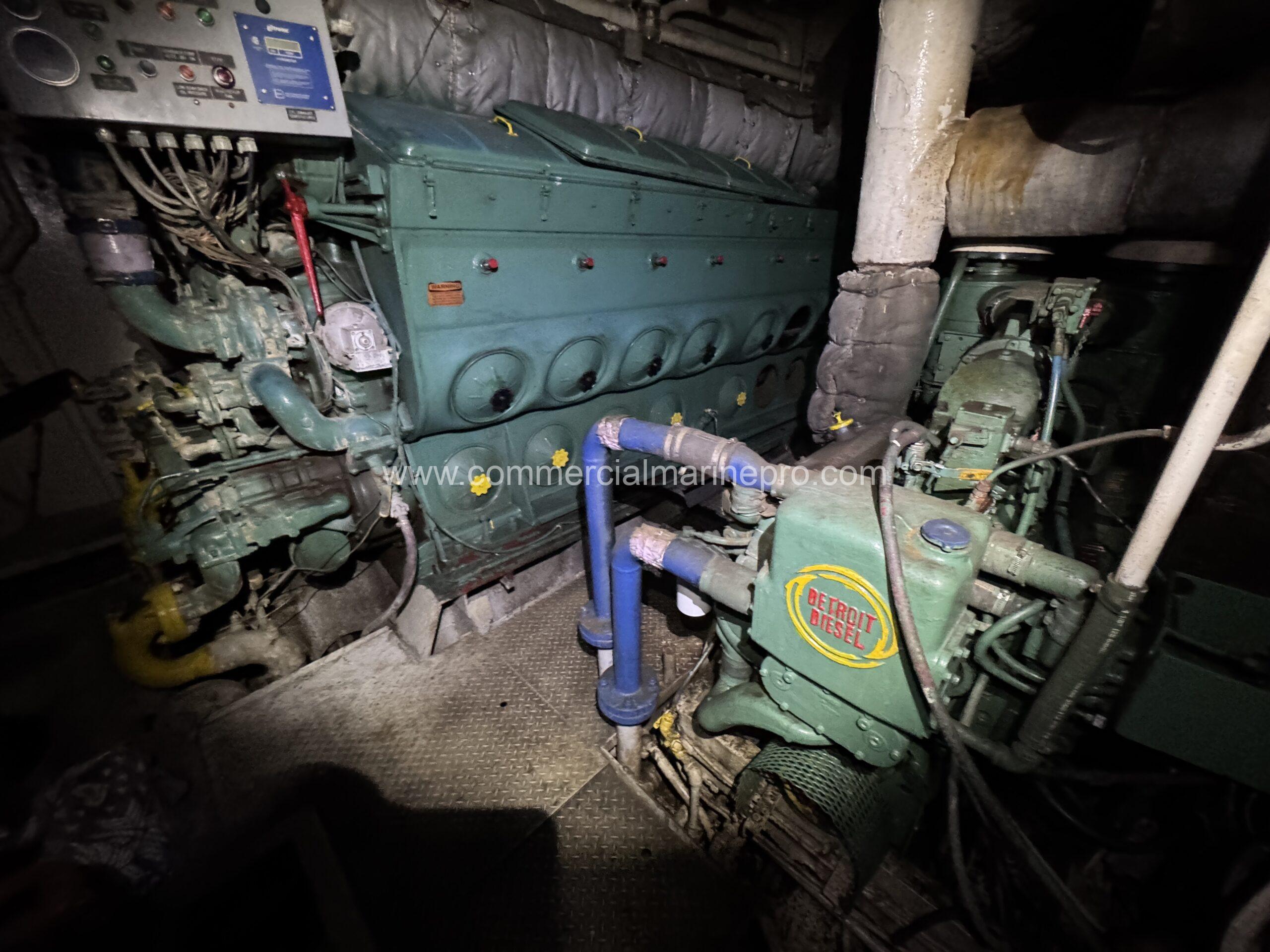

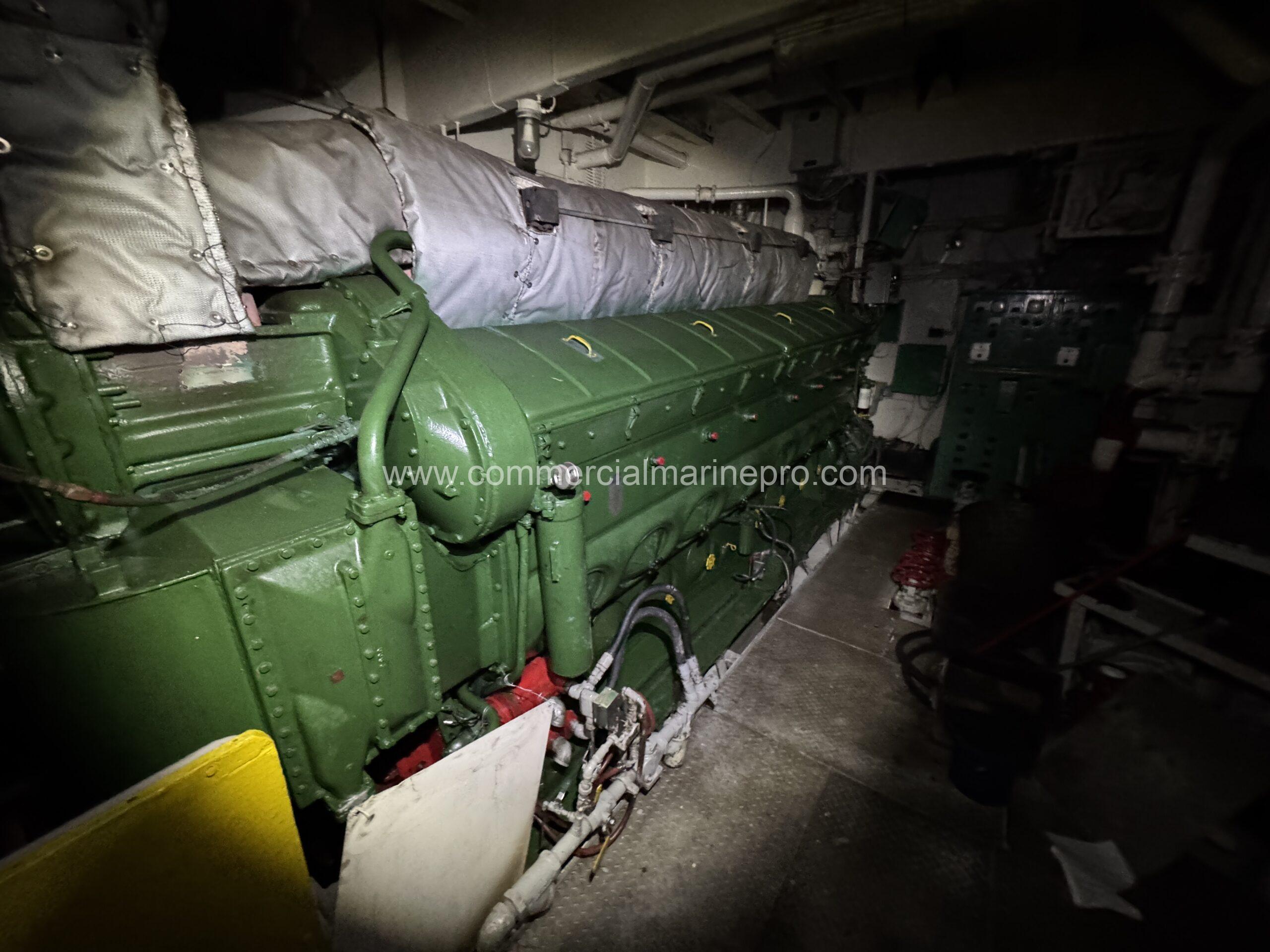

Main Engines 2 x EMD 16 V 645 E7
Brake Horsepower 5700 BHP
Reduction Gears Reintjes Transmissions
Gear Ratio 4.26:1
Rudder 2 Spade Type
Propellers 2 – 128” D x 54” P

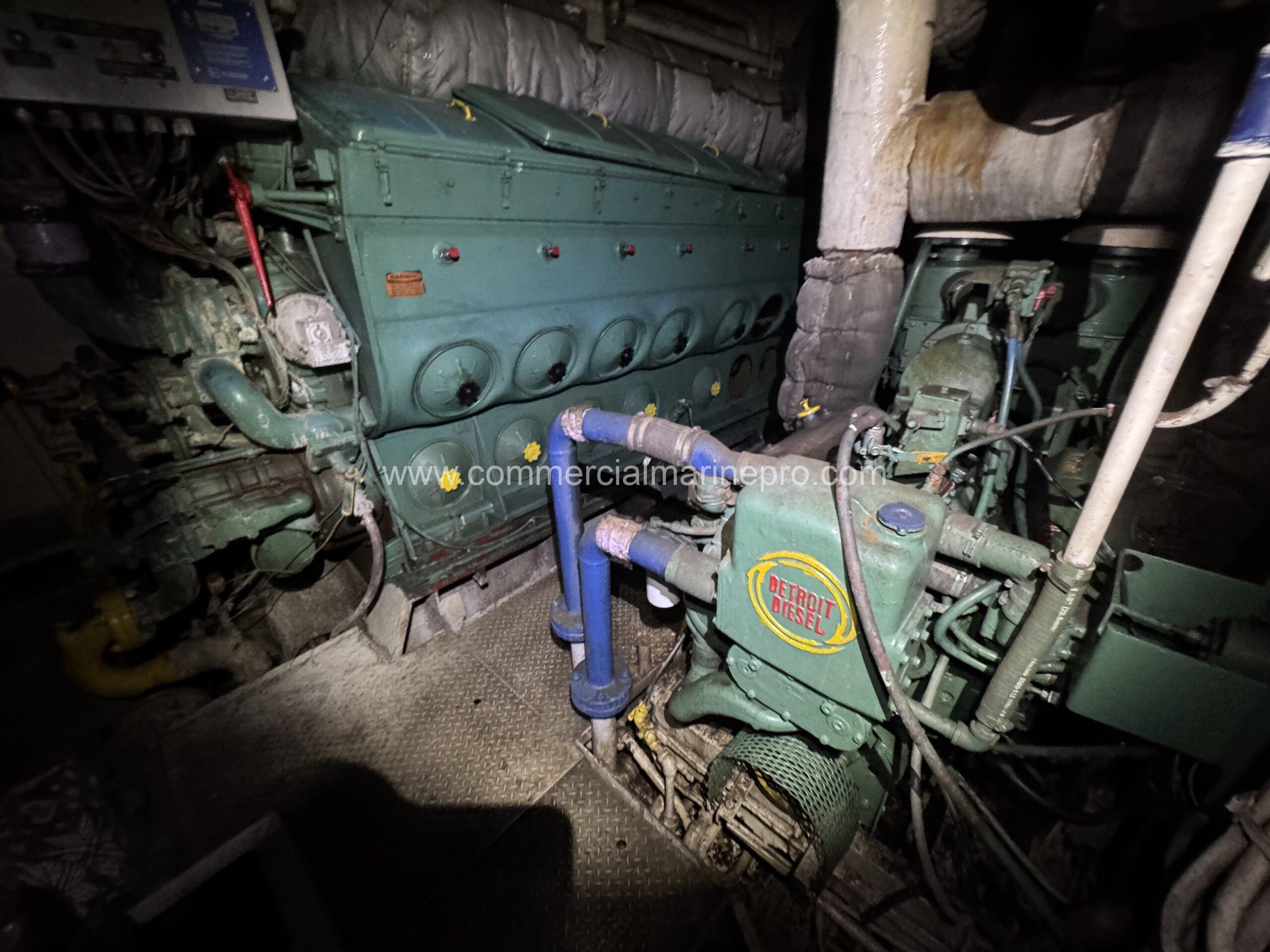

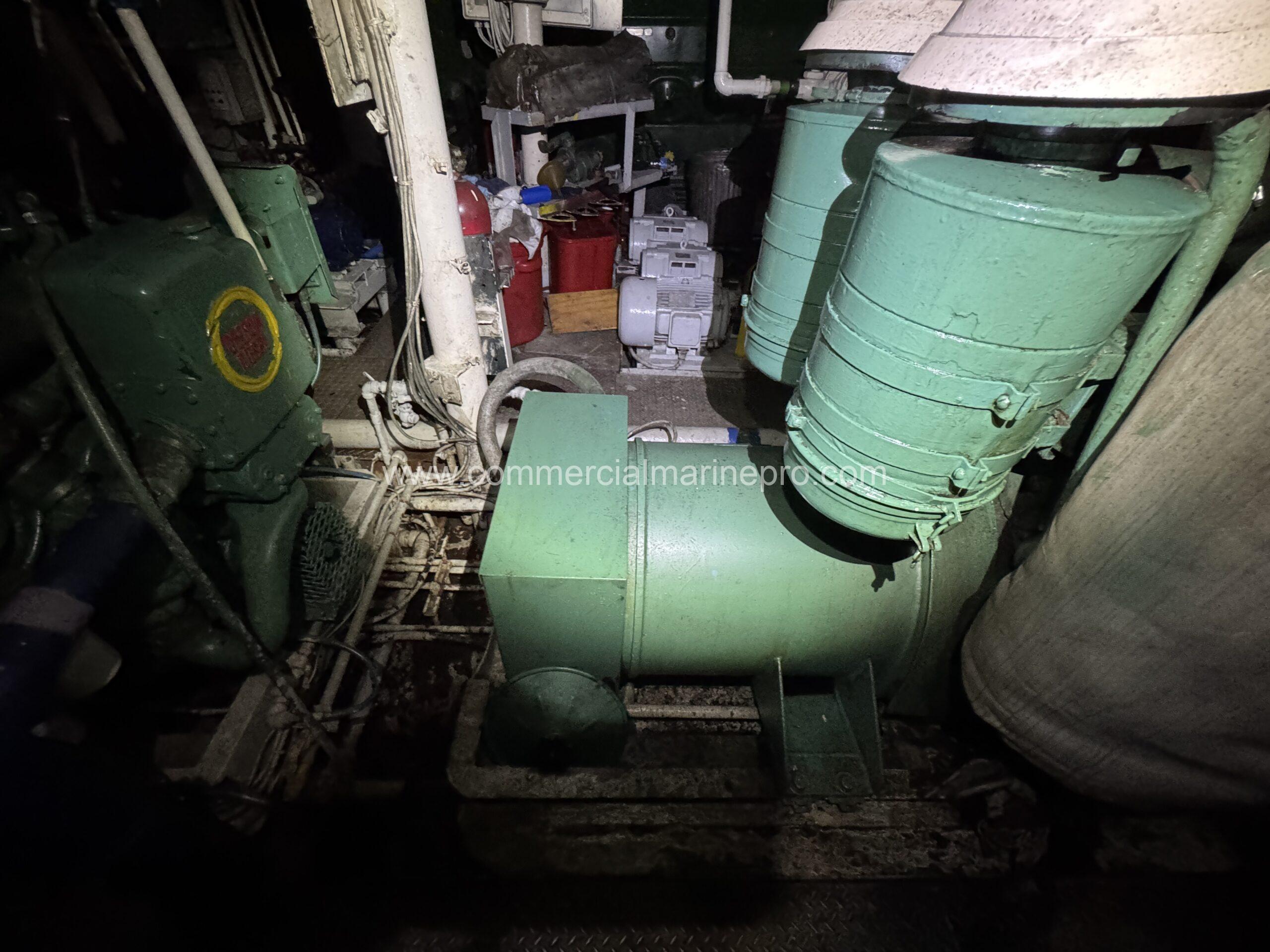

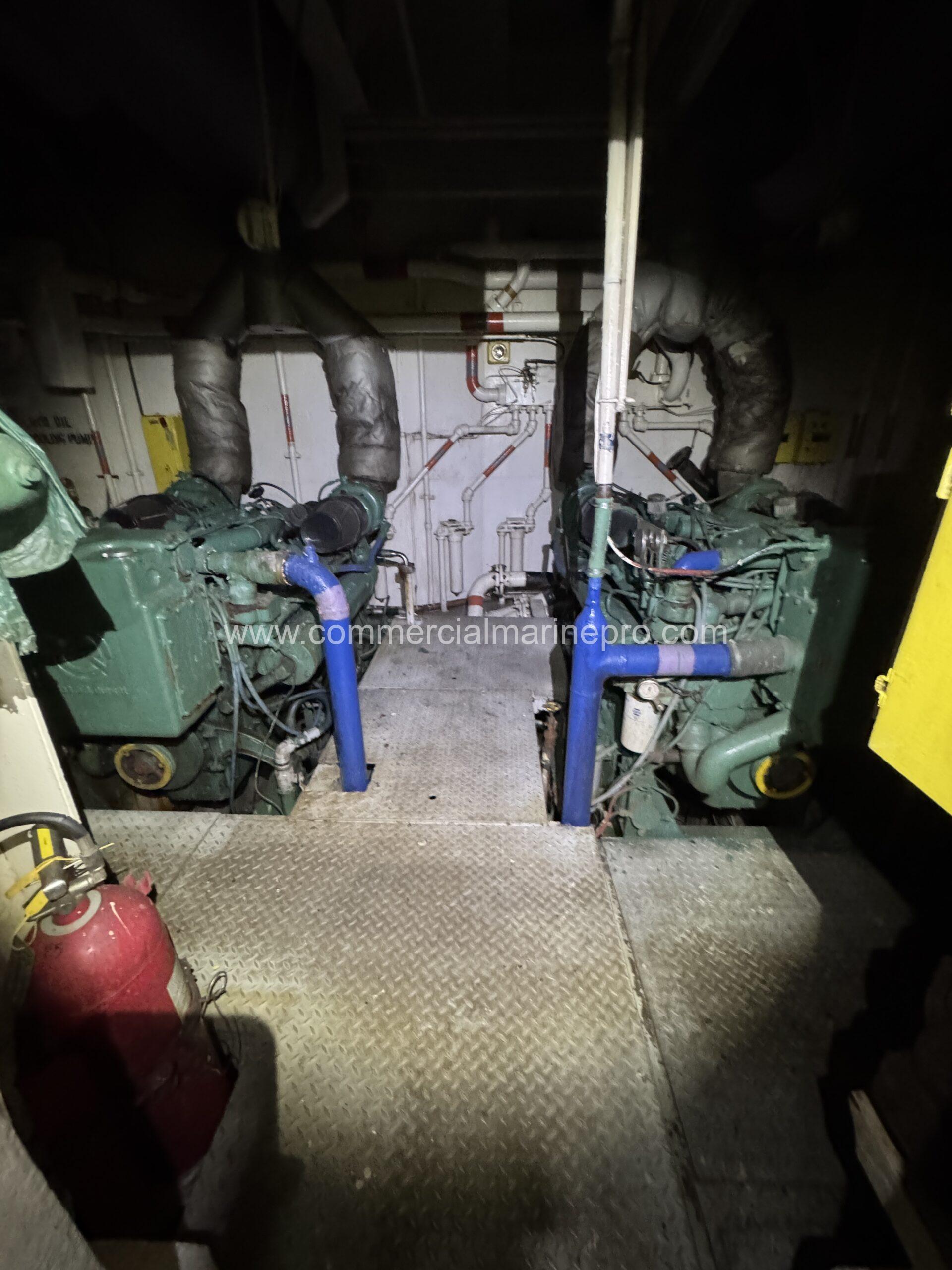

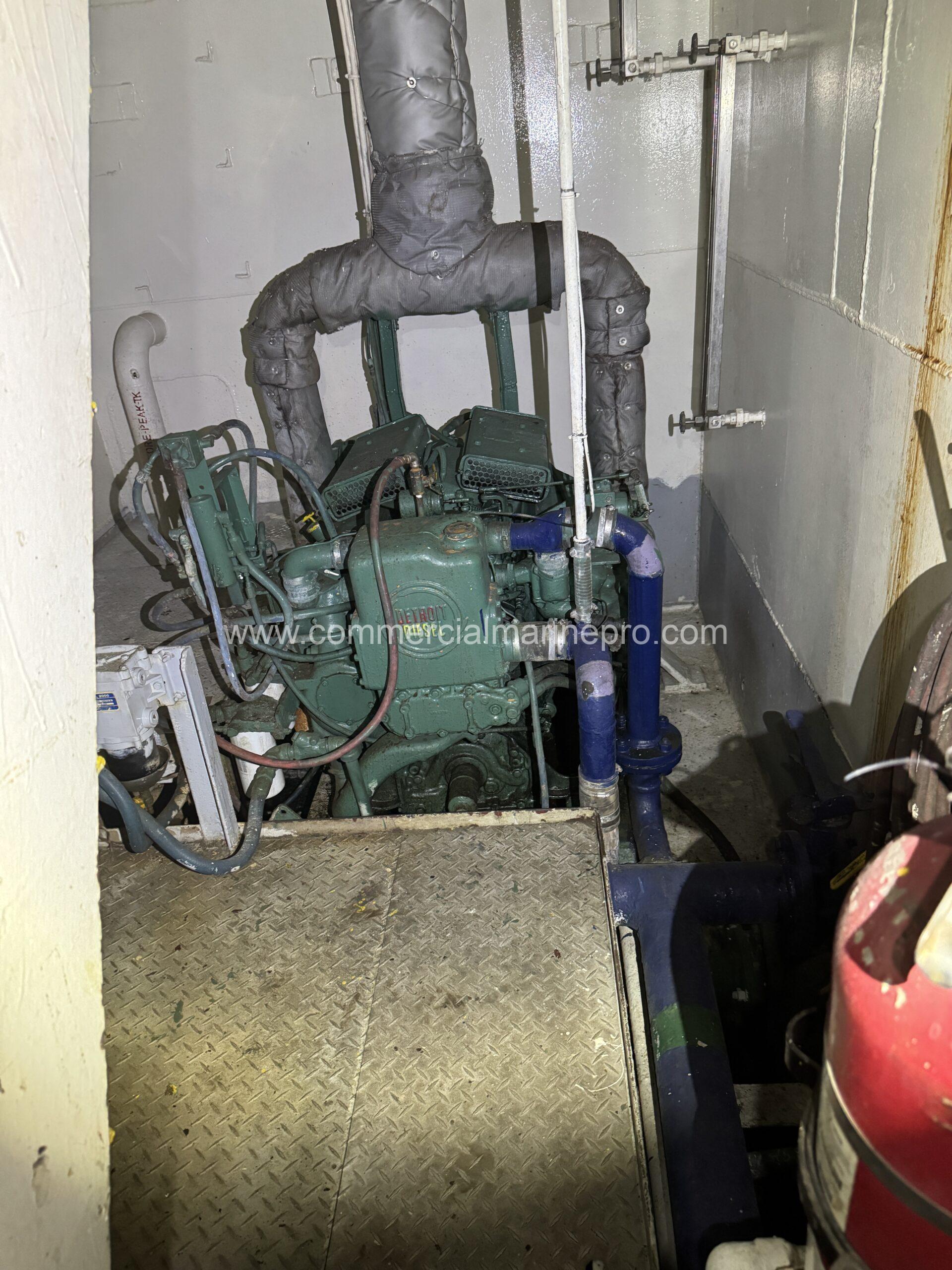

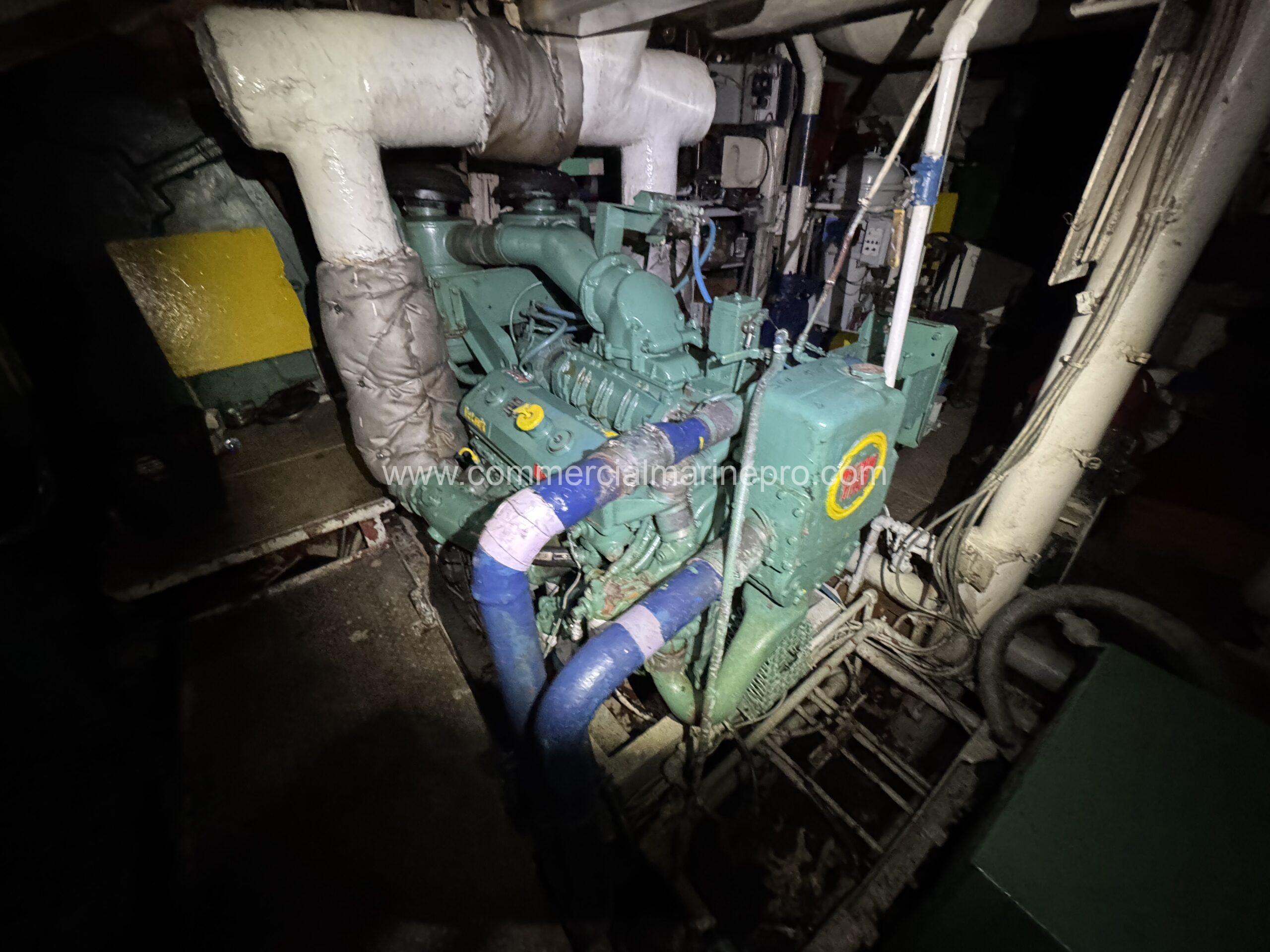

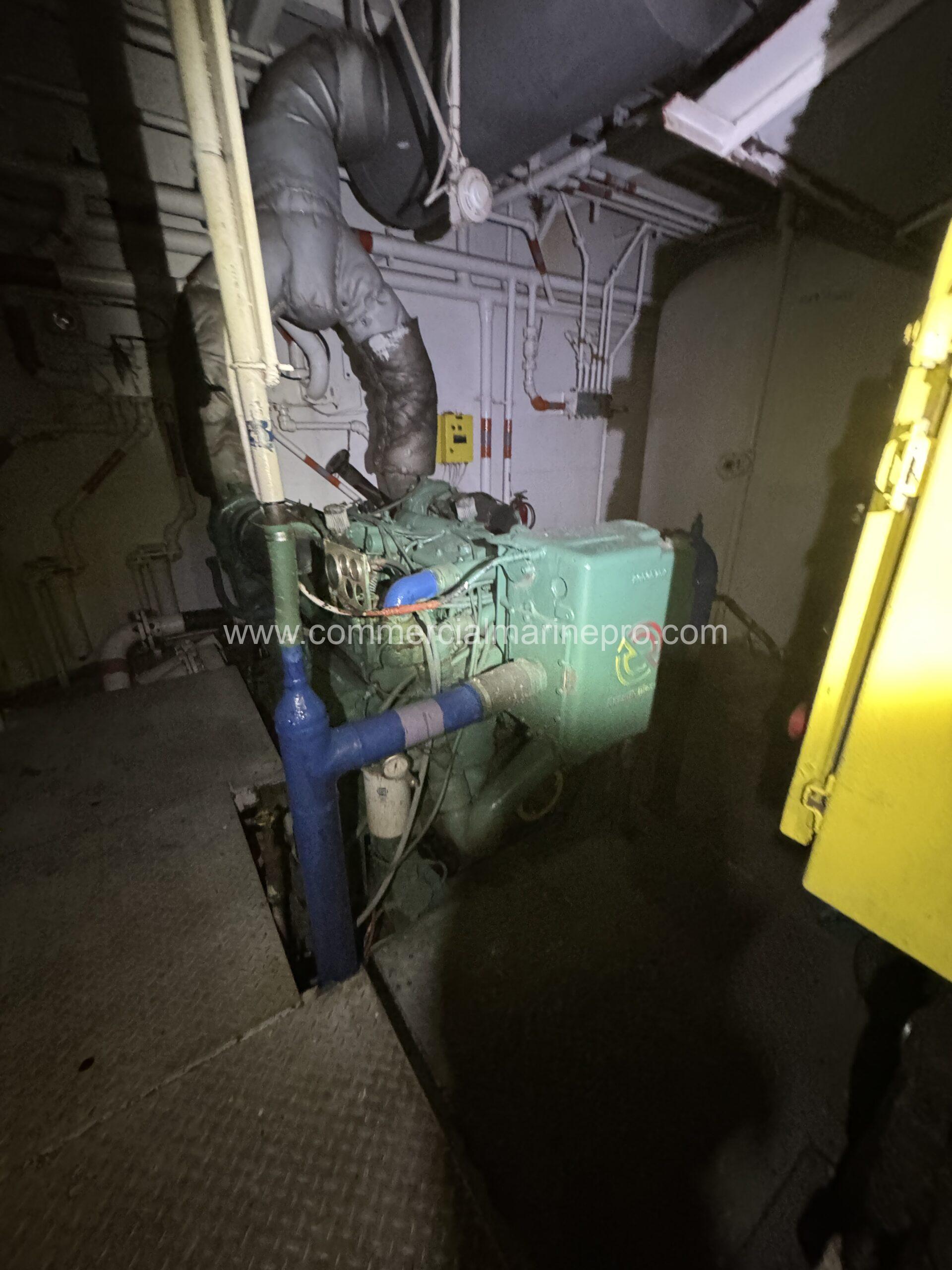

Auxiliary Generators 2 – 99 KW, 120 / 208
VAC, 3 Phase, 60 Hz
Drill / Potable Water 250 USD / Min @ 160ft
Fuel 200 USG / Min @ 160ft

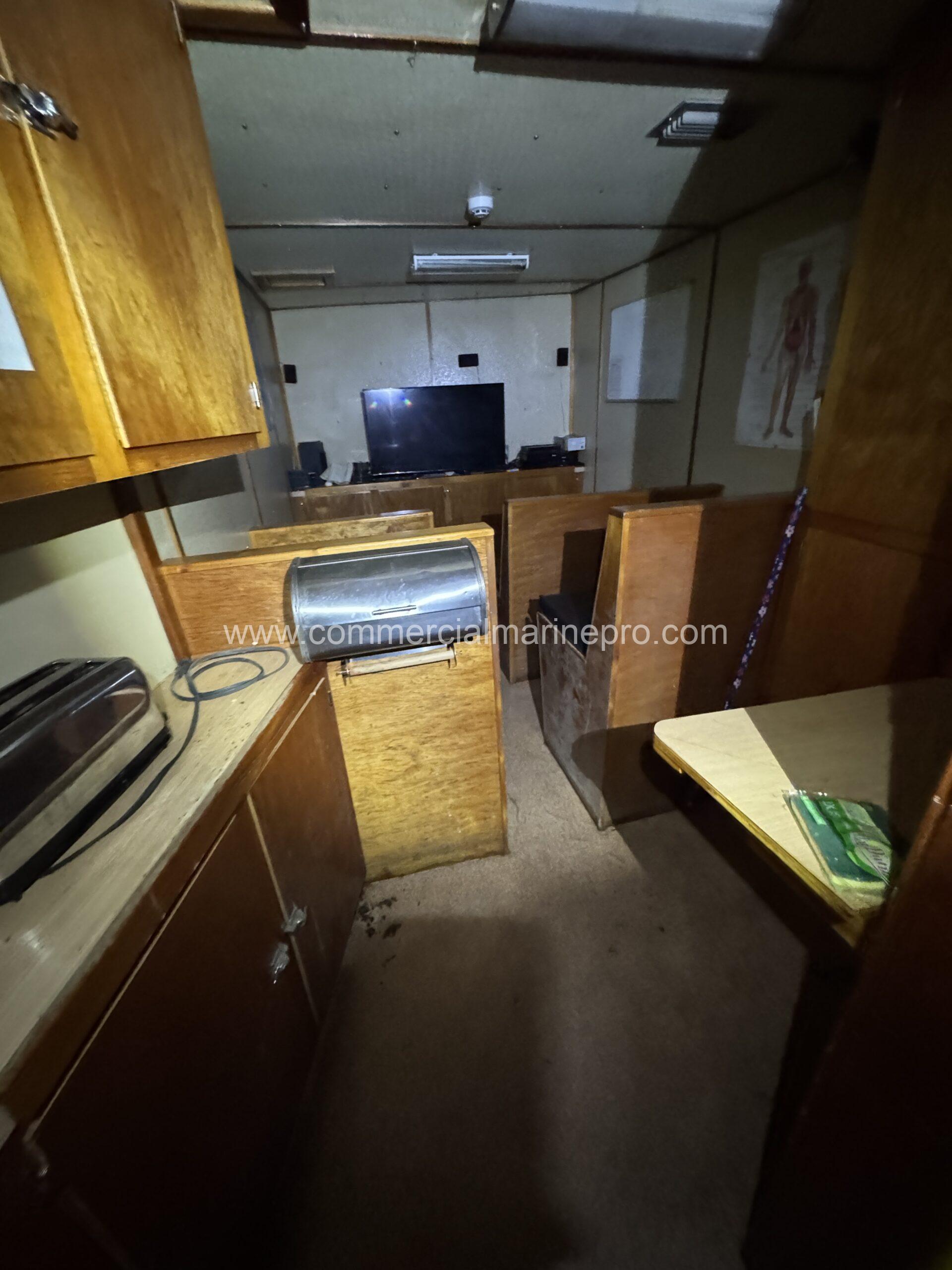

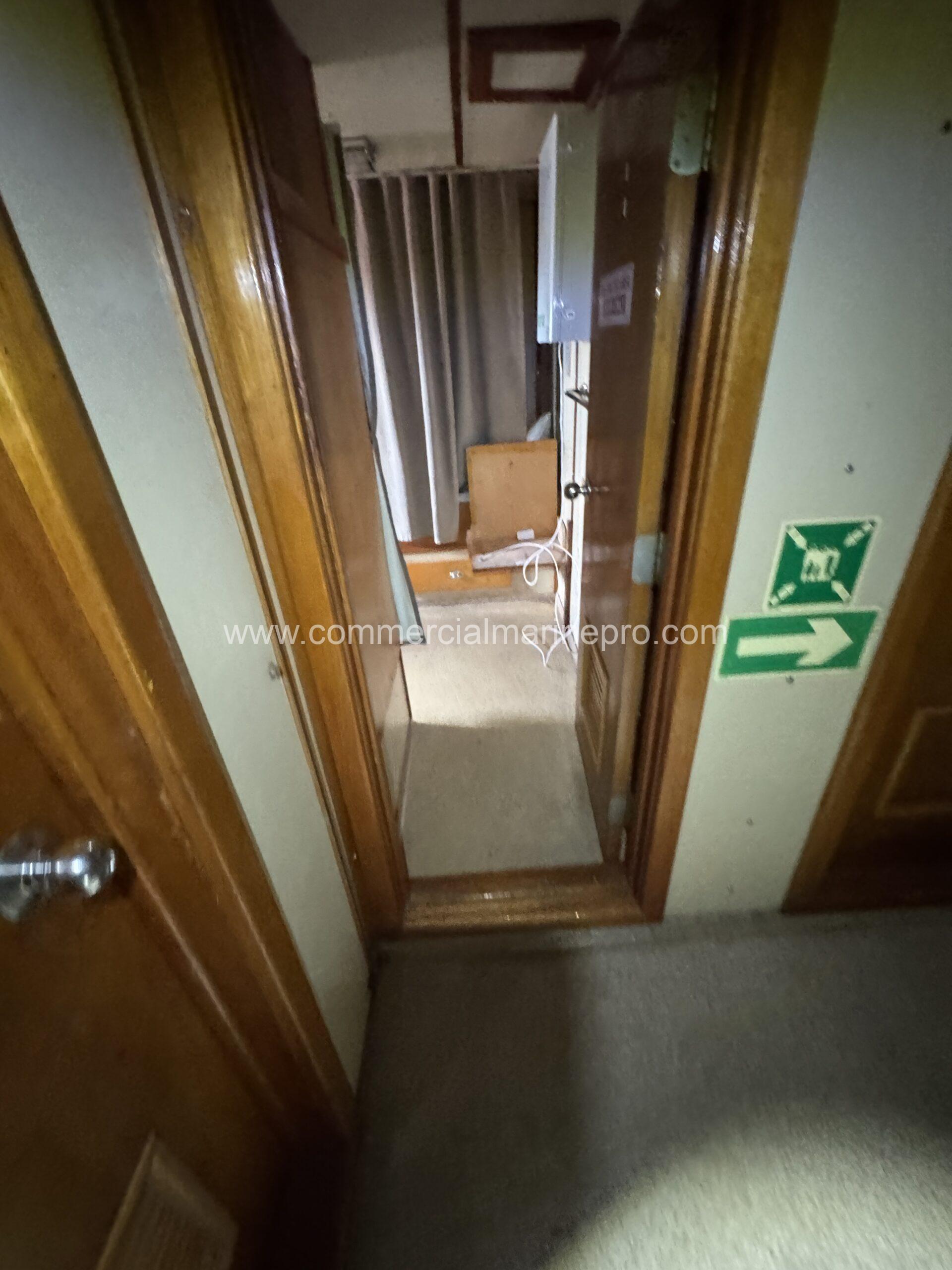

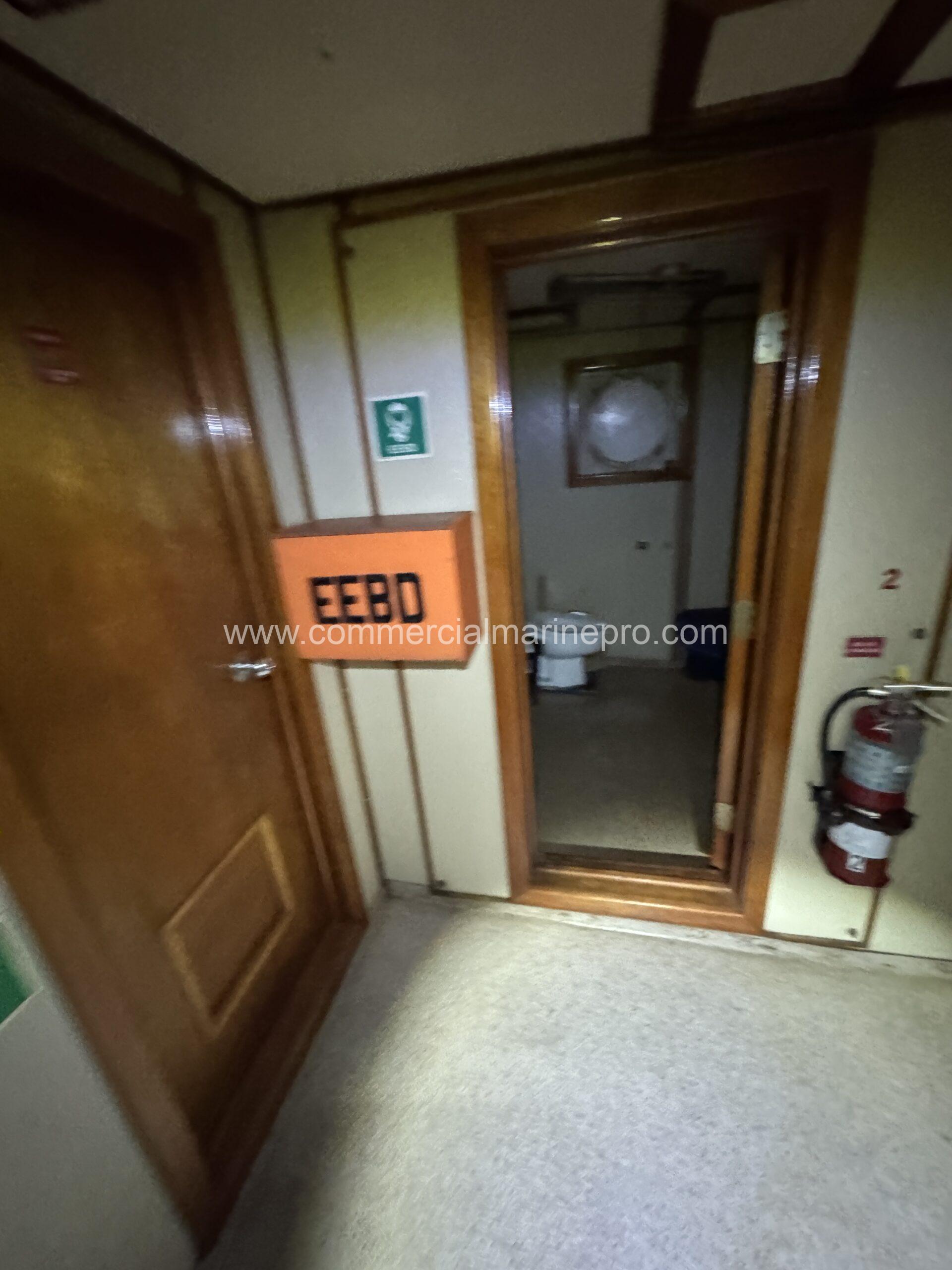

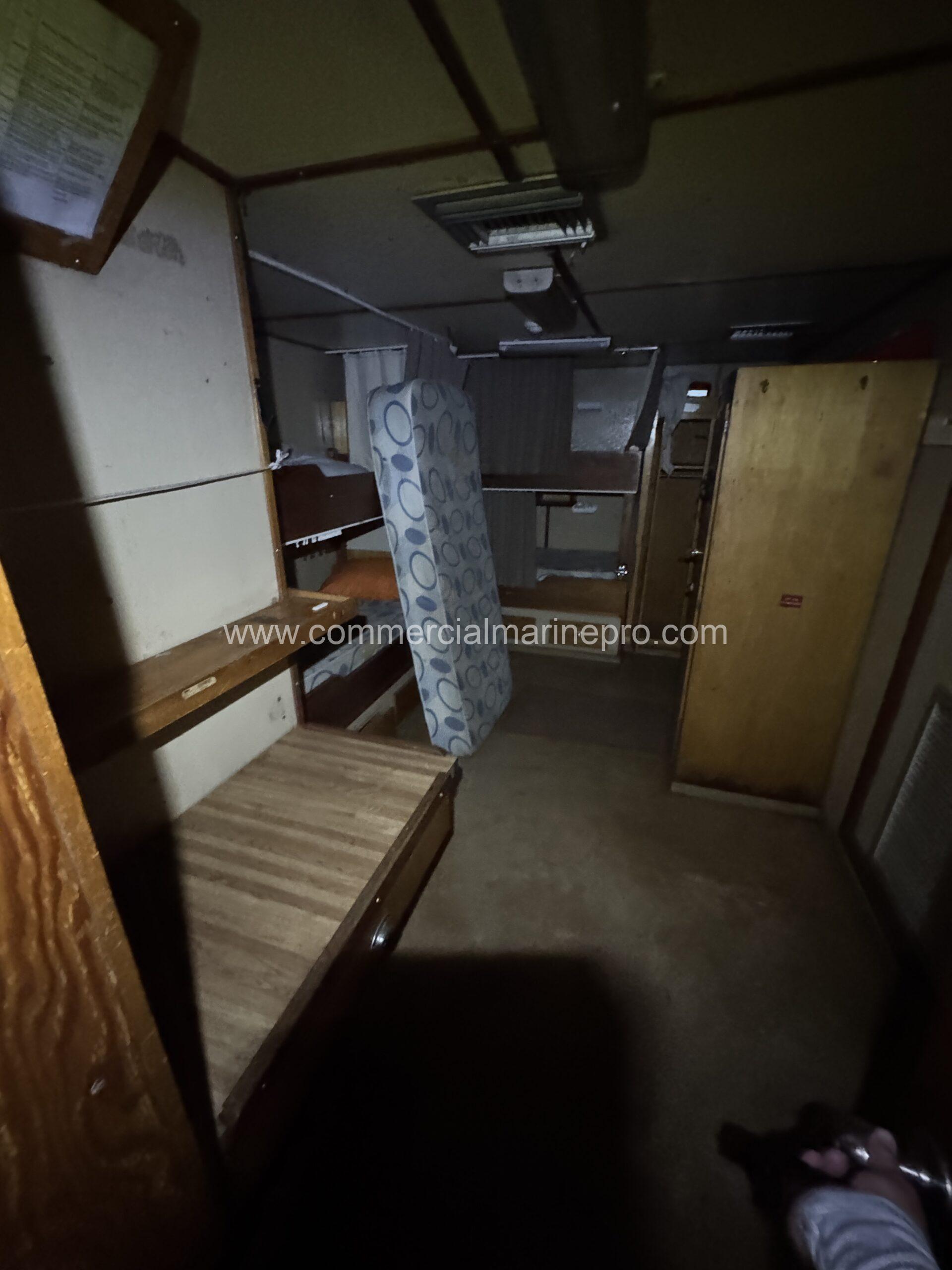

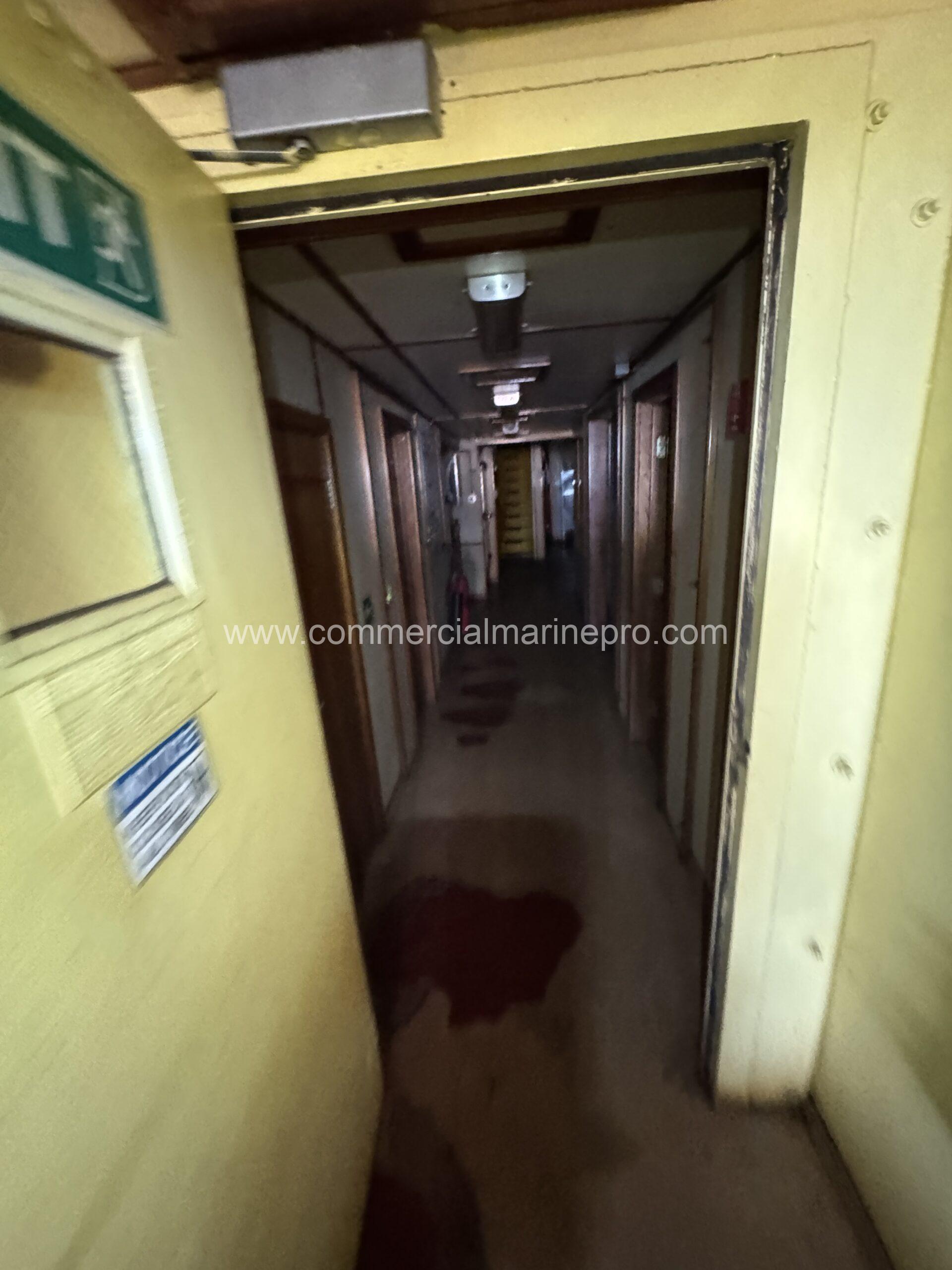

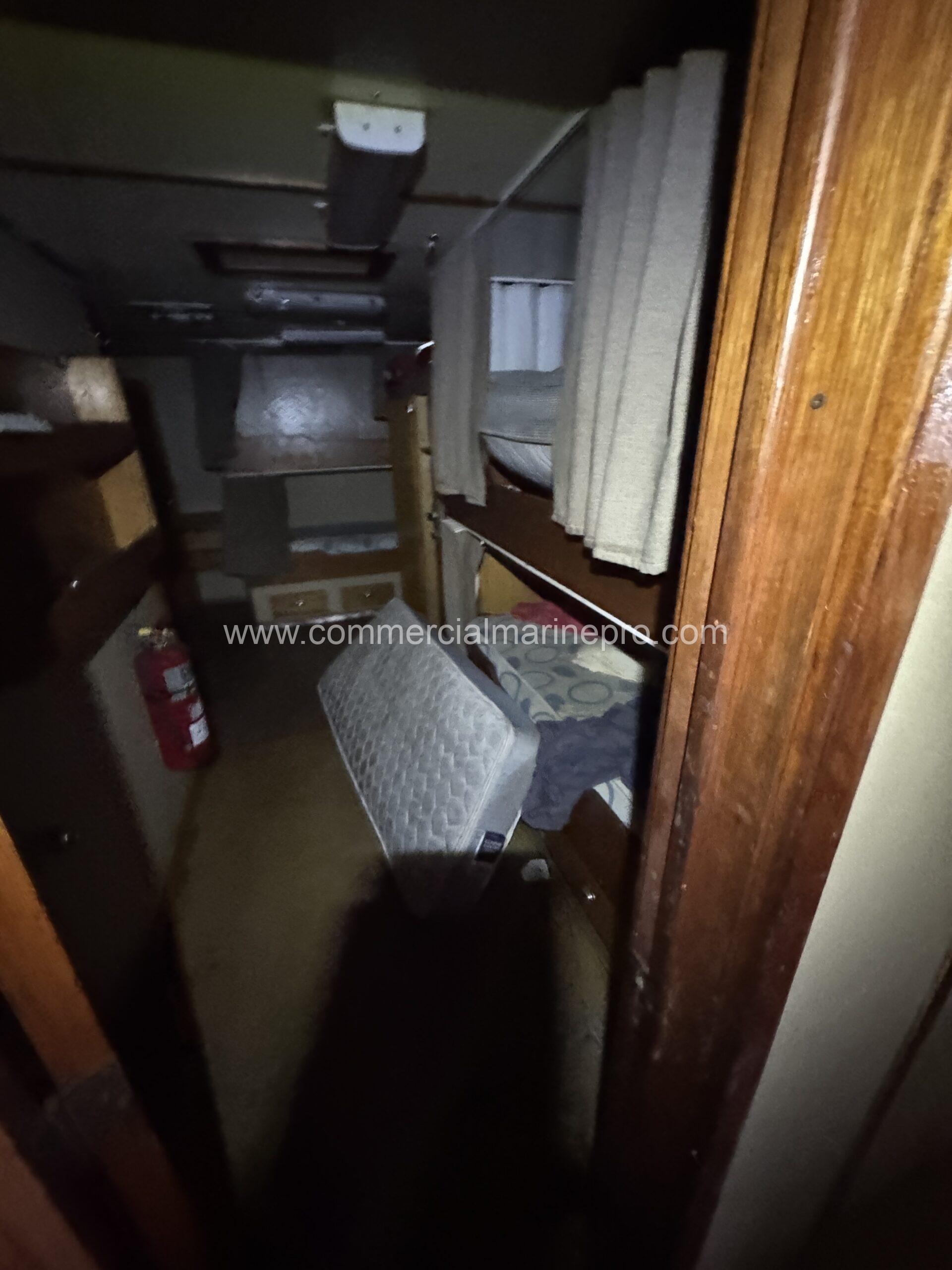

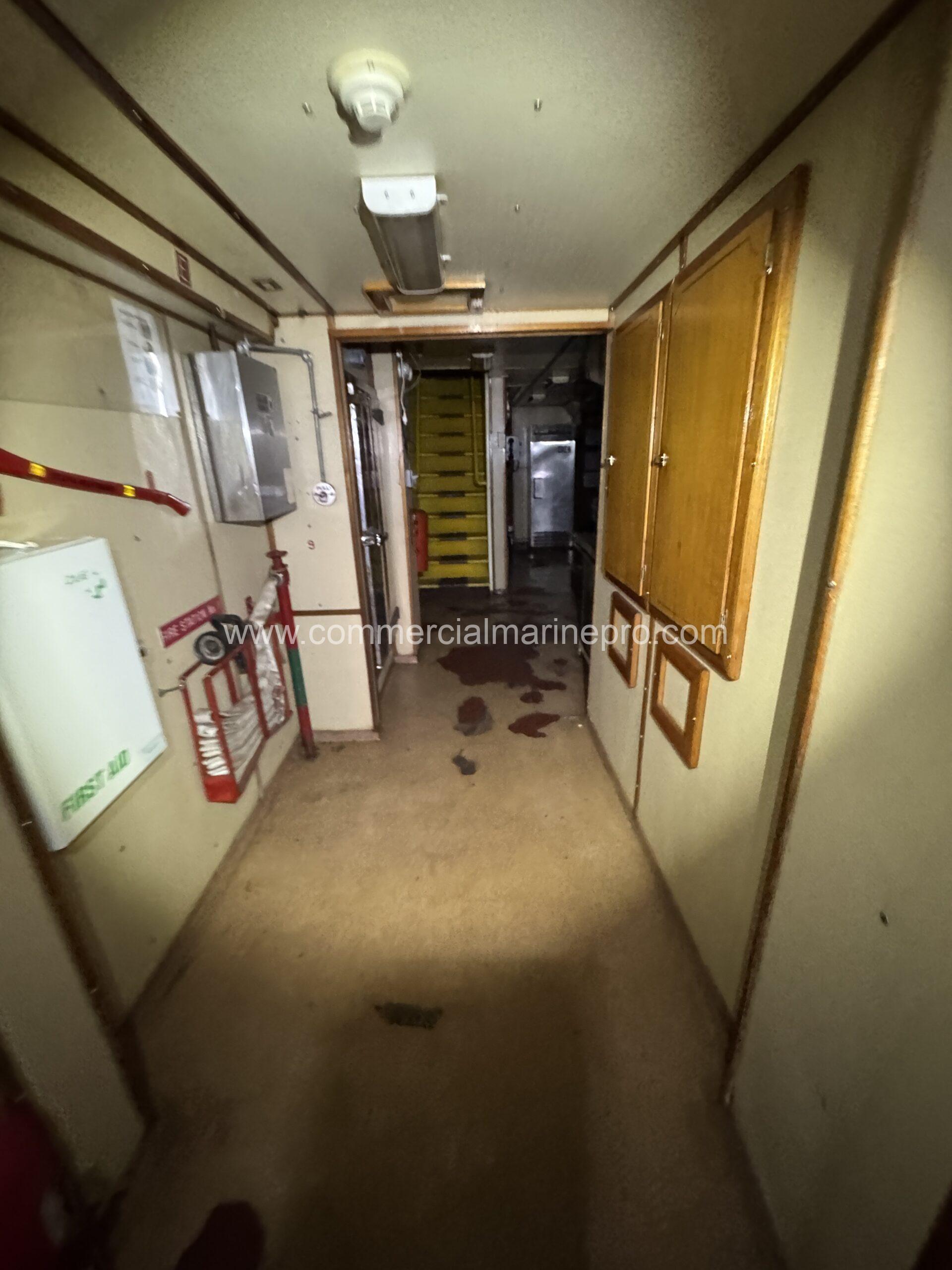

Accommodations

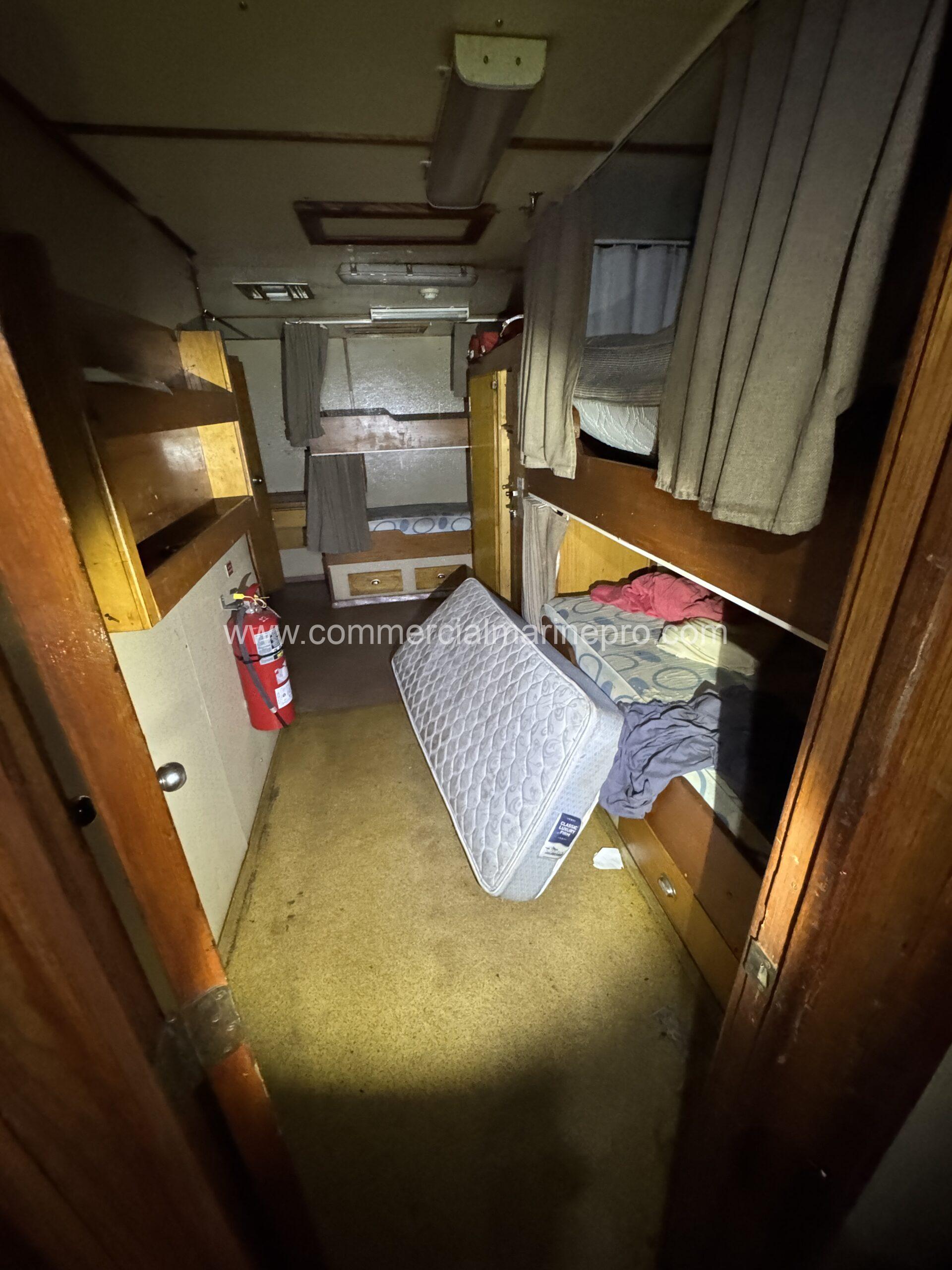

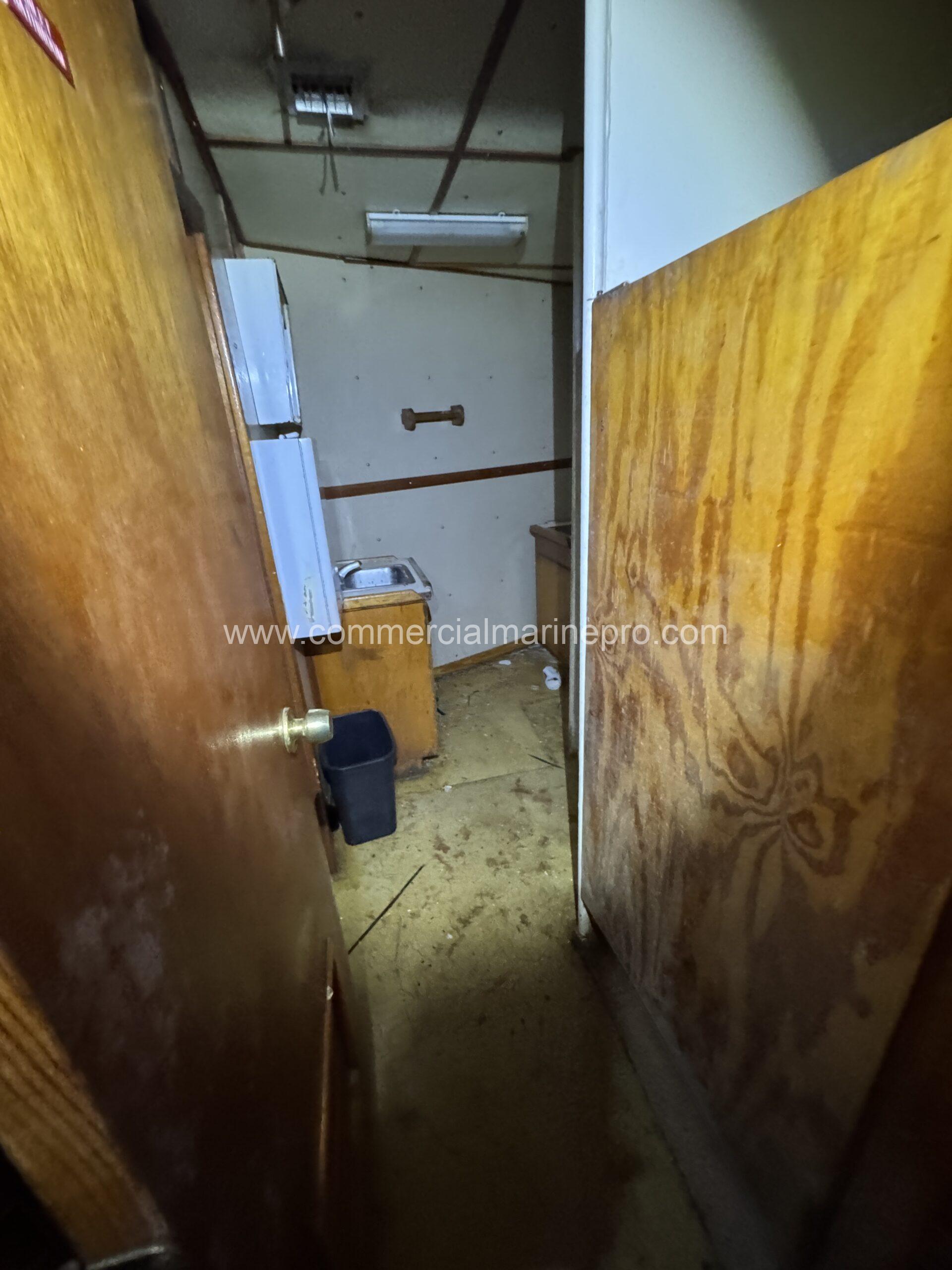

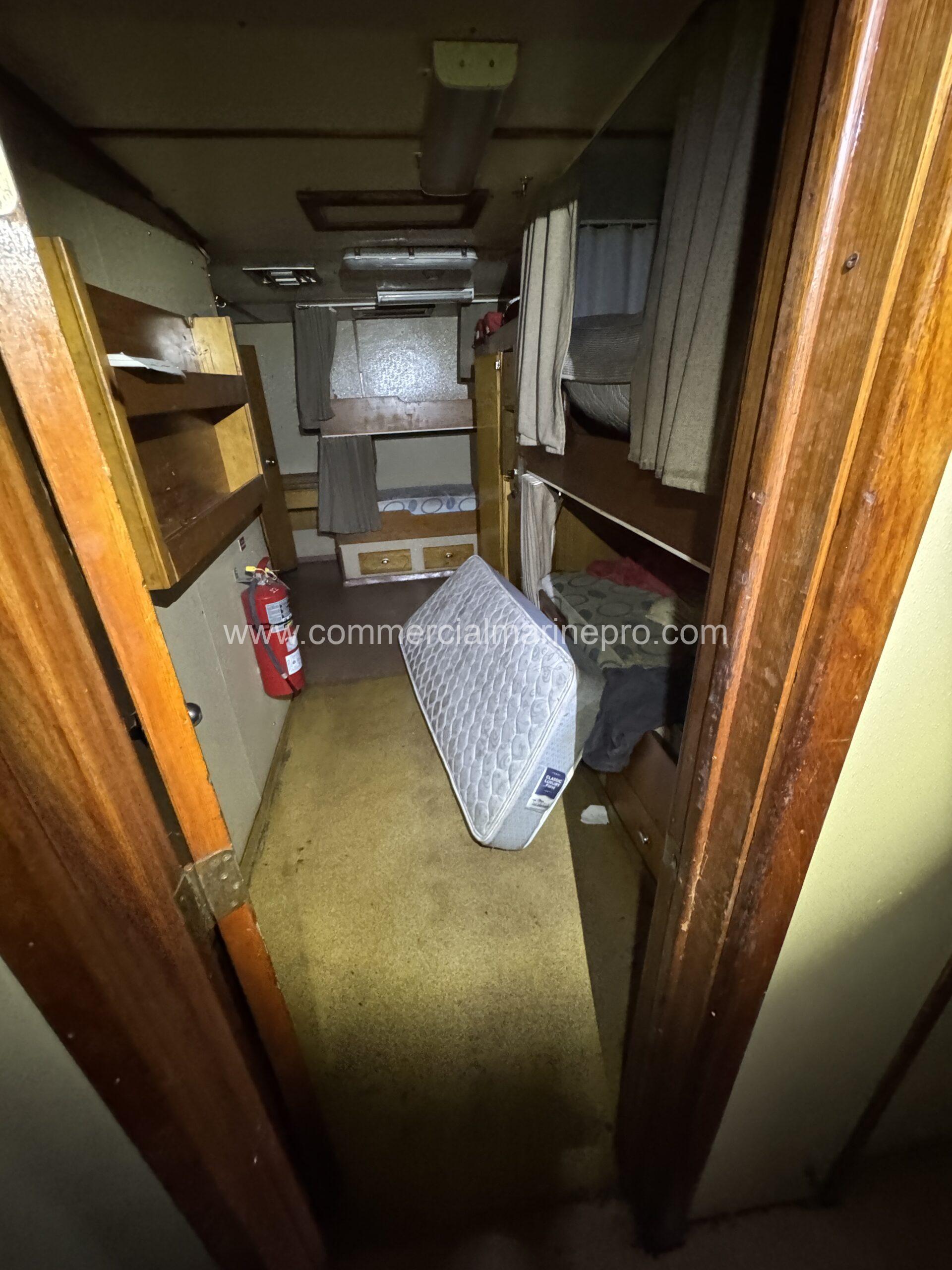

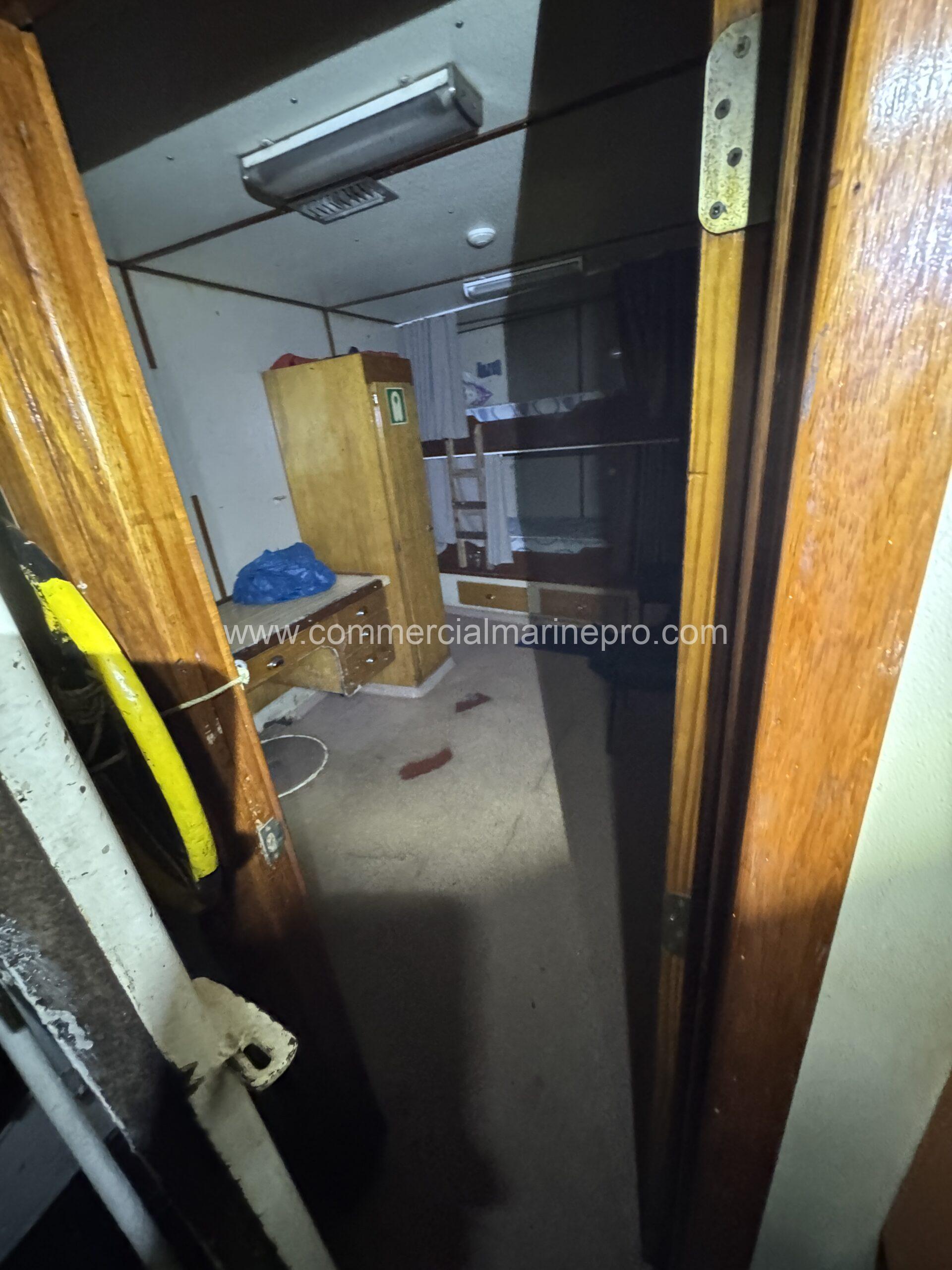

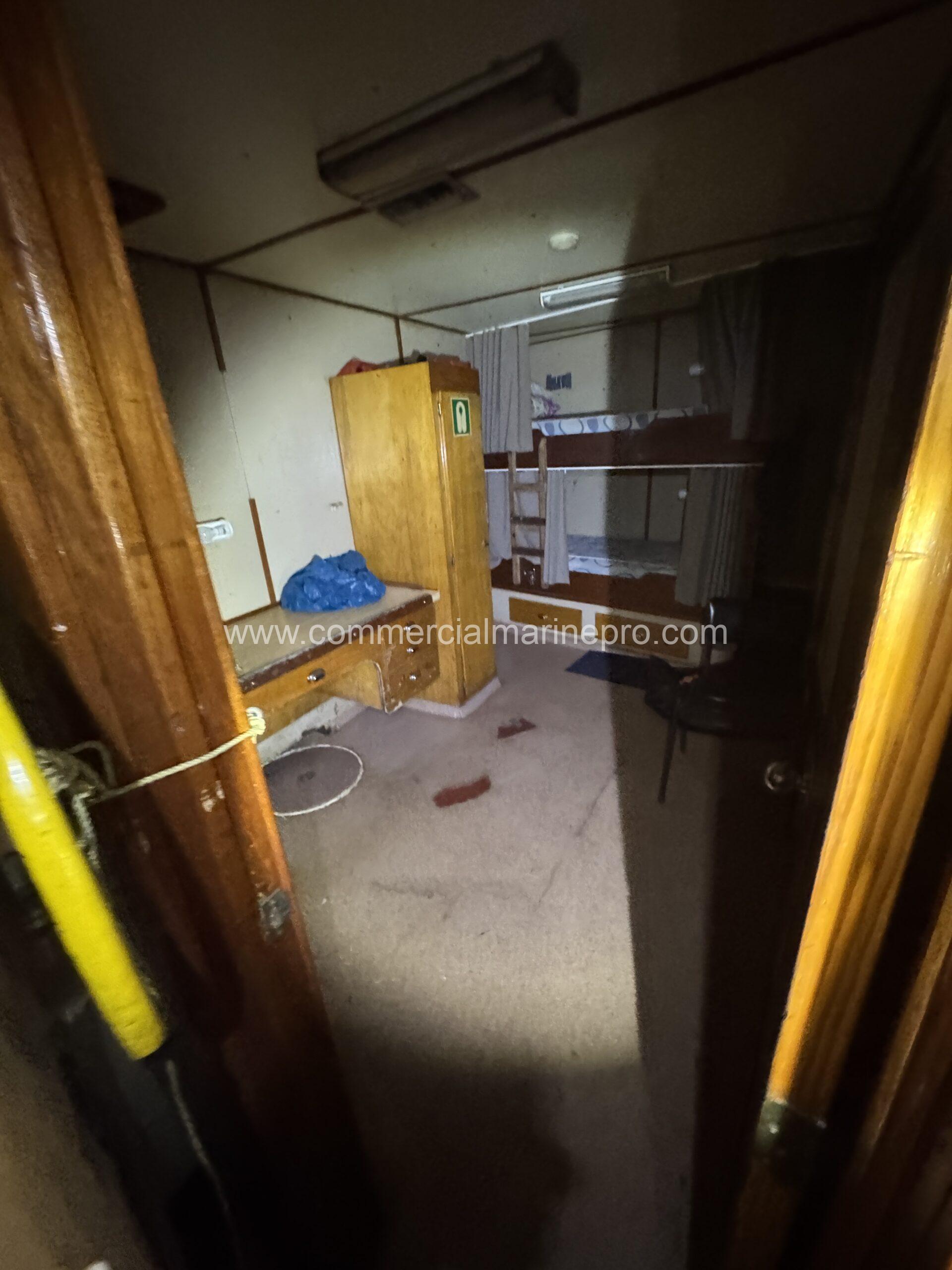

Cabin / Berths 24 PAX (8 Cabins)
Officer’s Cabins 4 Cabins
Crew Cabins 4 Cabins
Passengers 20 PAX

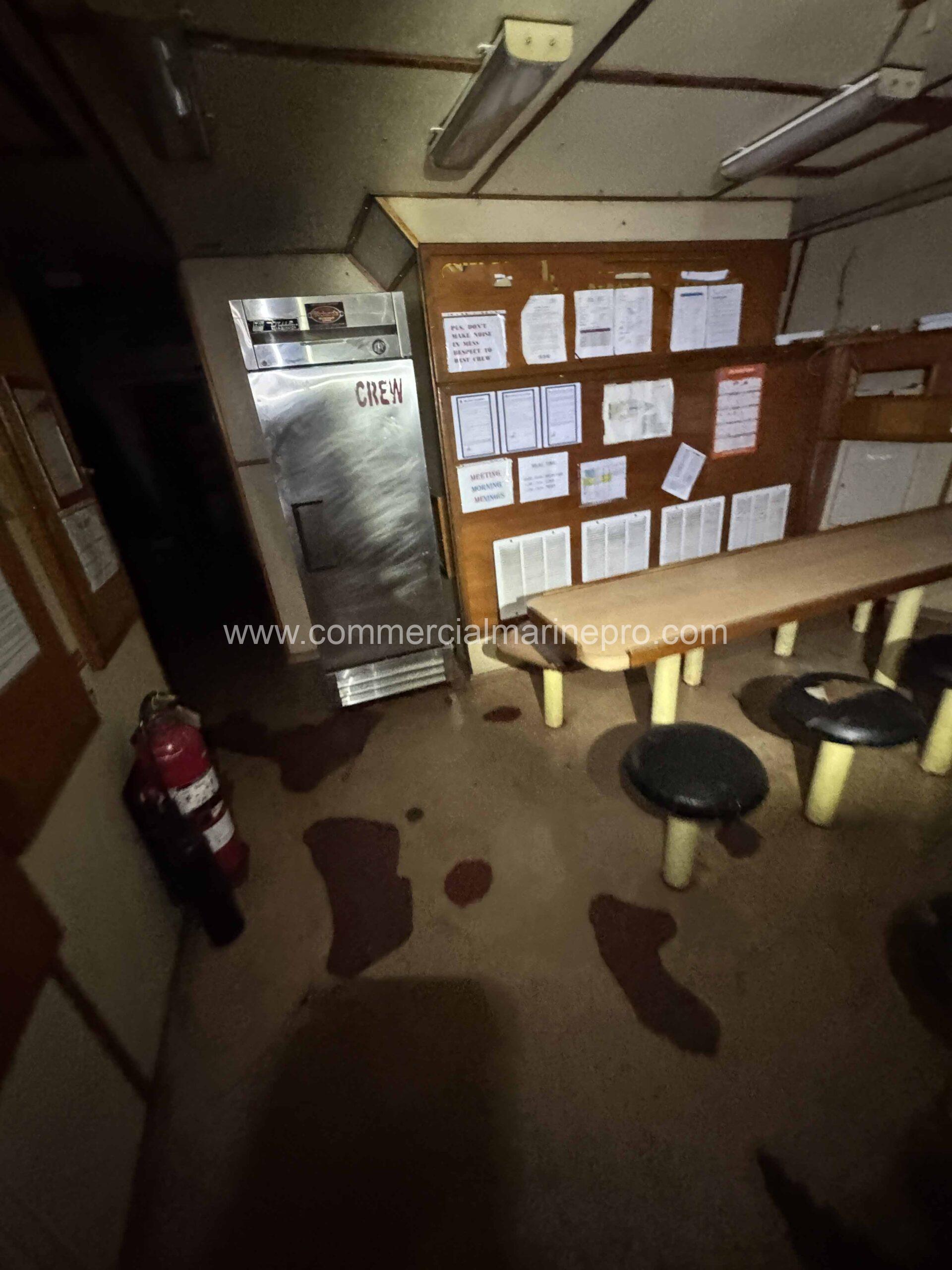

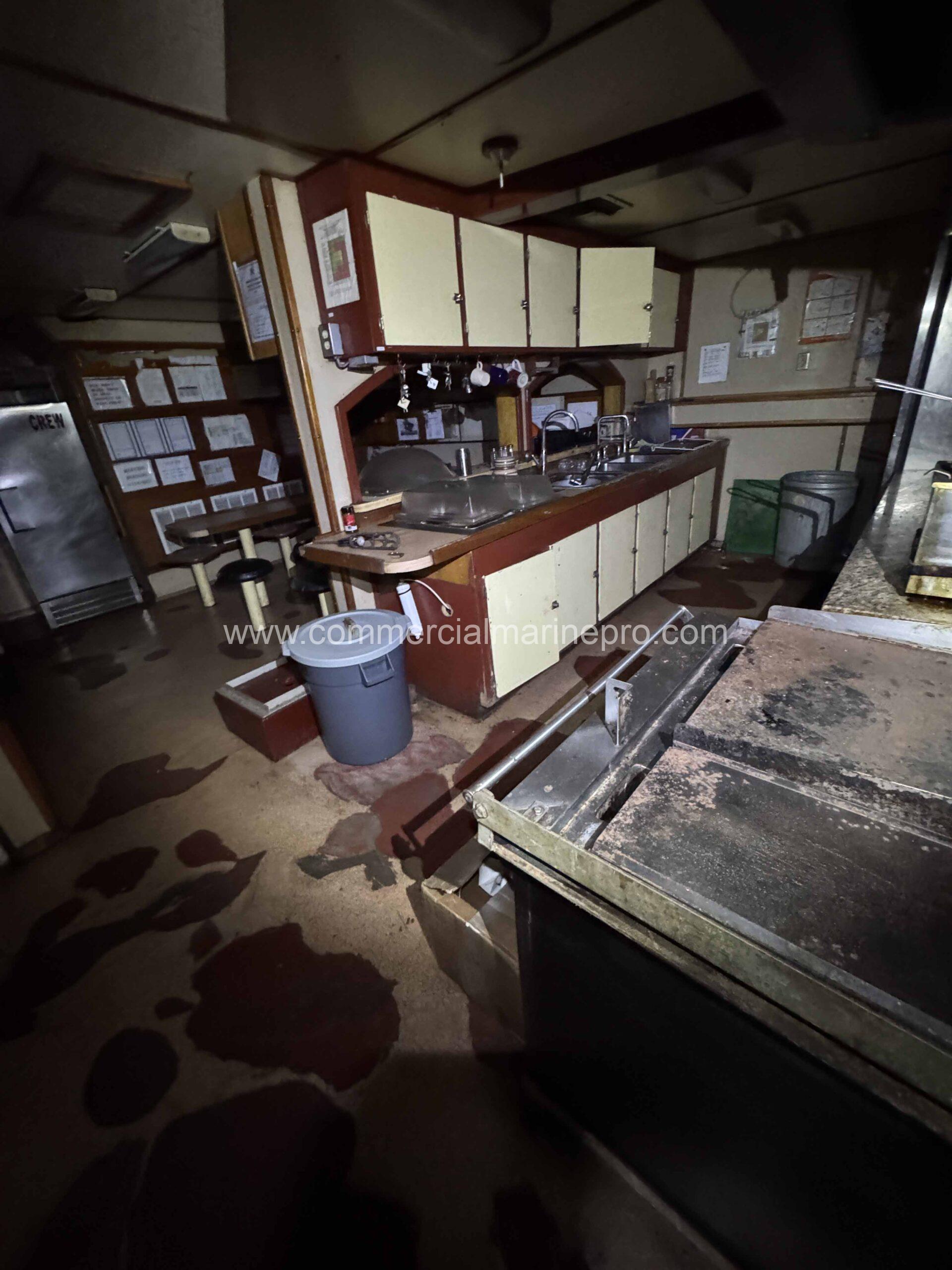

Mess Seating 10 PAX
Built / Rebuilt 1976 / 1995
Drill / Potable Water 107,000 USG
Potable Water (Ships) 19,000 USG
Fuel 120,000 USG
Engine Lube Oil 1,100 USG
Hydraulic Oil 1,000 USG
Tonnage
GRT 996 MT (ITC)
NRT 298 MT (ITC)

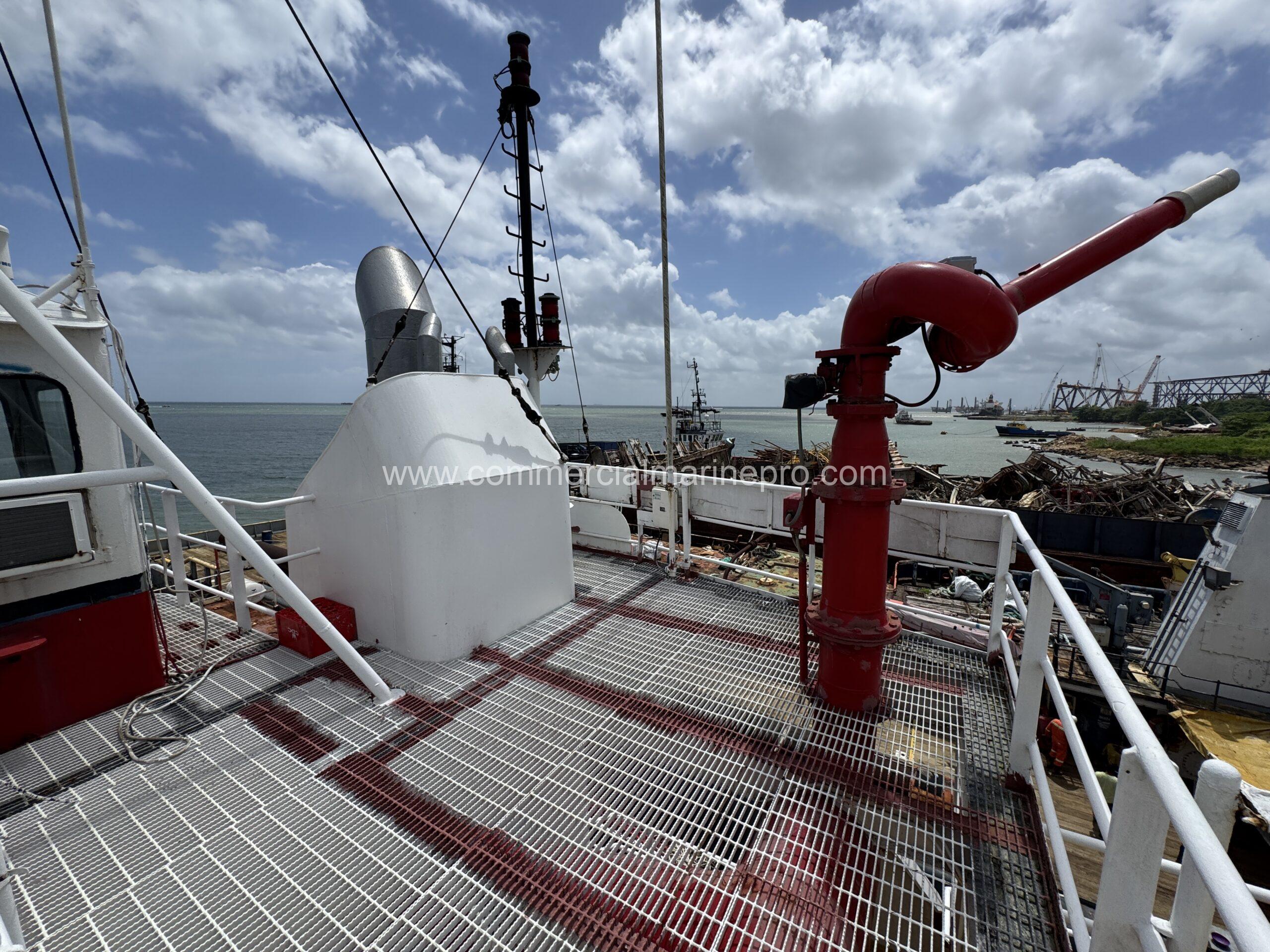

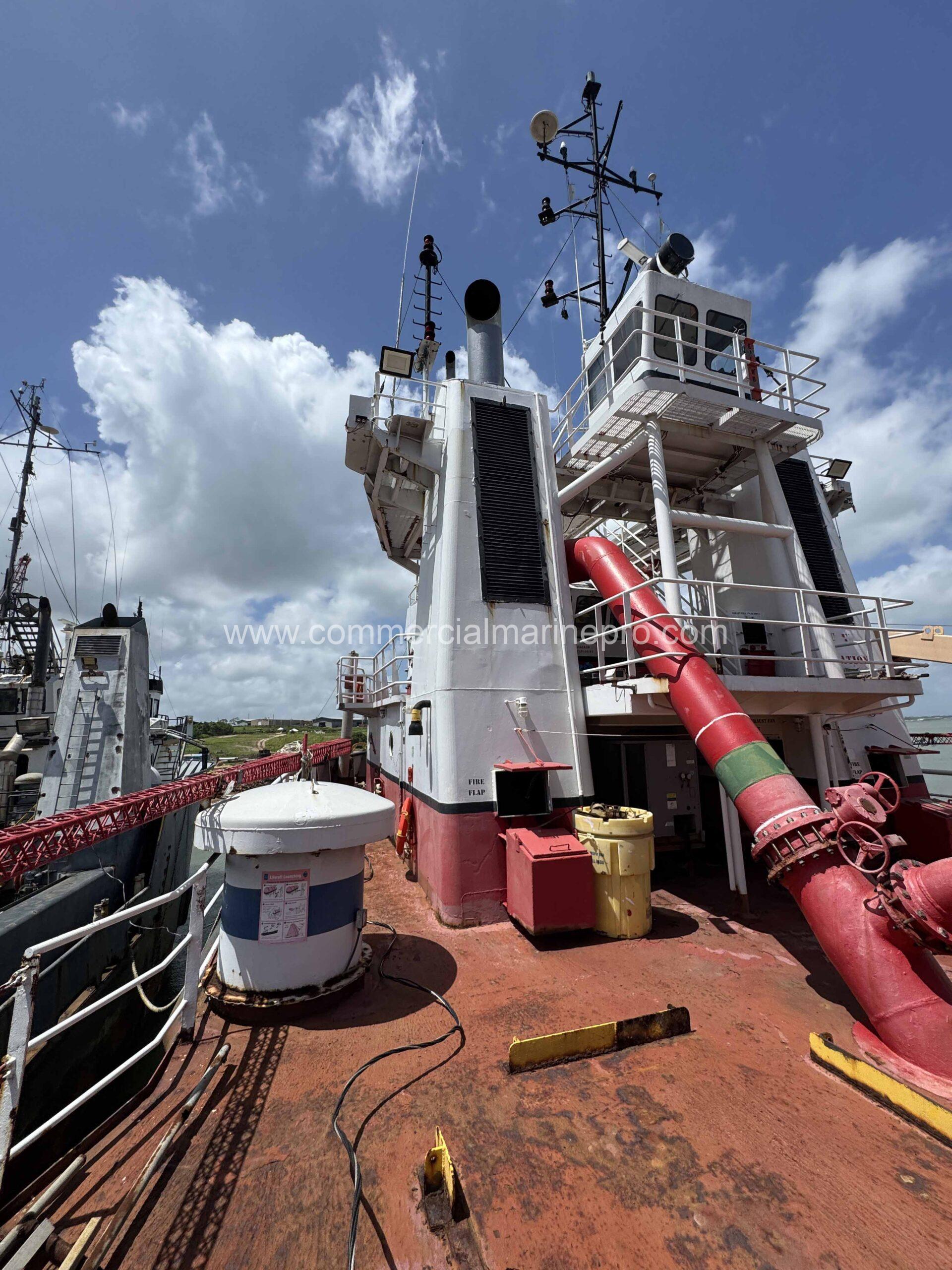

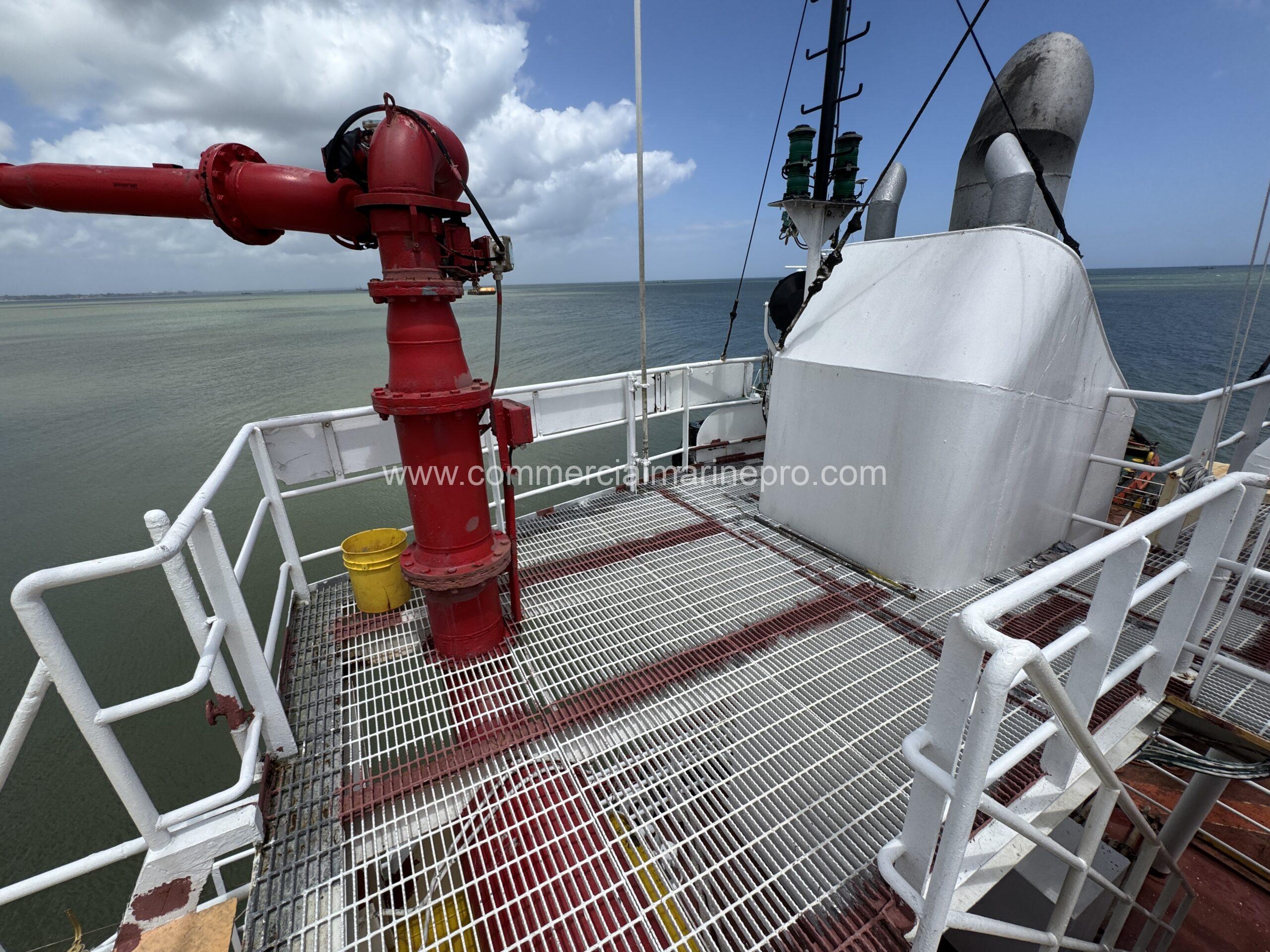

External FIFI Yes

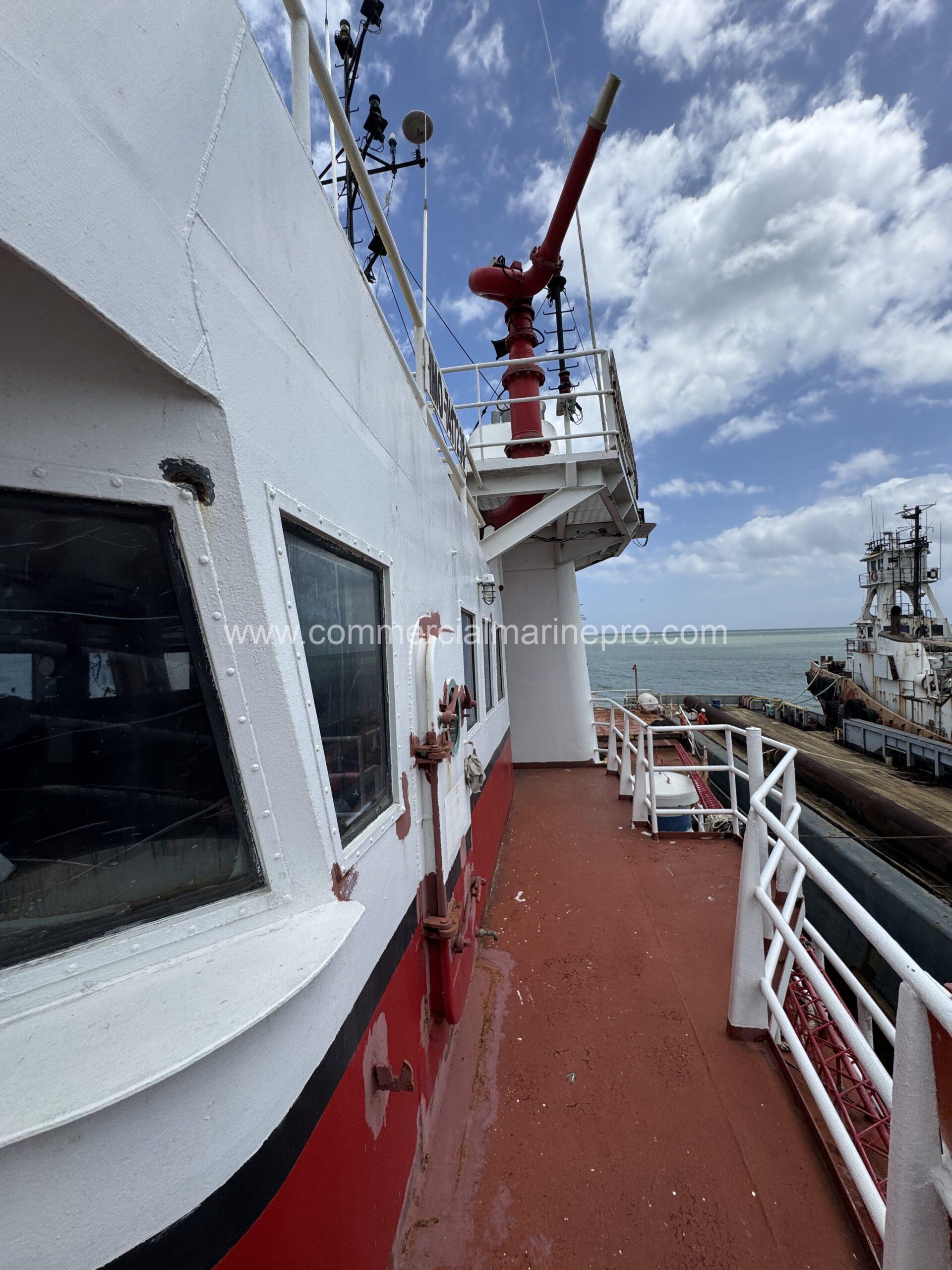

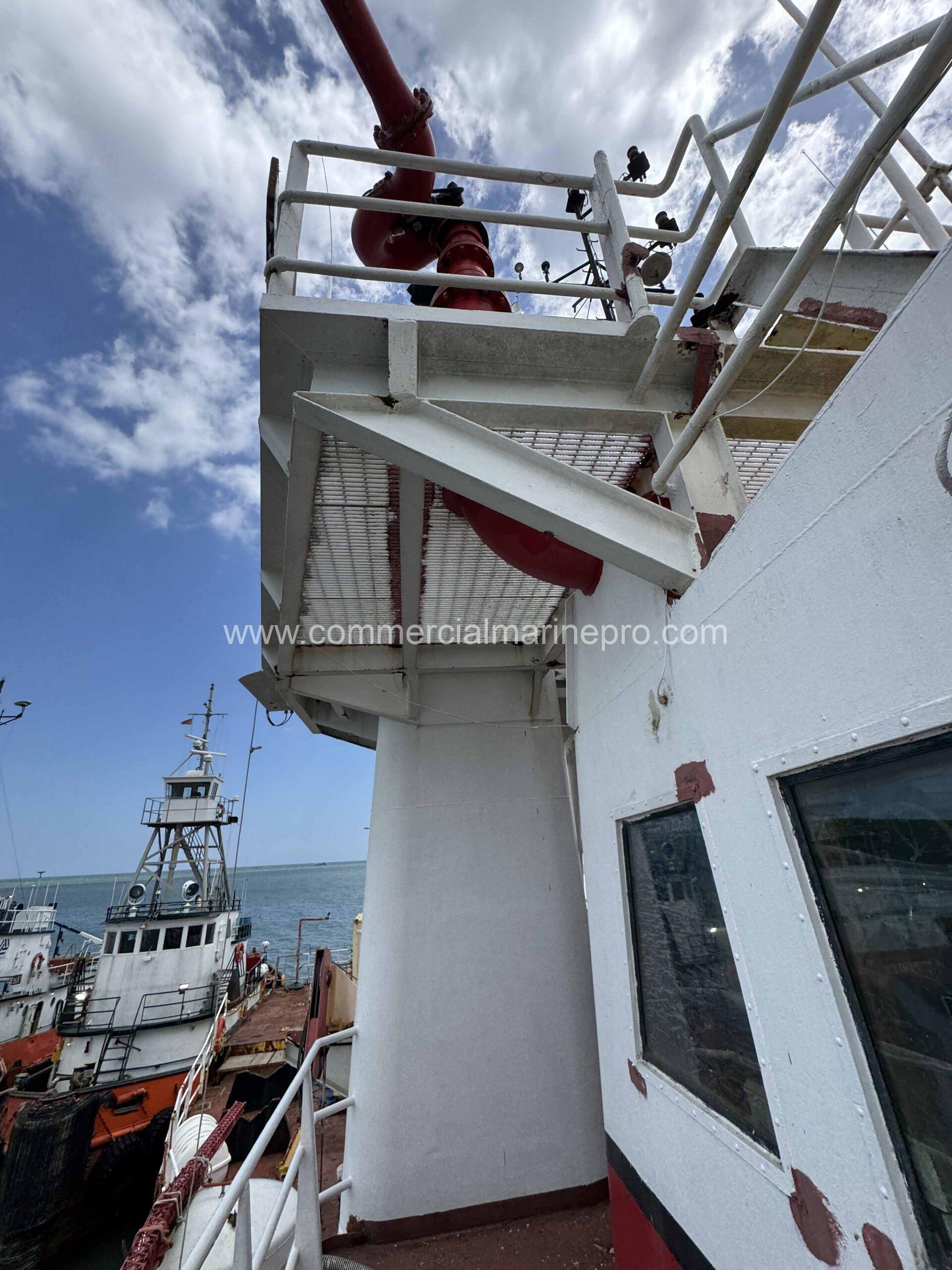

Number of Monitors 2 @ 6000 GPM each
Bollard Pull 61 Tons
Maximum Speed 12 Knots (150 USG Per
Hour fuel consumption)
Cruising Speed 10 Knots (100 USG per
Hour fuel consumption)
Economy Speed 8.5 Knots (85 USG per
Hour fuel consumption

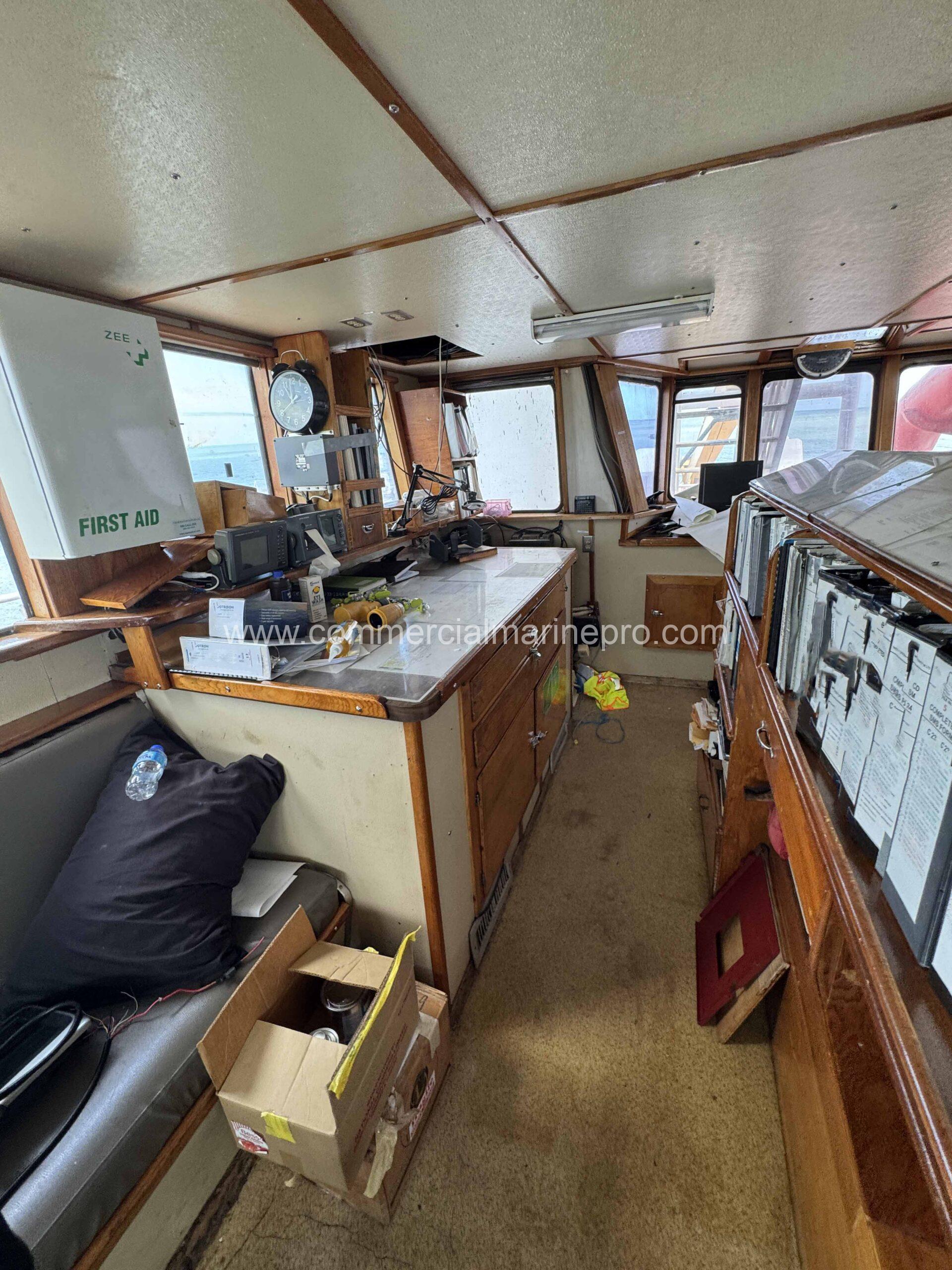

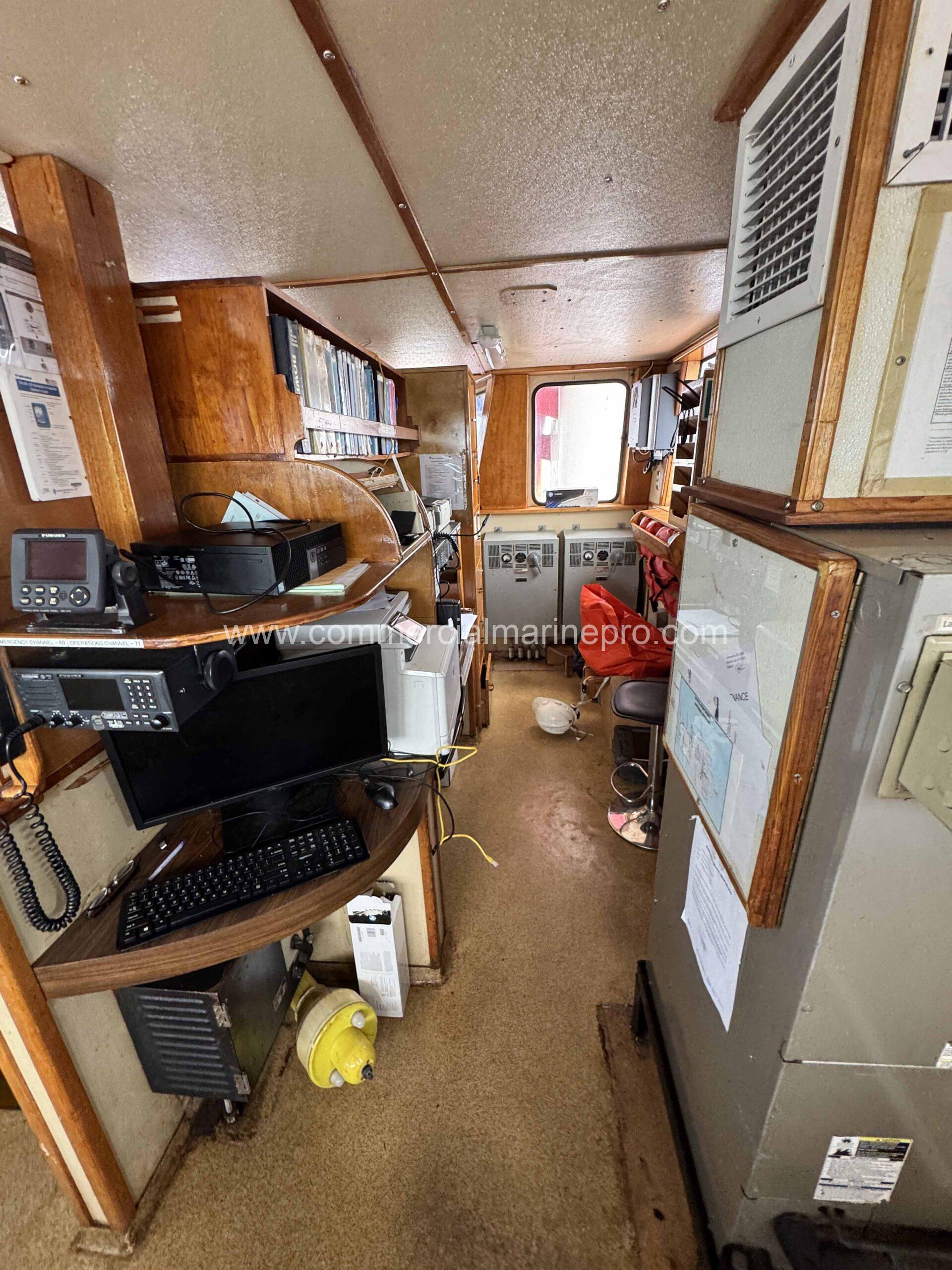

Depth Sounder Inter Offshore M3000
GMDSS A3
GPS 2 x Furuno 25 Mile
ARPA
VHF 2 x Furuno
SSB 1 x SEA 222
Internet E-Mail Fleet Broadband
Weather Radio XM
