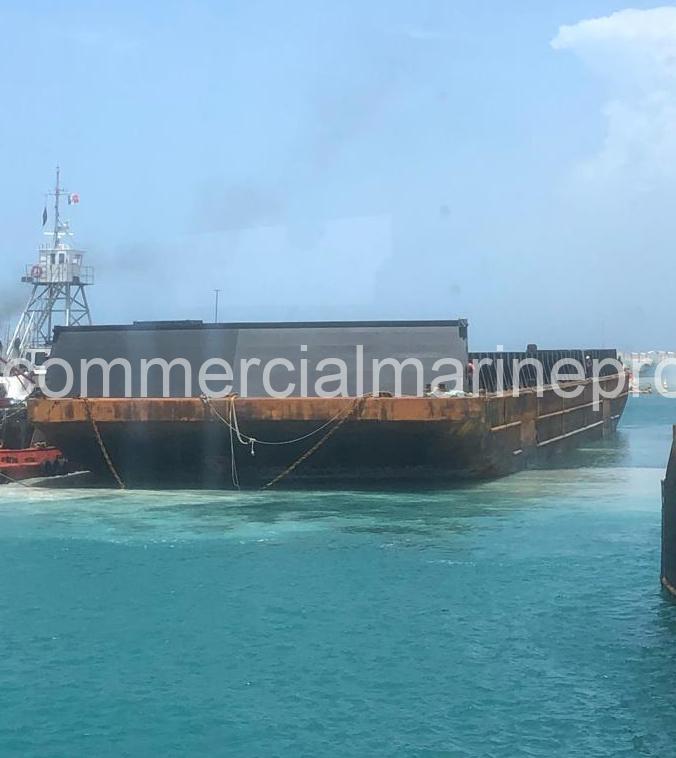

5000 MT RORO Binwall Barge

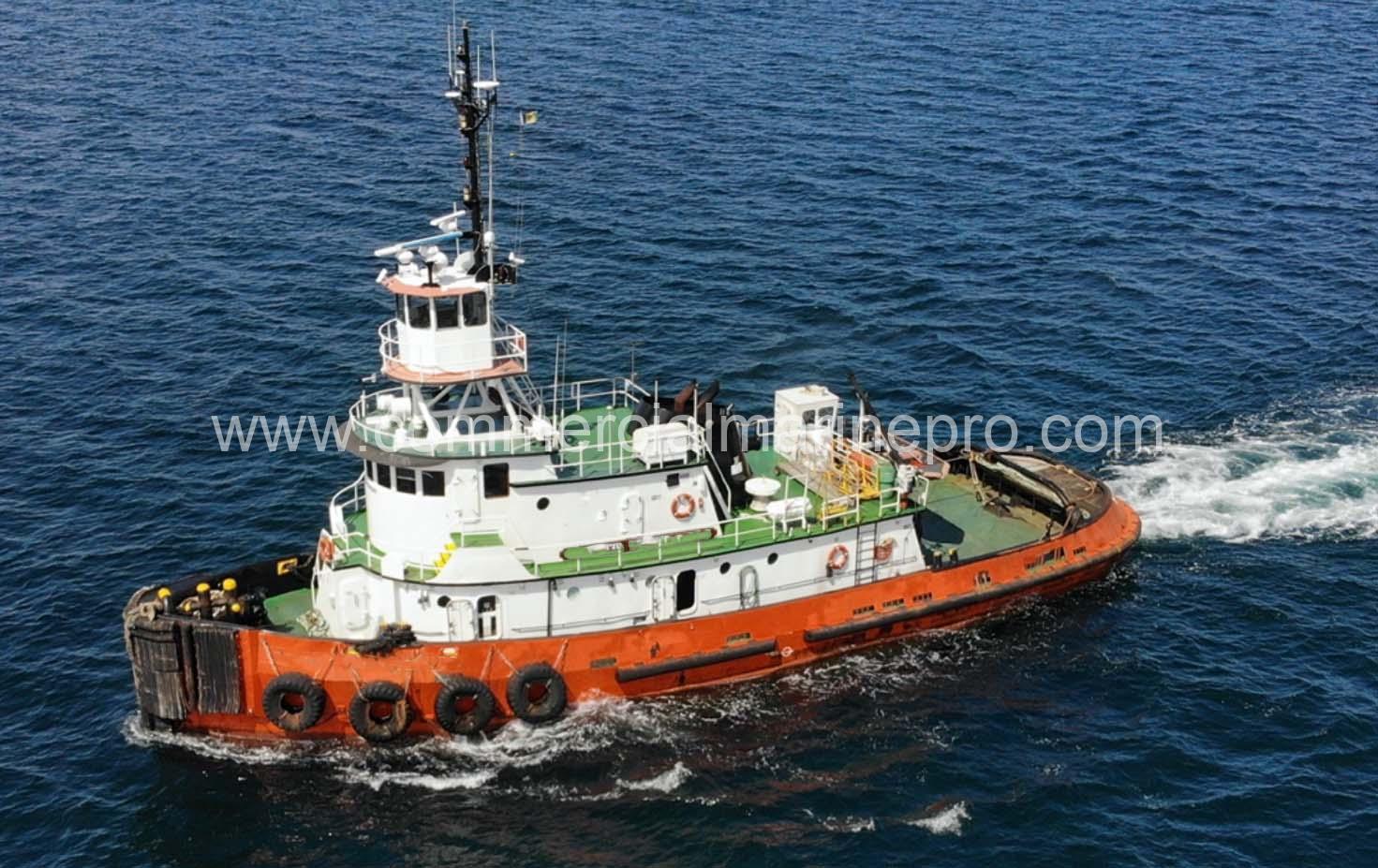

2500hp Model Bow Tug

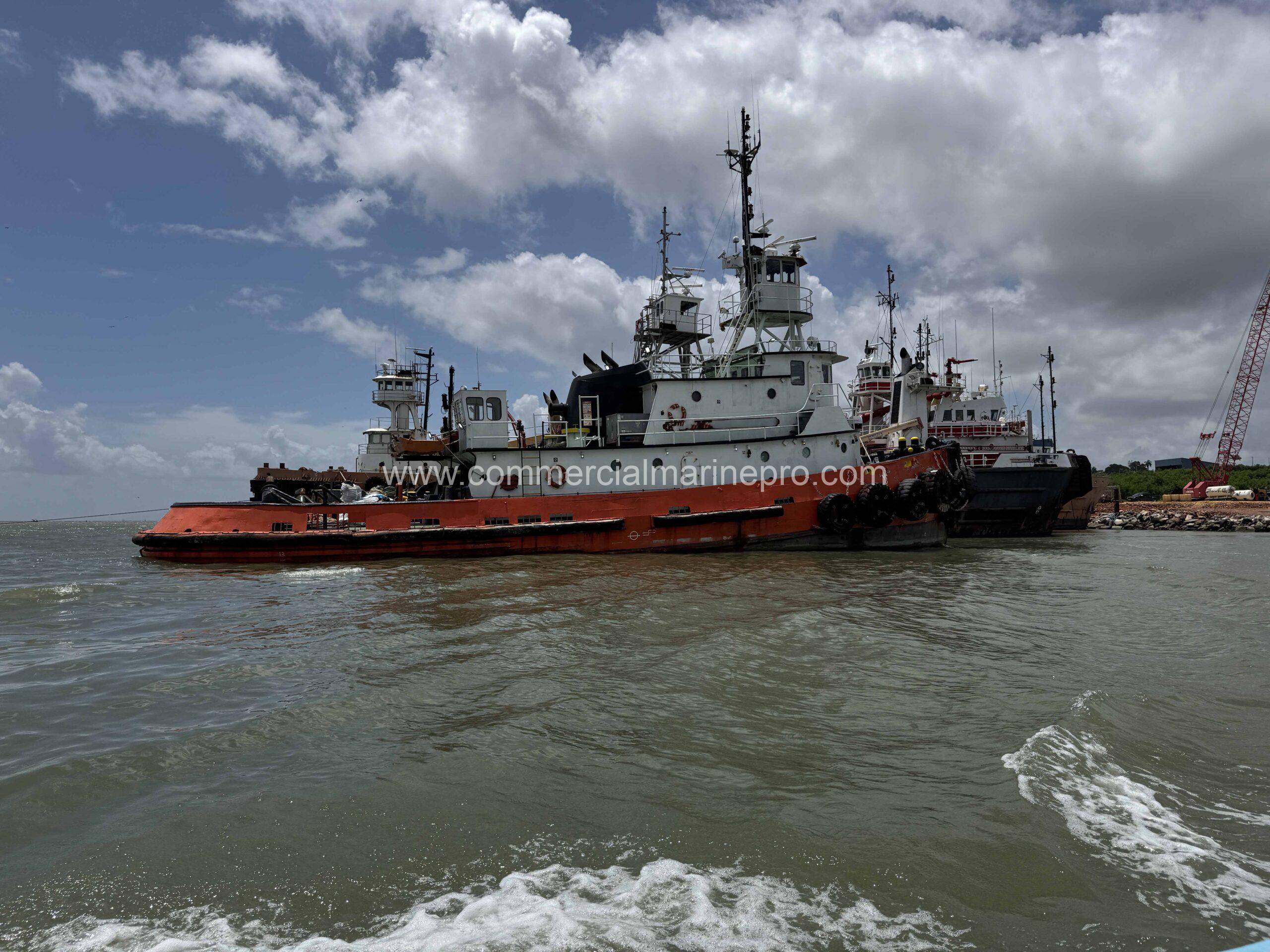

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 4
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 5
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 6

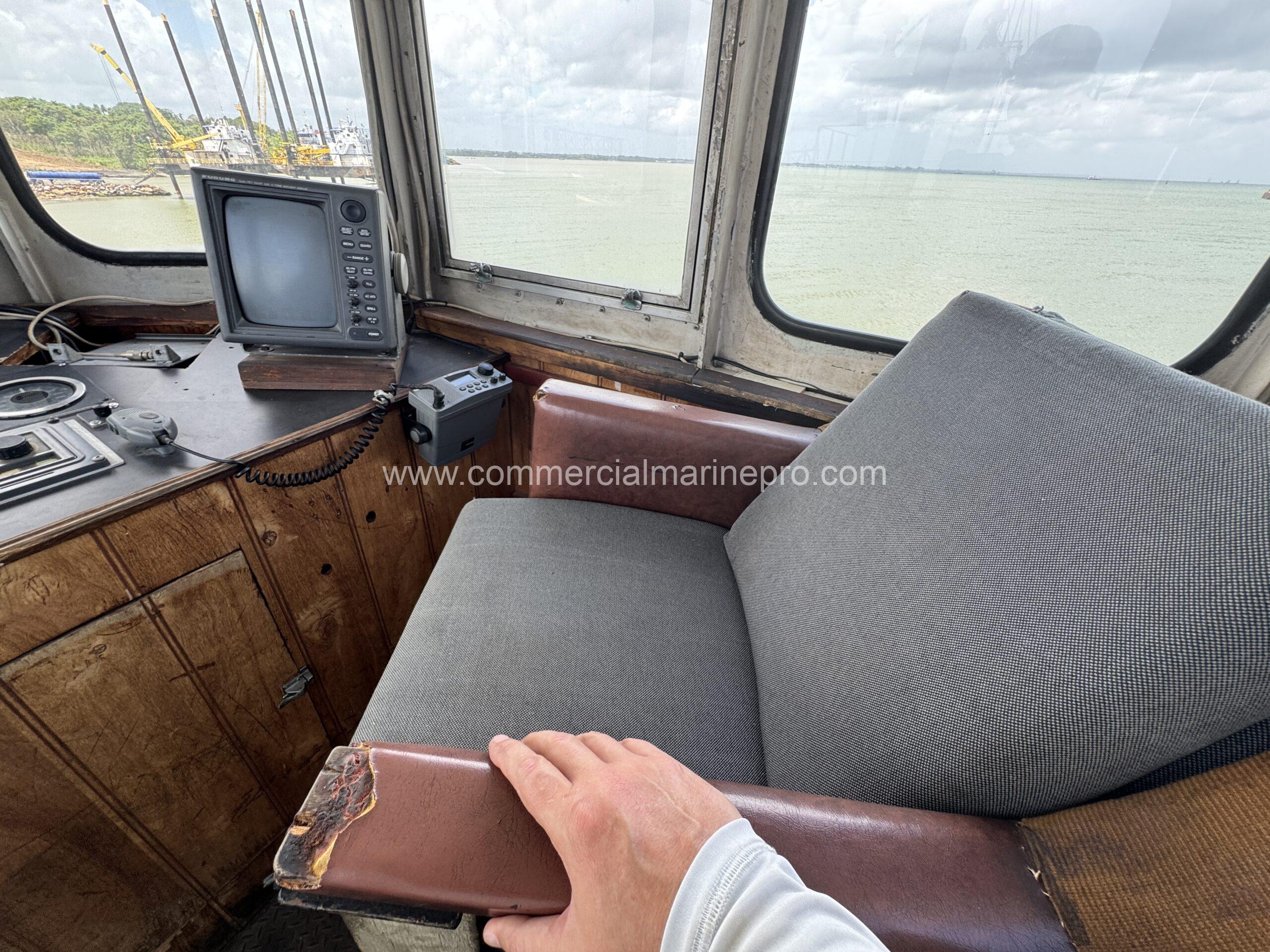

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 7
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 8
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 9
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 10
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 11
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 12
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 13
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 14
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 15

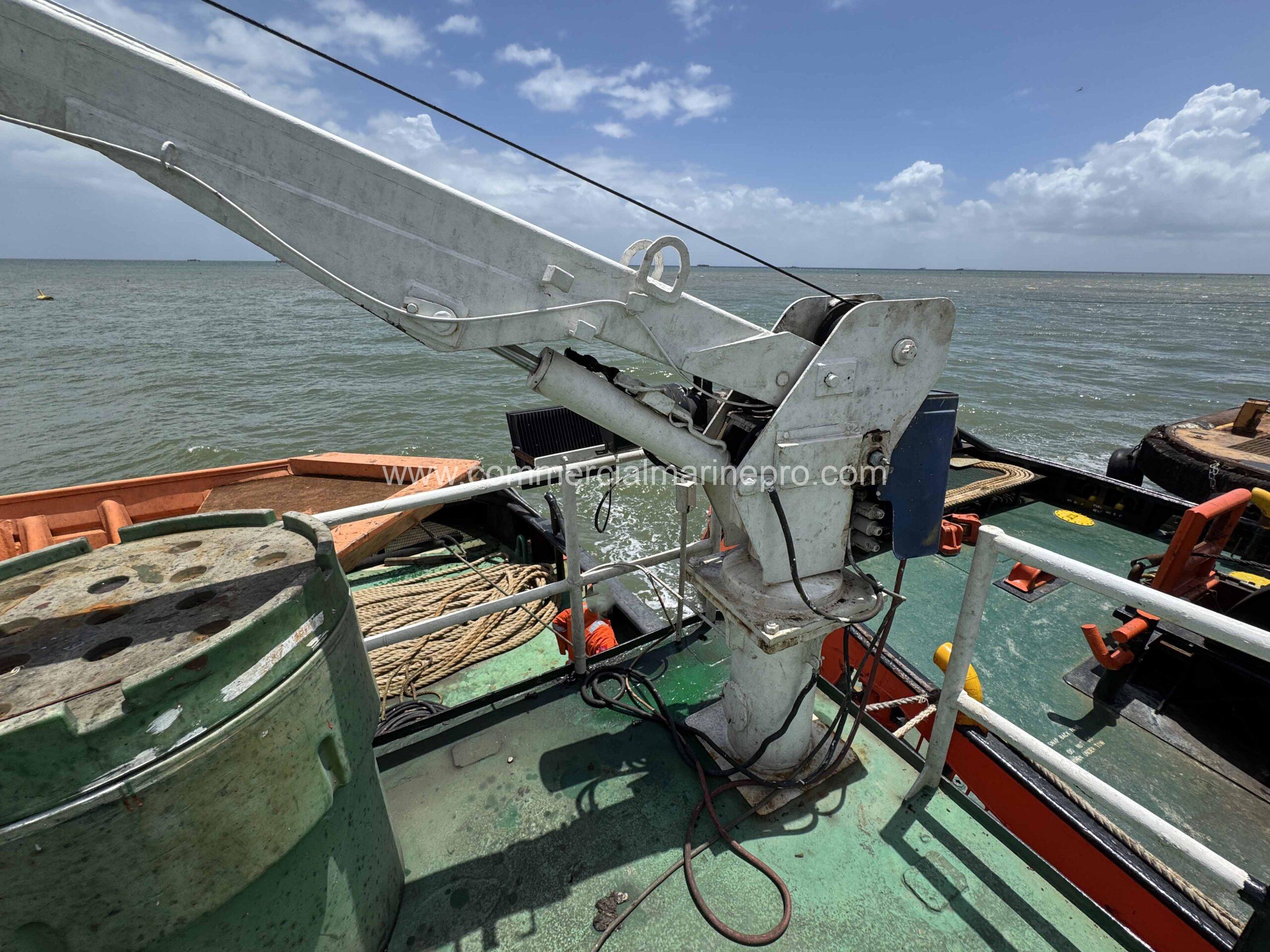

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 16

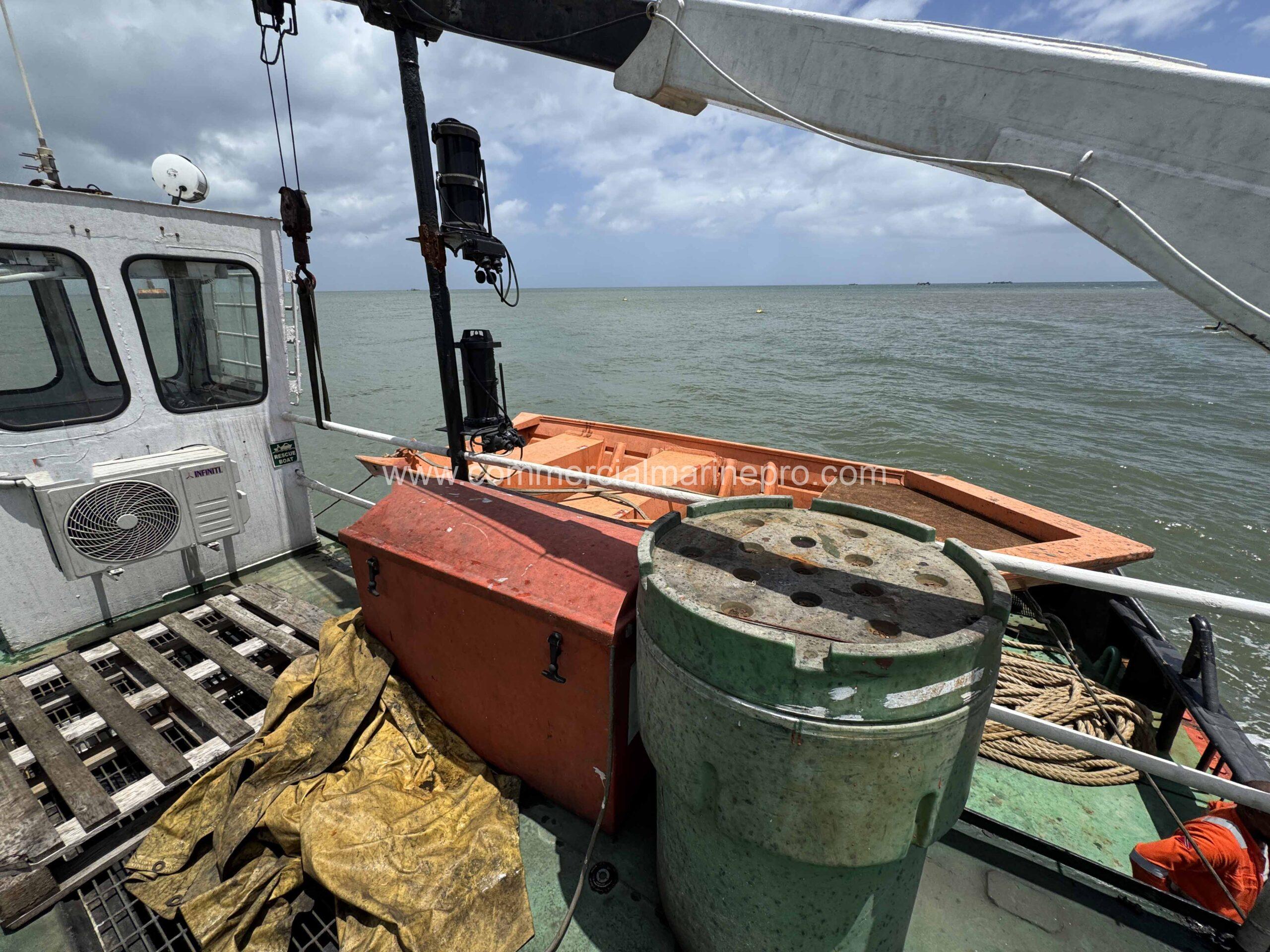

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 17
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 18

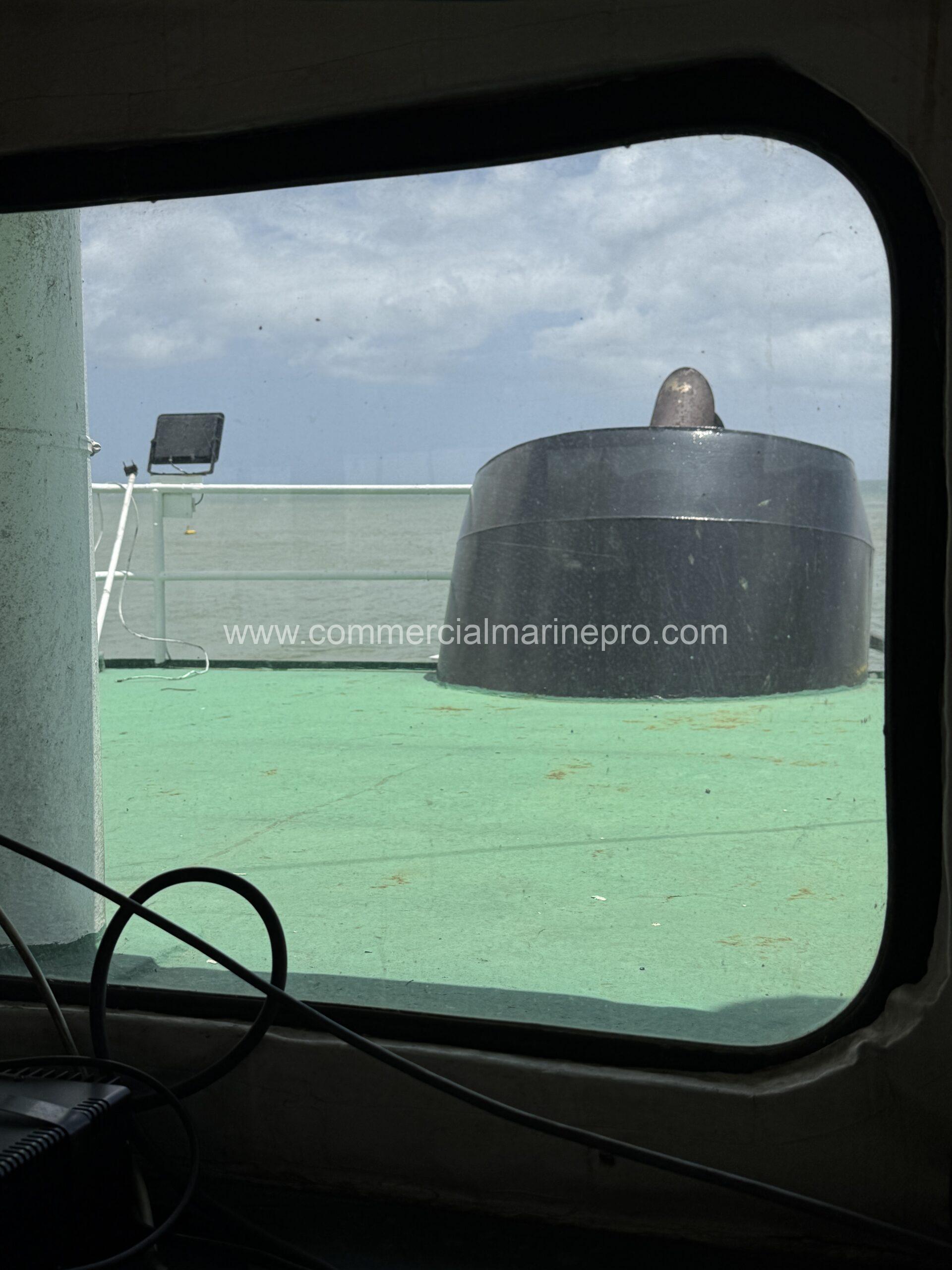

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 19

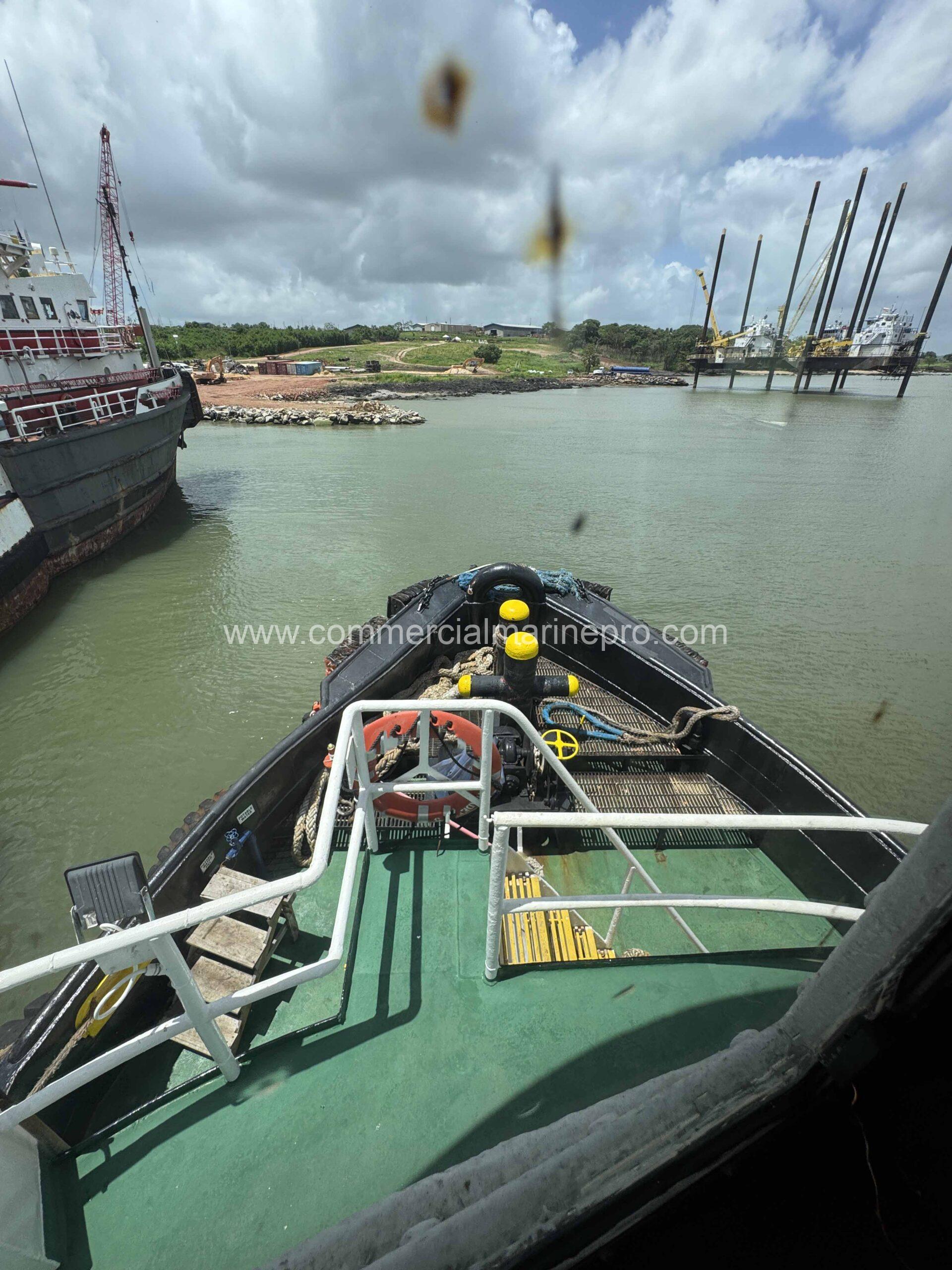

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 20
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 21
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 22

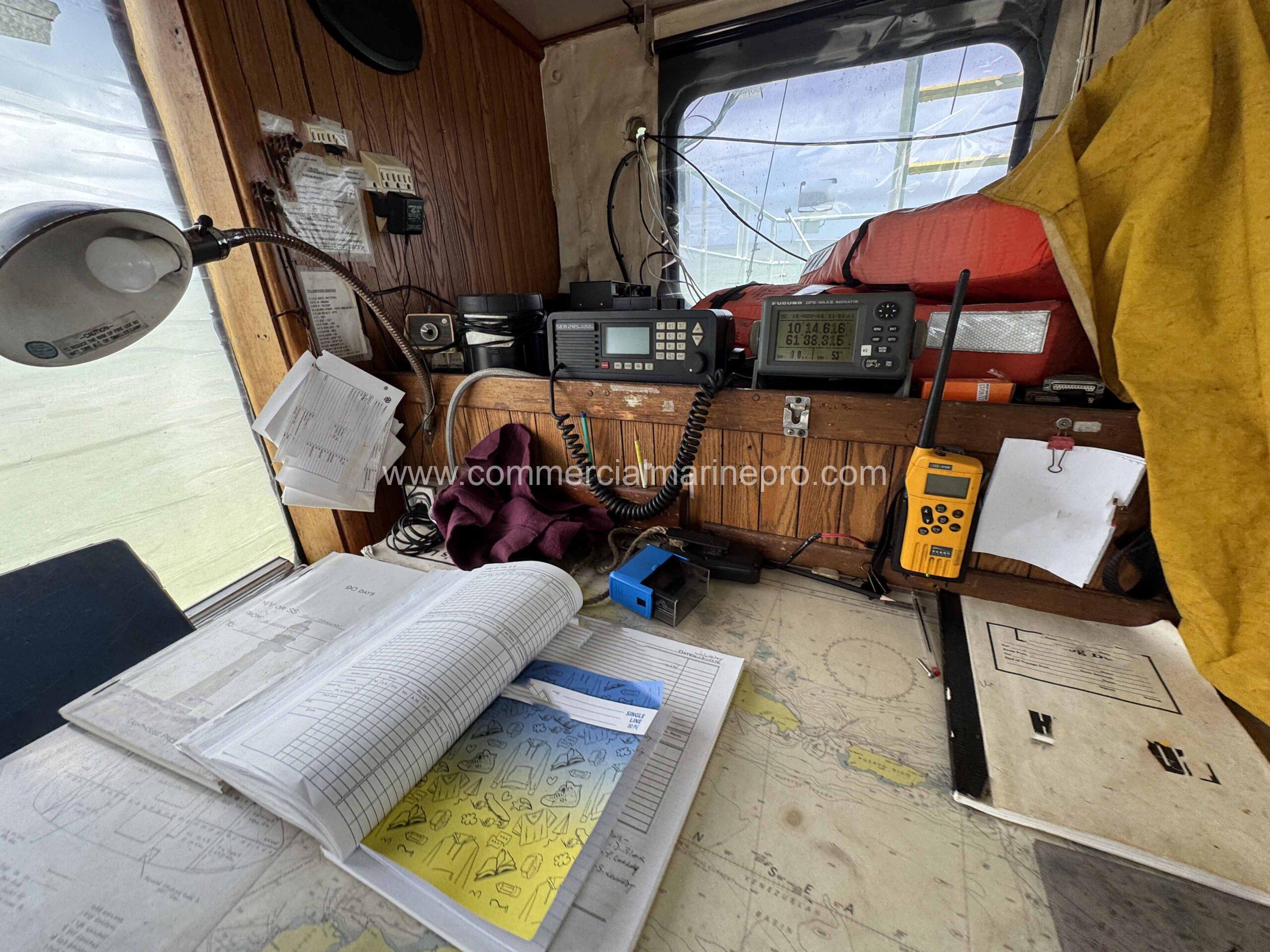

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 23
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 24
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 25
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 26

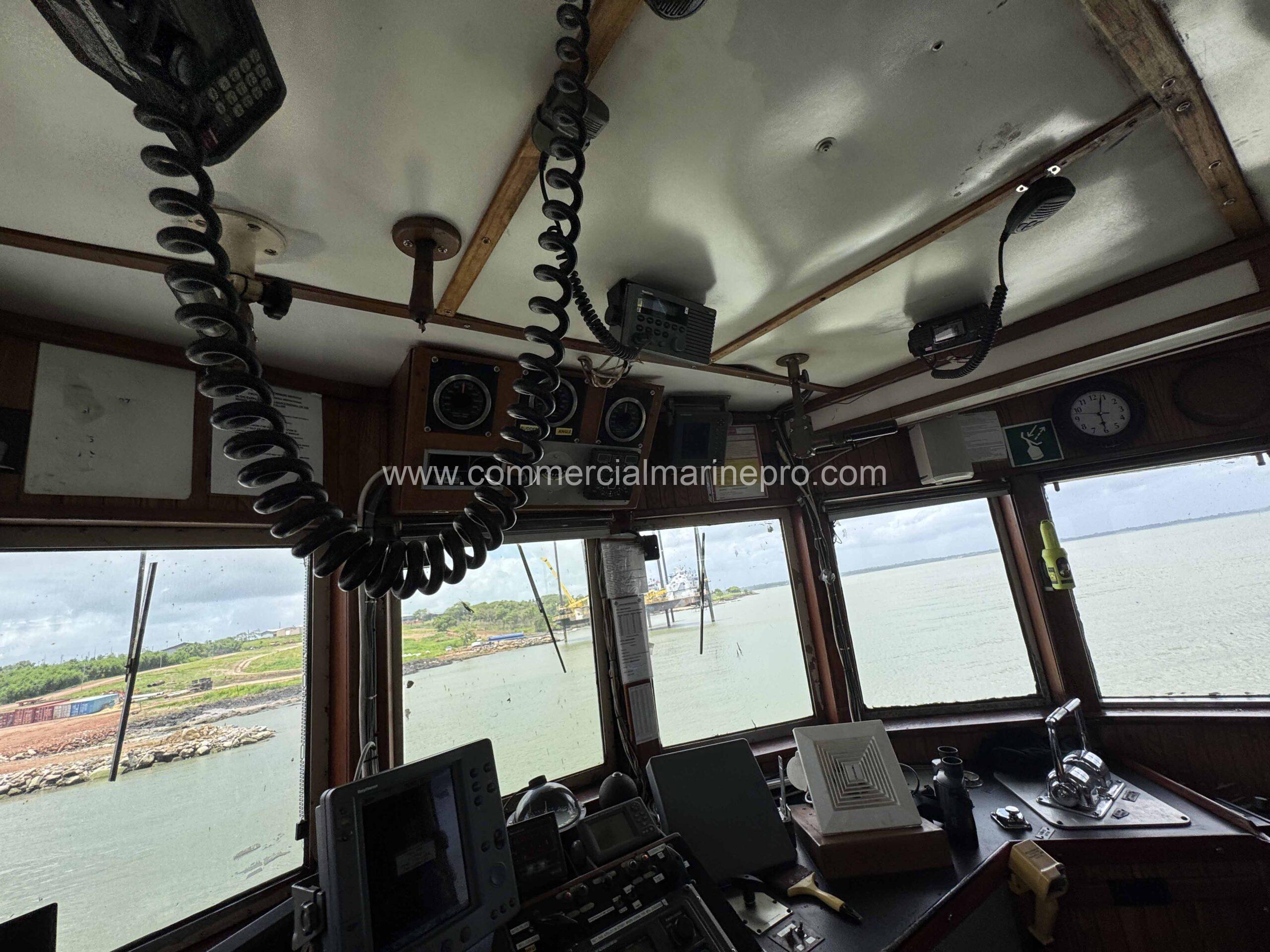

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 27
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 28
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 29
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 30

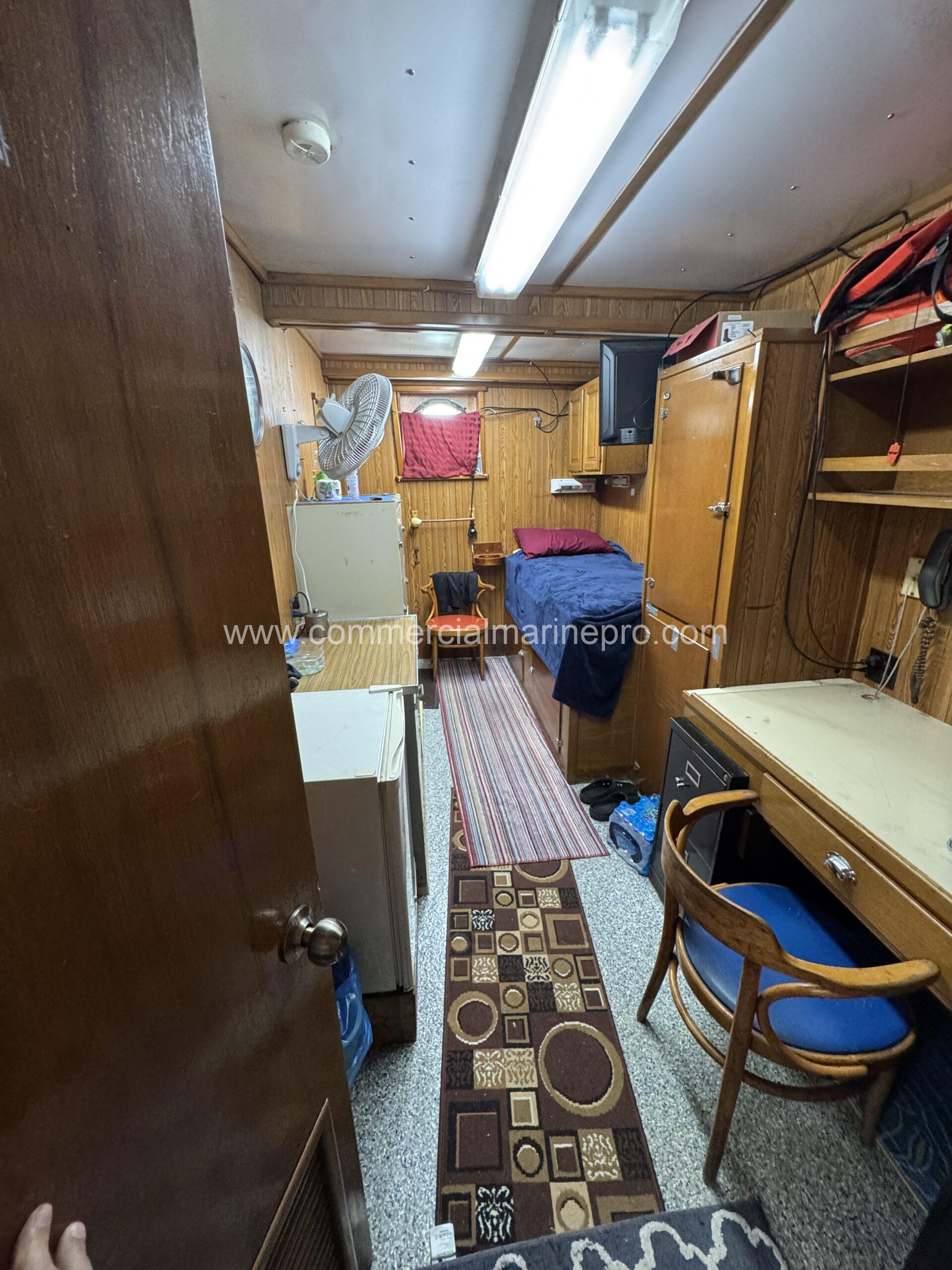

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 31
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 32
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 33

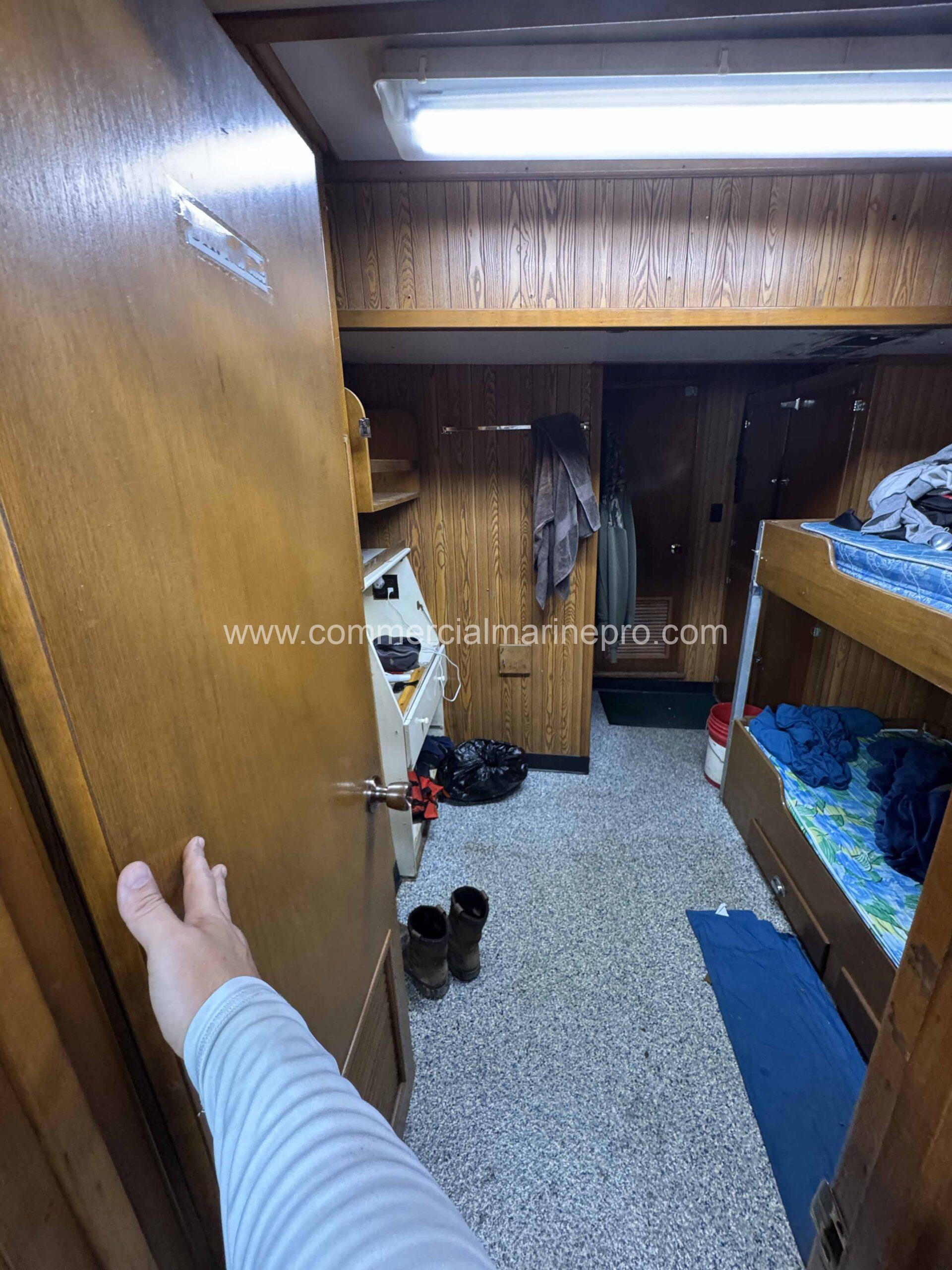

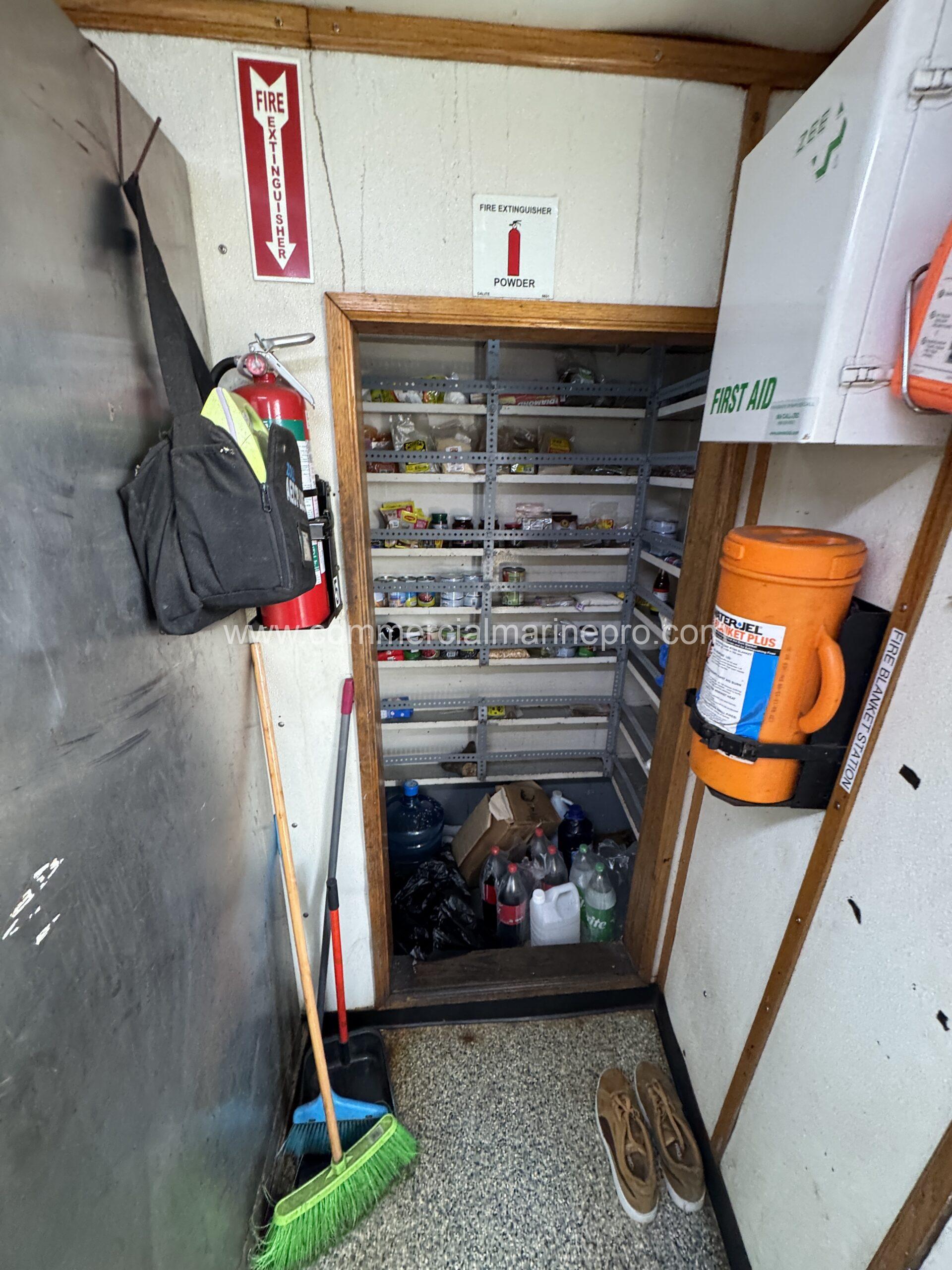

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 34
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 35
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 36

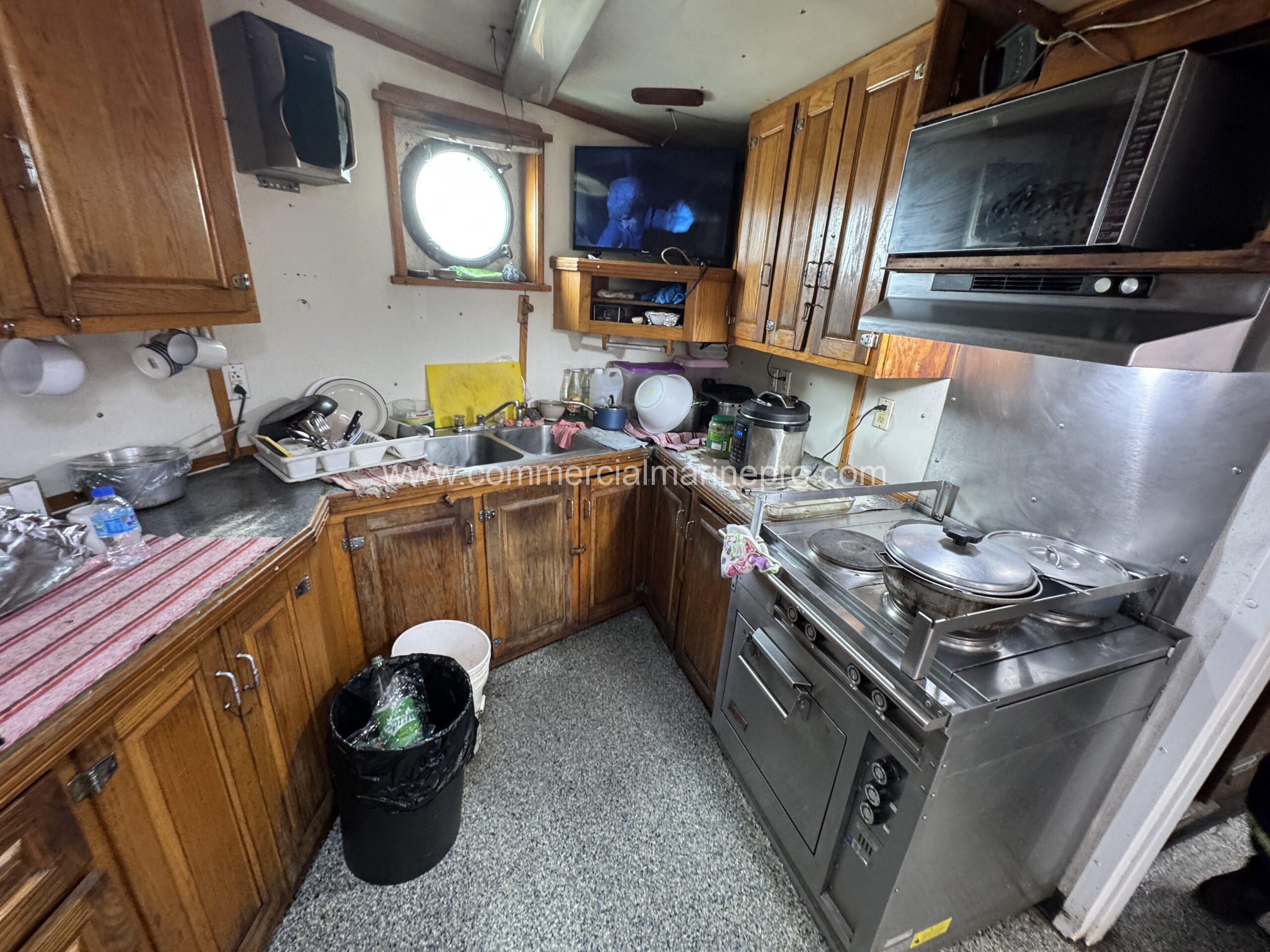

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 37
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 38
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 39
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 40
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 41
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 42
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 43
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 44
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 45
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 46
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 47
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 48
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 49
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 50
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 51
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 52
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 53
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 54

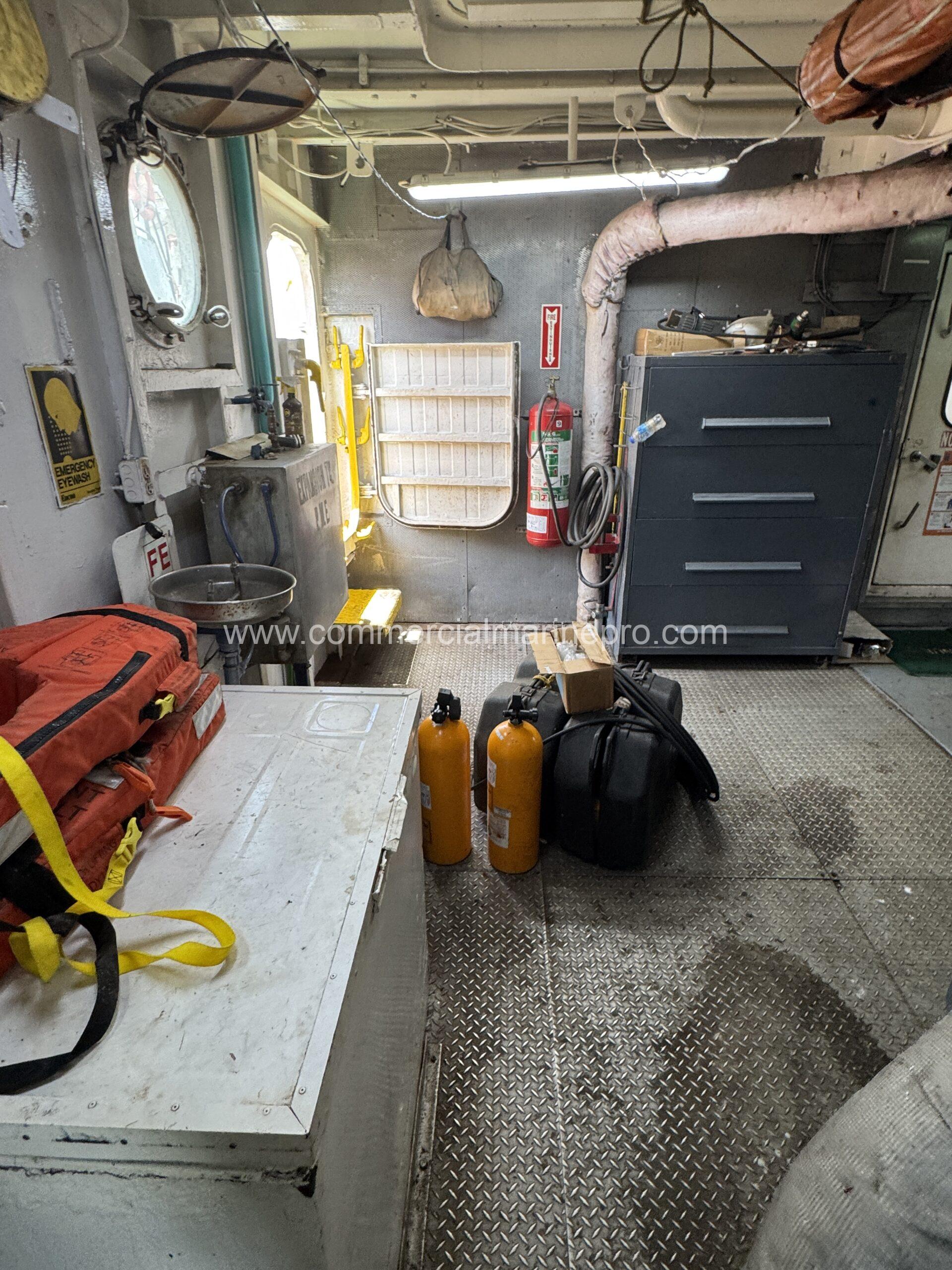

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 55

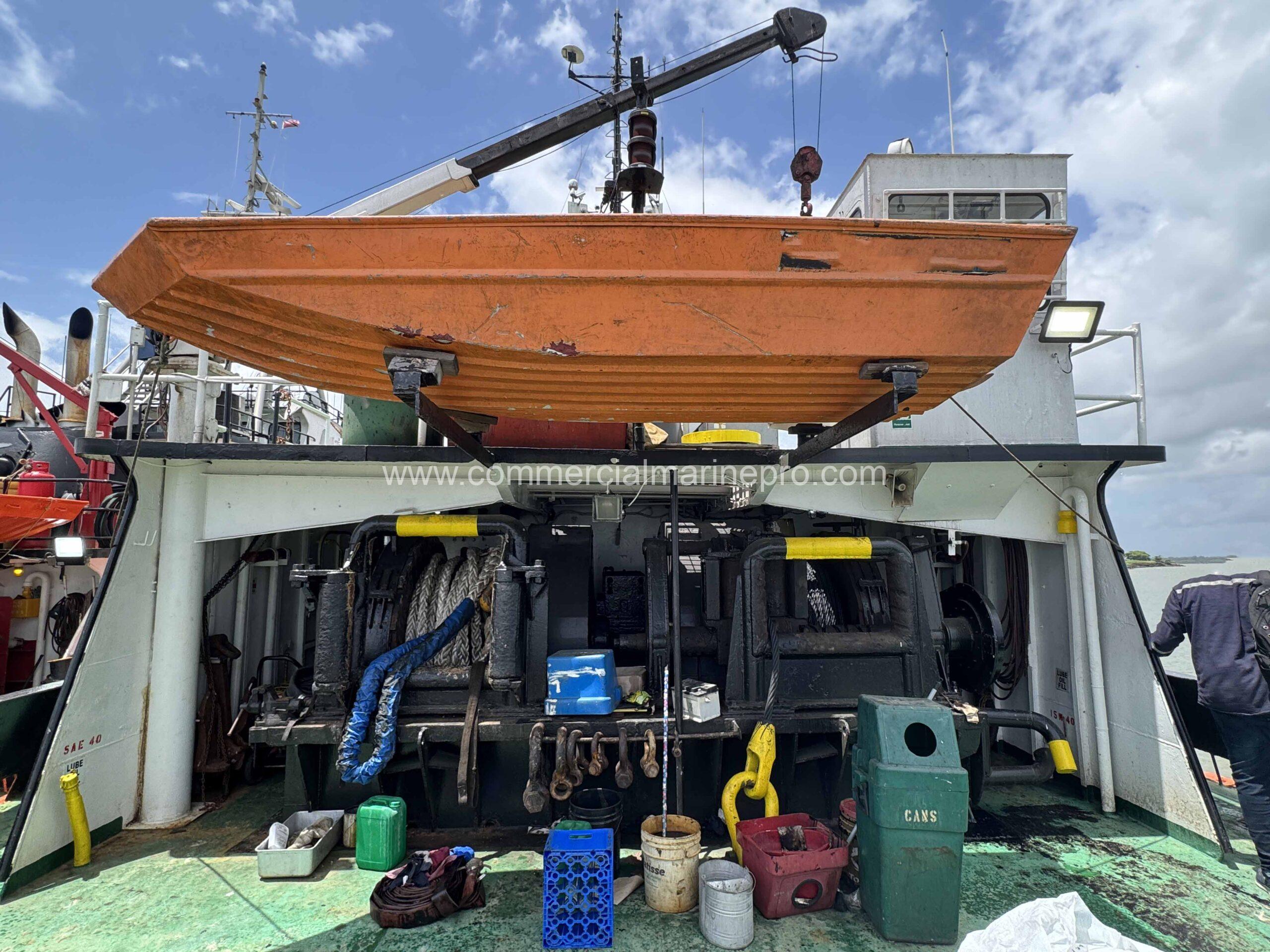

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 56
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 57
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 58

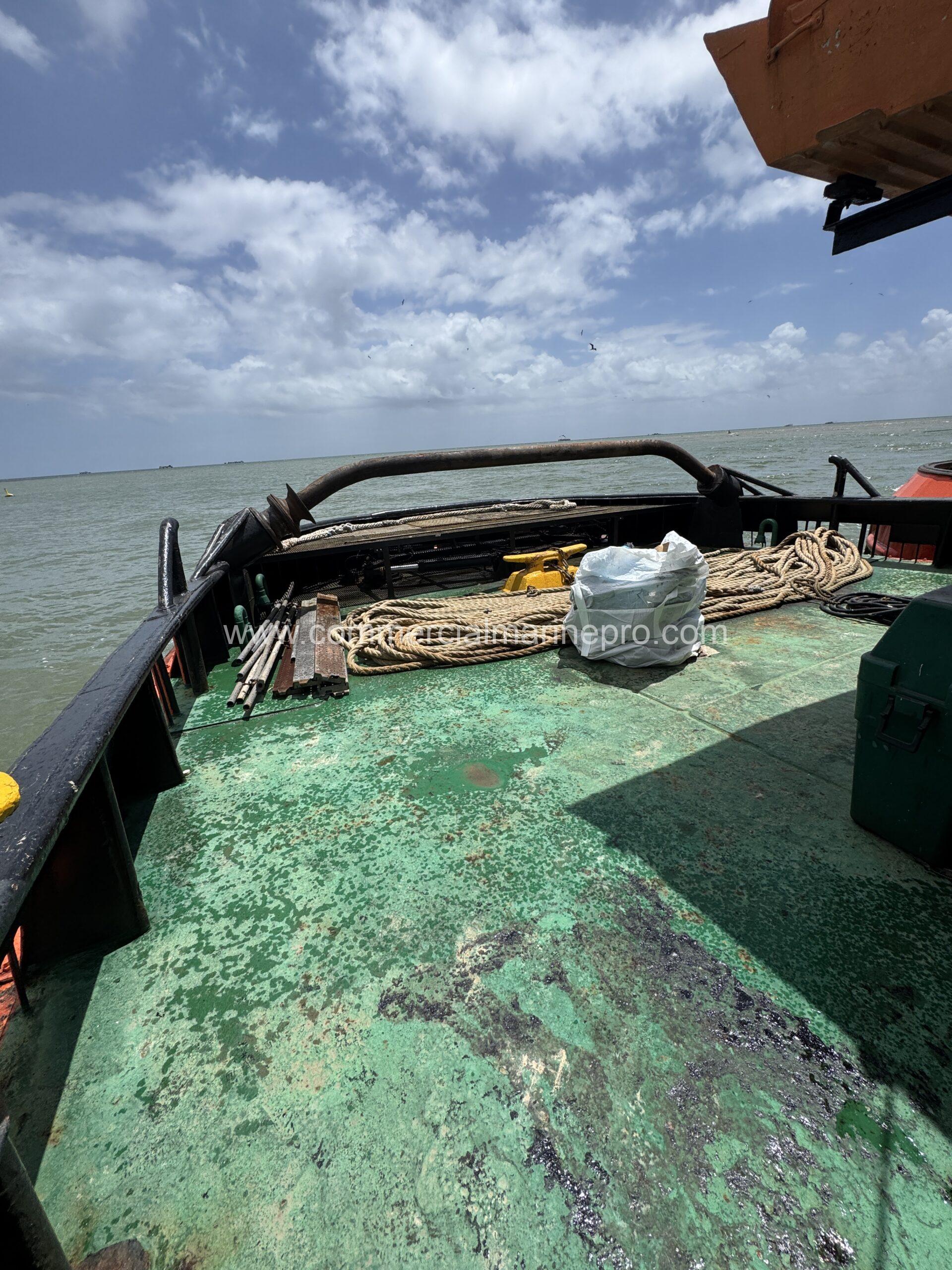

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 59
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 60
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 61
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 62
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 63
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 64

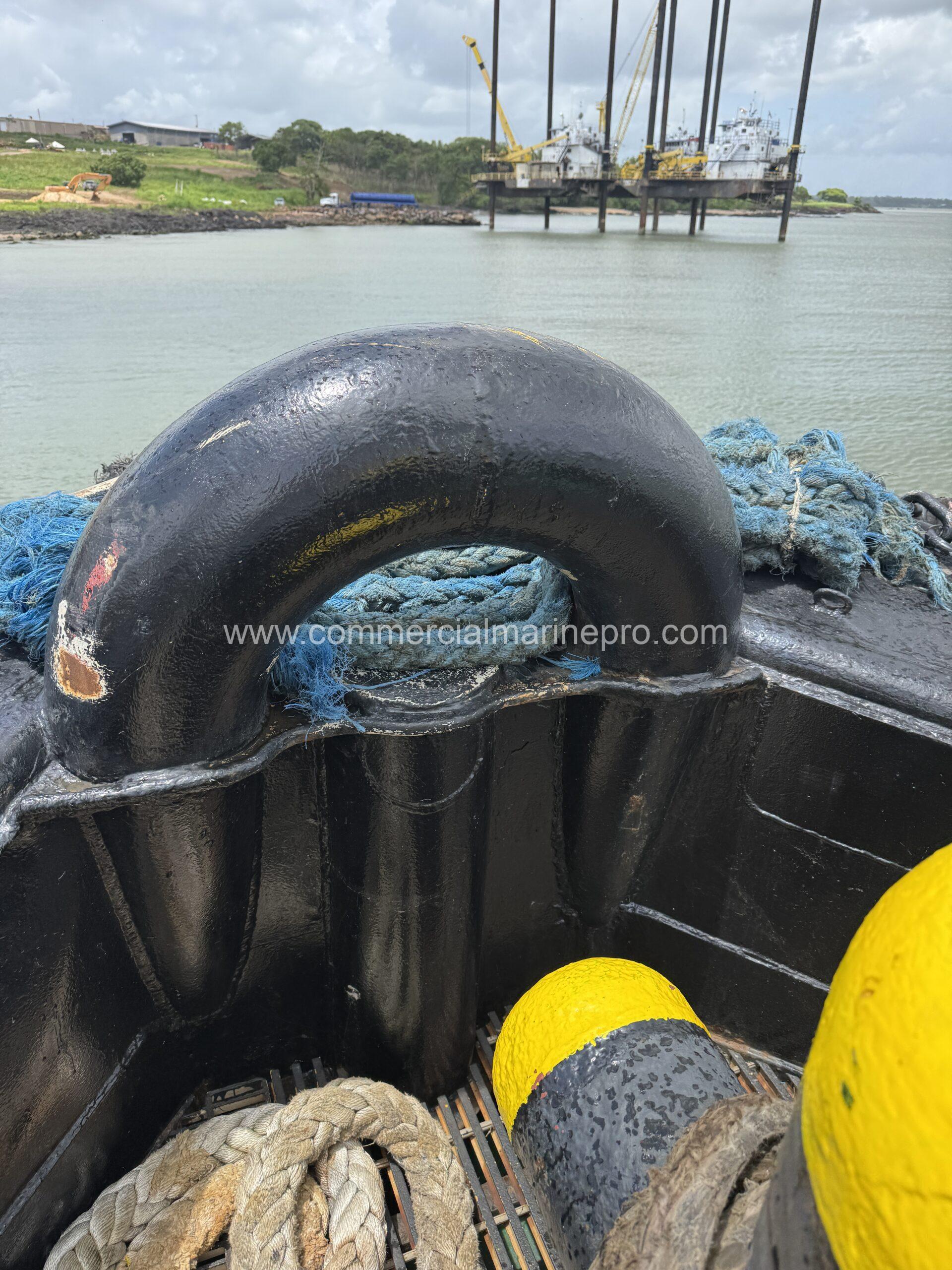

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 65
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 66
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 67
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 68
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 69
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 70
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 71
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 72
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 73
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 74

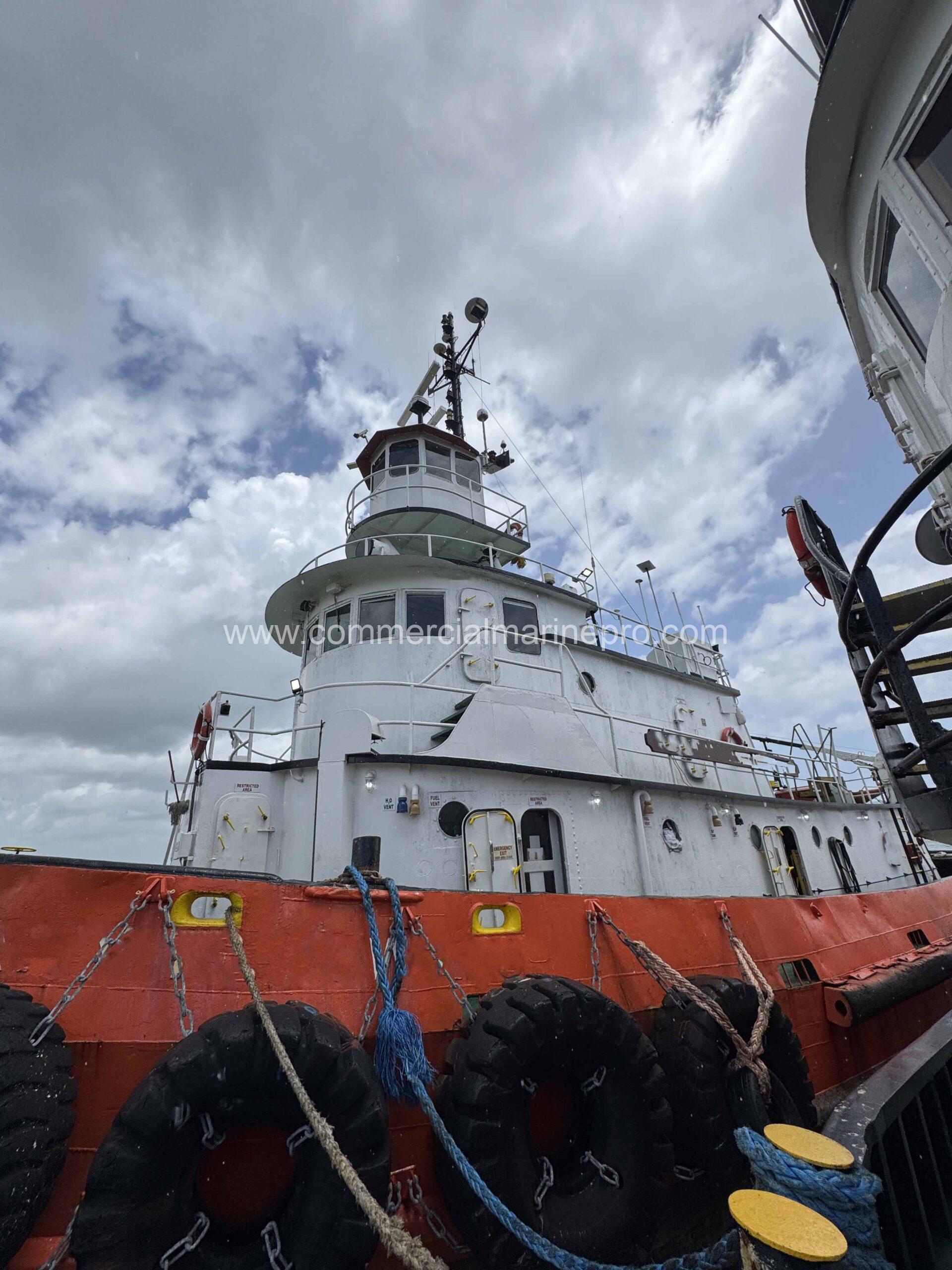

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 75
2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 76

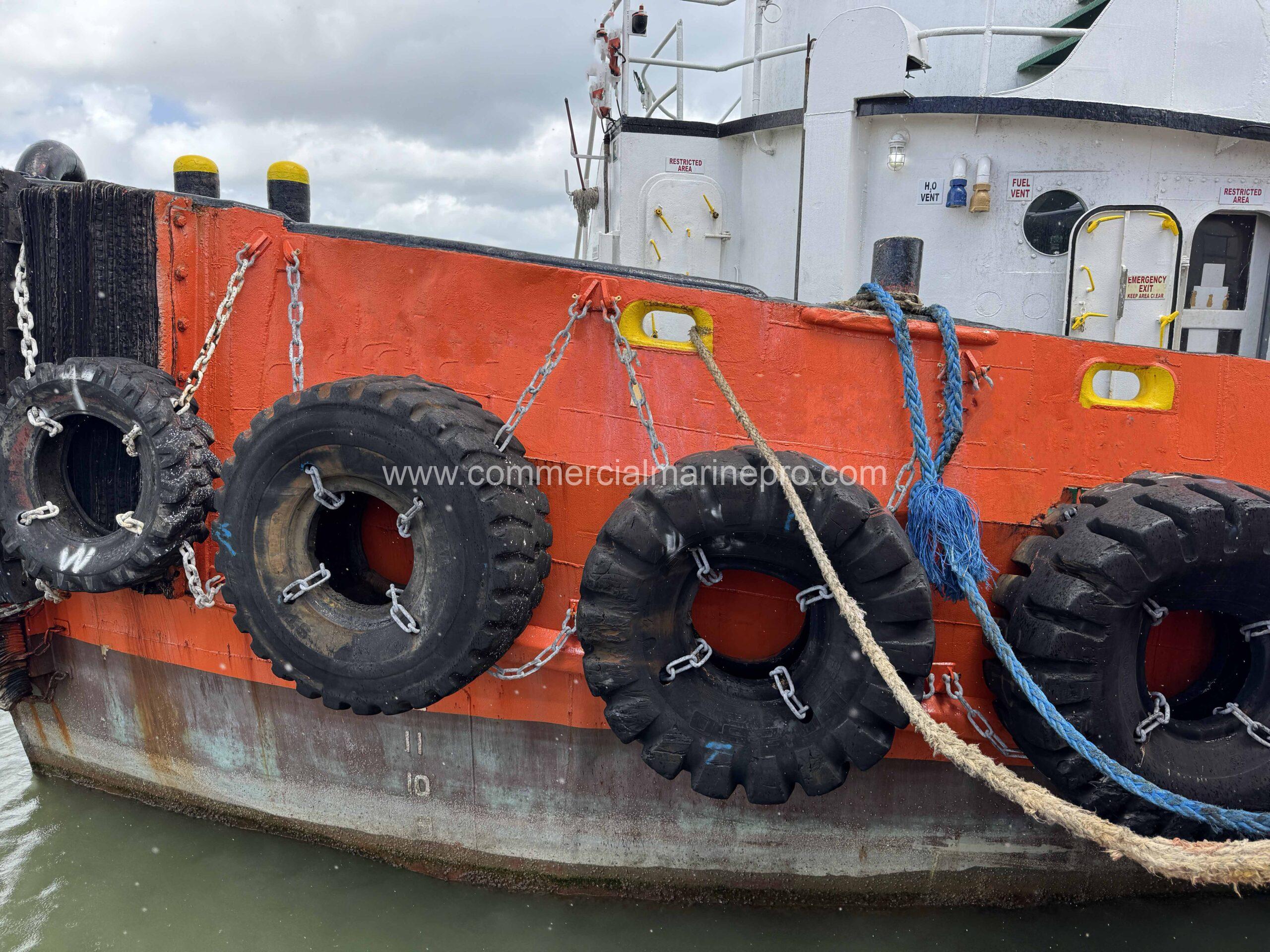

2500hp Model Bow Tug and 5000MT Binwall RORO Barge - Image 77
Export as PDF
Export as Word DOC

,

2500hp Model Bow Tug and 5000MT Binwall RORO Barge

Contact Us Today For Pricing

Product Description:

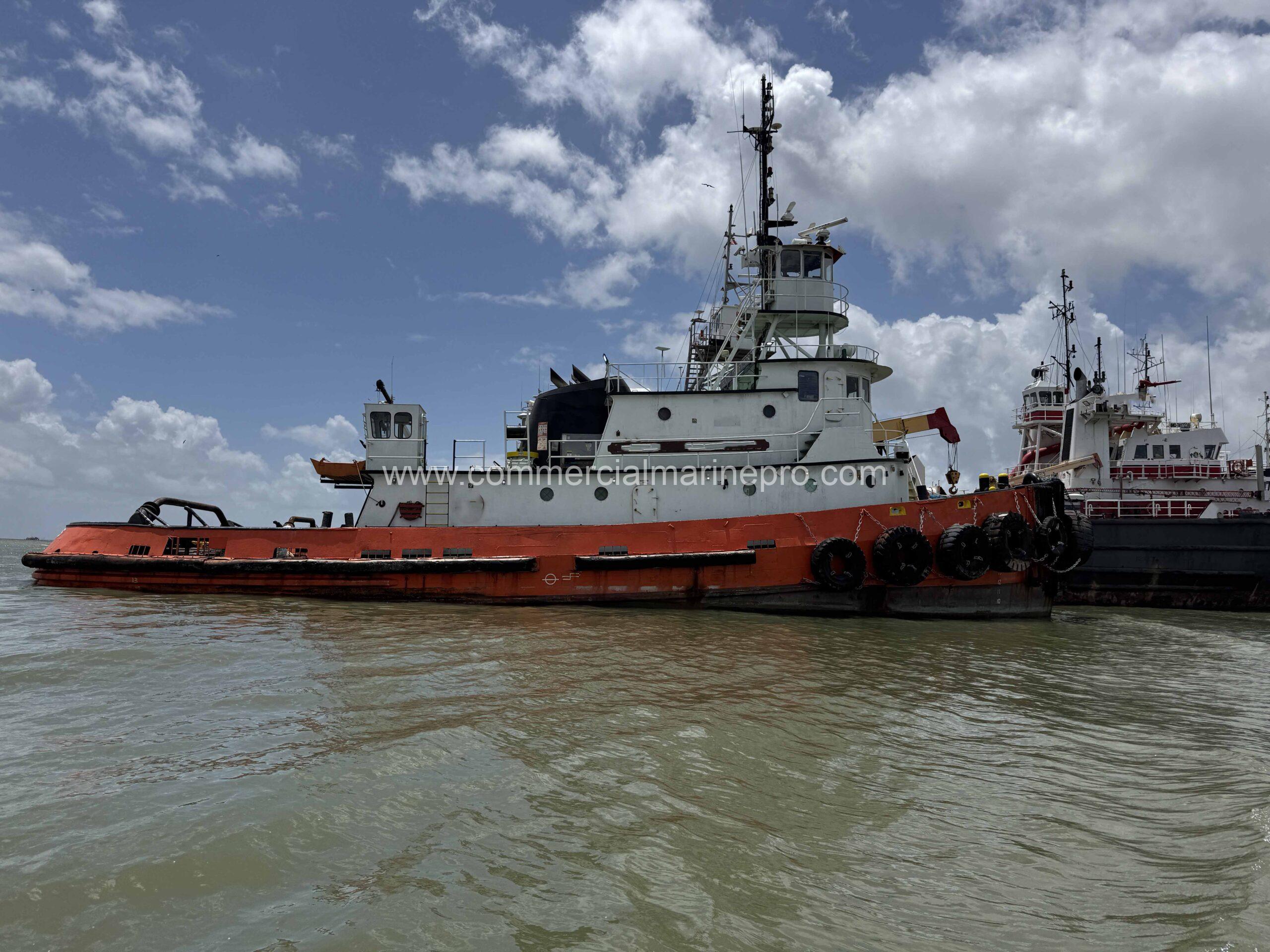

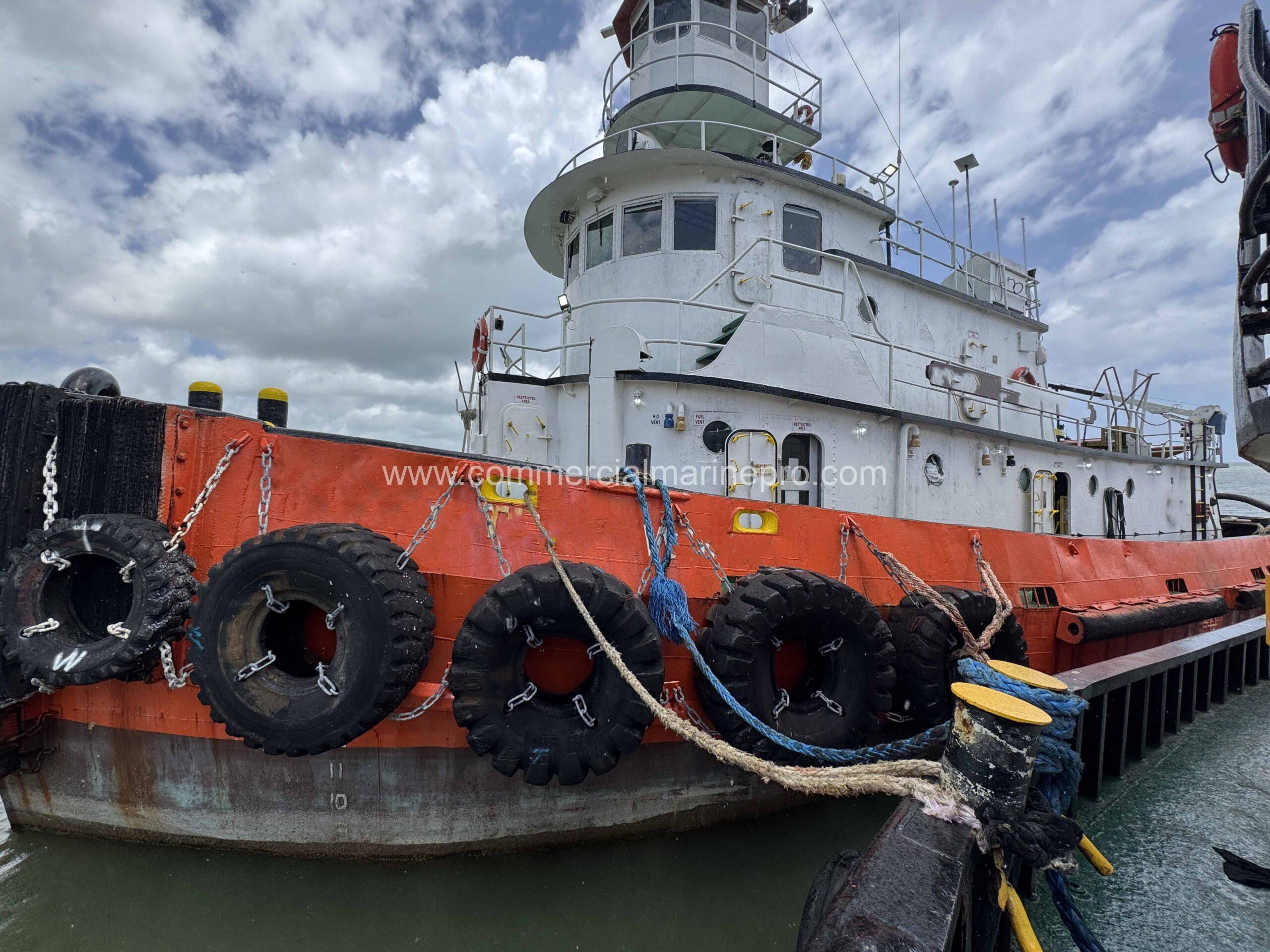

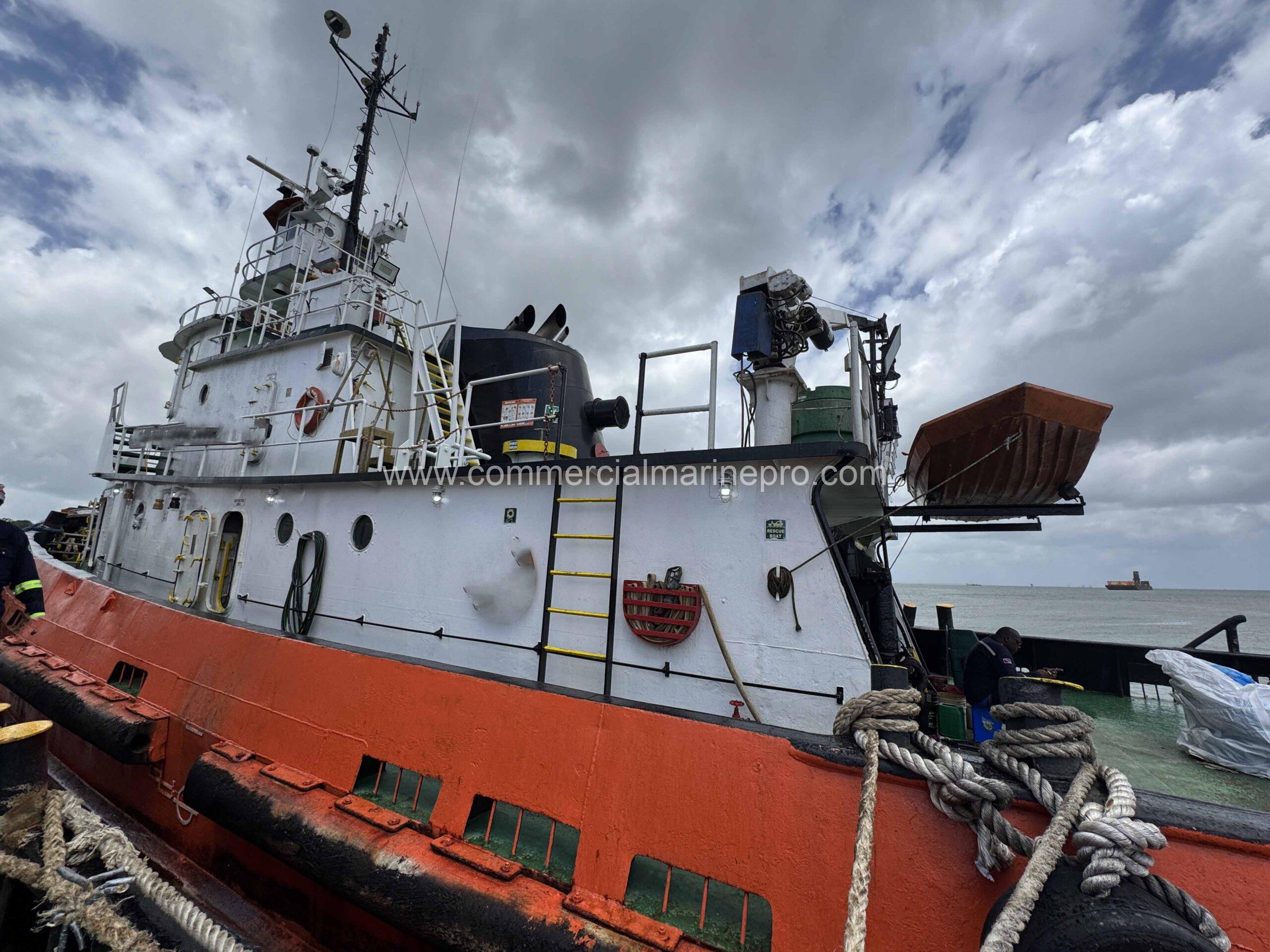

Model Bow Tug Information:

Vessel Particulars
Length Overall 100 ft
Beam 30 ft
Depth 14.6 ft
Summer Draft 12 ft

Machinery

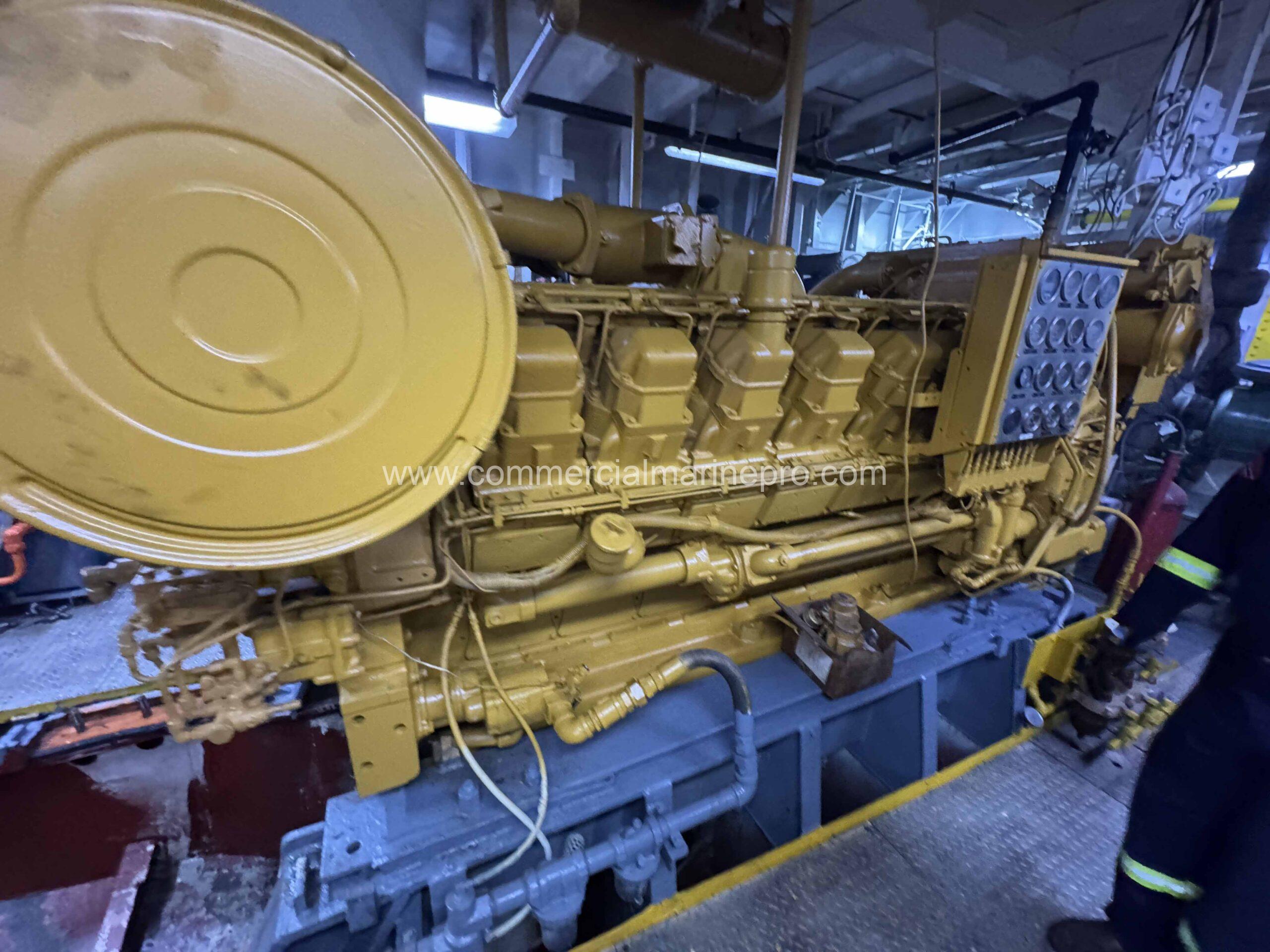

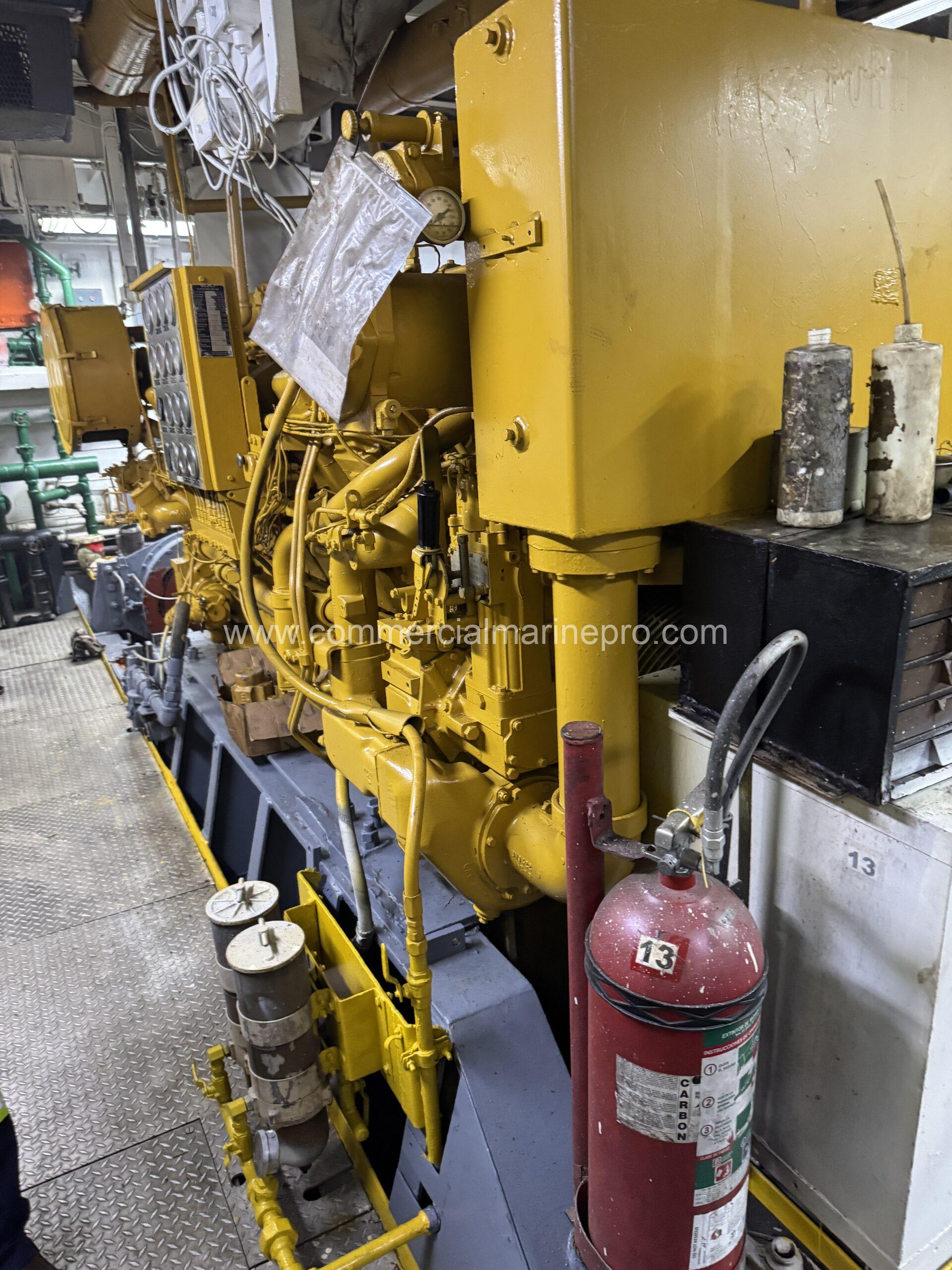

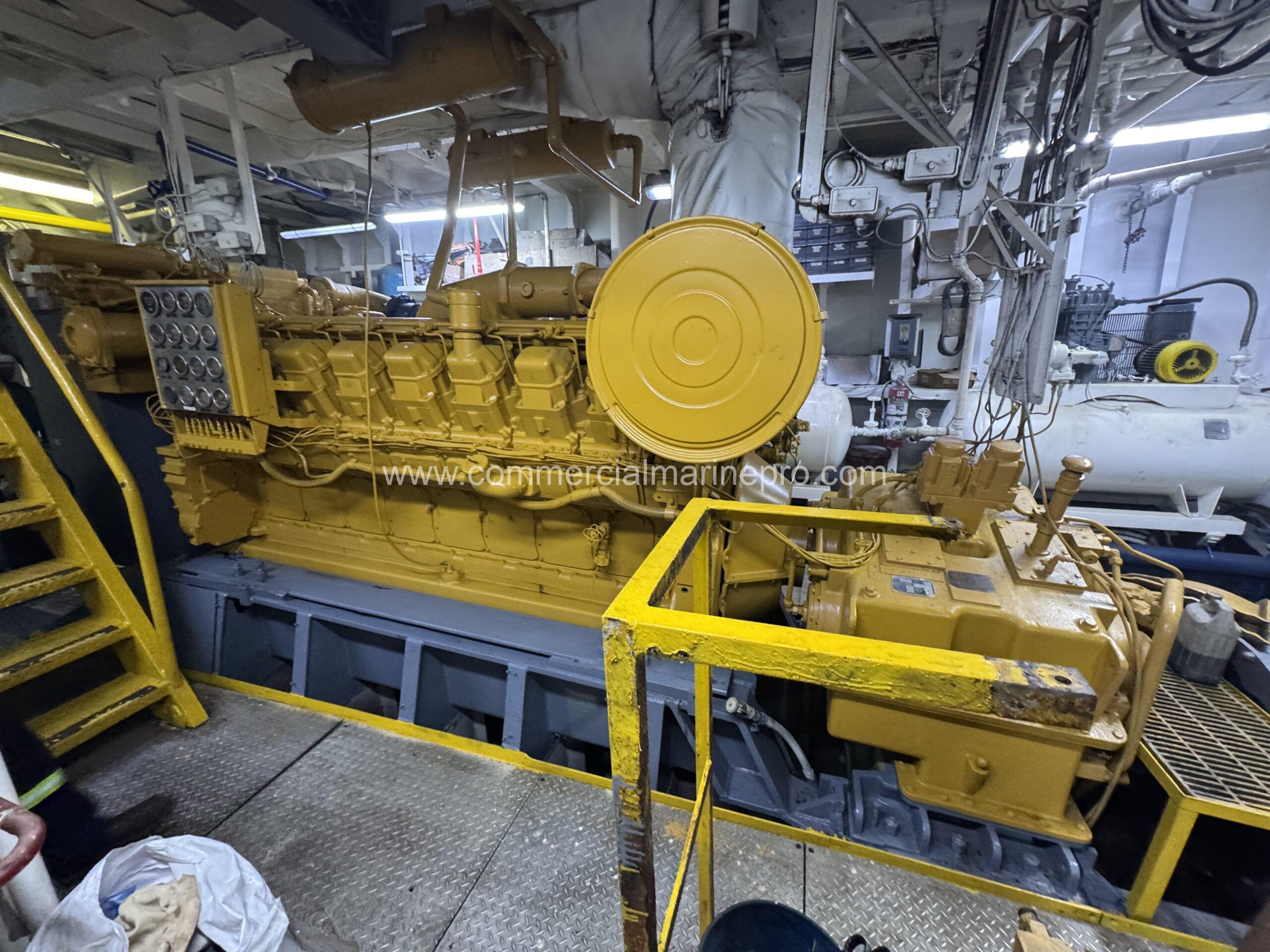

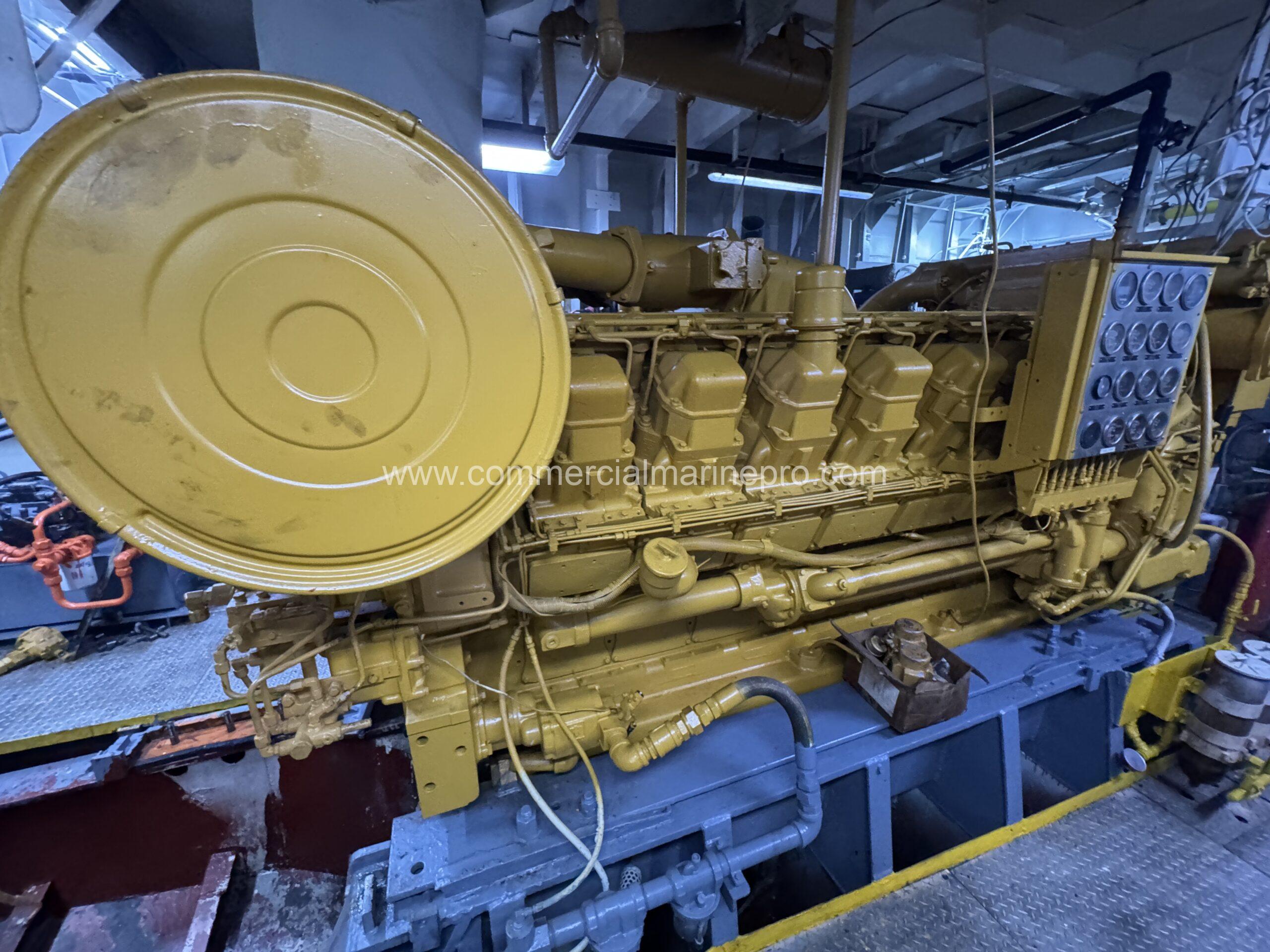

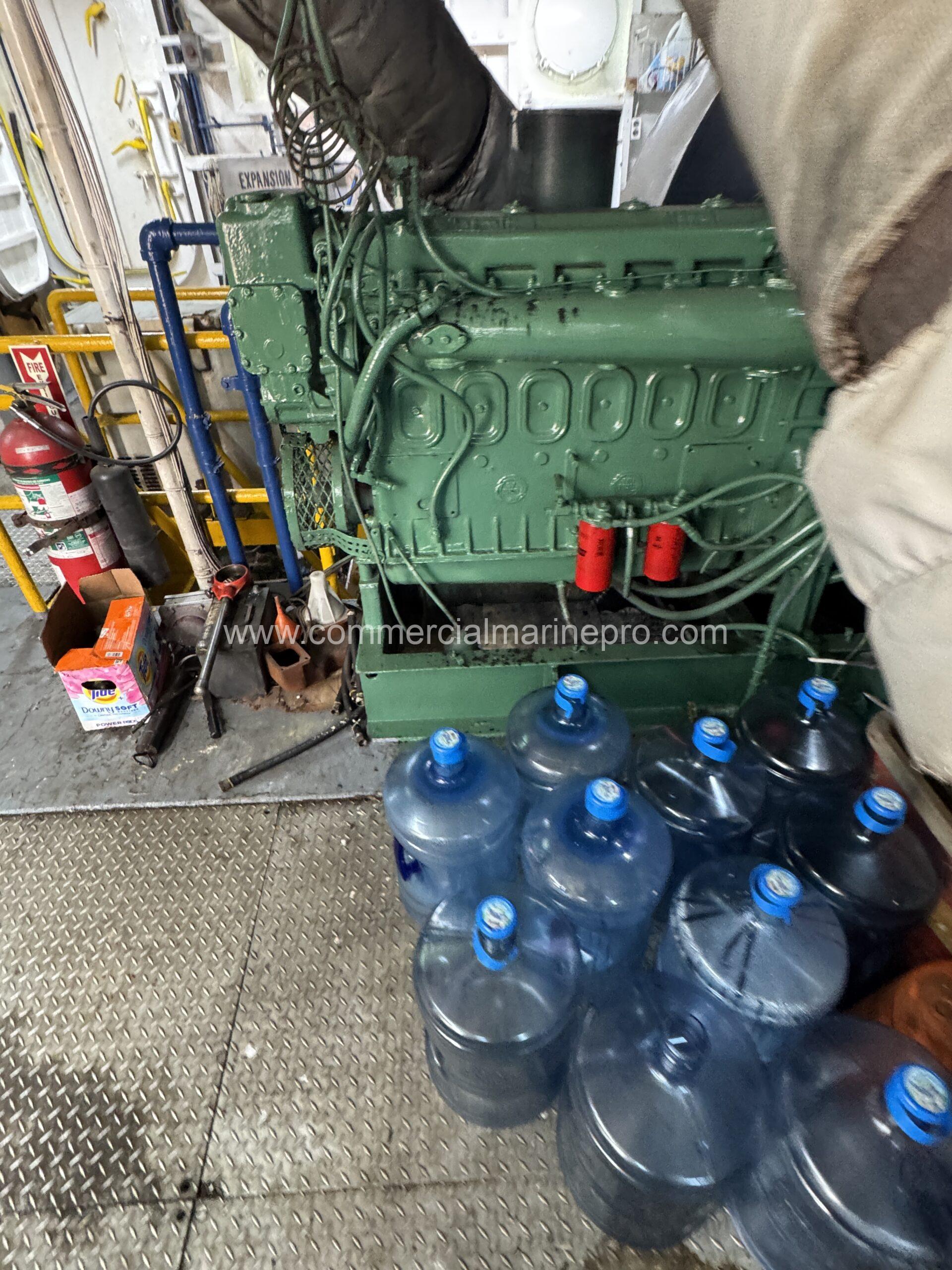

Main Engines 2 x CAT 3516
Brake Horsepower 2,500 BHP

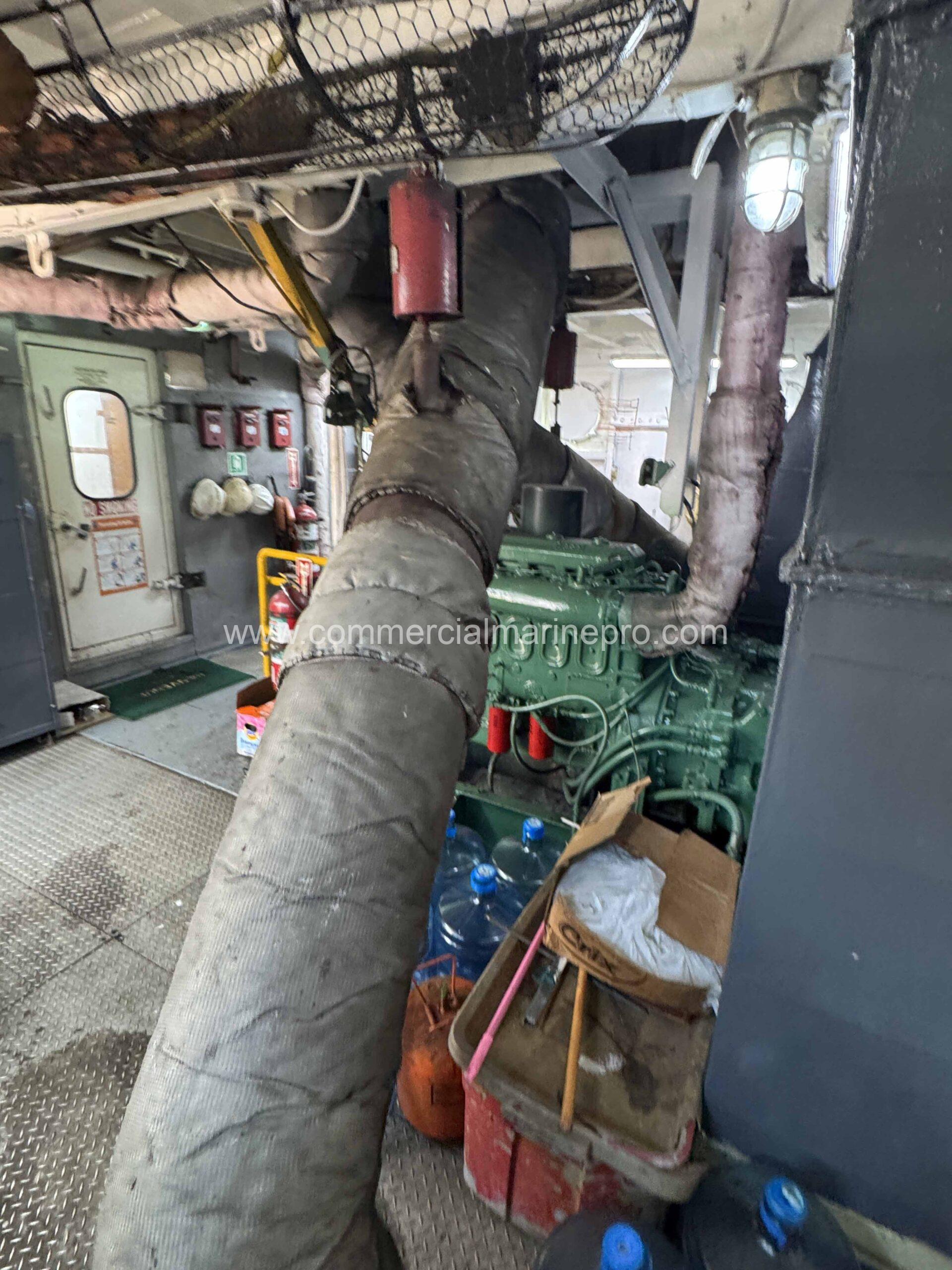

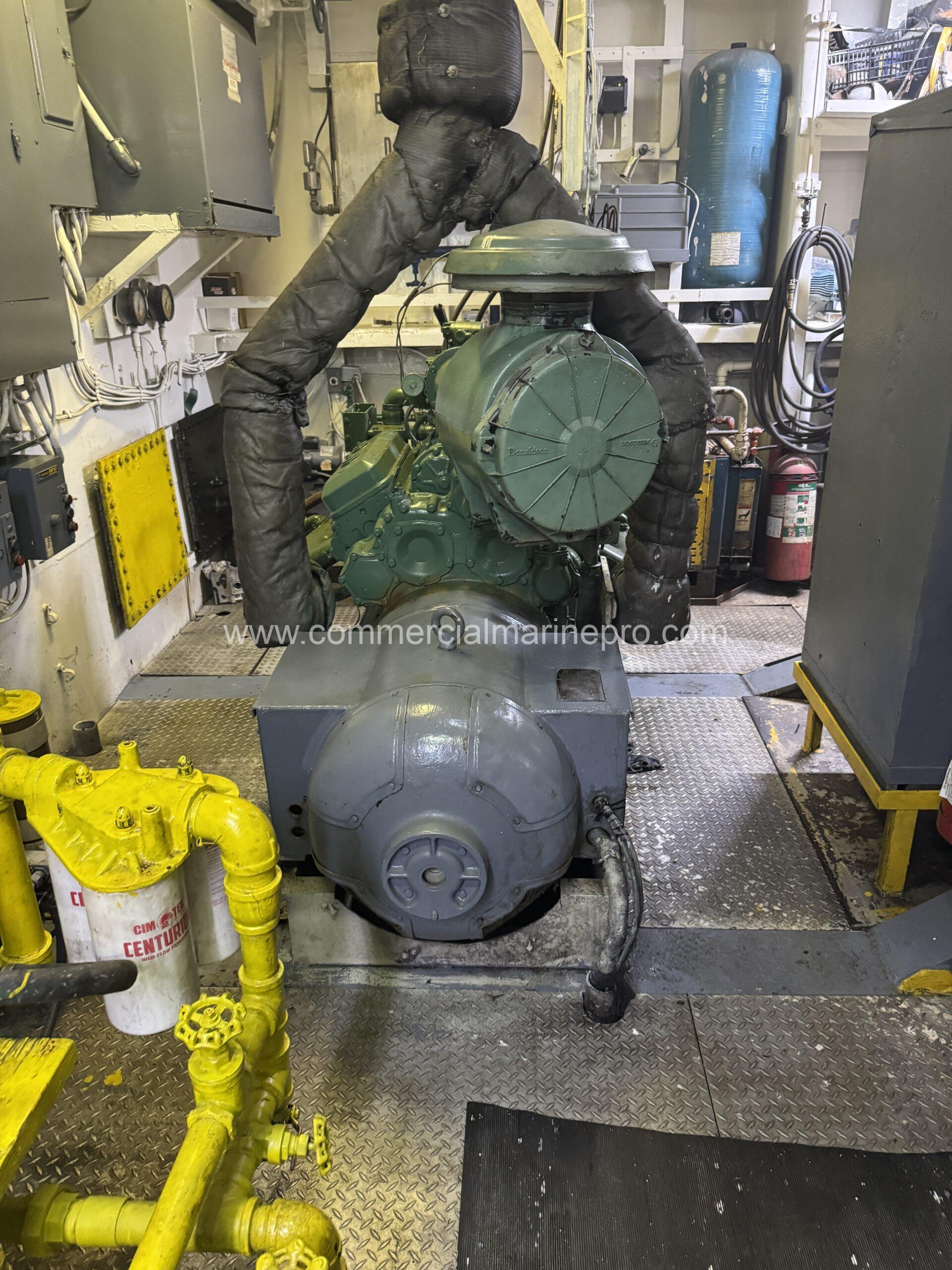

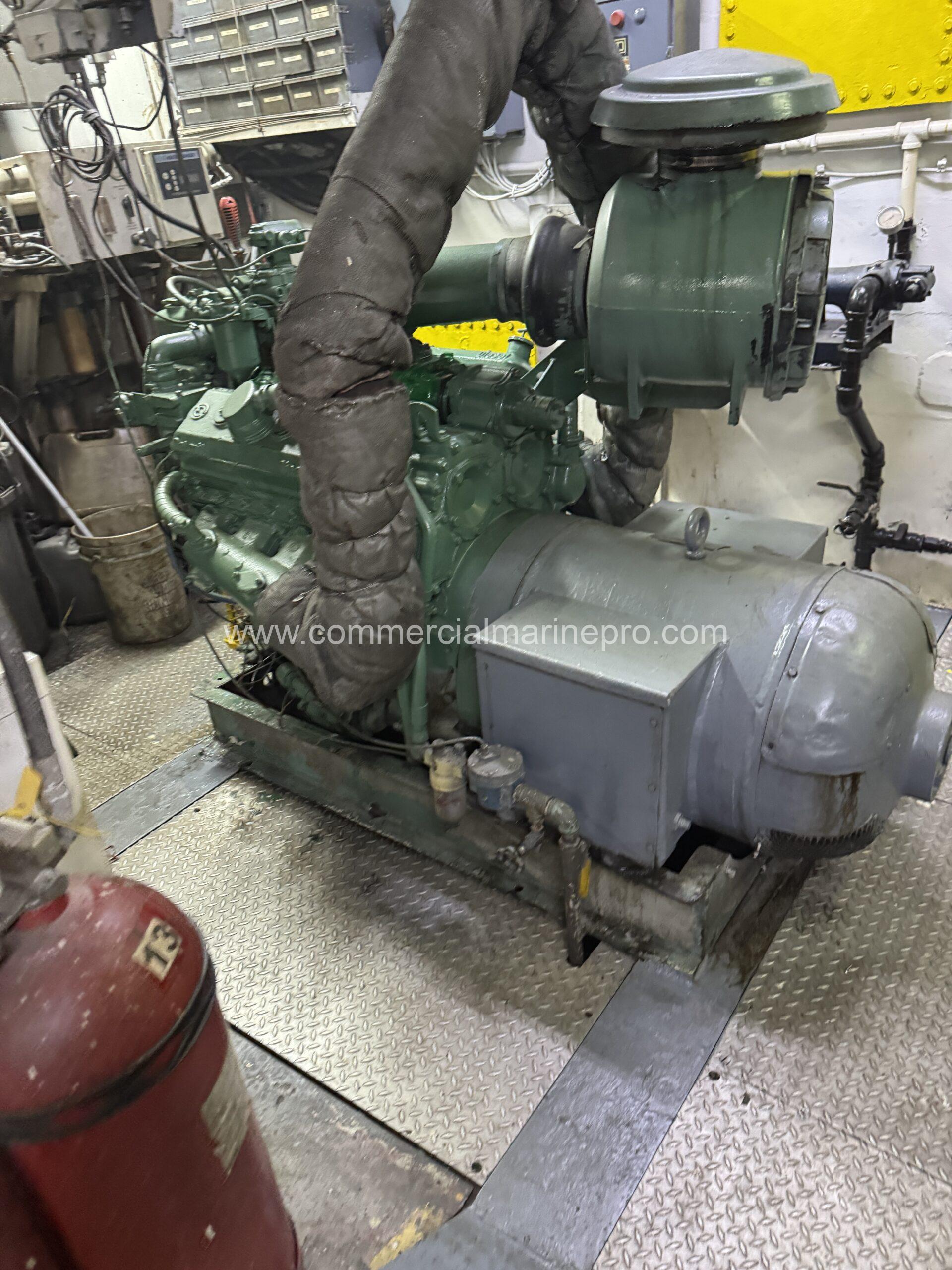

Auxiliary Generators 2 – 75 KW, GM 6V-71
Rudders Airfoil Type
Propeller 100” Di. 4 Blade Open

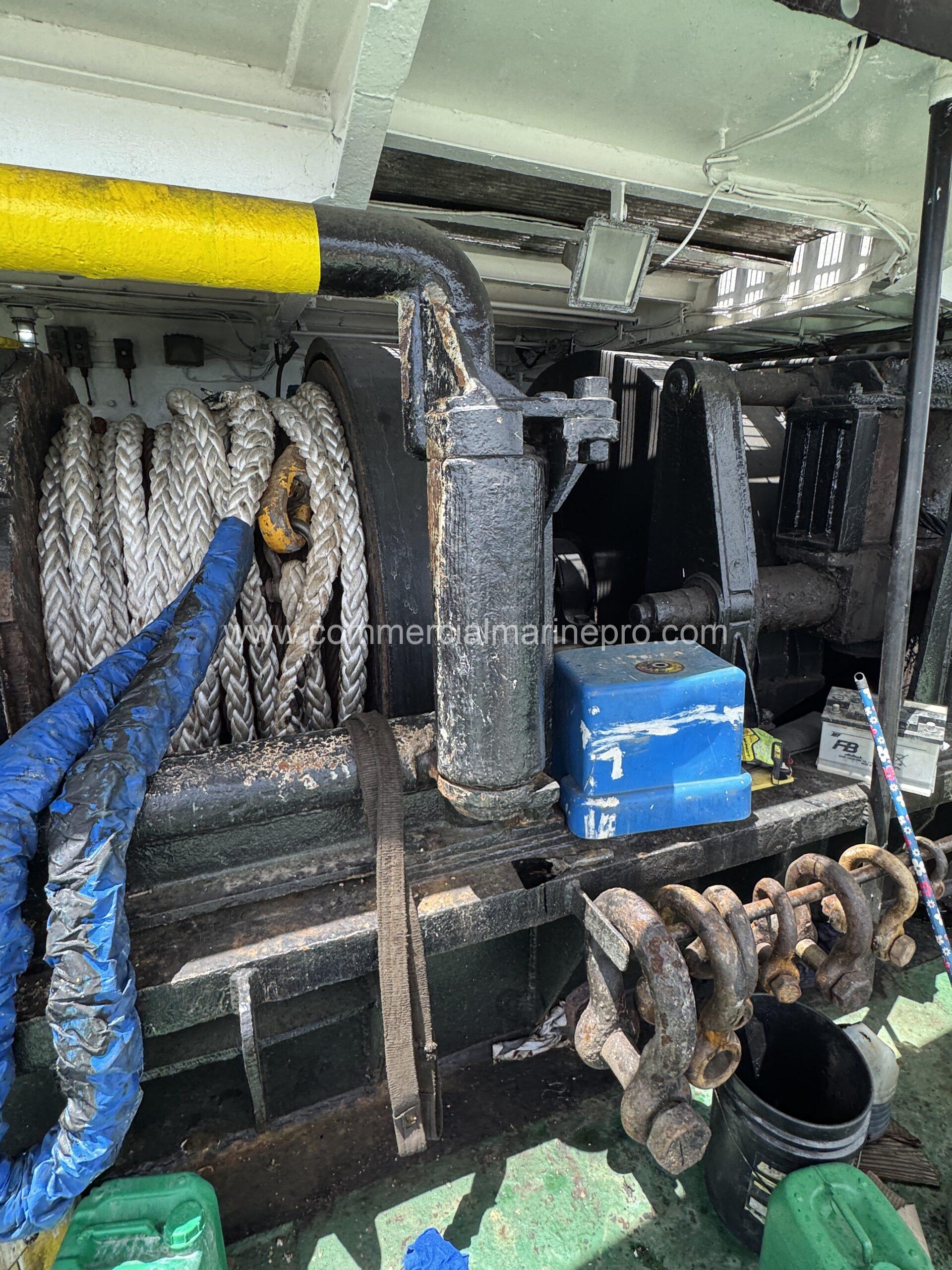

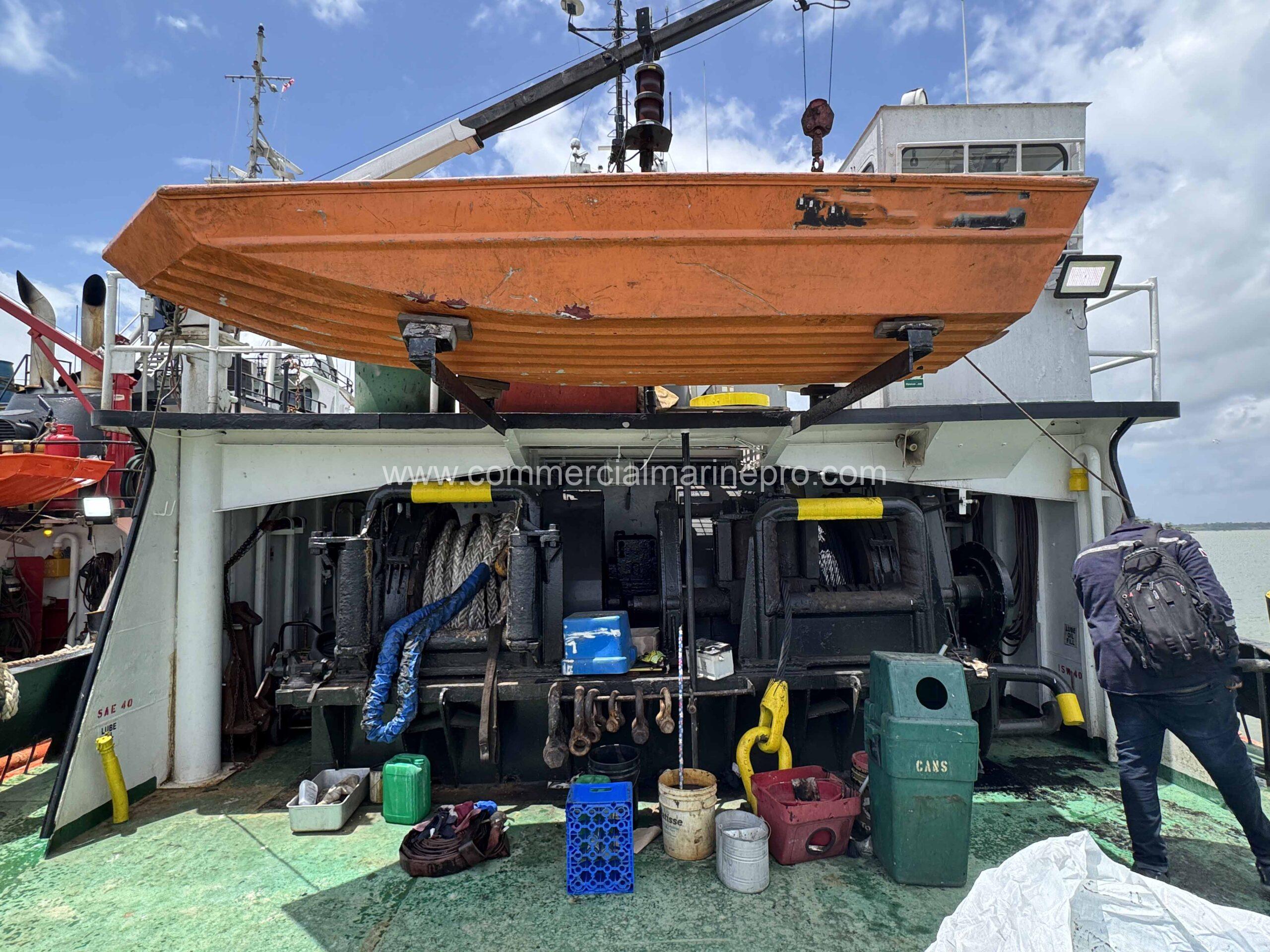

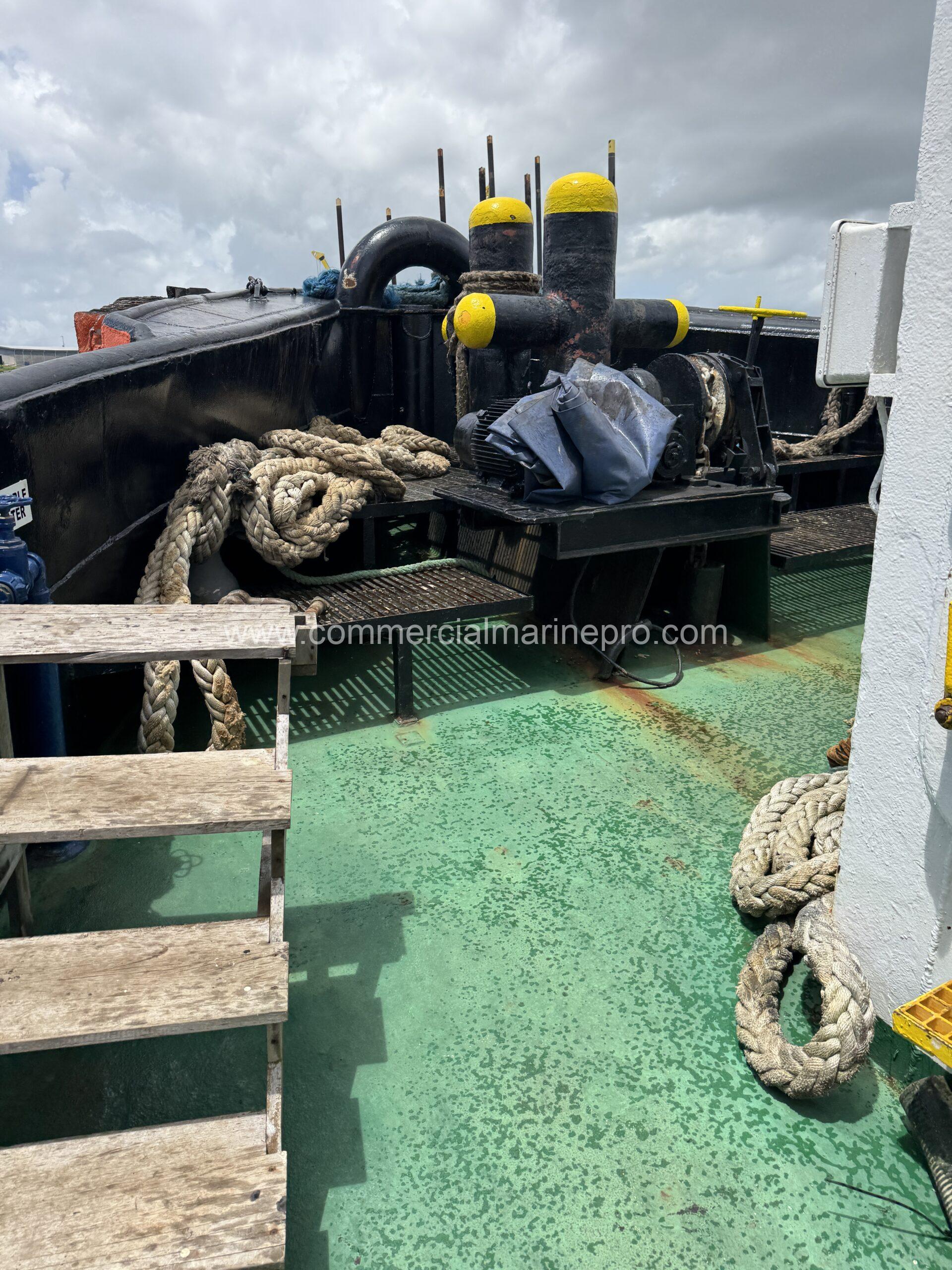

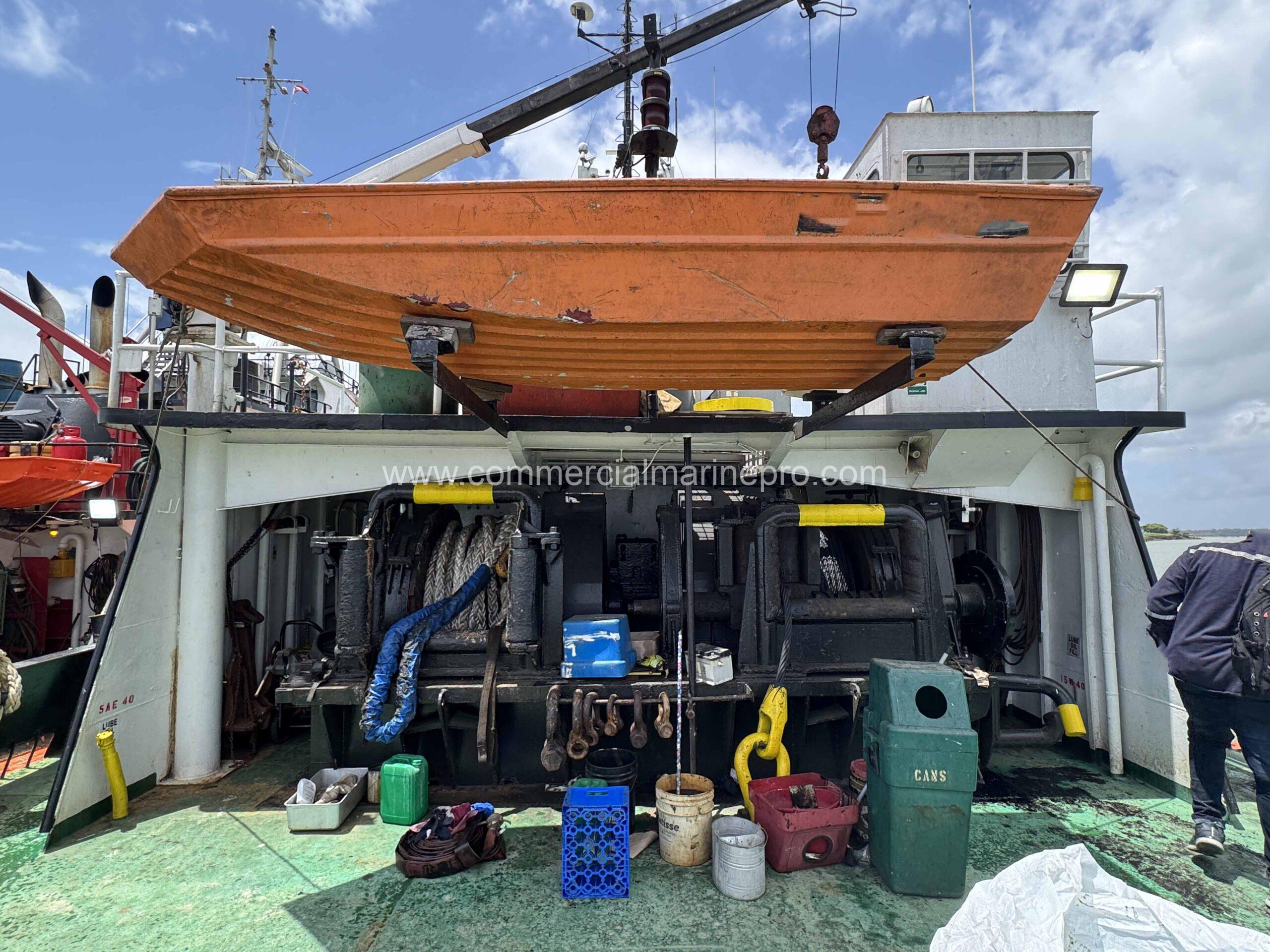

Main Winch Intercon Double Drum
Cable Capacity 2,000 ft of 2.25 In.
Line Pull (Max) 132 MT

Performance
Maximum Speed 10 Knots (95 USG MGO per Hour)
Towing Speed 6 Knots (83 USG MGO per Hour)

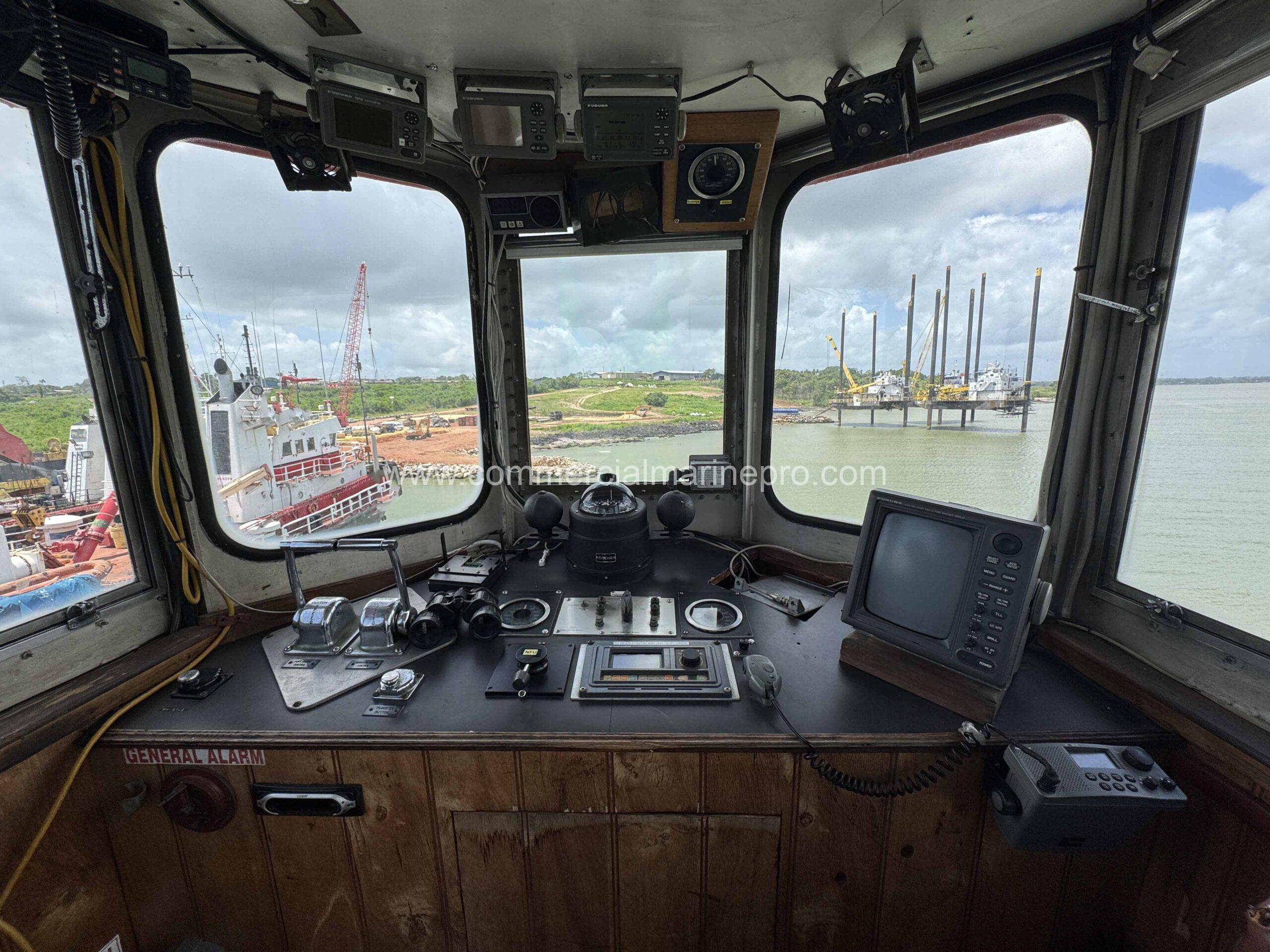

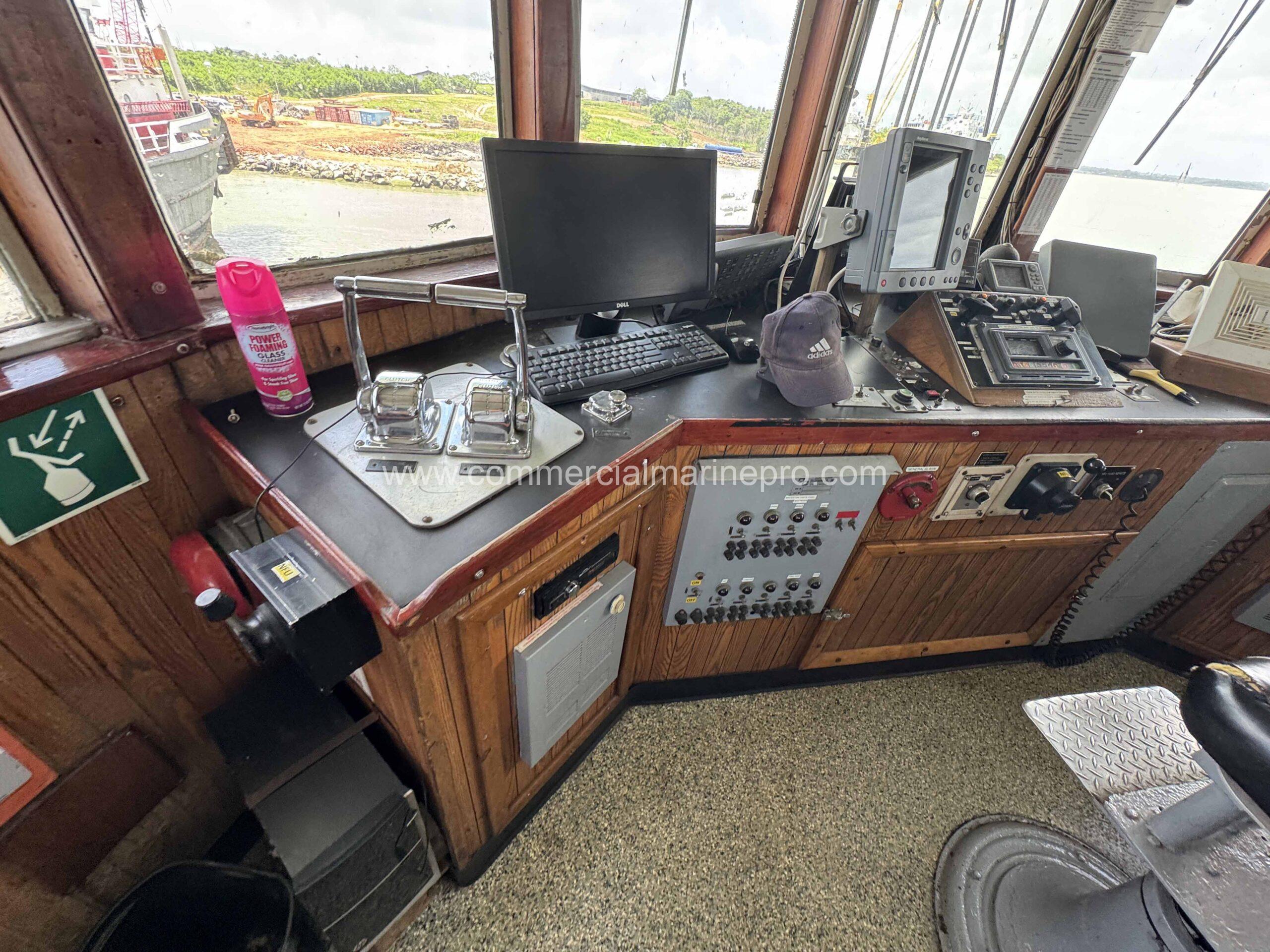

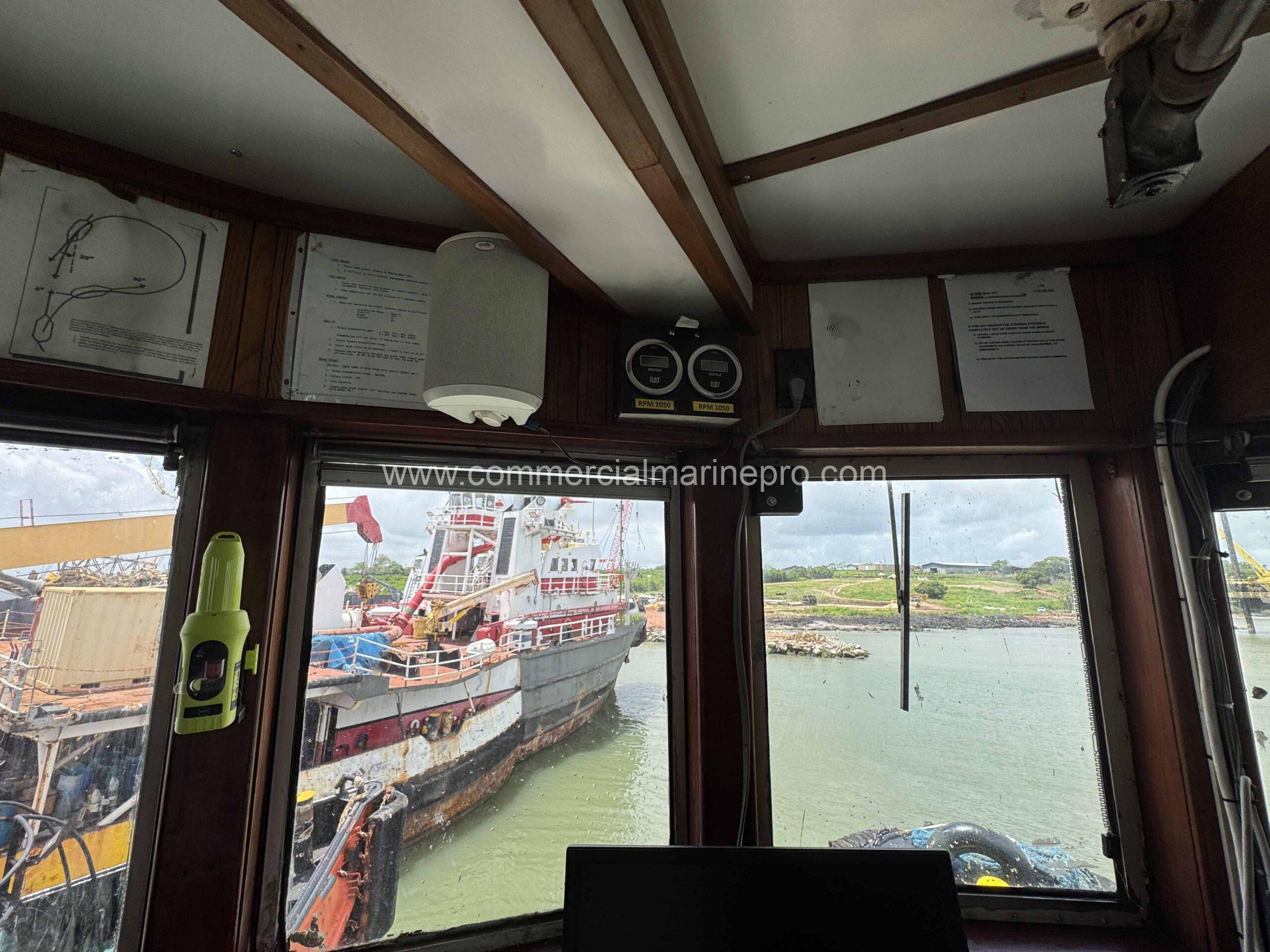

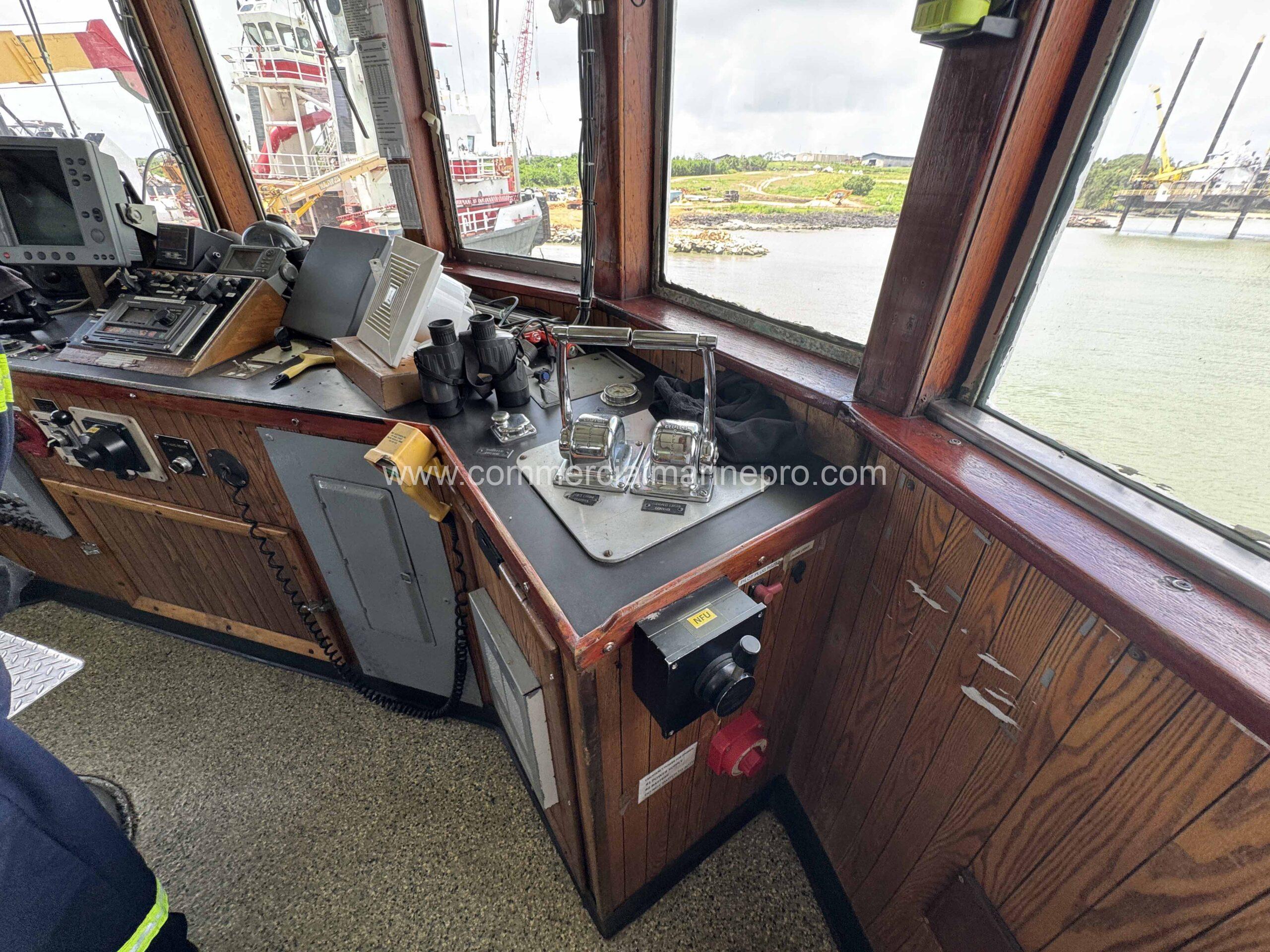

Electronics
Radar 2x Furuno FR8100
GPS Furuno & NorthStar
Gyro Compass Sperry-SR 430
Satellite Email Fleet Broadband

Documentation
Built 1975
Builder Bollinger Shipyard, Inc

Capacities
Potable Water 10,000 USG
Fuel 66,070 USG

Tonnage
GRT 317 MT
NRT 95 MT

Additional Information:

RORO Binwall Barge Information – Built 1980

Vessel Particulars
Length Overall 230 ft
Beam 72 ft
Depth 17.25 ft
Loaded Draft 14 ft
Light Draft 4 ft

Tonnage
GRT 2146 MT
NRT 643 MT

Capacities
Clear Deck 200 ft x 60 ft
Clear Deck Area 12,000 sqft
Bin Wall Bow Height 14 ft
Bin Wall Side Height 8 ft
Ramp Length 54 ft
Ramp Width 14 ft
Deck Lighting Yes

Not ABS
