Product Description:
1983
Length 400’ 122 m
Breadth 105’ 32 m
Depth 20’ 6.1 m
Gross Tonnage 6,076 t
Net Tonnage 1,822 t
Summer Load Line Keel Draft 14’ 2.75” 4.34 m
Summer Load Line Displacement 14,776 LT 15,012 mt
Summer Load Line Deadweight 11,900 LT 12,090 mt
Lightship Draft 3’ 4.25” 1.06 m
Lightship Displacement 2,876 LT 2,922 mt
Lightship LCG Forward of Transom 200.4’ 61.08 m
Lightship VCG Above Baseline 12.0’ 3.66 m

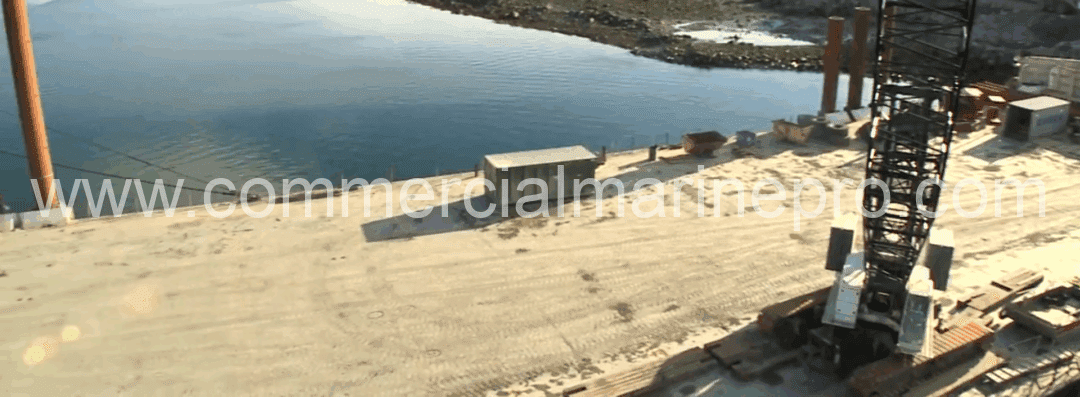

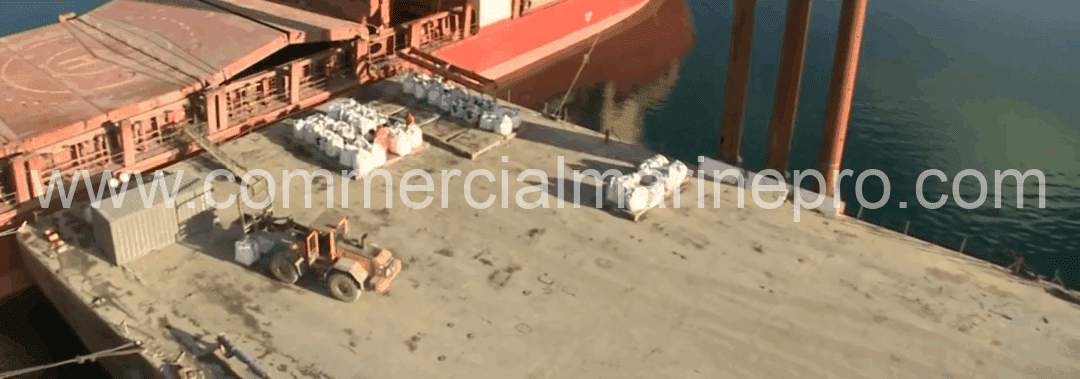

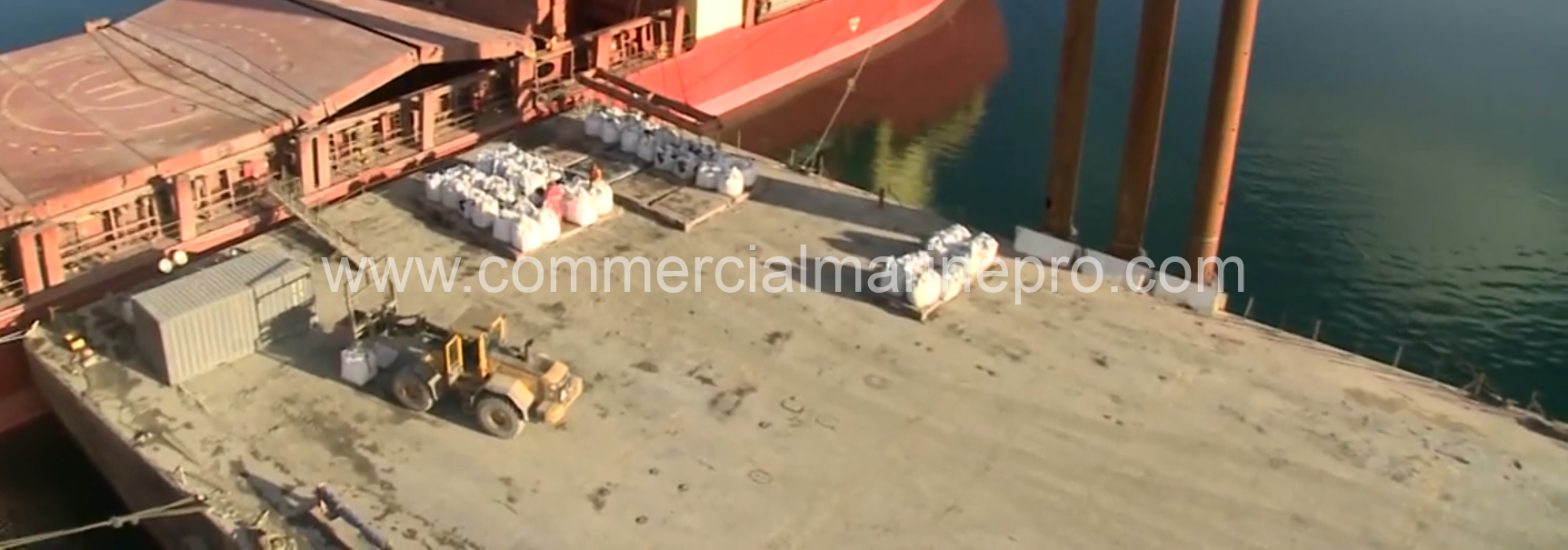

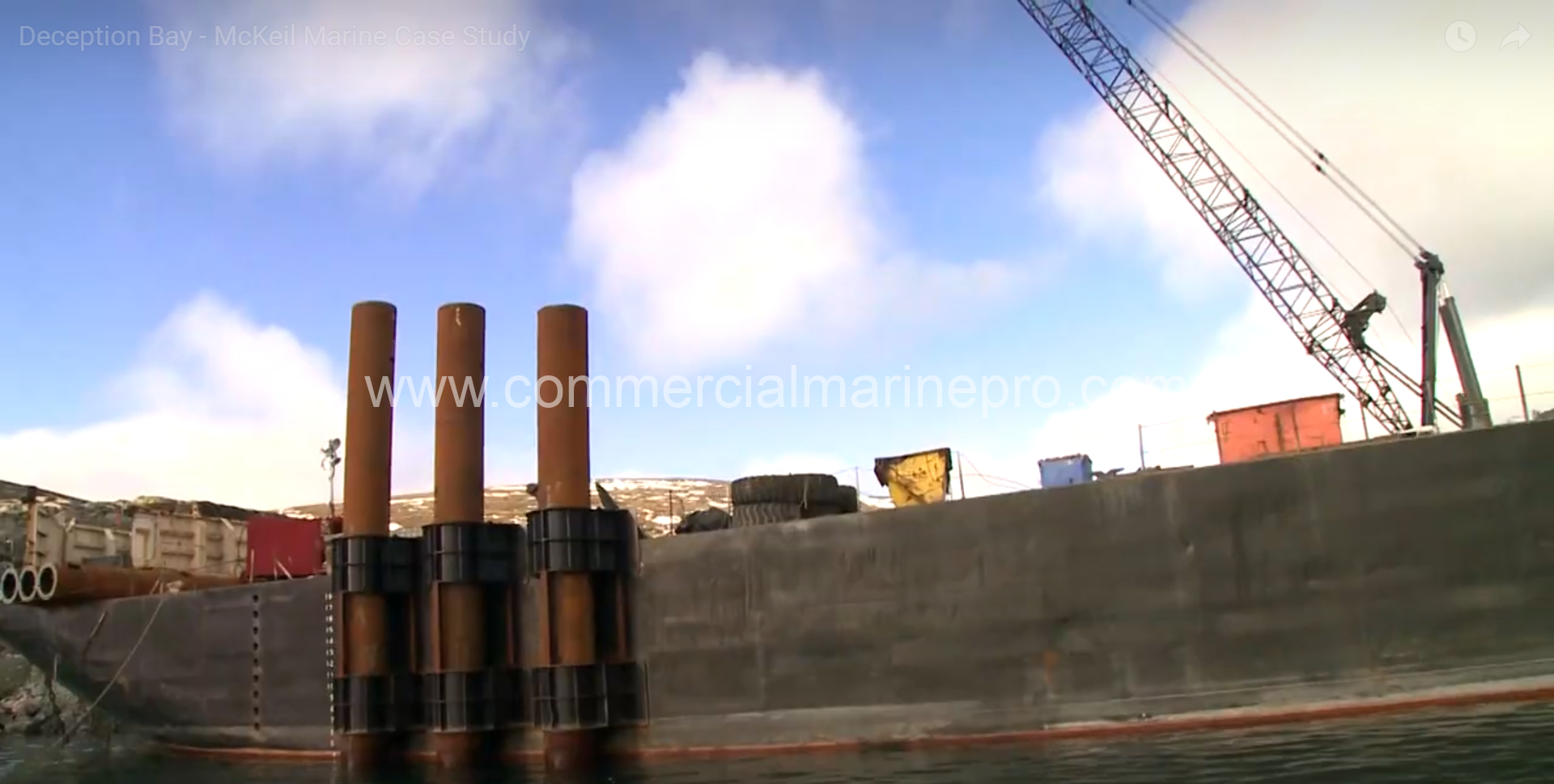

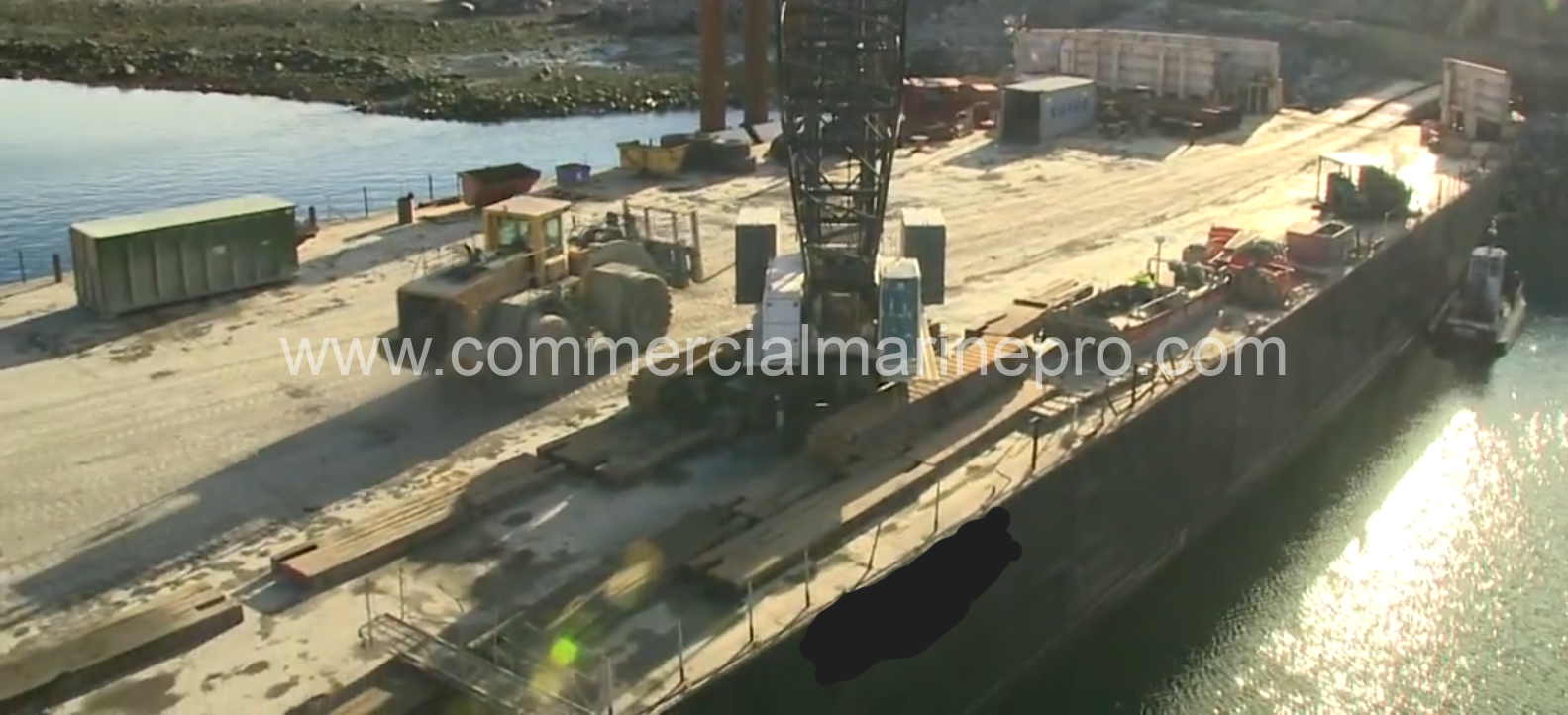

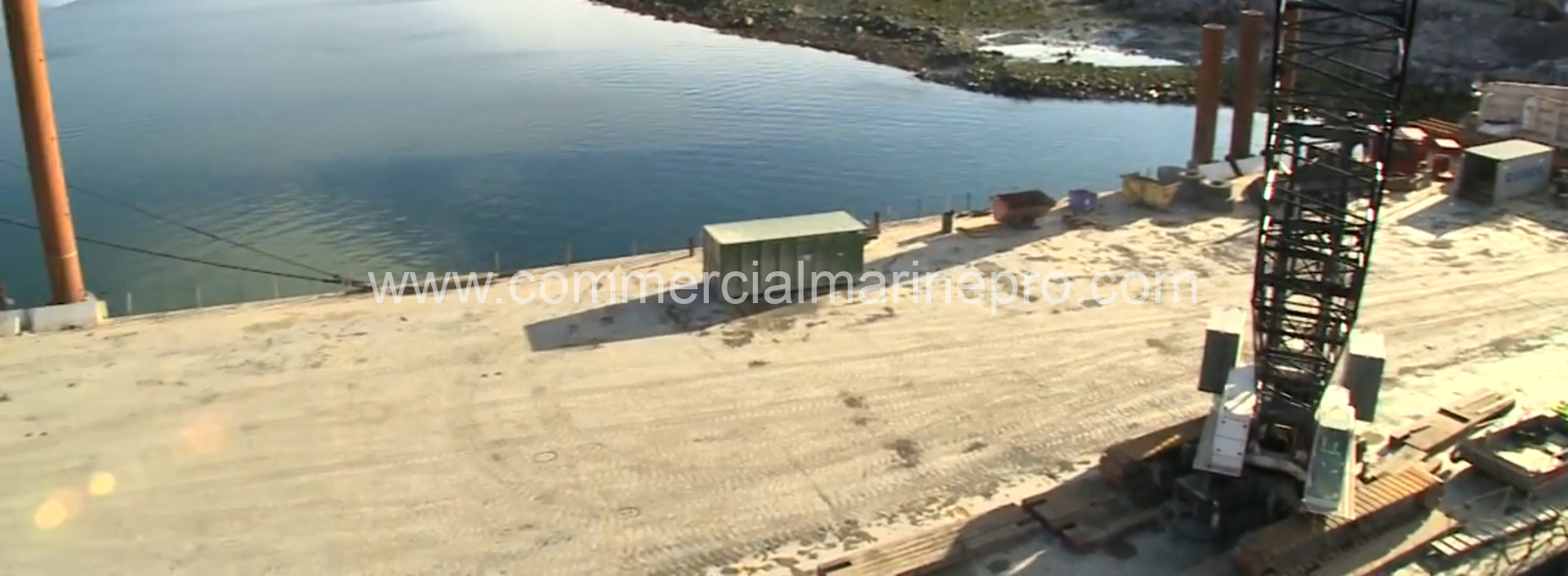

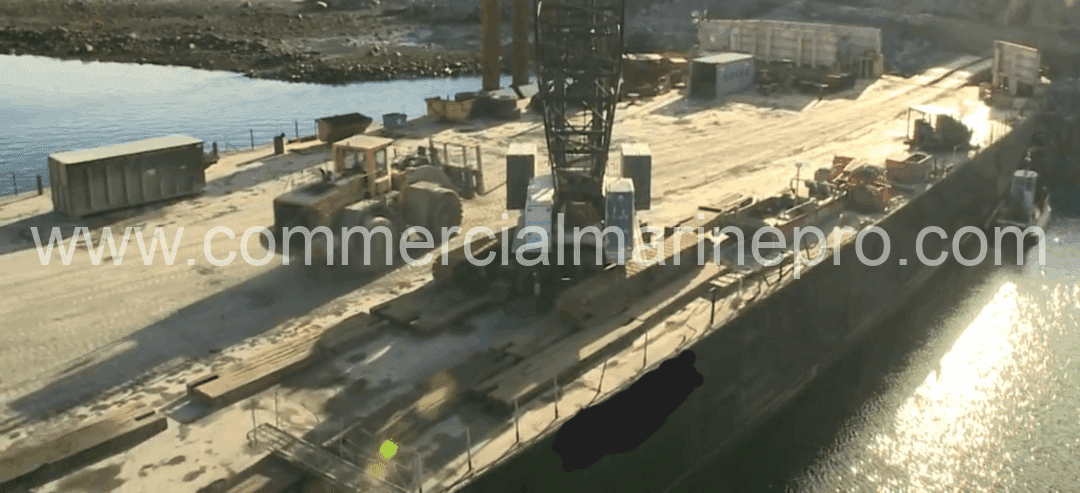

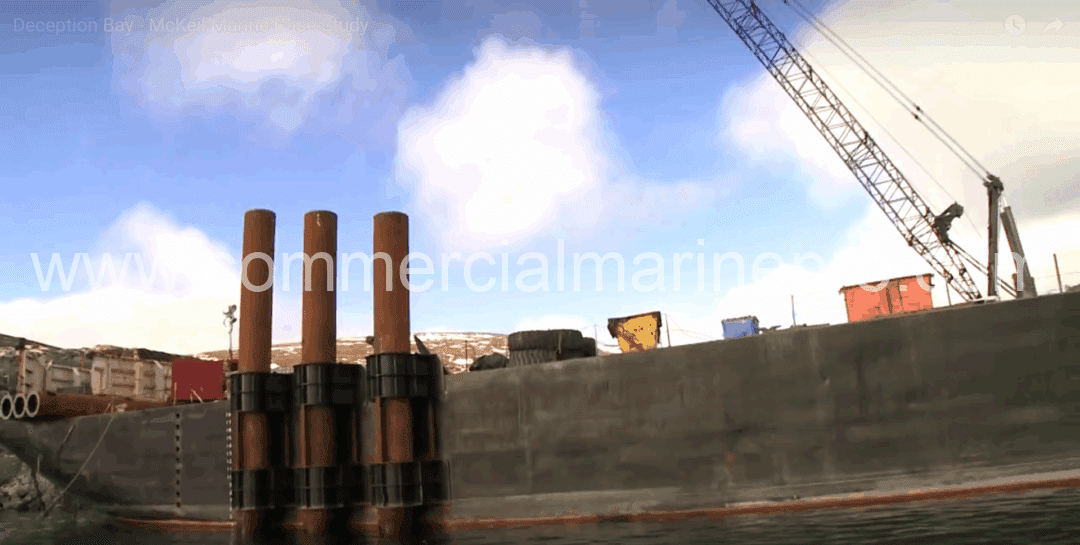

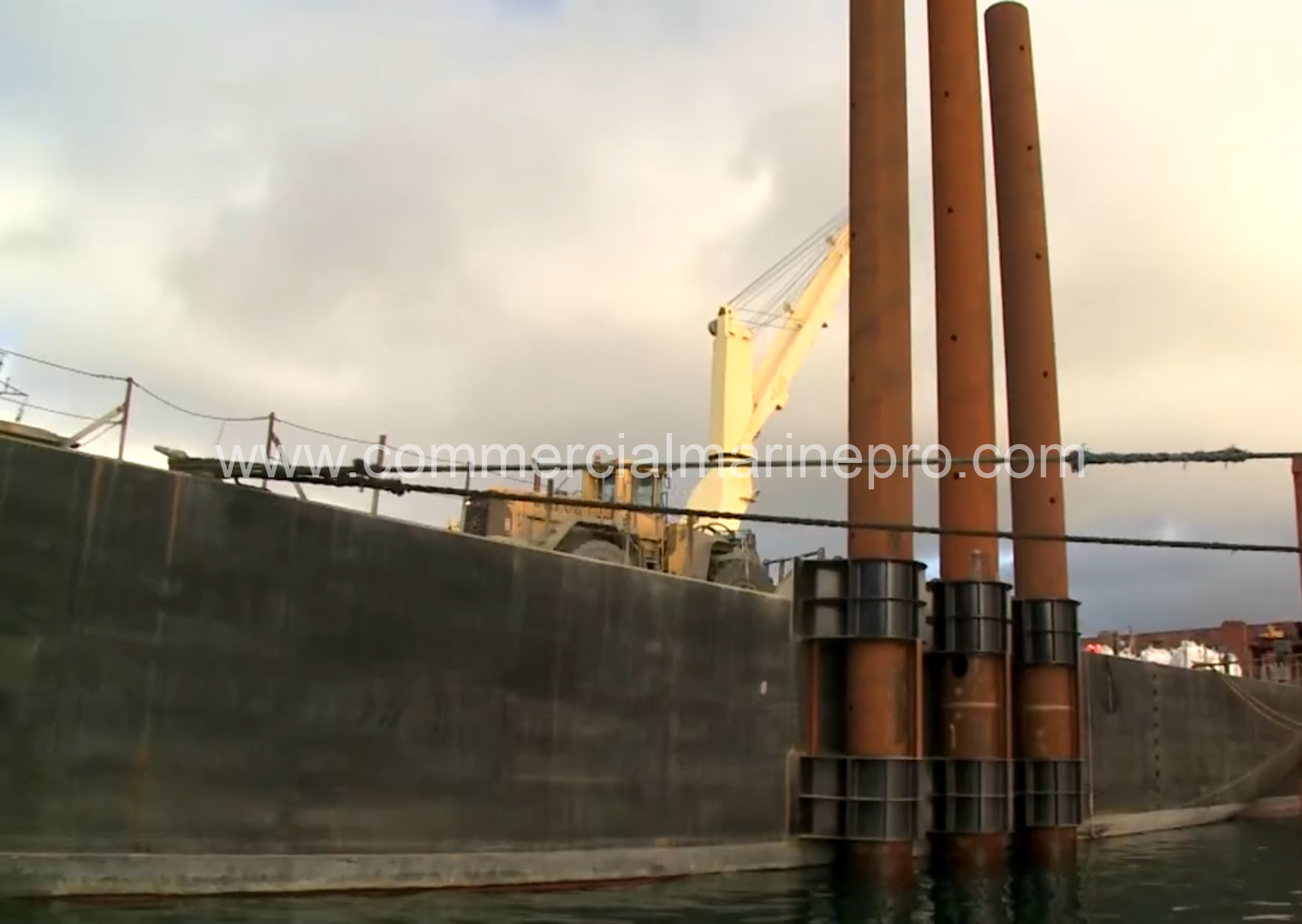

A dual-purpose 12,000 tonne docking and flat deck barge. Capability to be rigidly secured on 6 X 4’ dia. spuds in over 30m depth of water. Ocean classed.
