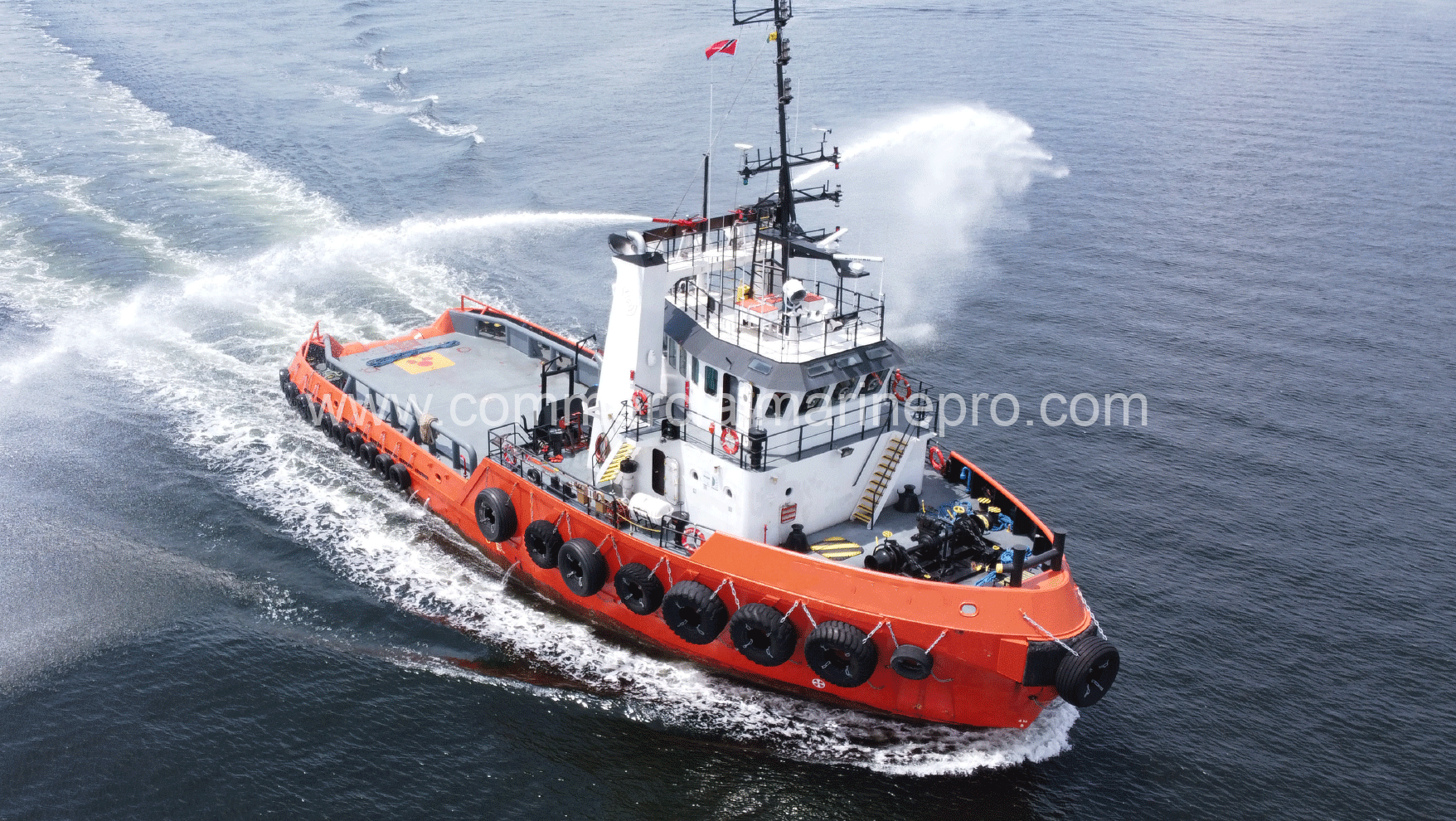

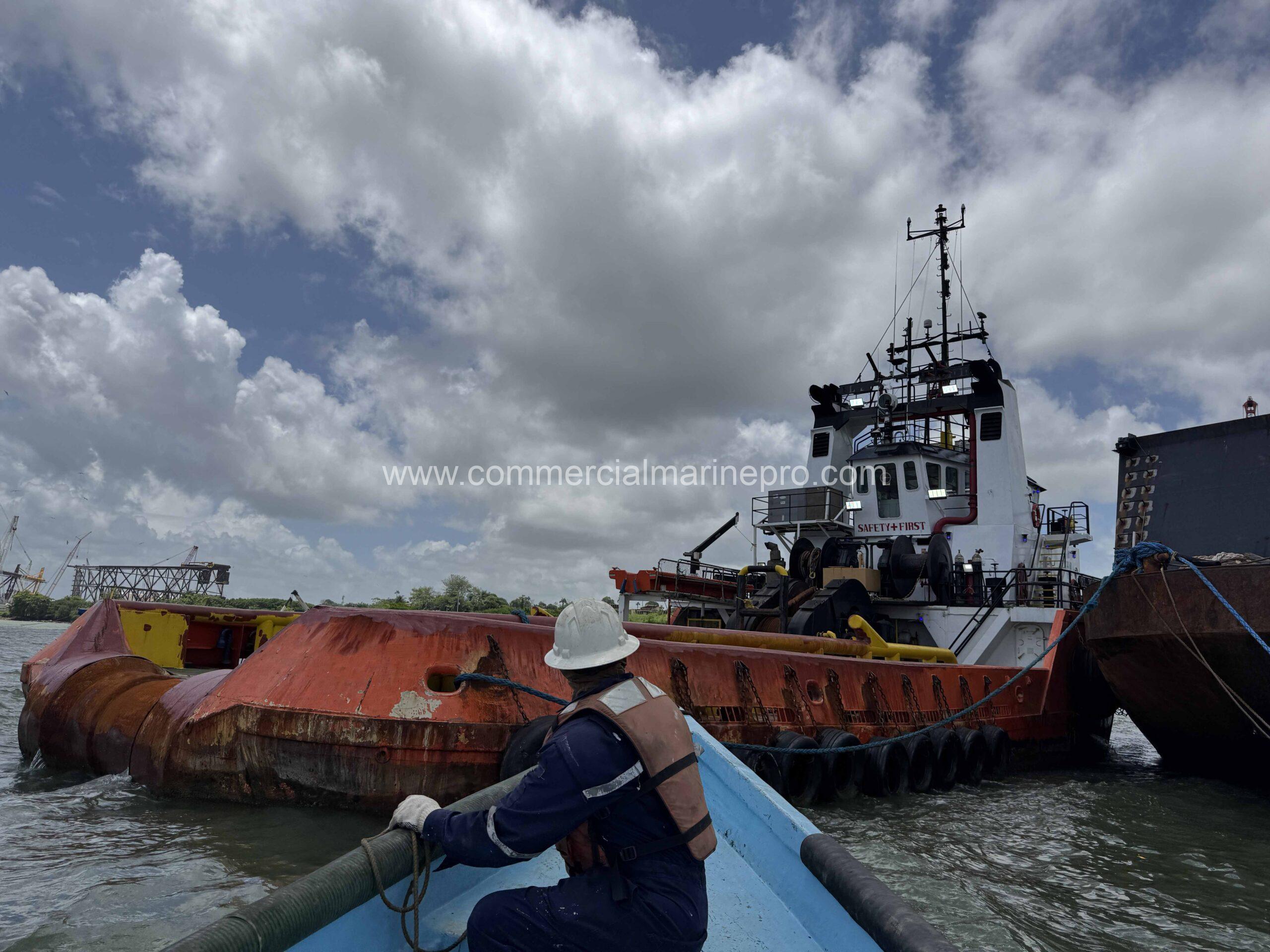

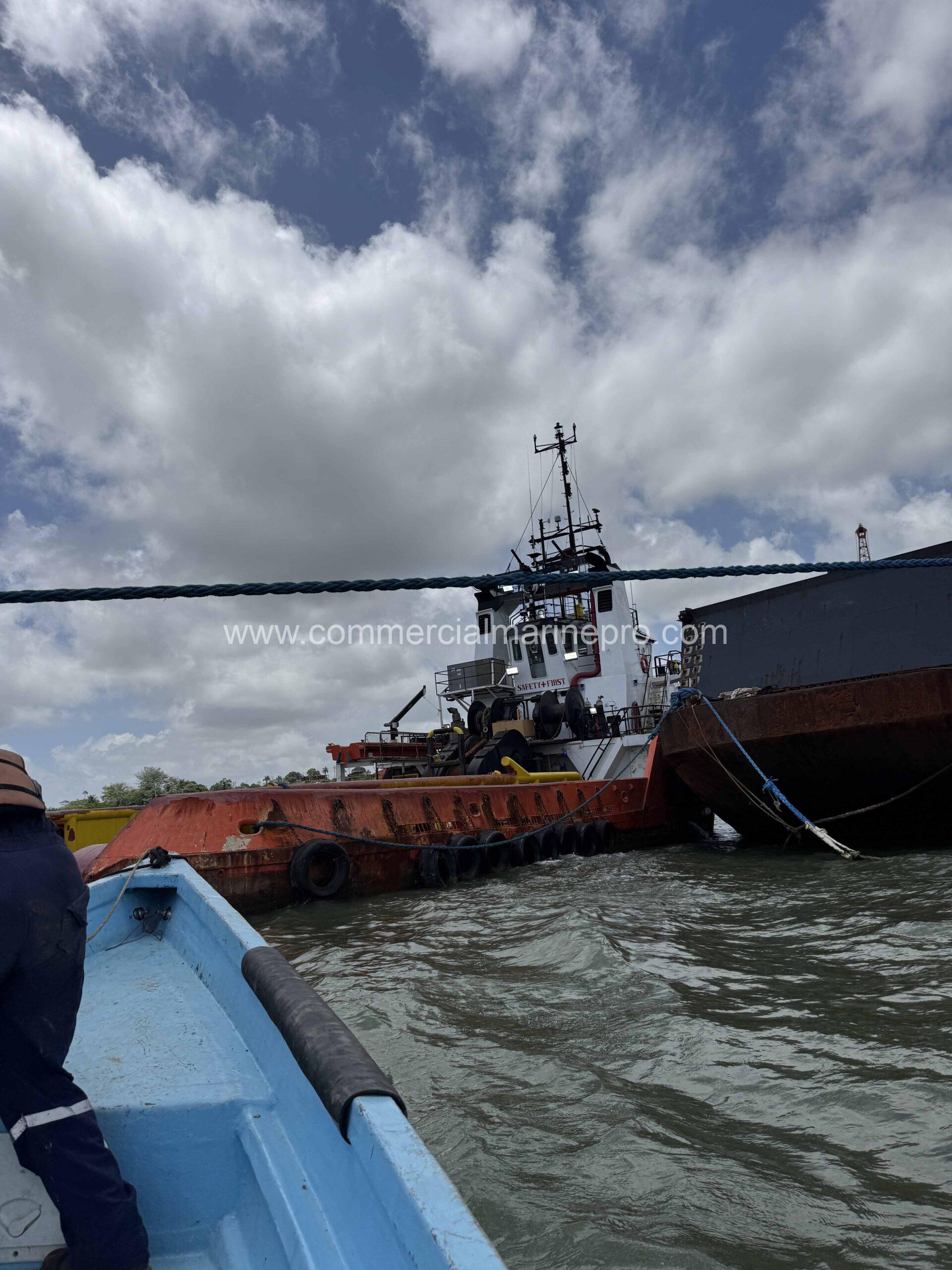

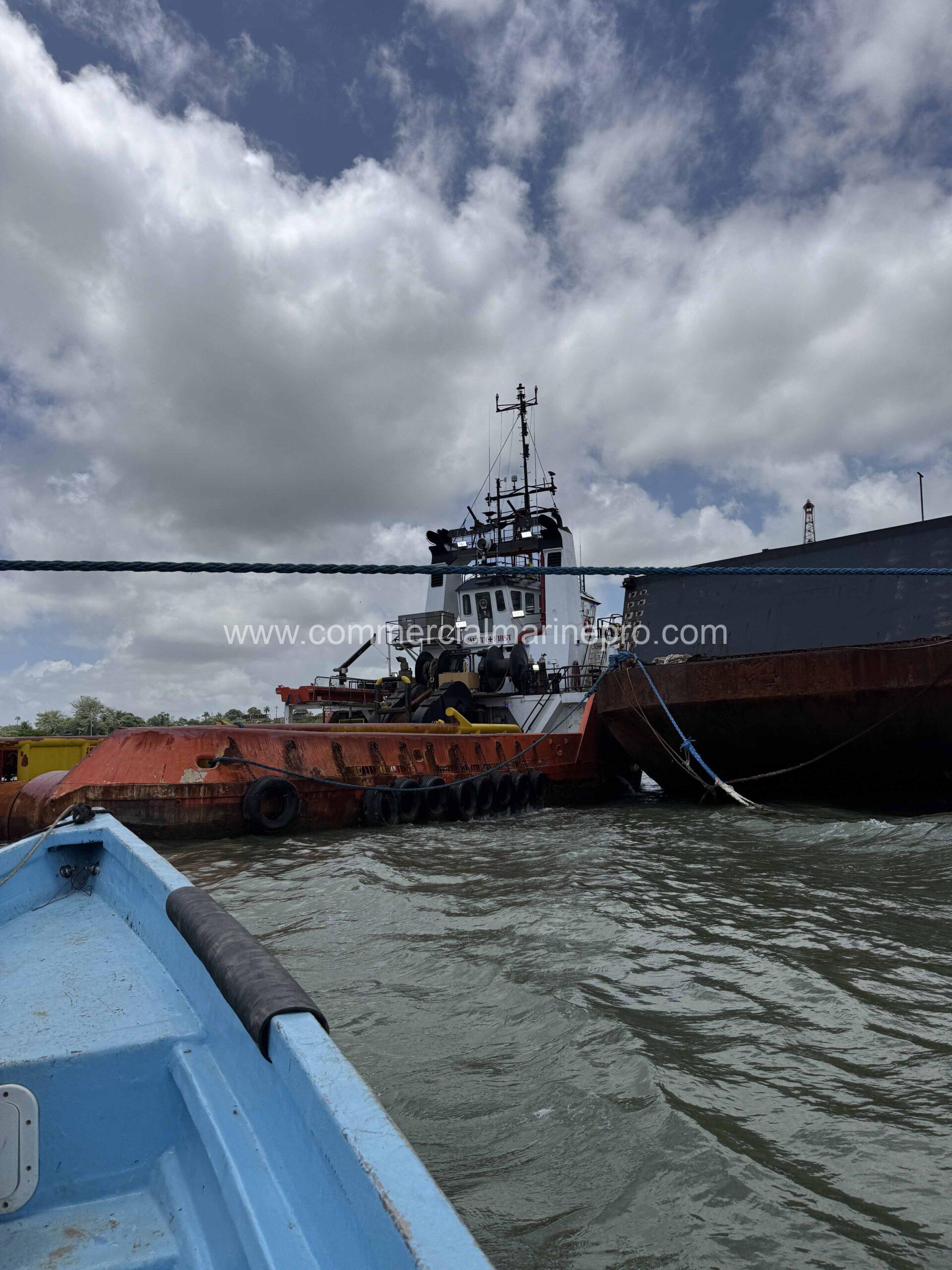

5000 HP – Anchor Handling Towing Model Bow Tug – Built 1998

Vessel Particulars
Length Overall 121.4 ft
Beam 27 ft
Depth 16.2 ft
Light Draft 10.9 ft
Loaded Draft 14.2 ft
Year Built 1998
Refit 2018

Class ABS ✠A1, Towing
Vessel, E , ✠AMS
Bollard Pull 80 Tons

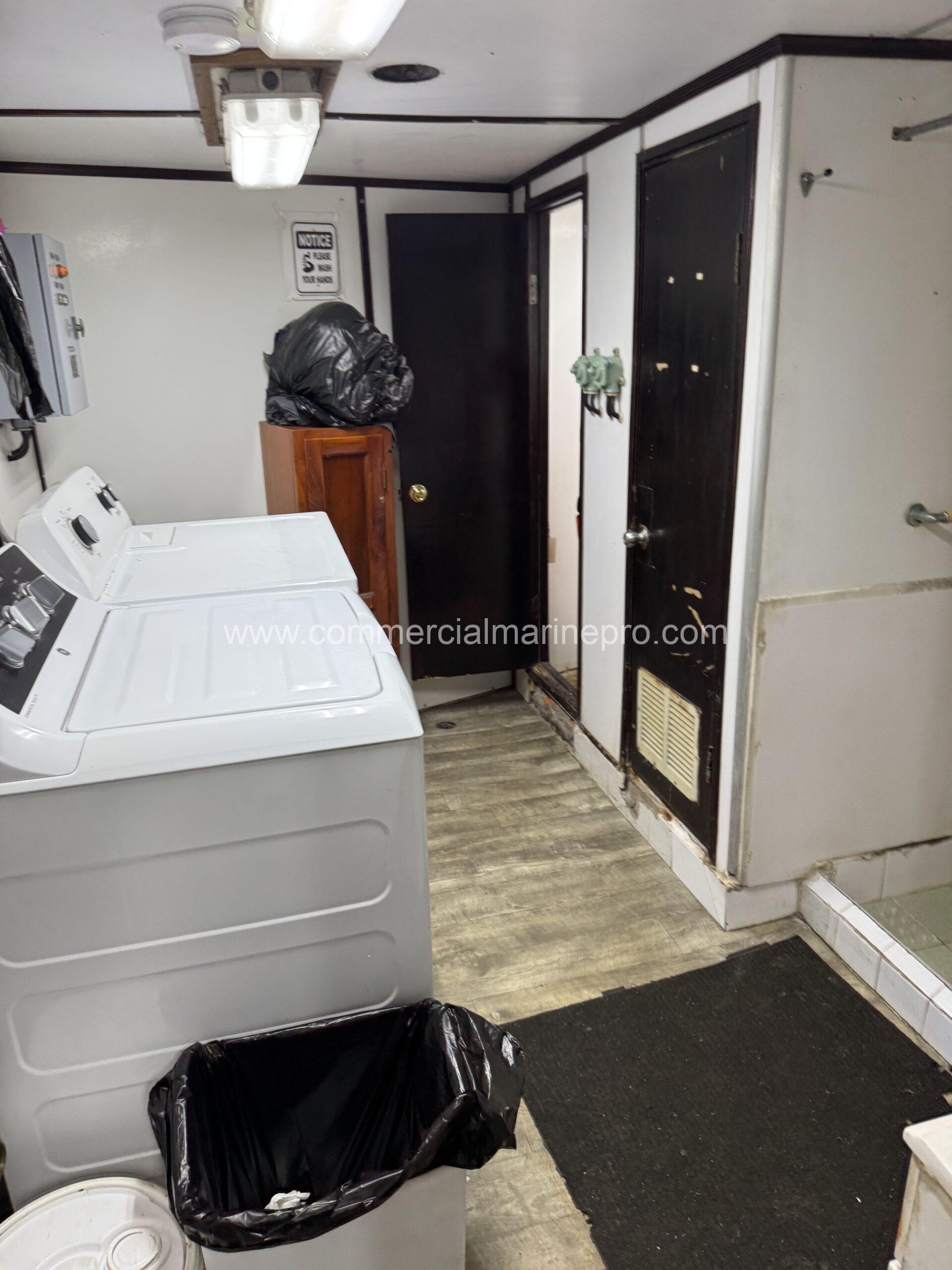

Accommodations

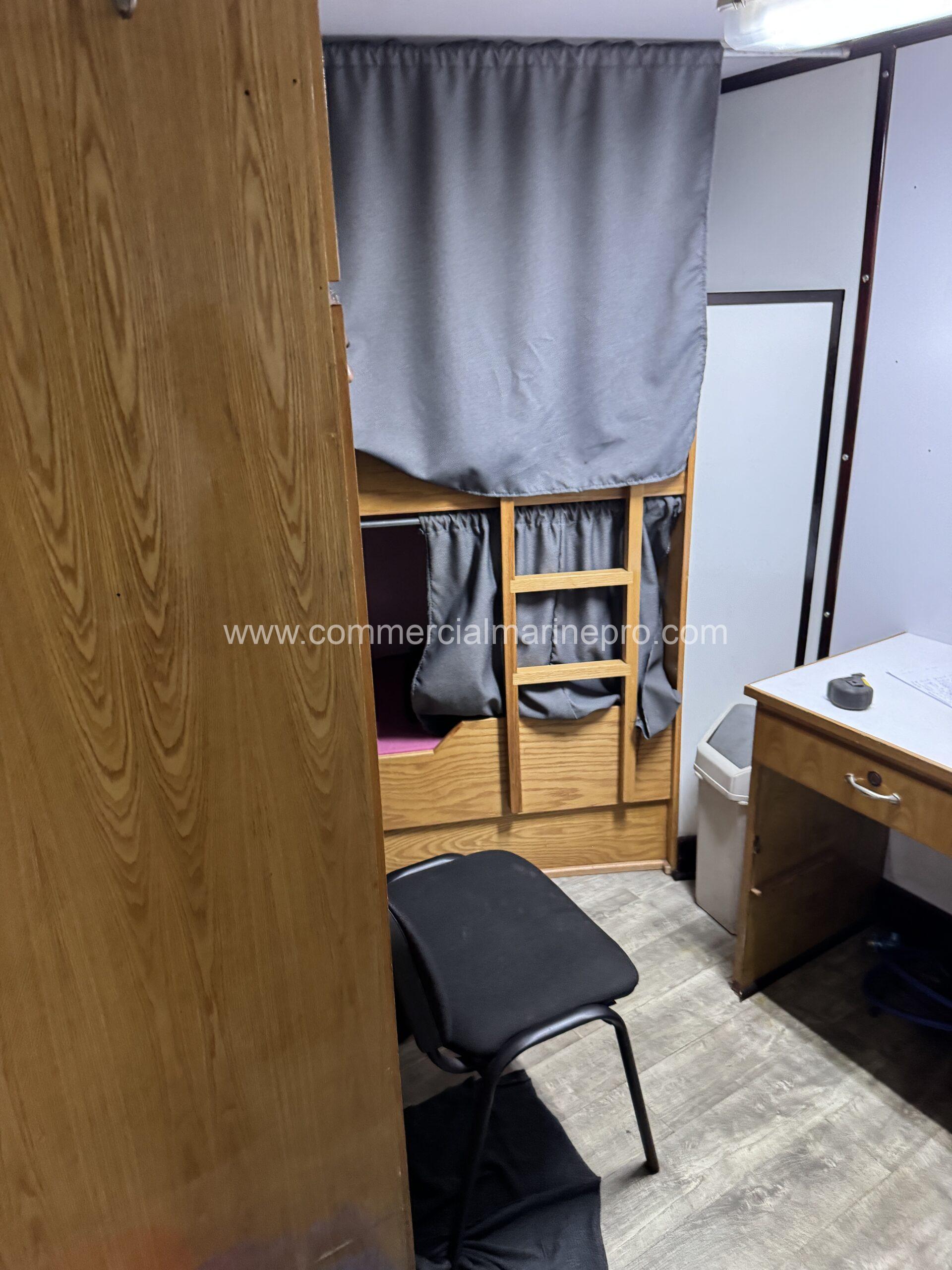

Cabin / Berths 14 PAX (6 Cabins)
Officer’s Cabins 2 Cabins (2 x 1 man)
Crew Cabins 4 Cabins (2 x 2man, 2 x 4 man)

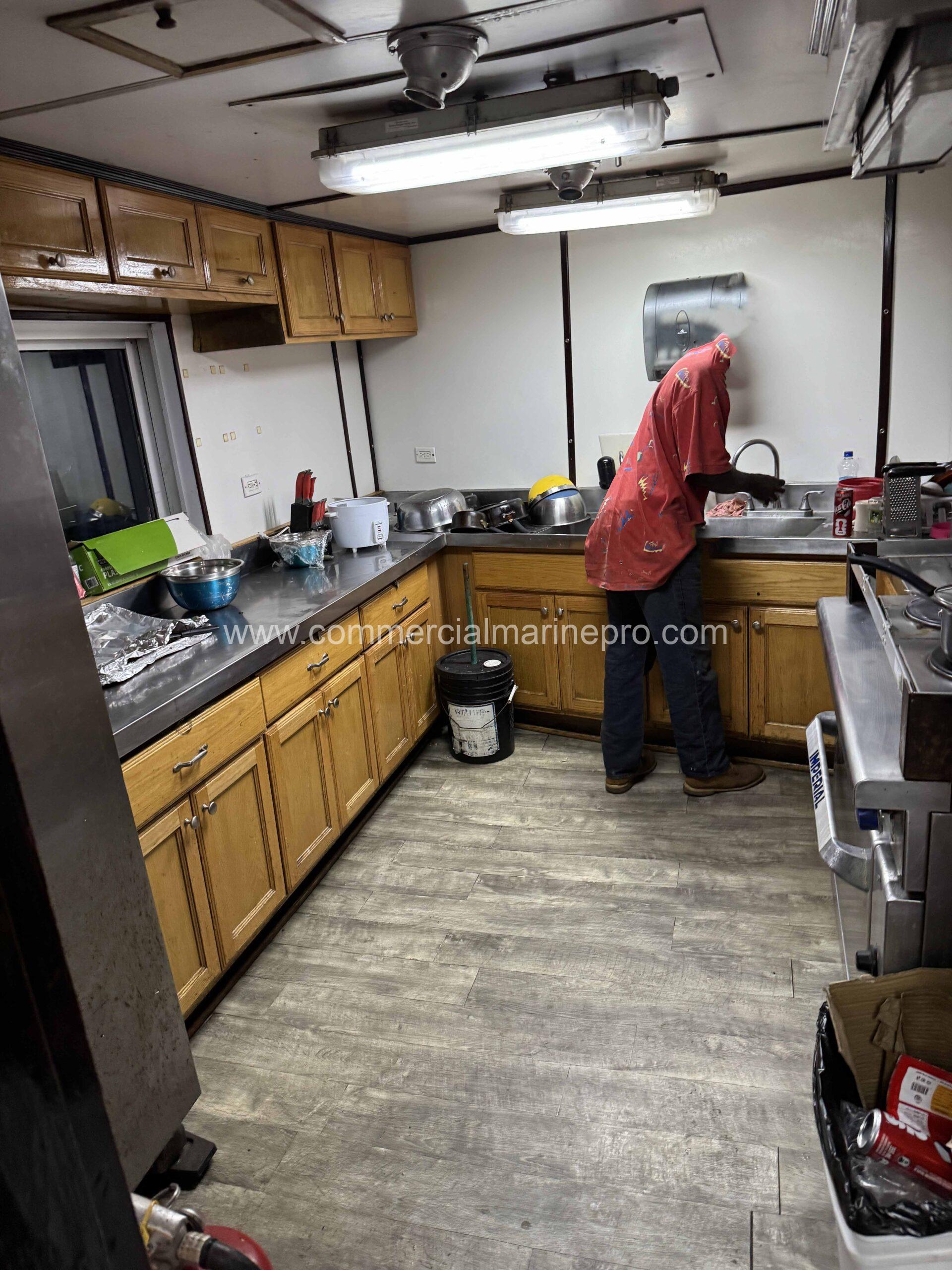

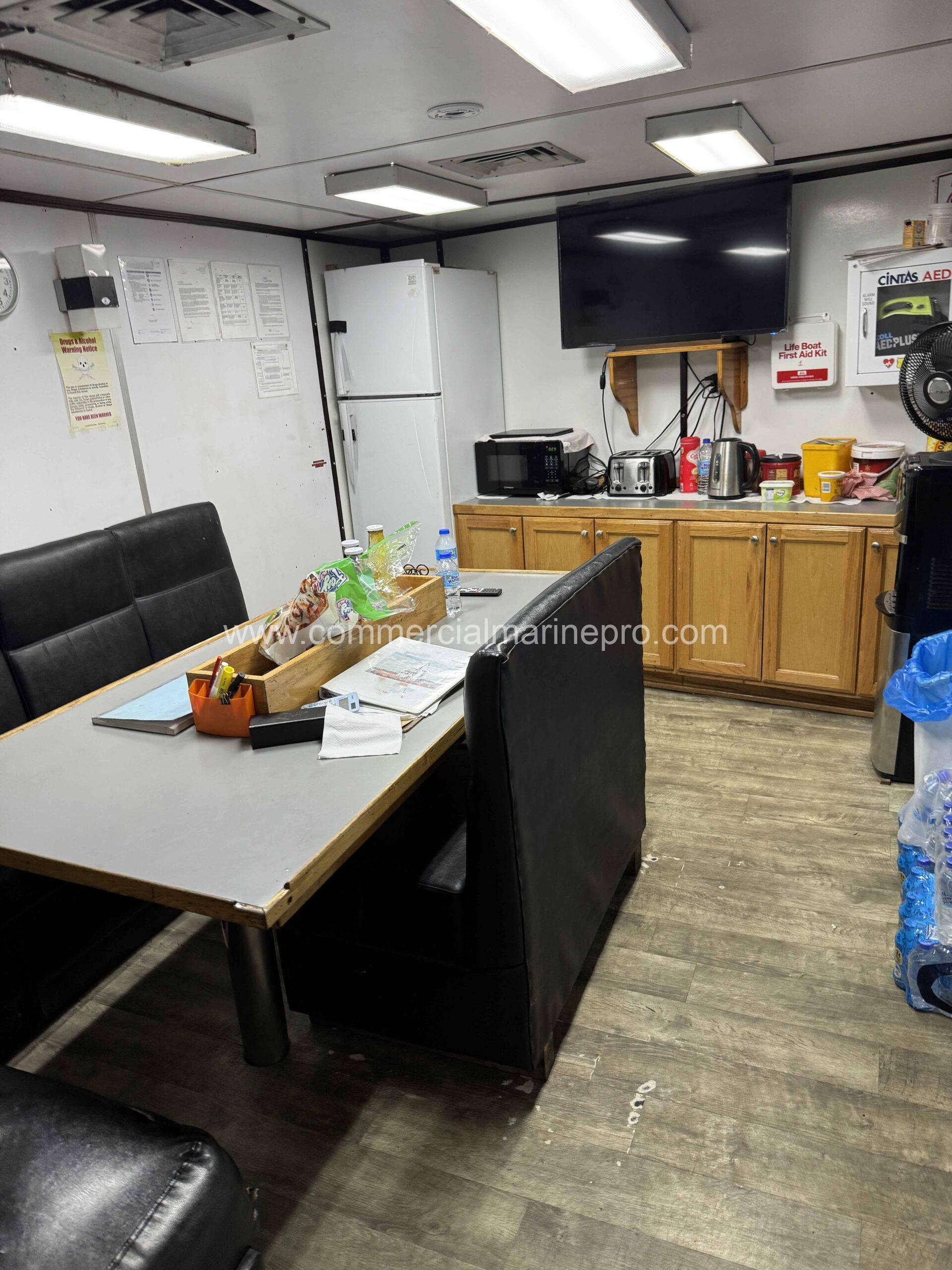

Mess / Lounge Seating 7 Persons

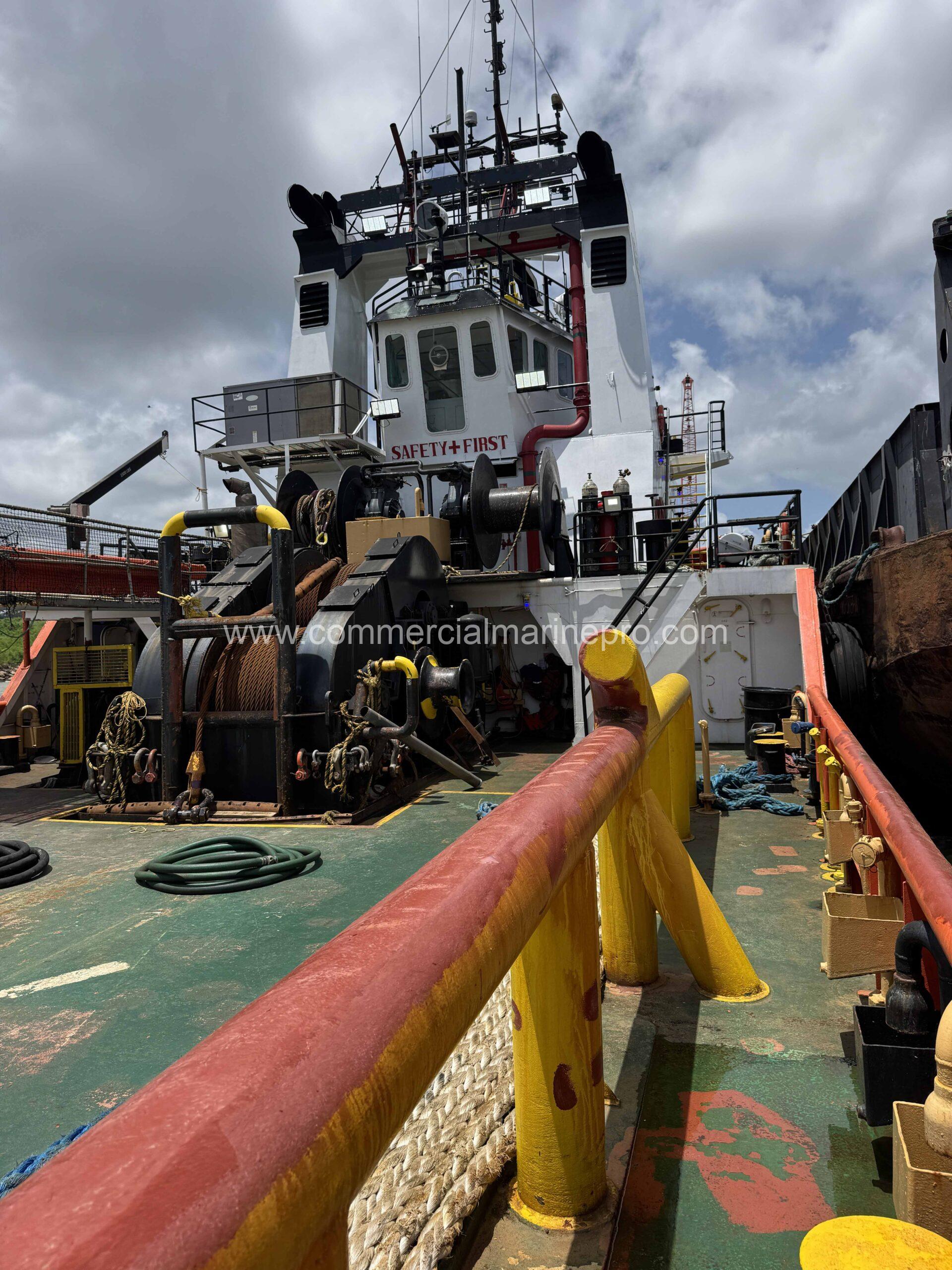

Towing & Anchor Handling

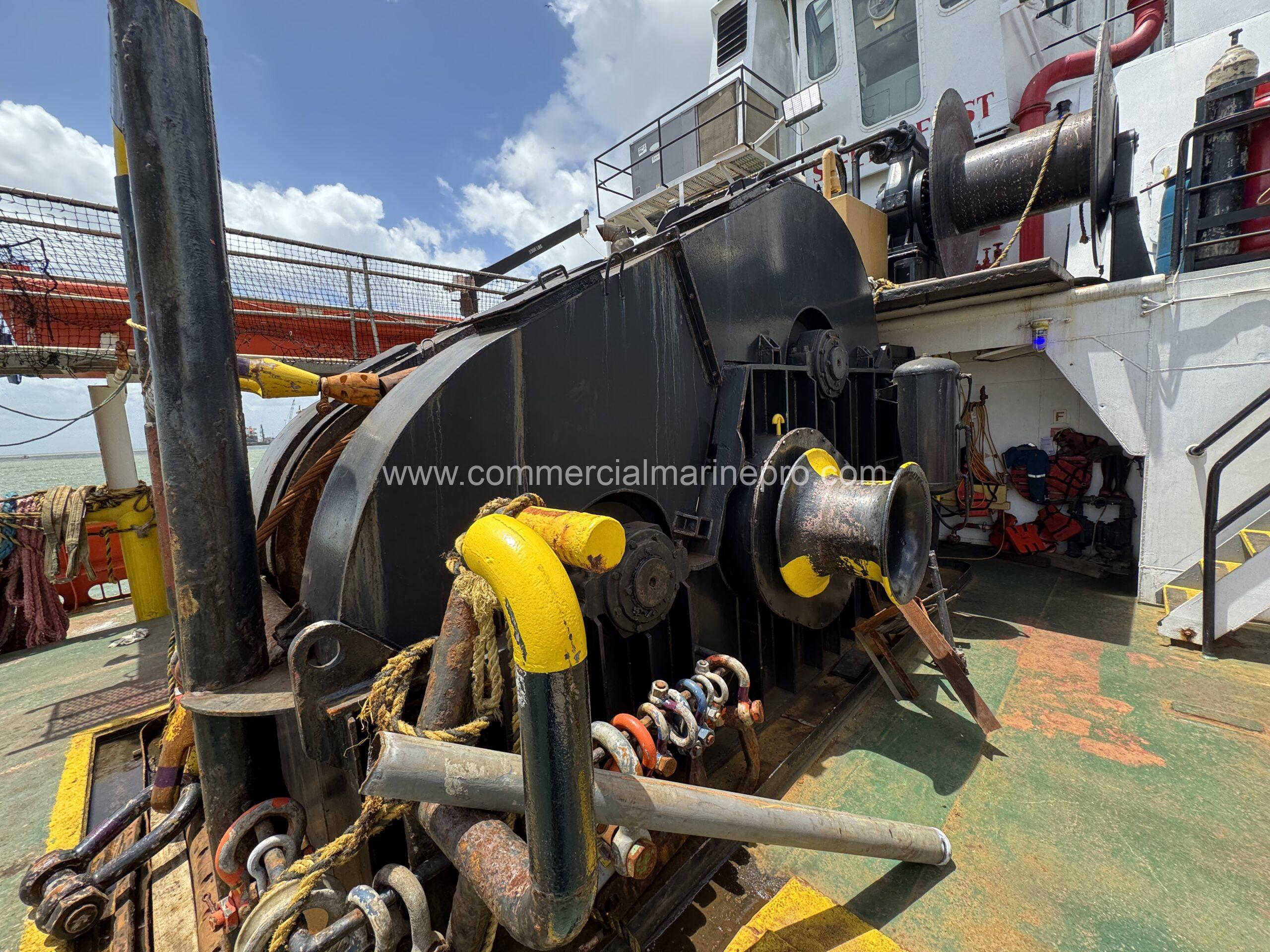

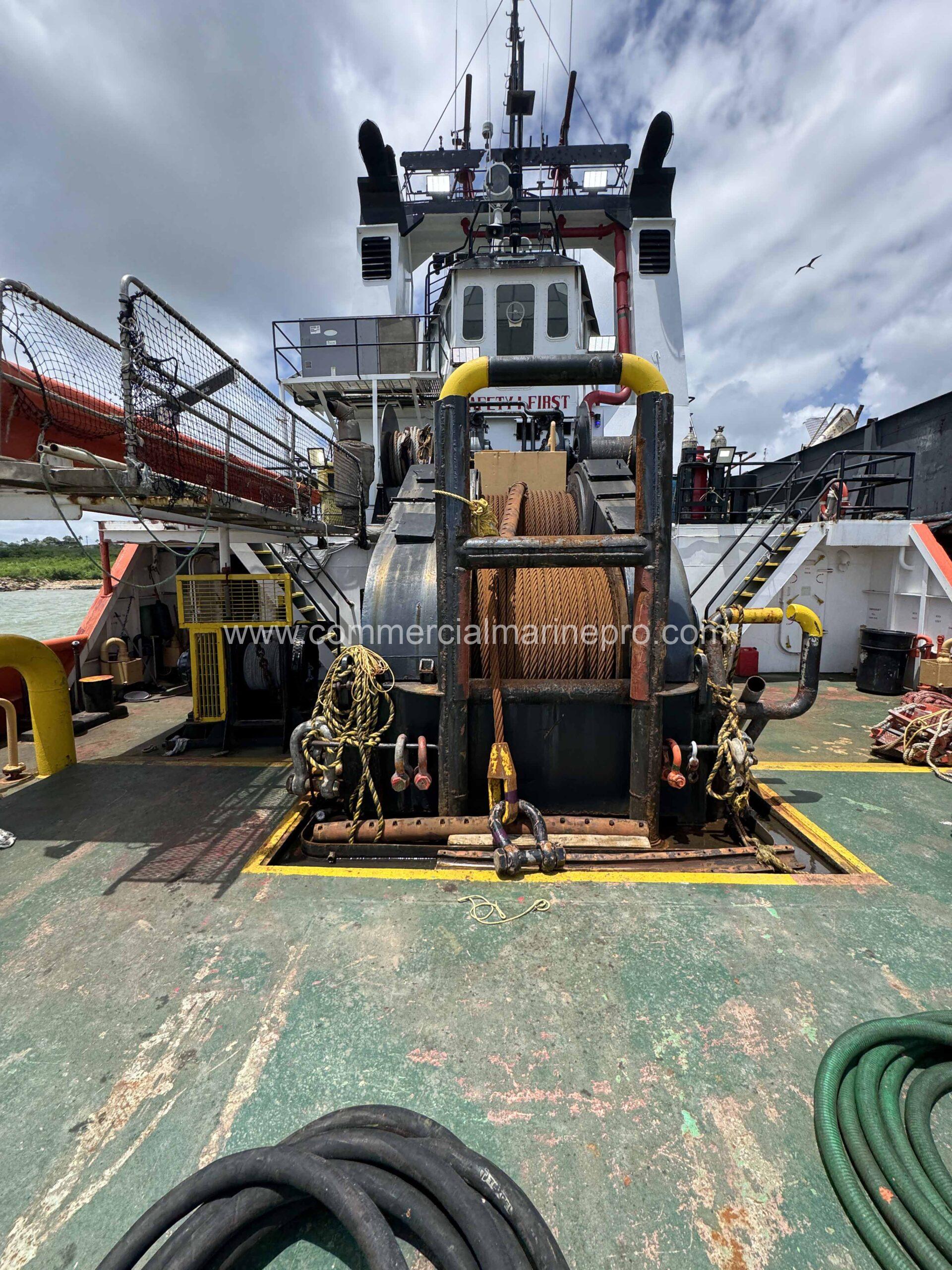

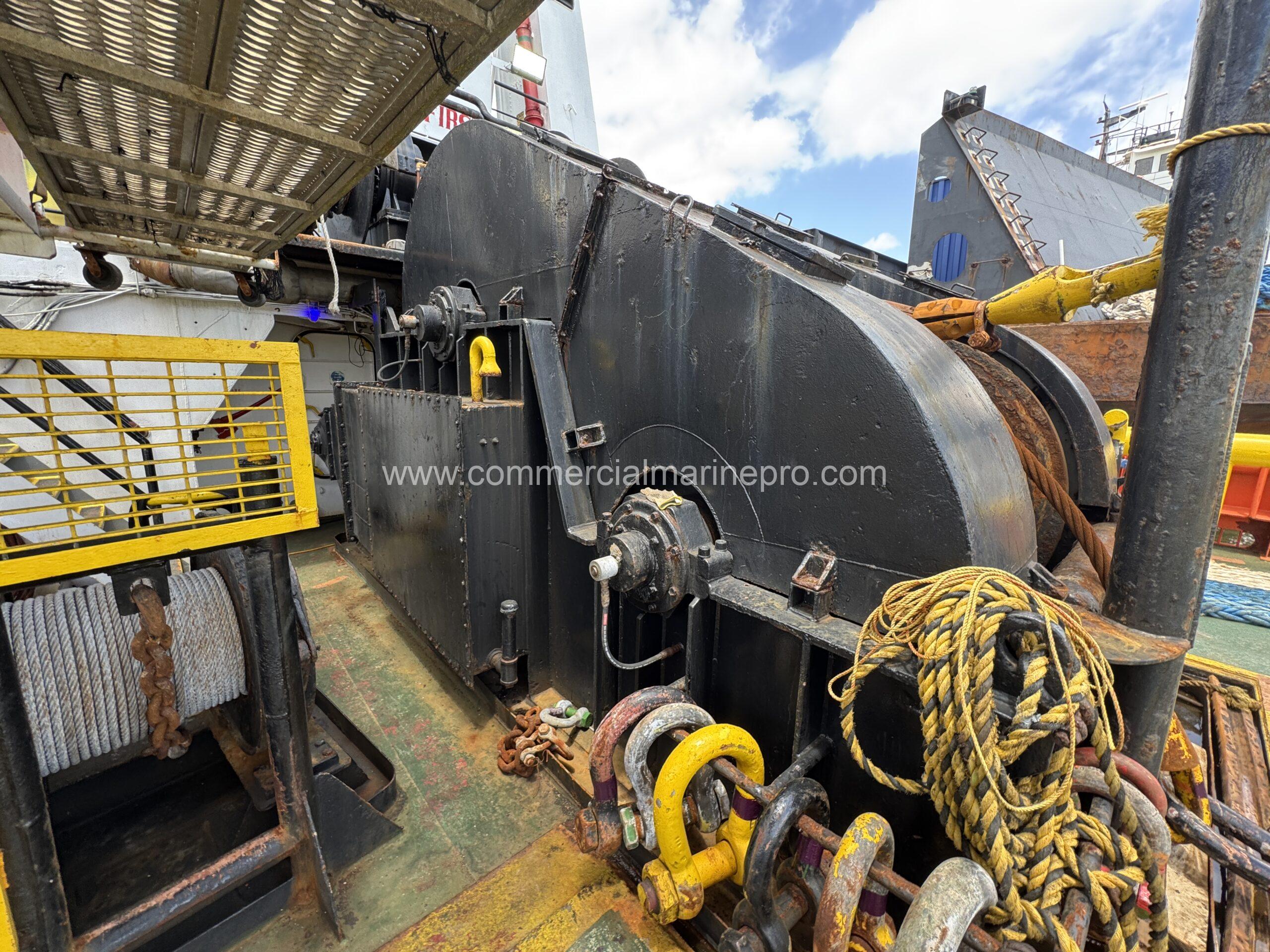

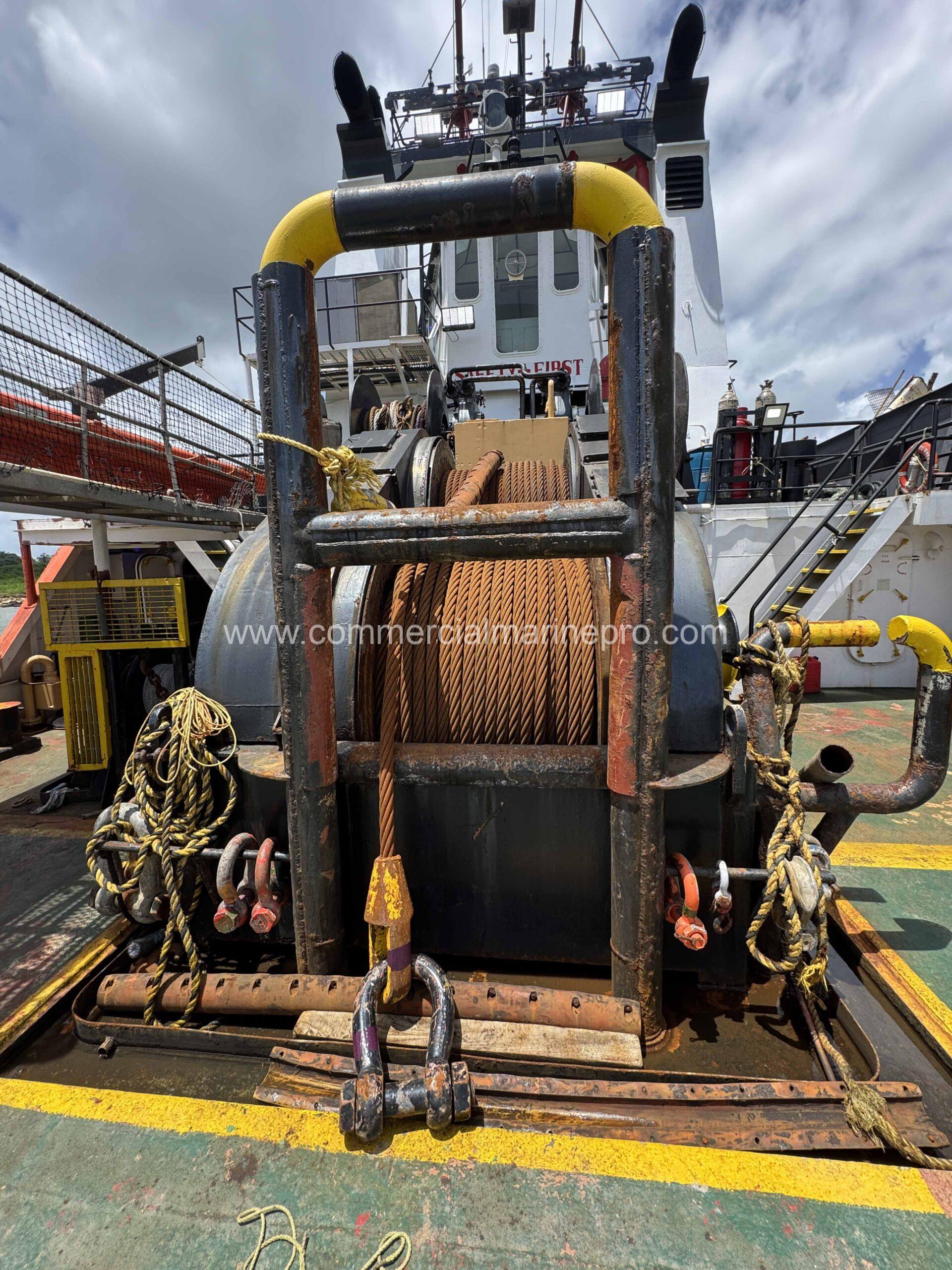

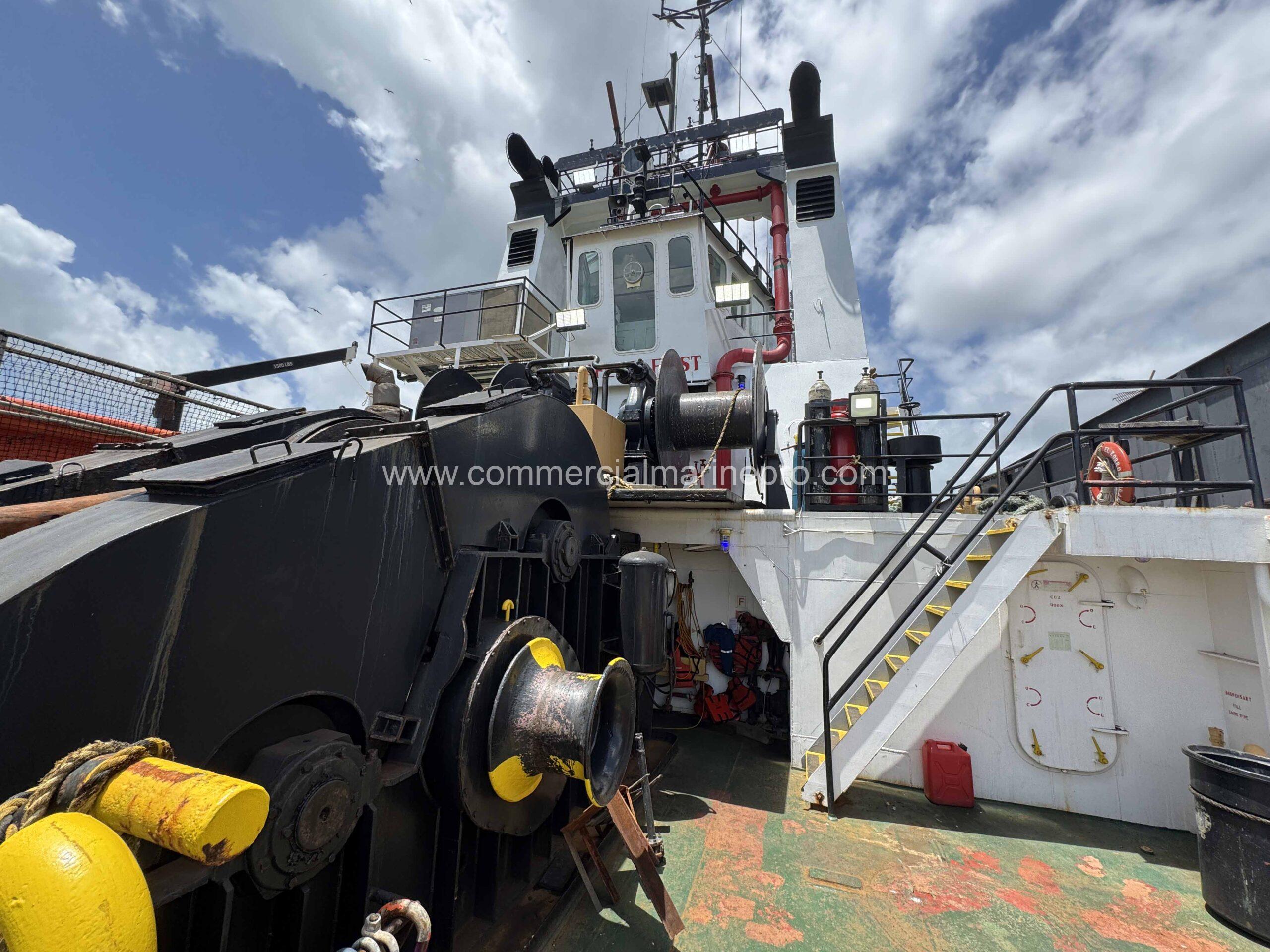

Towing Winch Smatco 66-DAW-200
Tow Wire 2500 ft x 2.25”
2000 ft x 2”
Line Pull 238,000 lbs

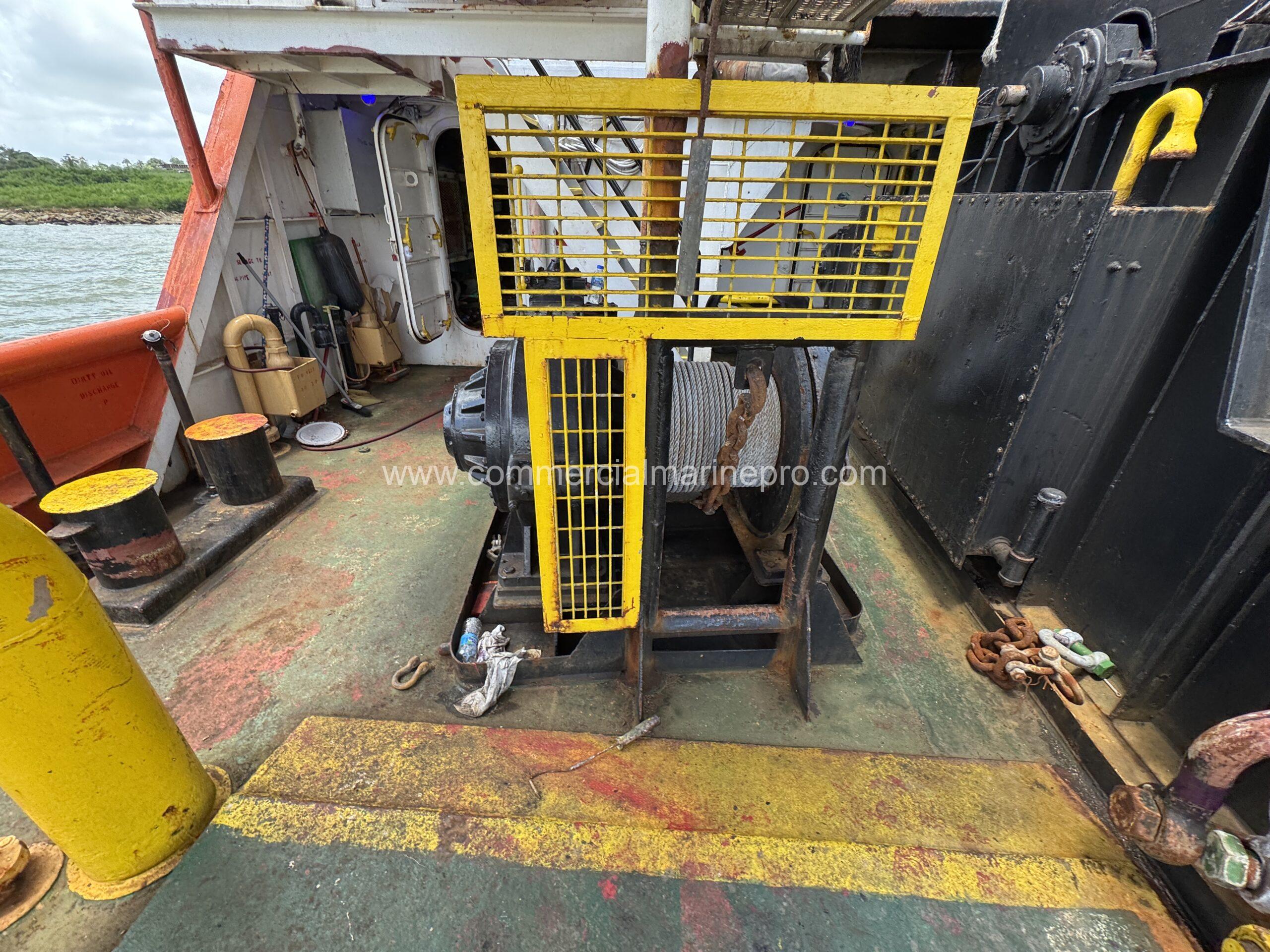

Tugger Brattvaag WM 4110
(22,000 lbs Line Pull)
Stern Roller 9.4 ft x 4.9 ft

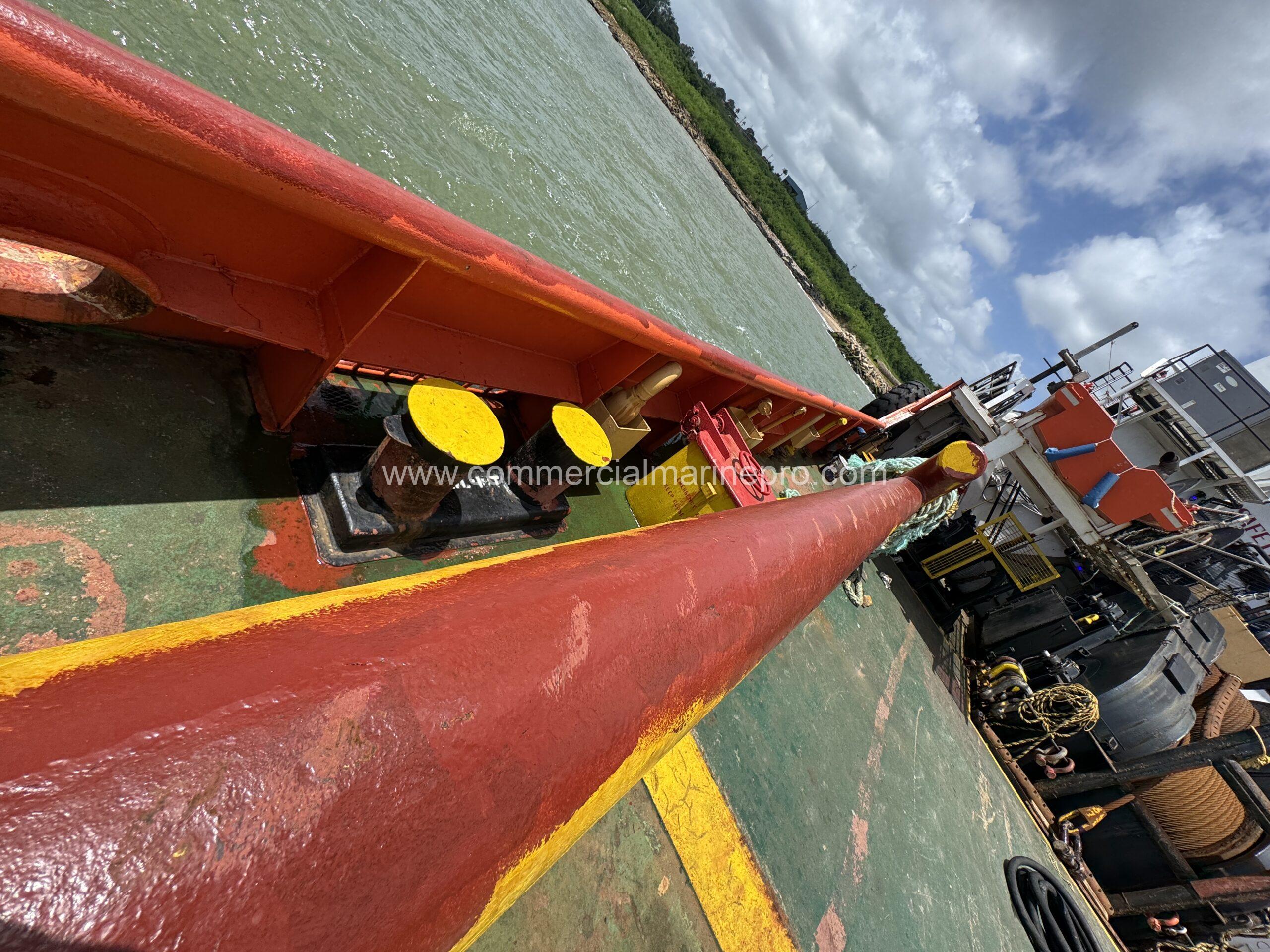

Tow Pins, Shark Jaw Ulstein Combination Unit

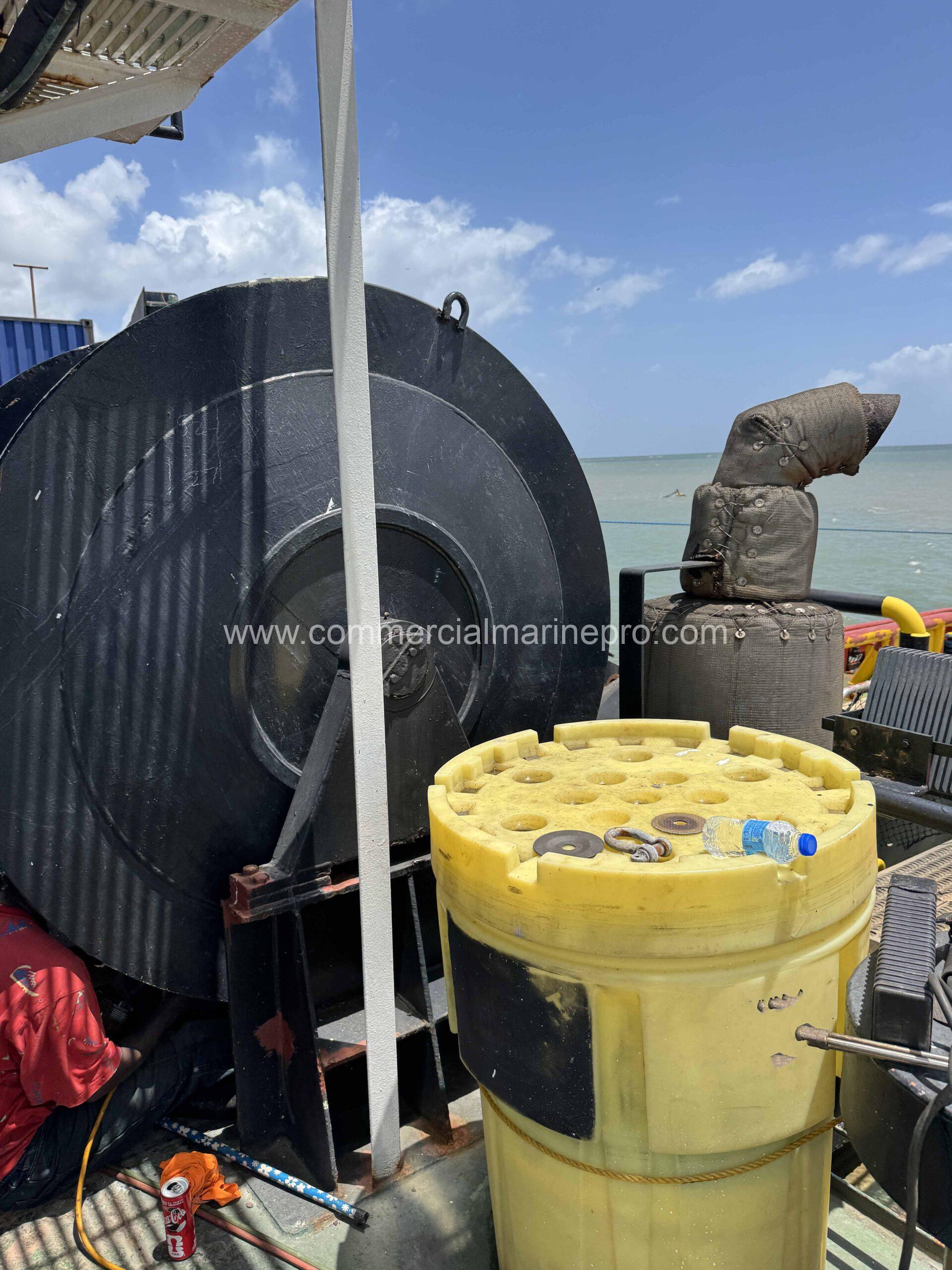

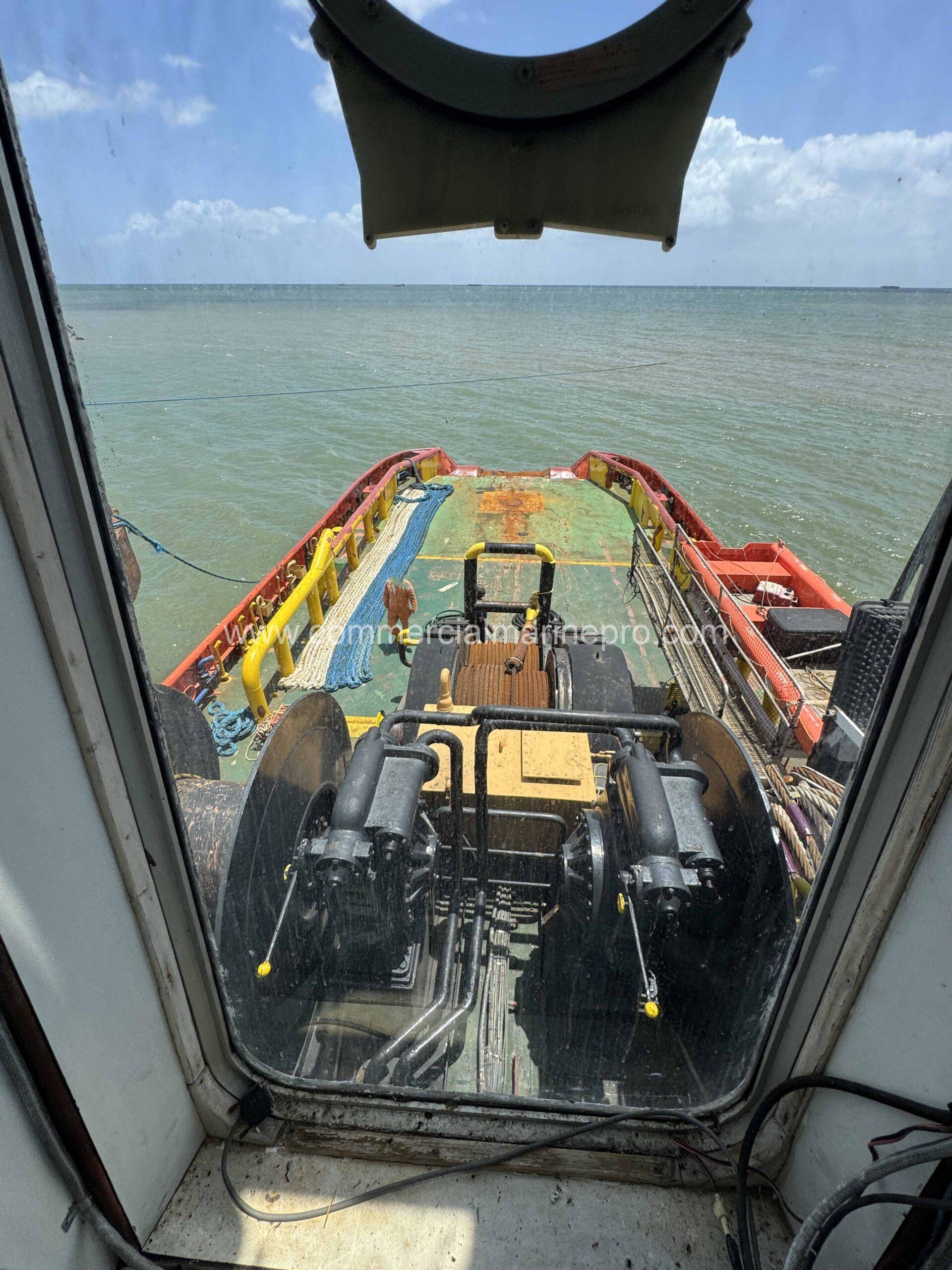

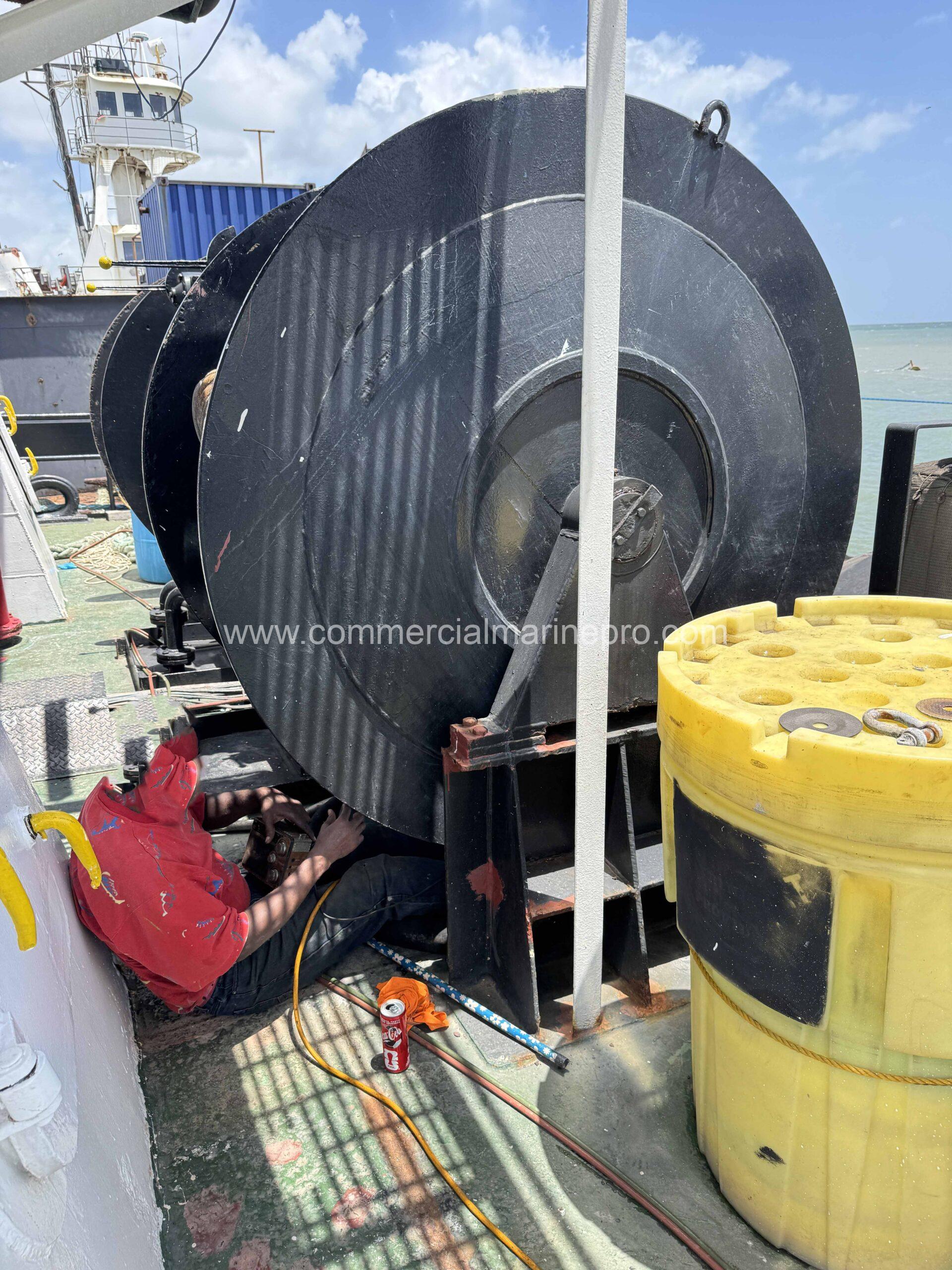

Pennant Reels 2 x 5,000 ft of 2 inch

Vessel Mooring

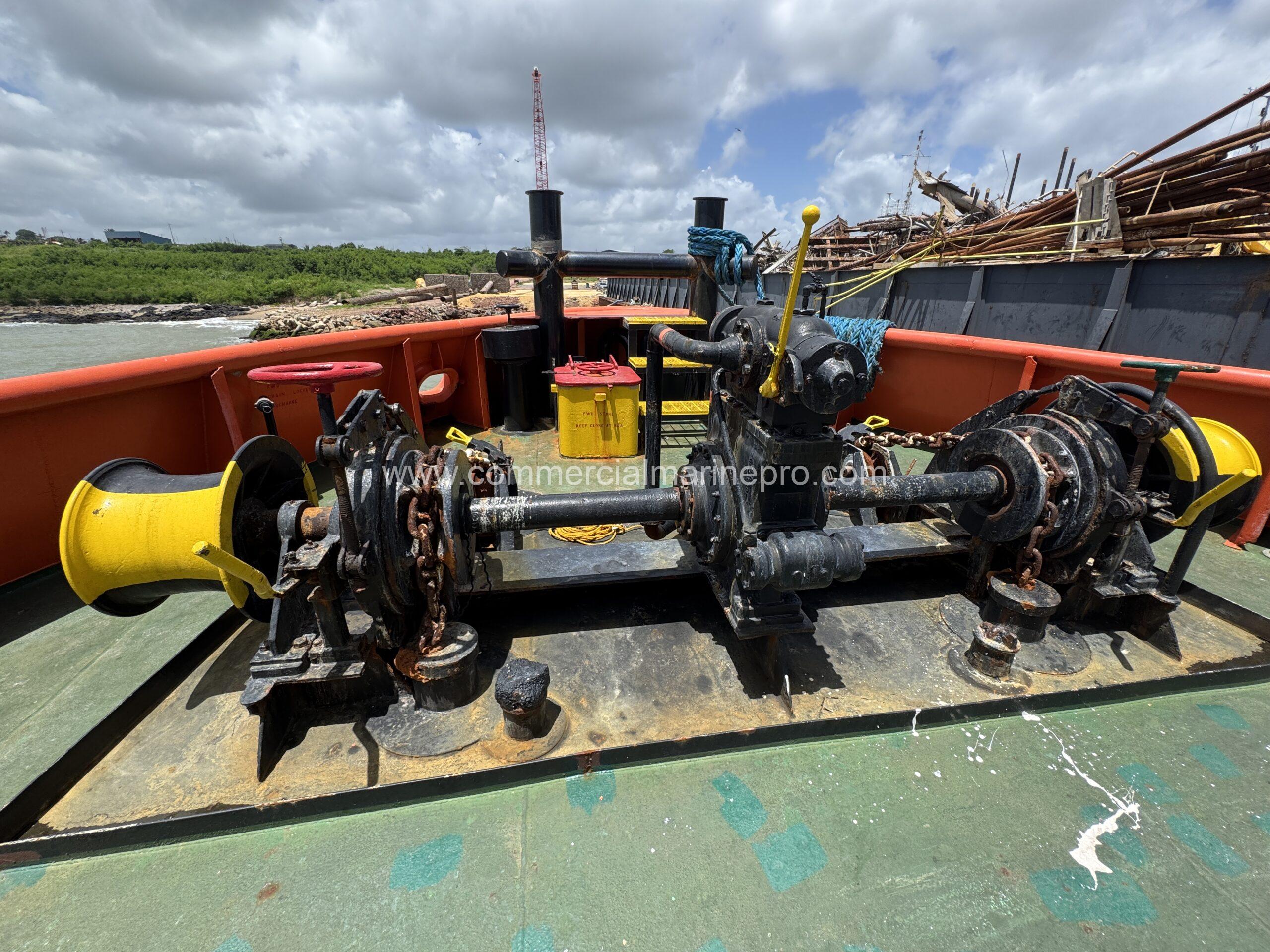

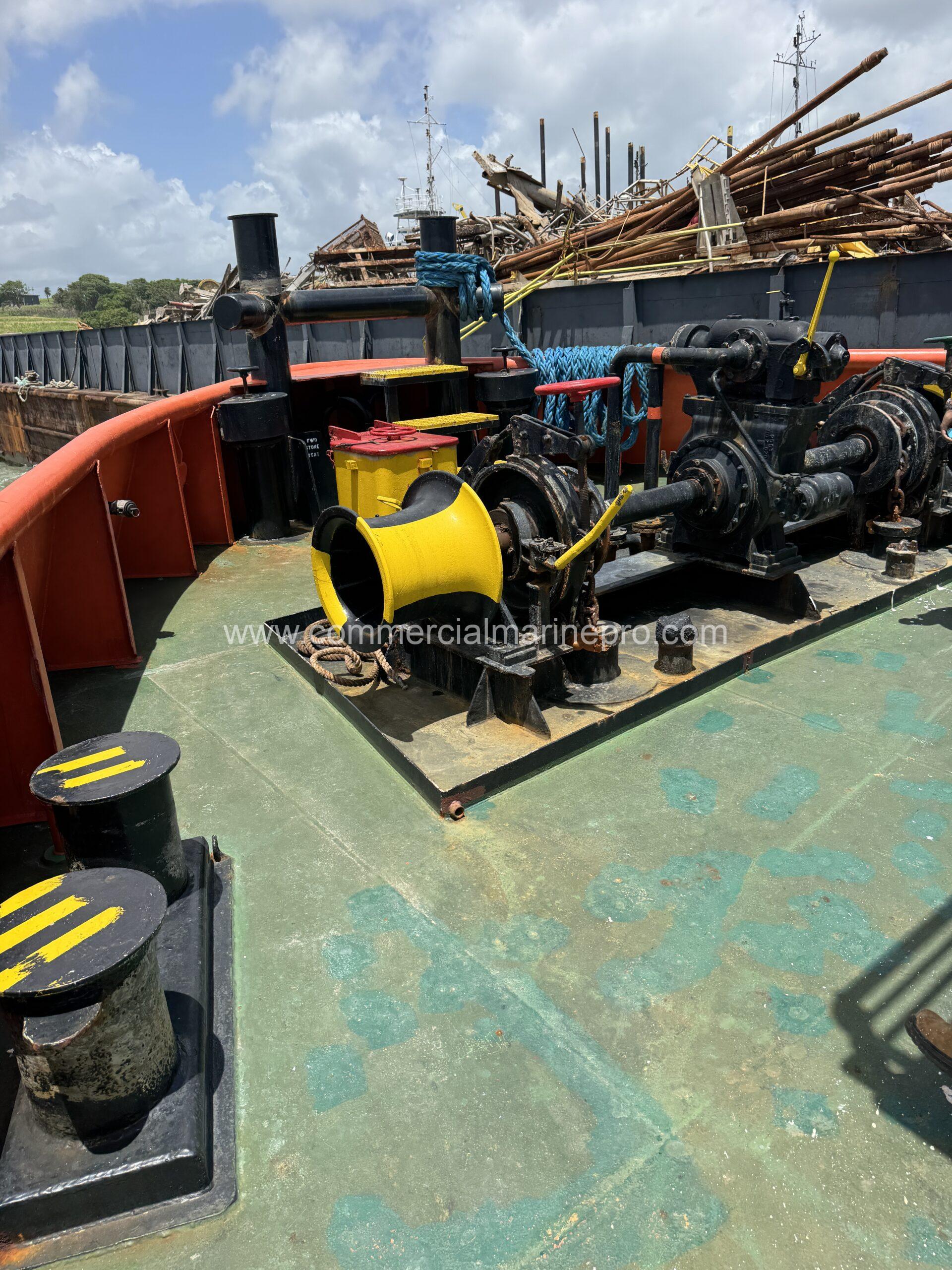

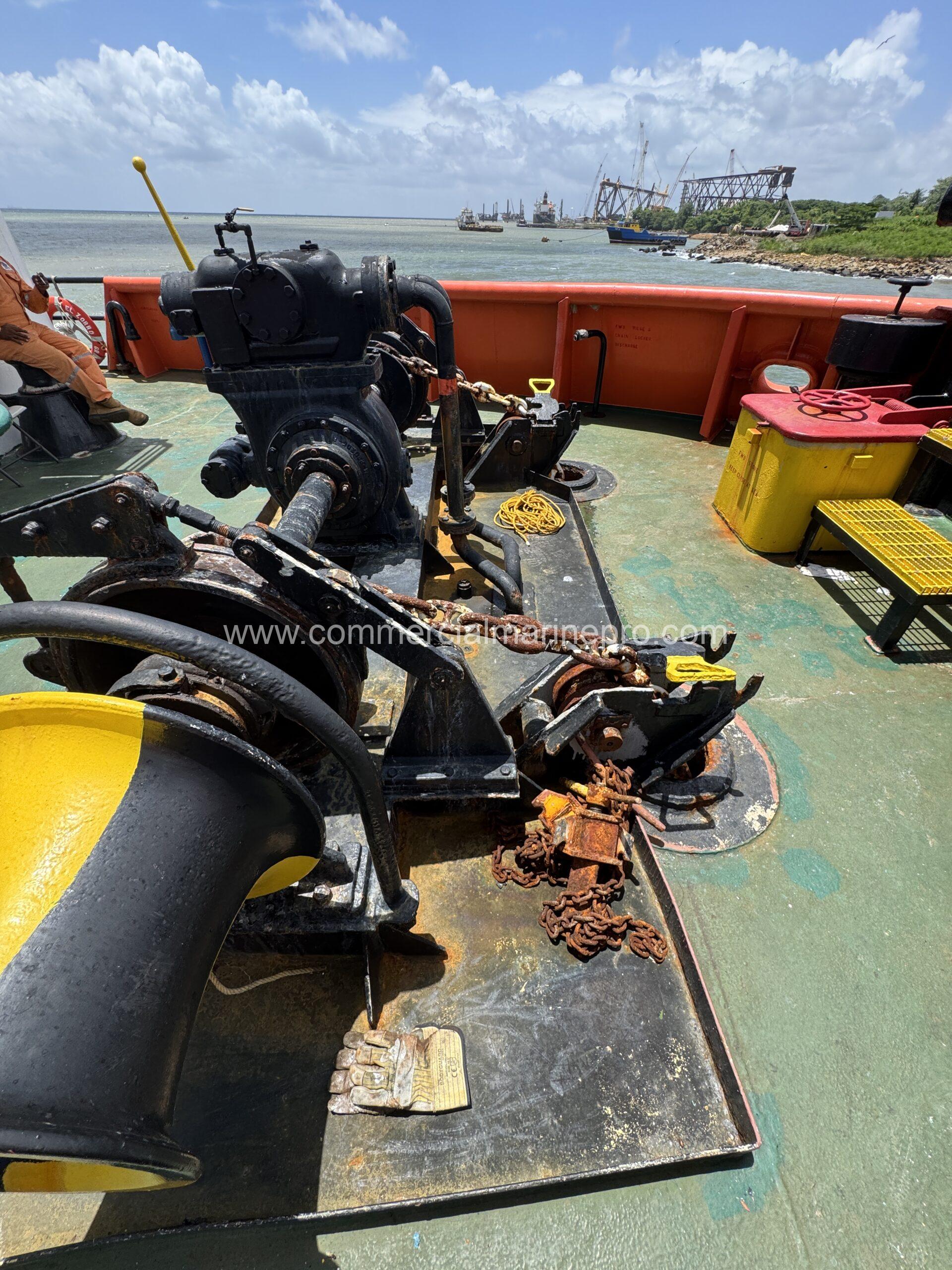

Windlass Brattvaag BMG22
Anchors 2 x Navy Stockless
Chain 2 x 1 1/8” x 6 shackles

Capacities
Potable Water (Ships) 22,000 USG
Fuel 84,000 USG
Engine Lube Oil 1,000 USG

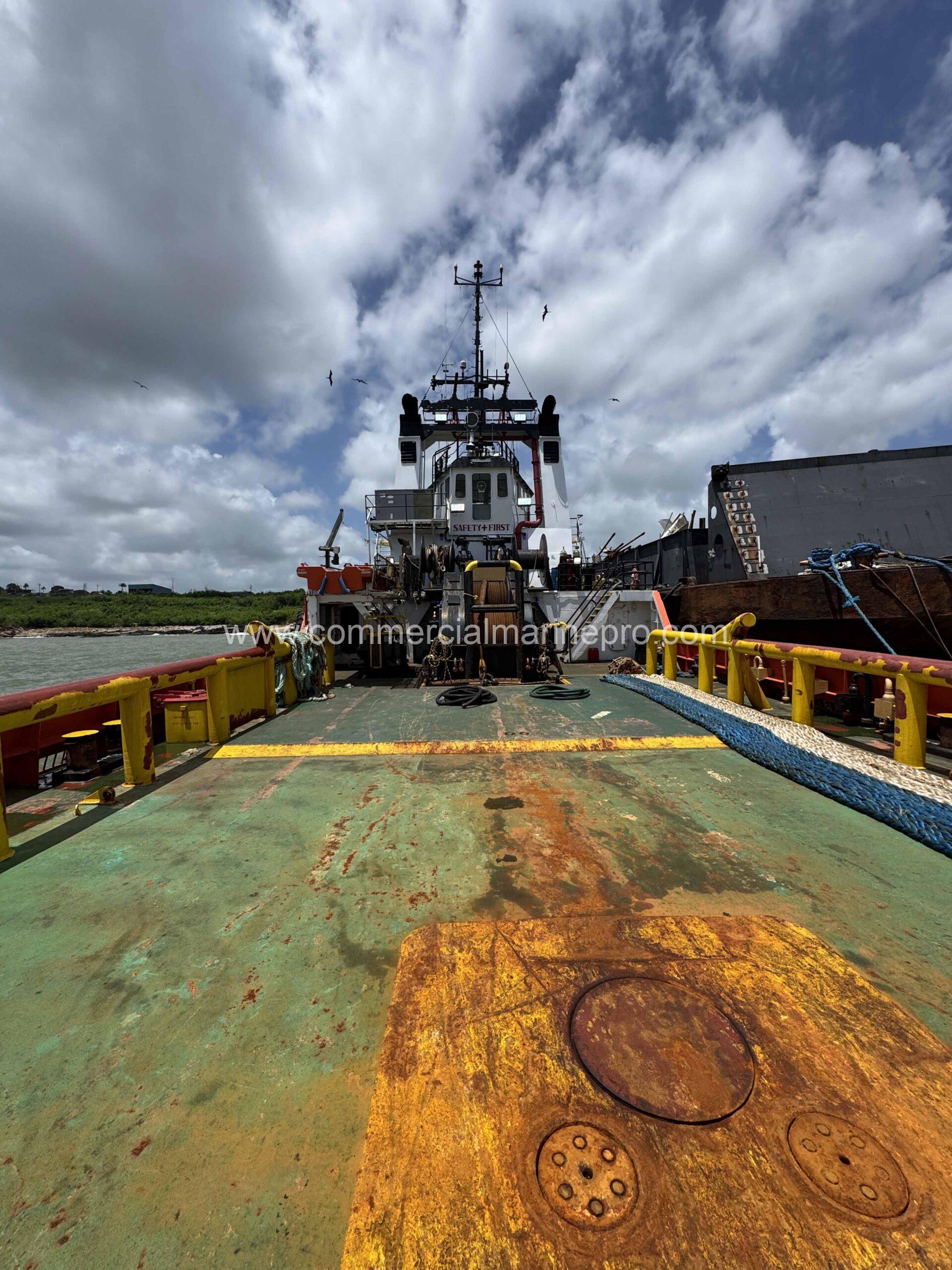

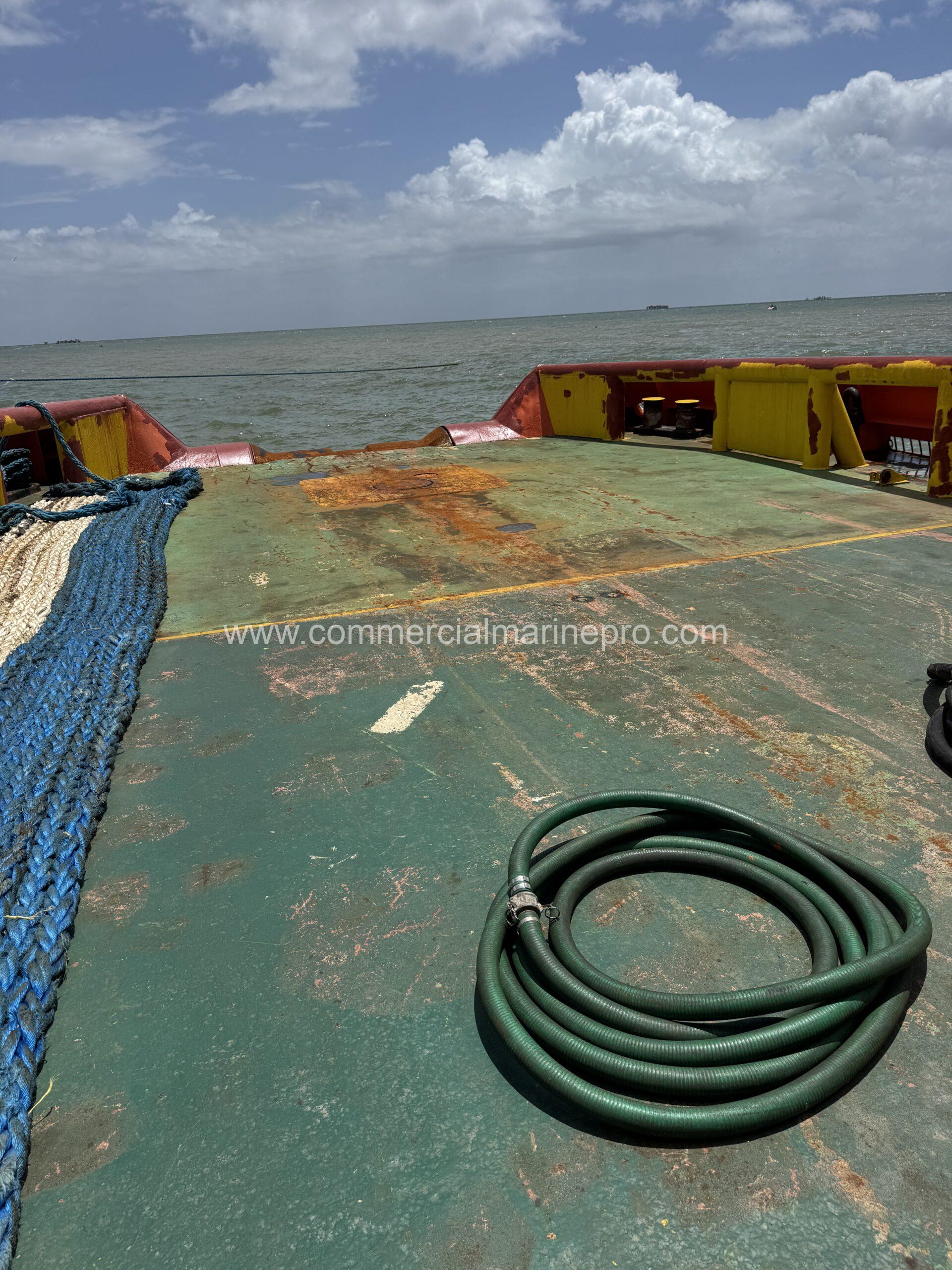

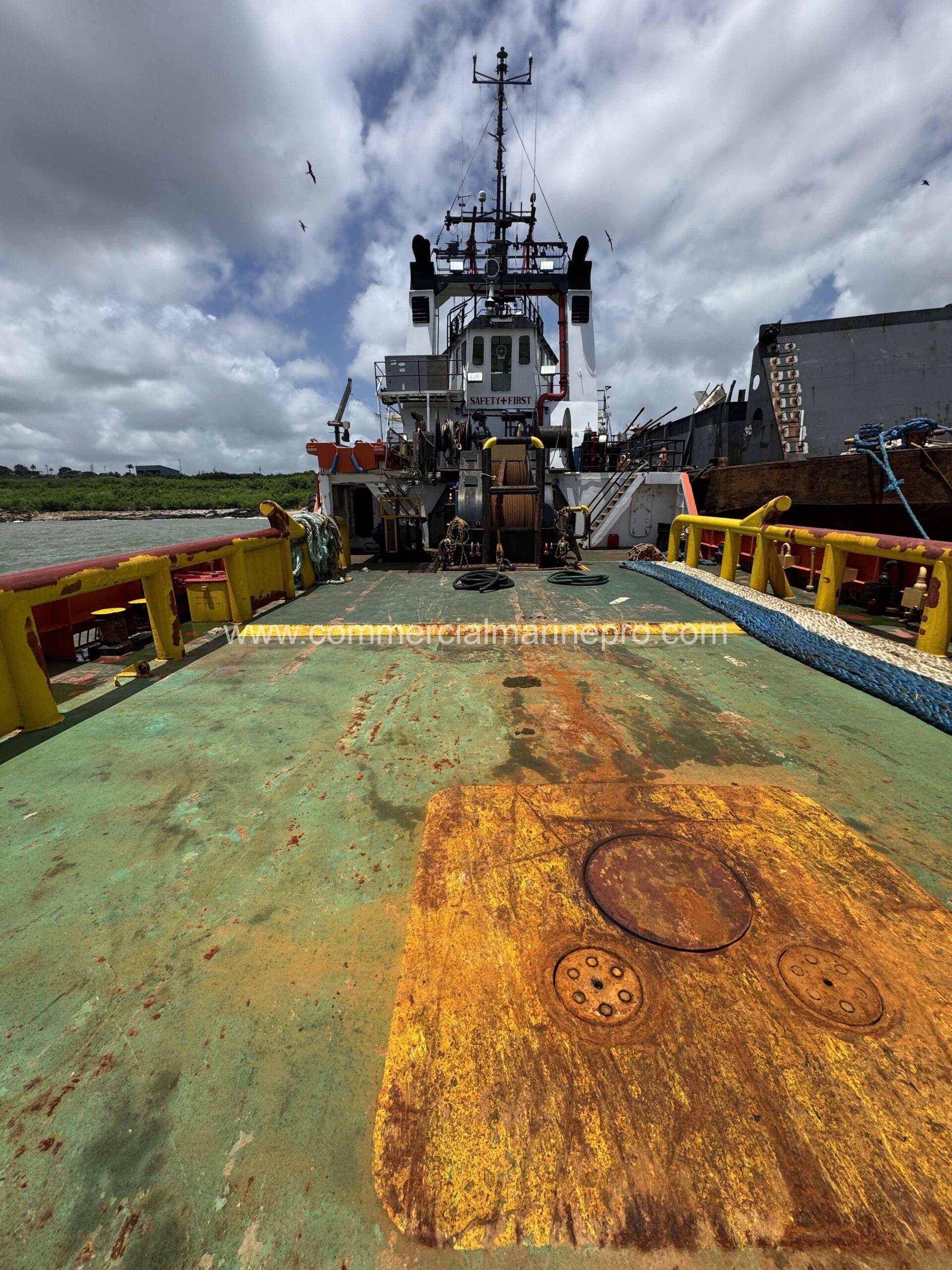

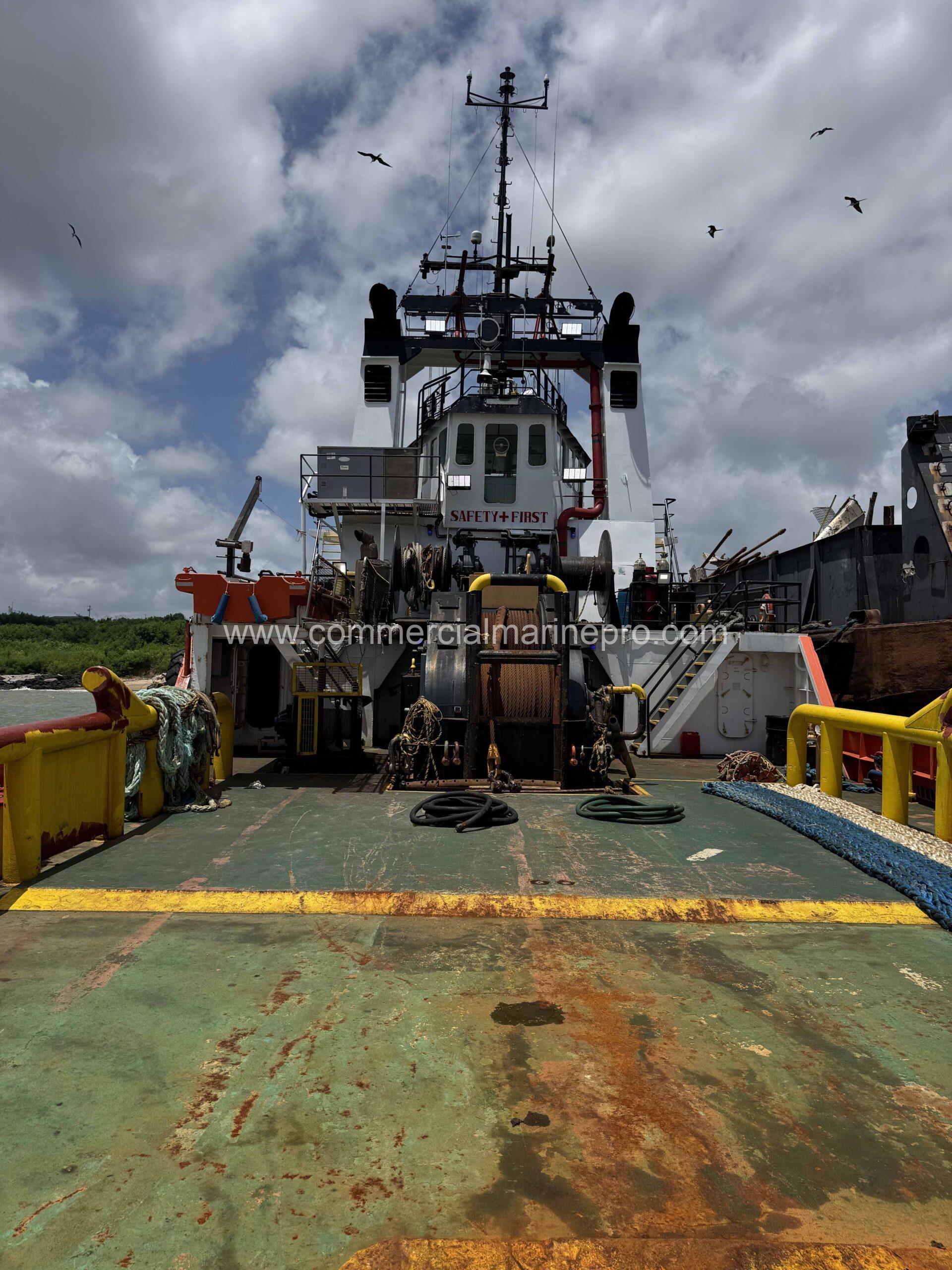

Clear Deck Space 39 x 28 ft

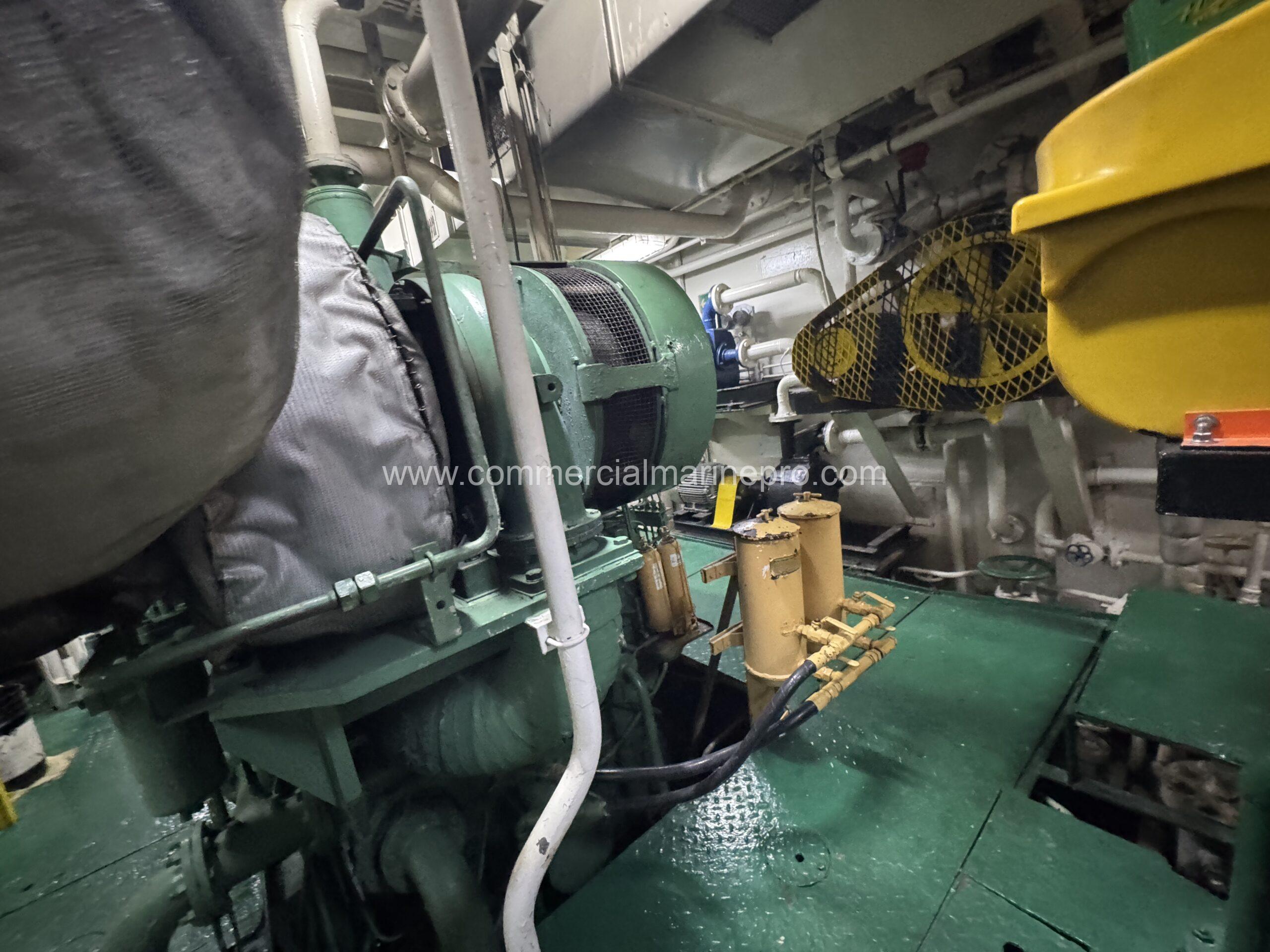

Machinery

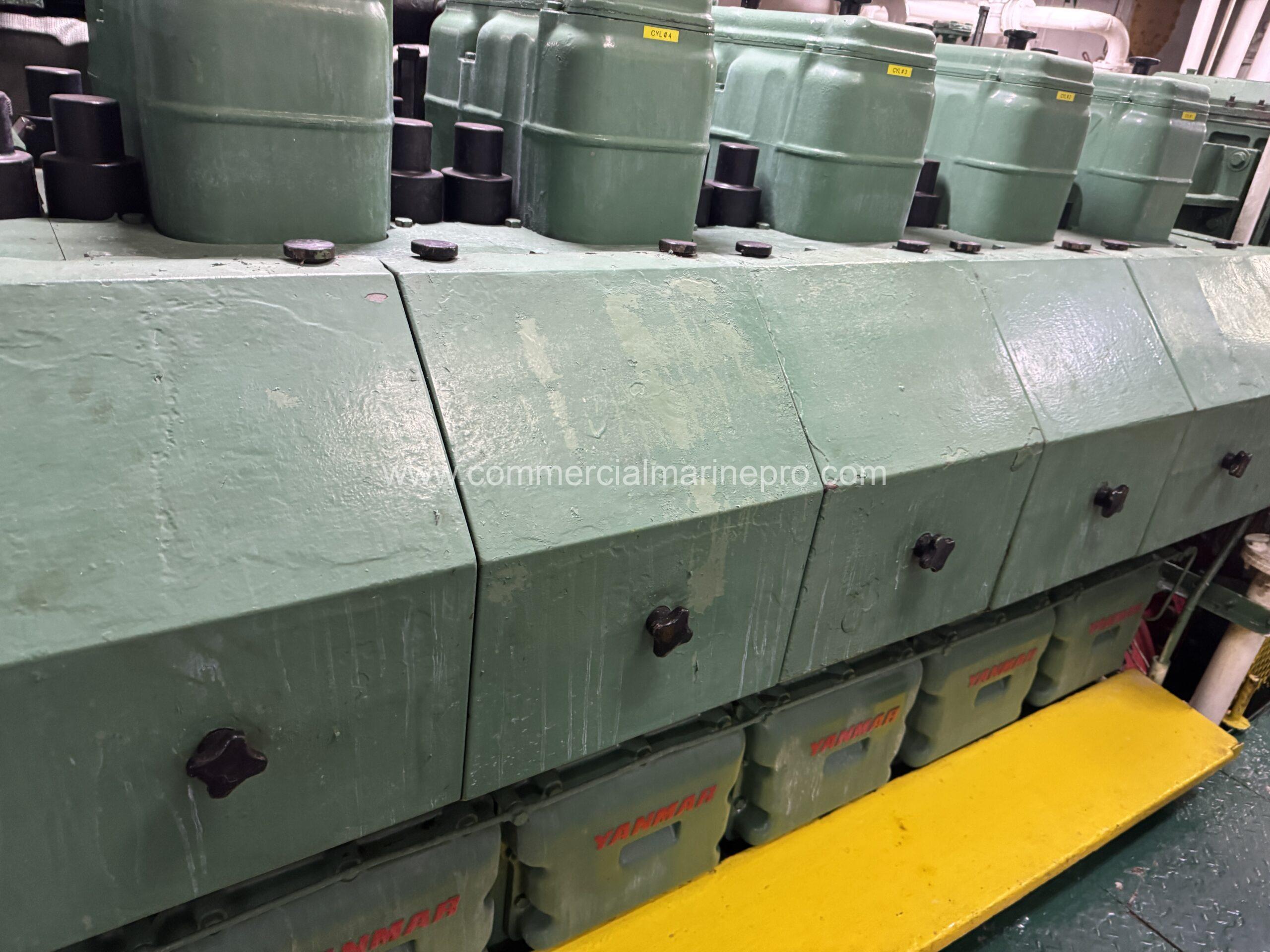

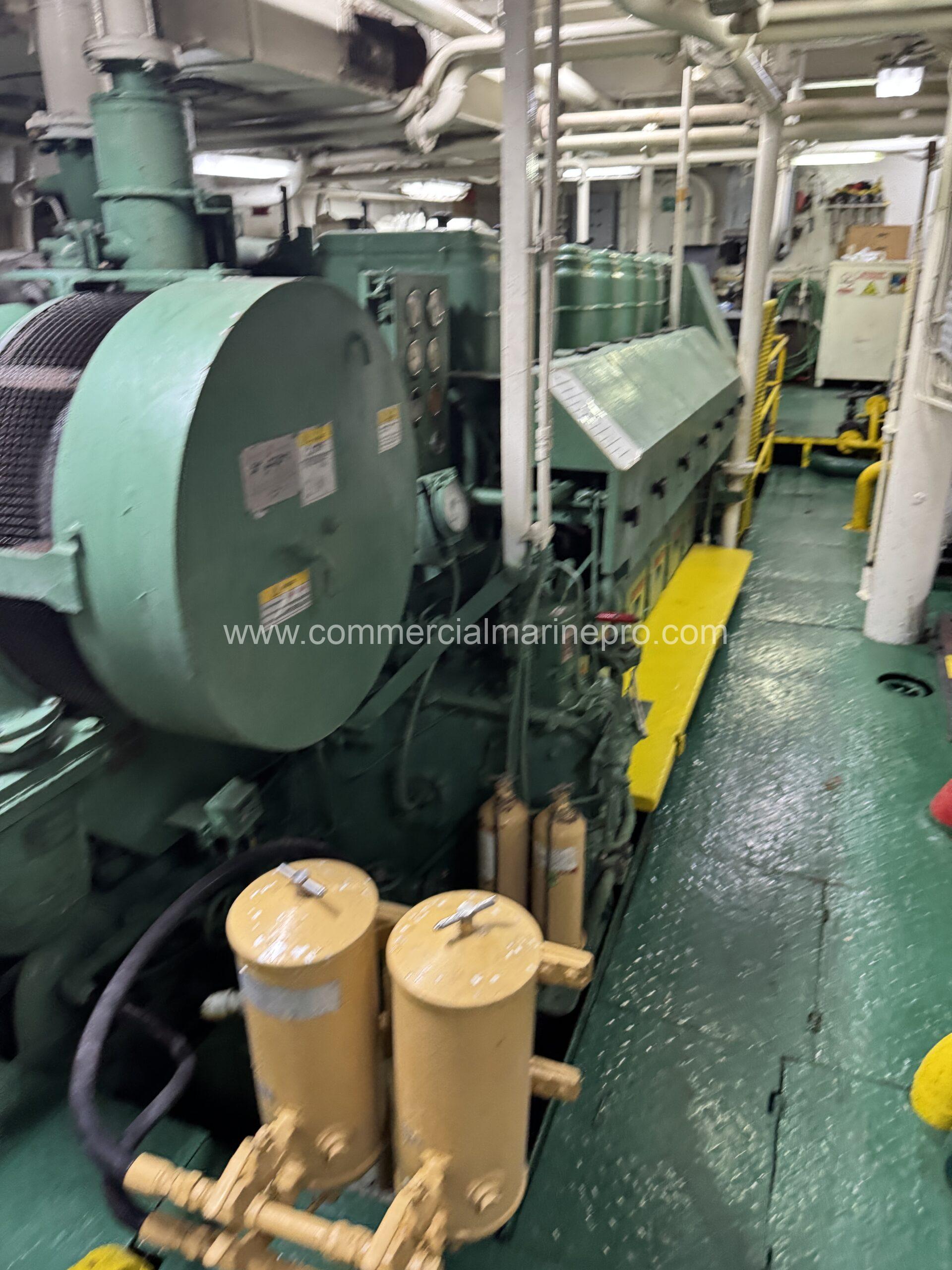

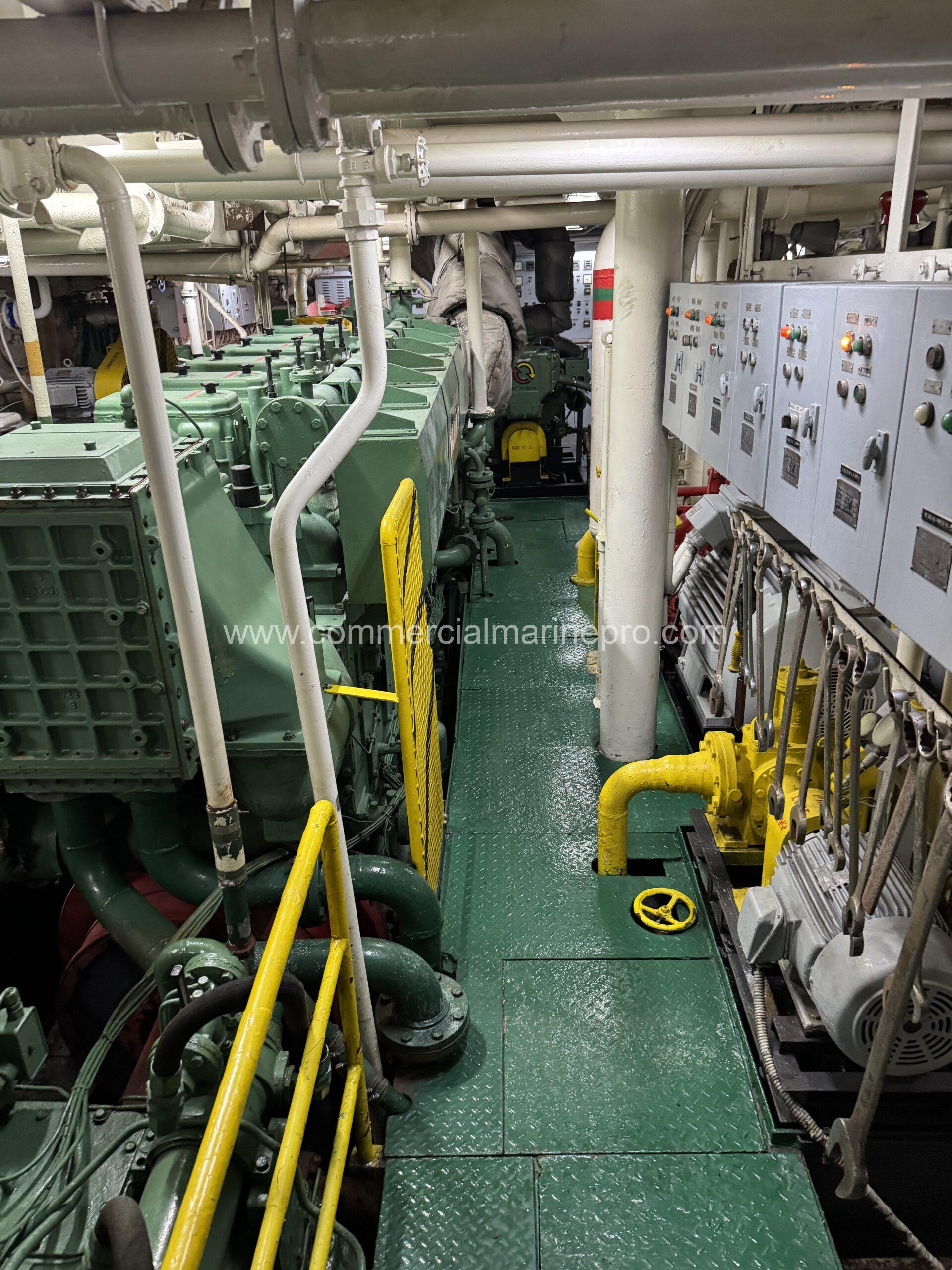

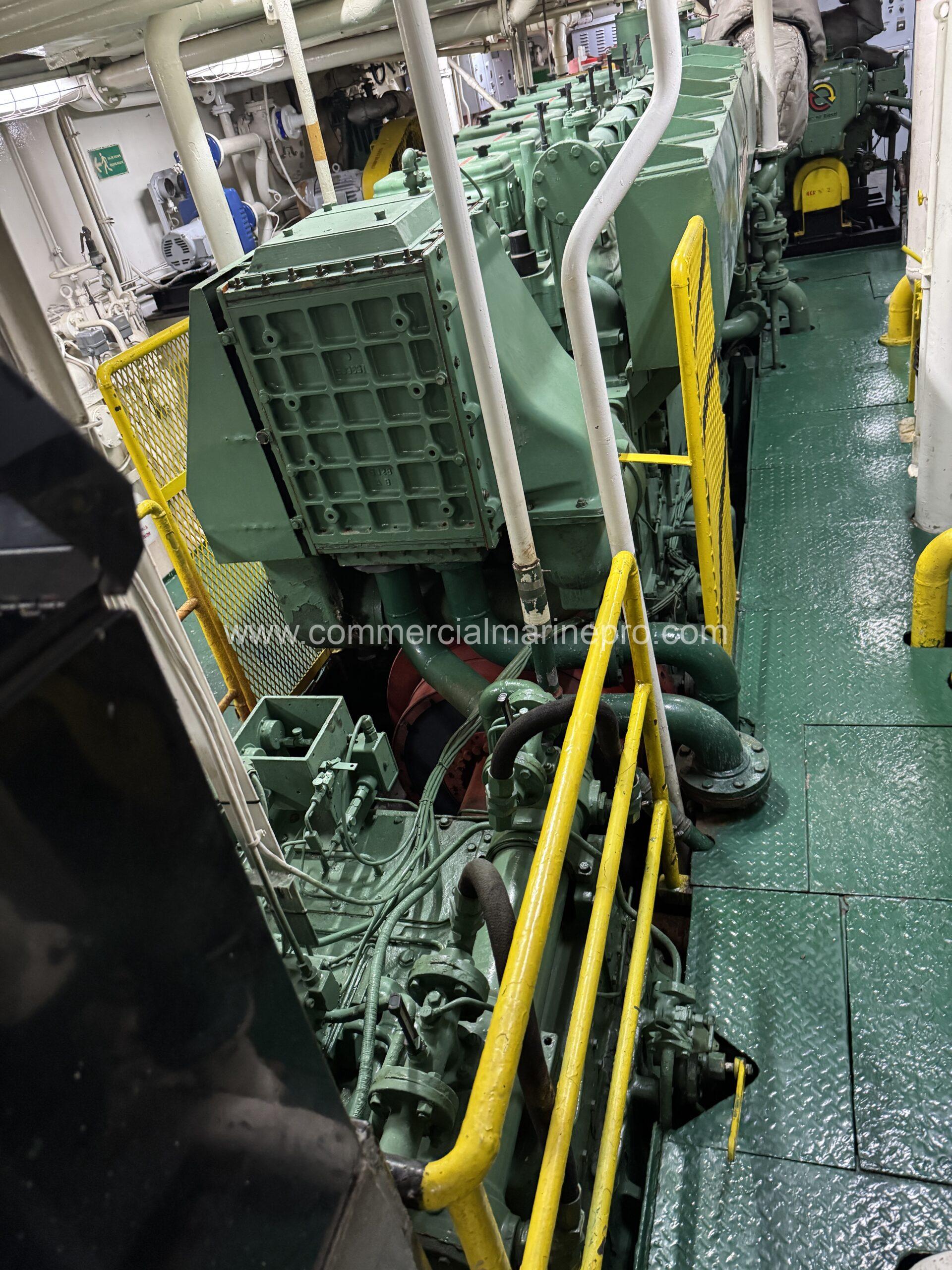

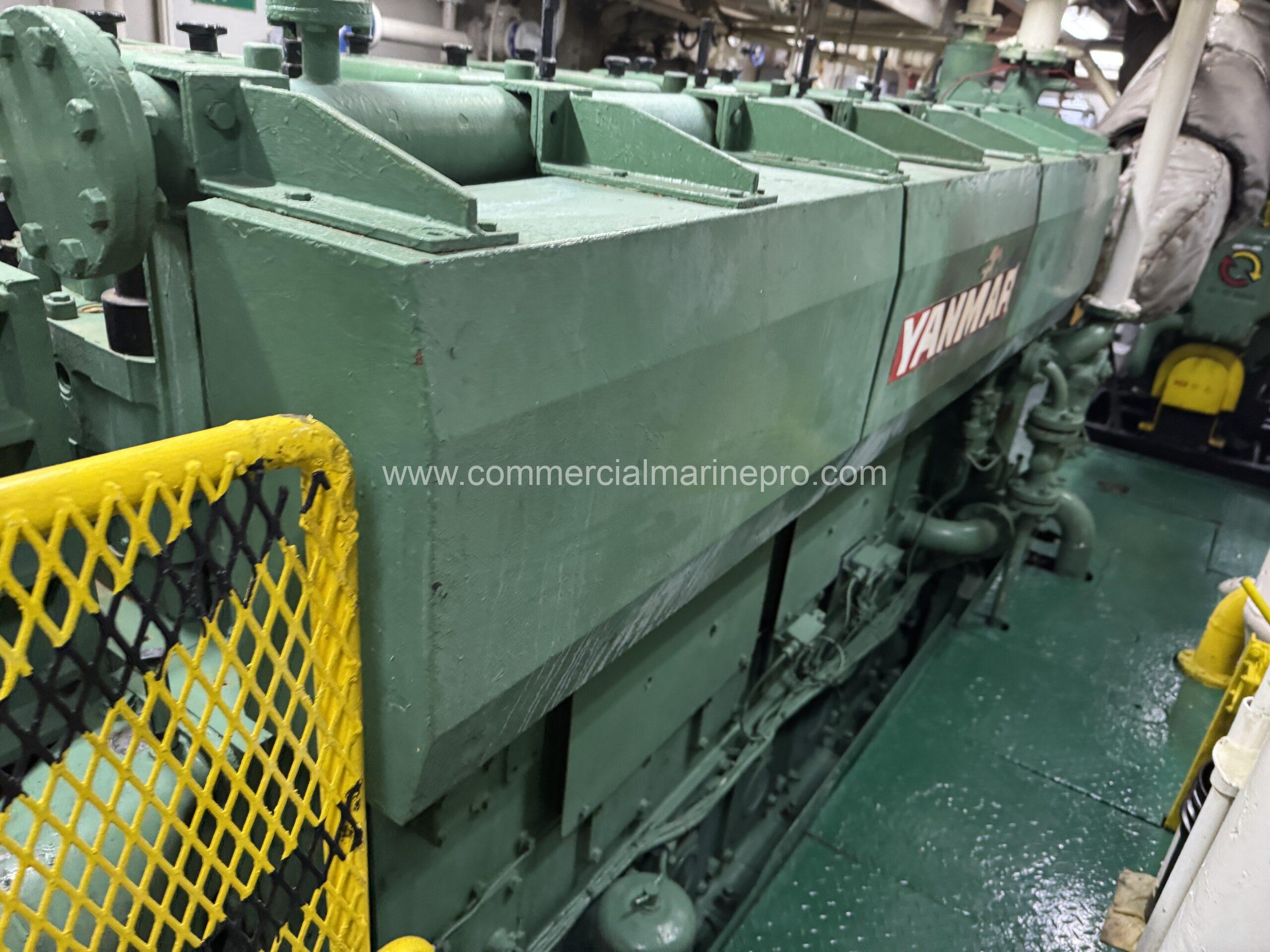

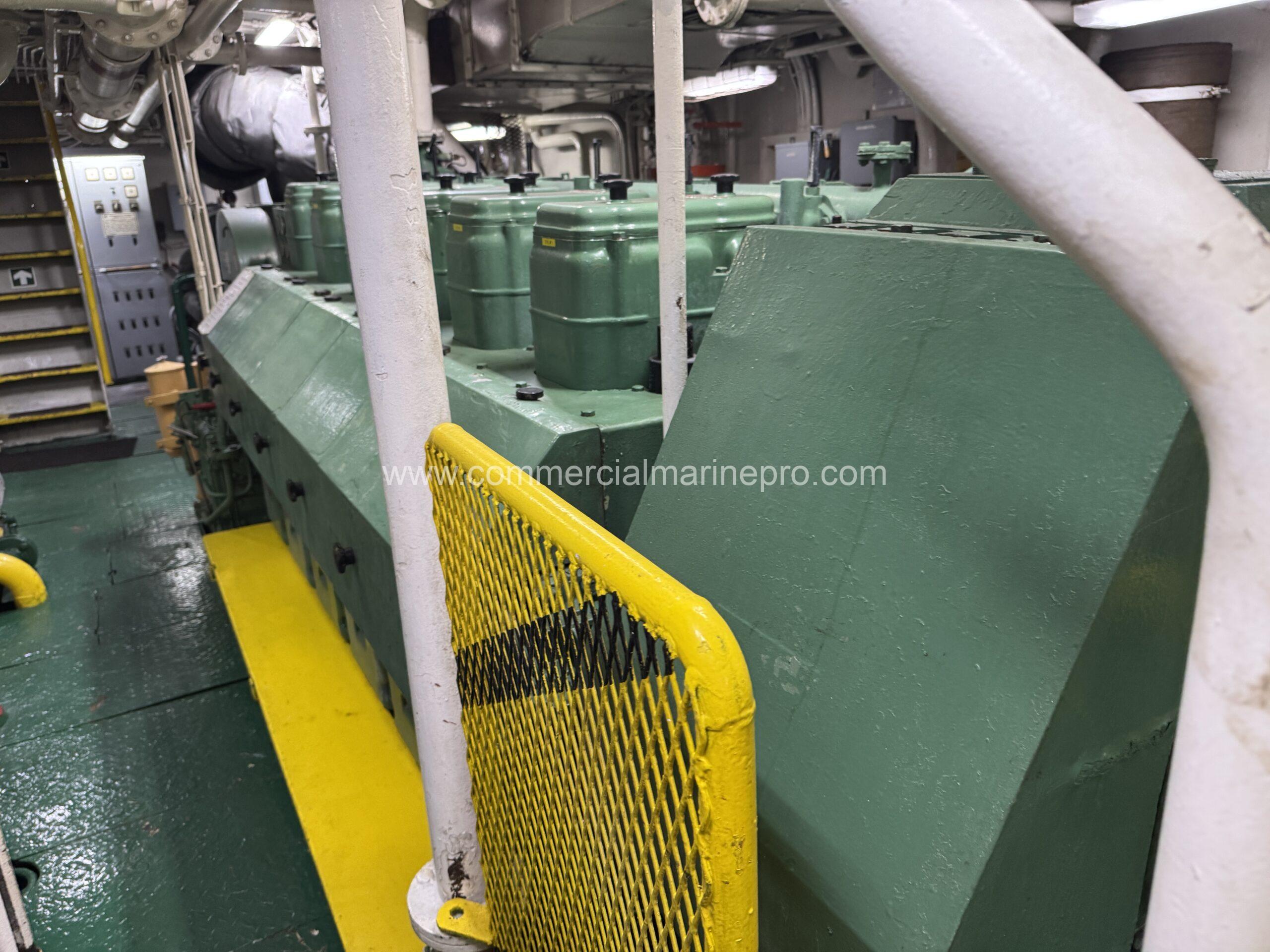

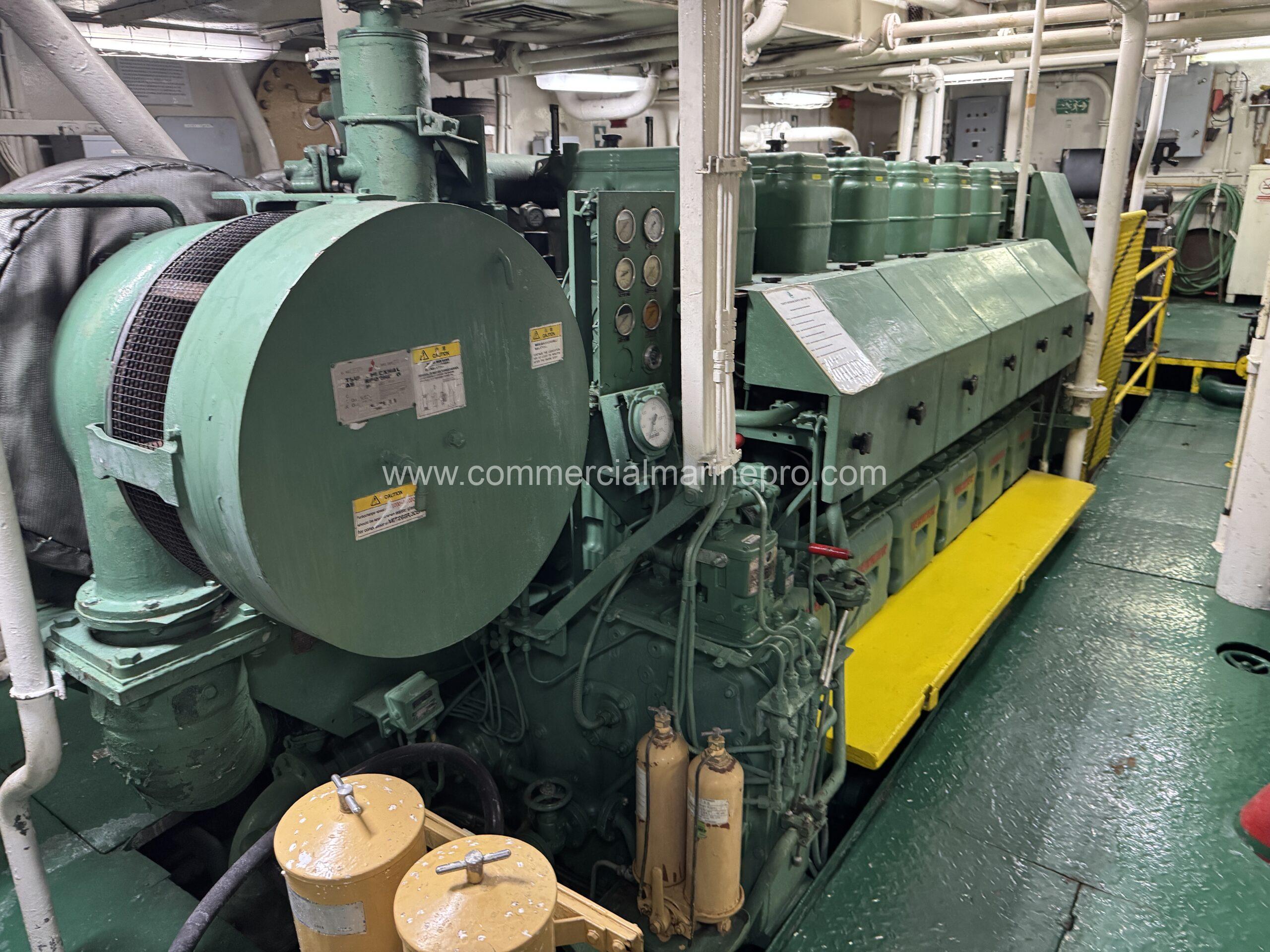

Main Engines 2 x Yanmar 6N280-EN
Brake Horsepower 2500 BHP Each @ 720 RPM

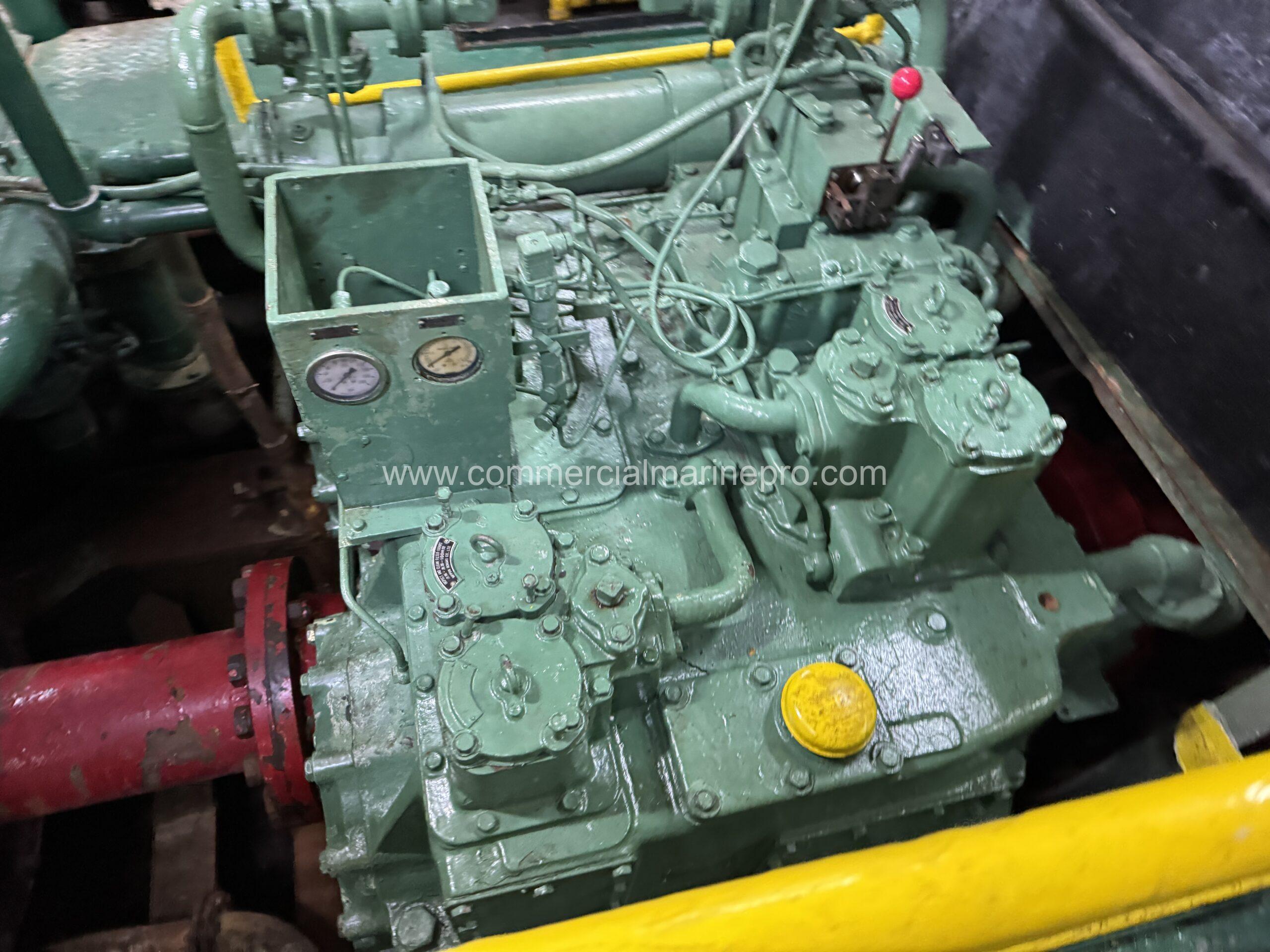

Reduction Gears 2x YX – 3000
Gear Ratio 3.5:1
Rudder 2 Spade Type
Propellers 2 – 118” Kaplan
Kort Nozzles Yes

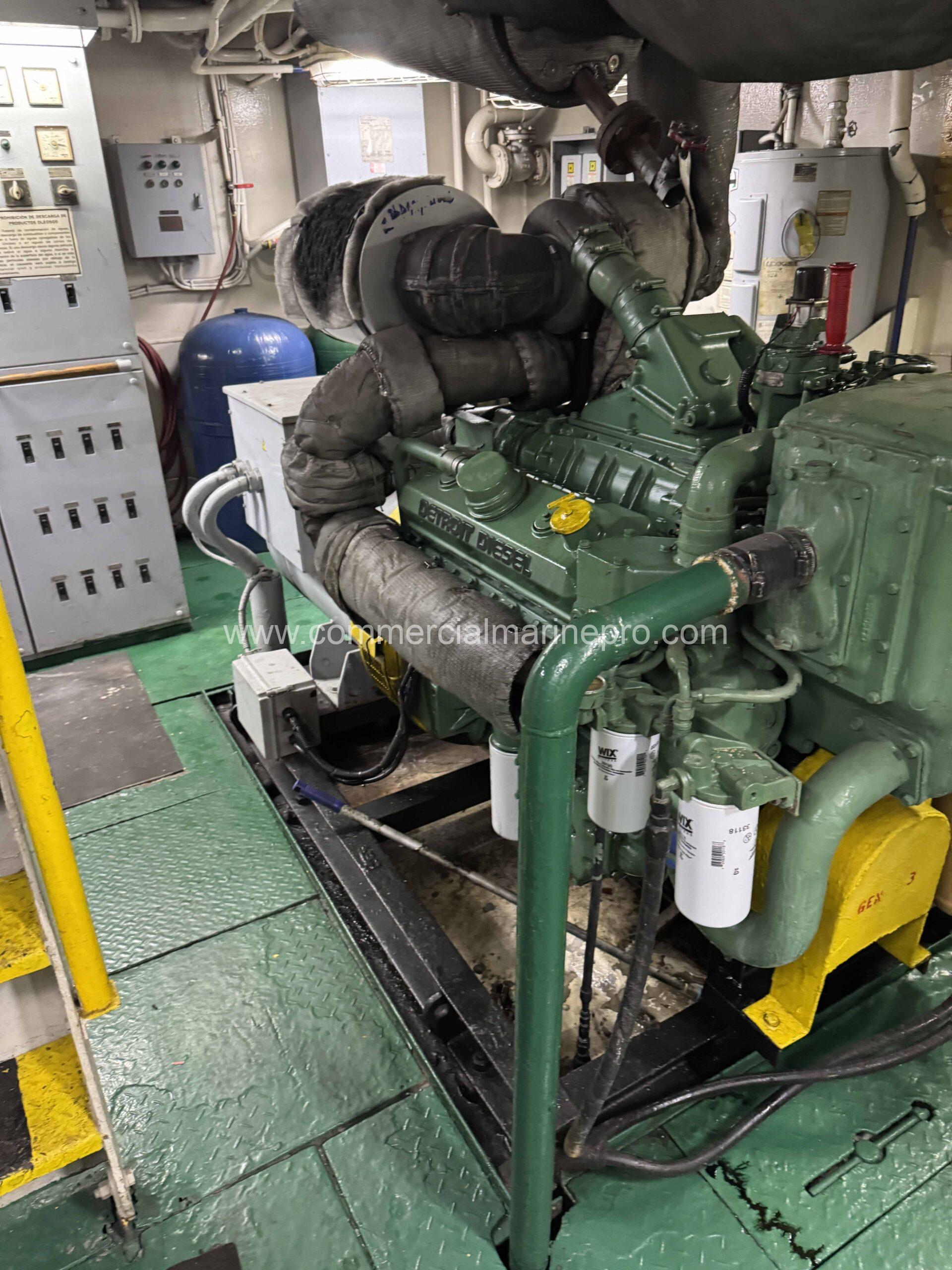

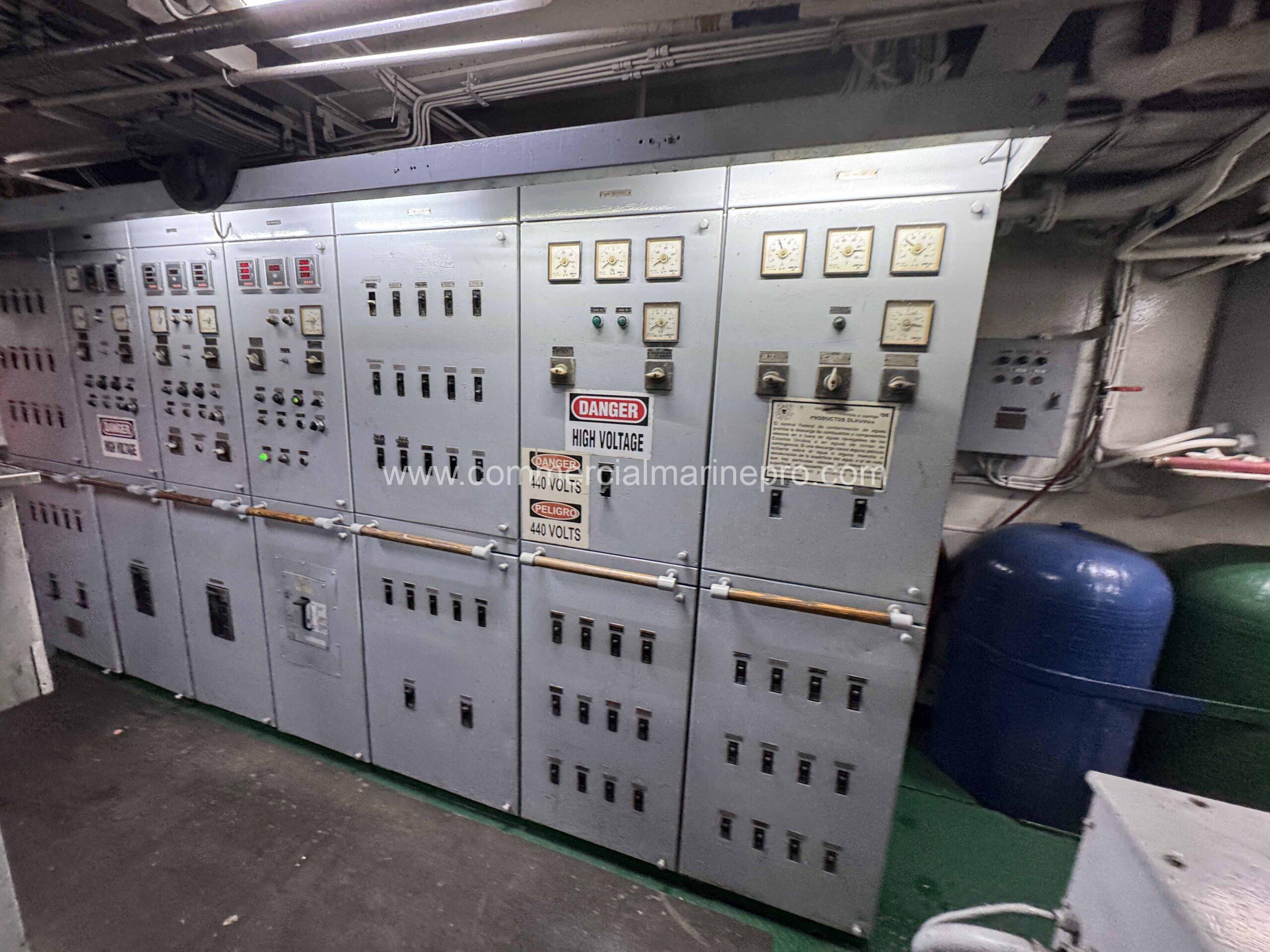

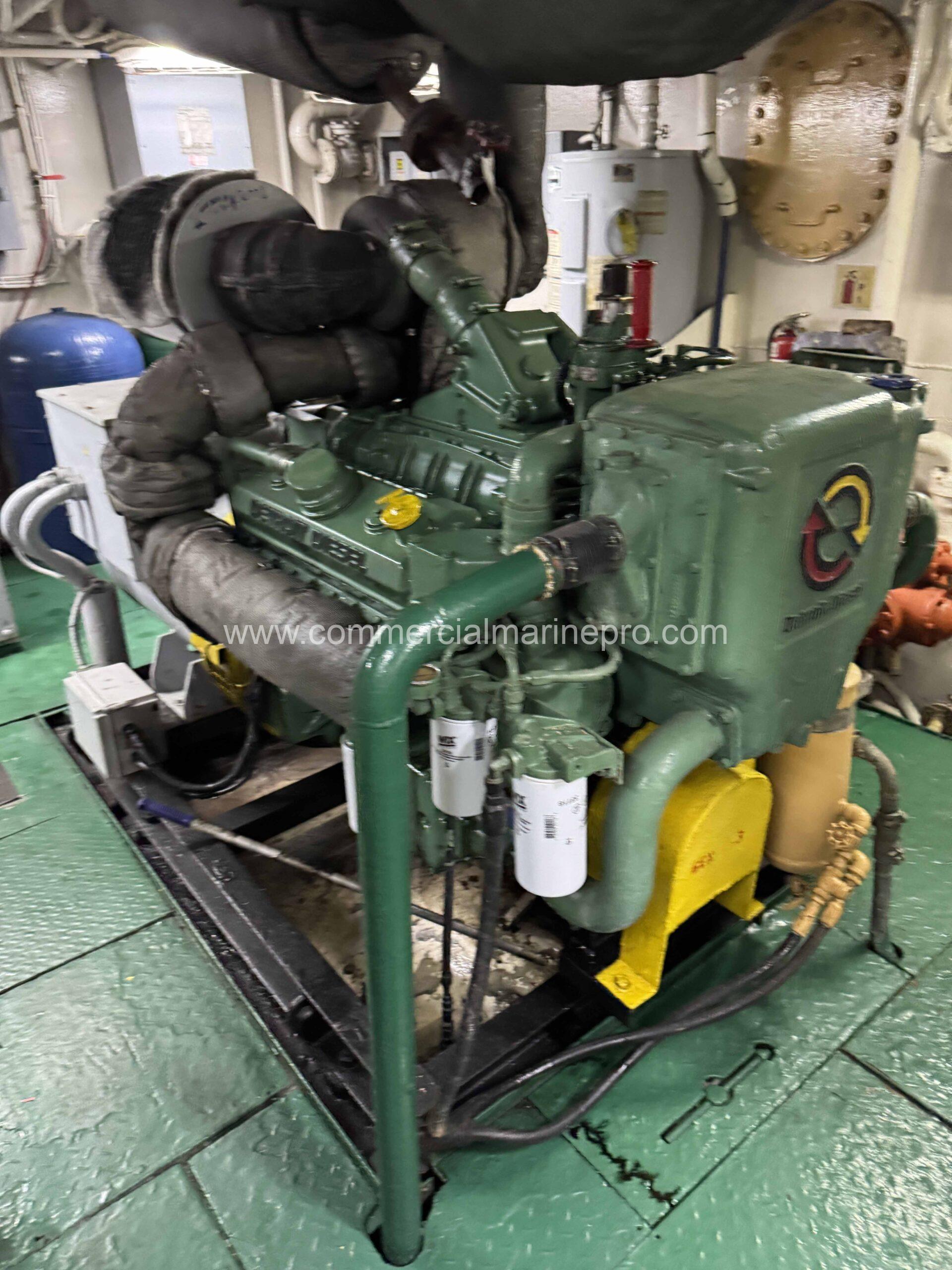

Auxiliary Generators 3 x 300 Kw Detriot
Diesel 8V-92TA,
380/3/50Hz

Bow Thruster 1 – Ulstein 45 TB

Performance
Maximum Speed 13 Knots (175 USG Per Hour fuel consumption)
Cruising Speed 10 Knots (125 USG per Hour fuel consumption)
Economy Speed 8 Knots (100 USG per Hour fuel consumption
Endurance 7200 NM @ 12 knots
Generator
Consumption – 360 liters MDO and 10 liters lube oil per day

Tonnage

GRT 465 MT (ITC)
NRT 139 MT (ITC)
Deadweight 344.74 MT

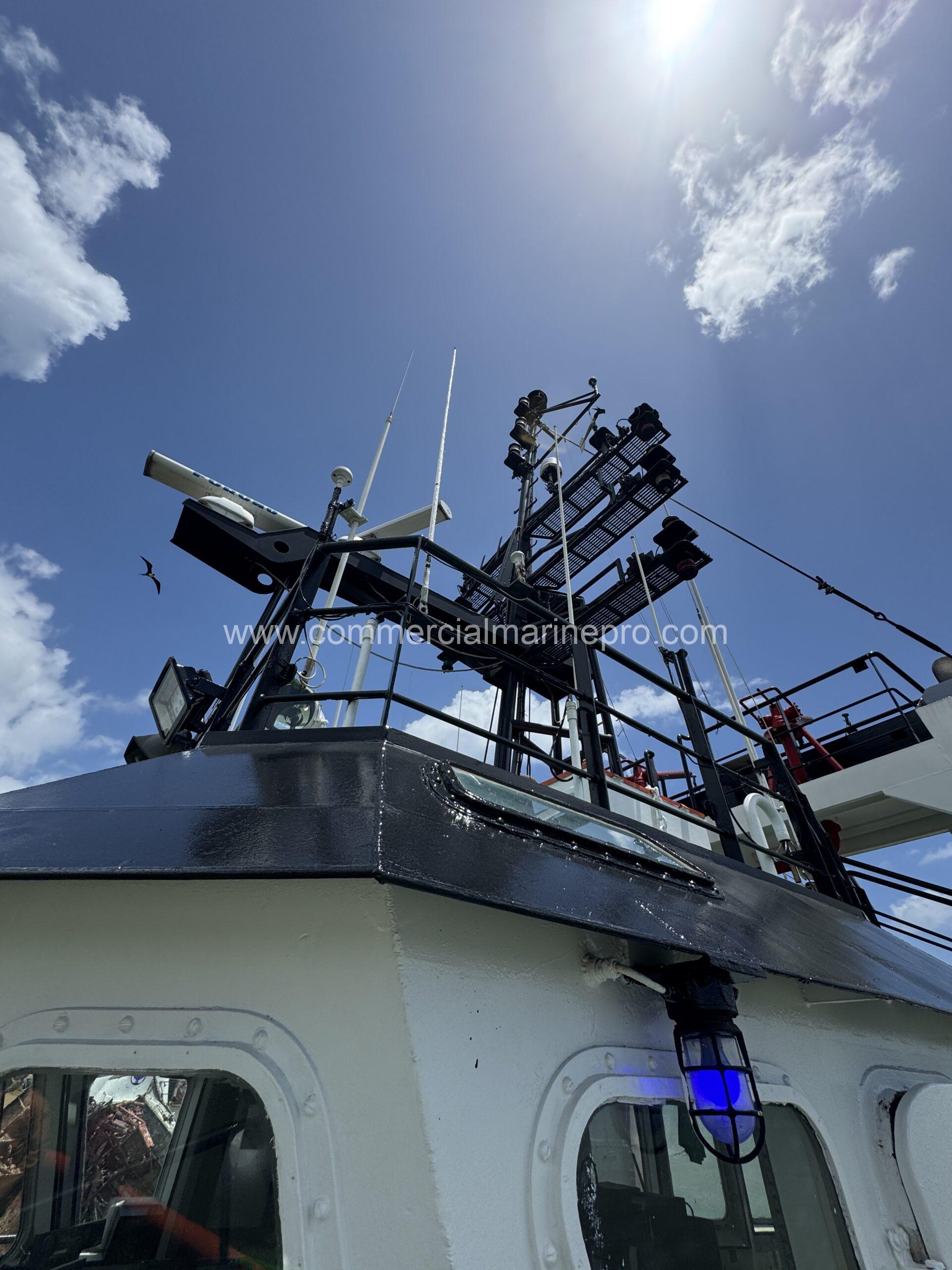

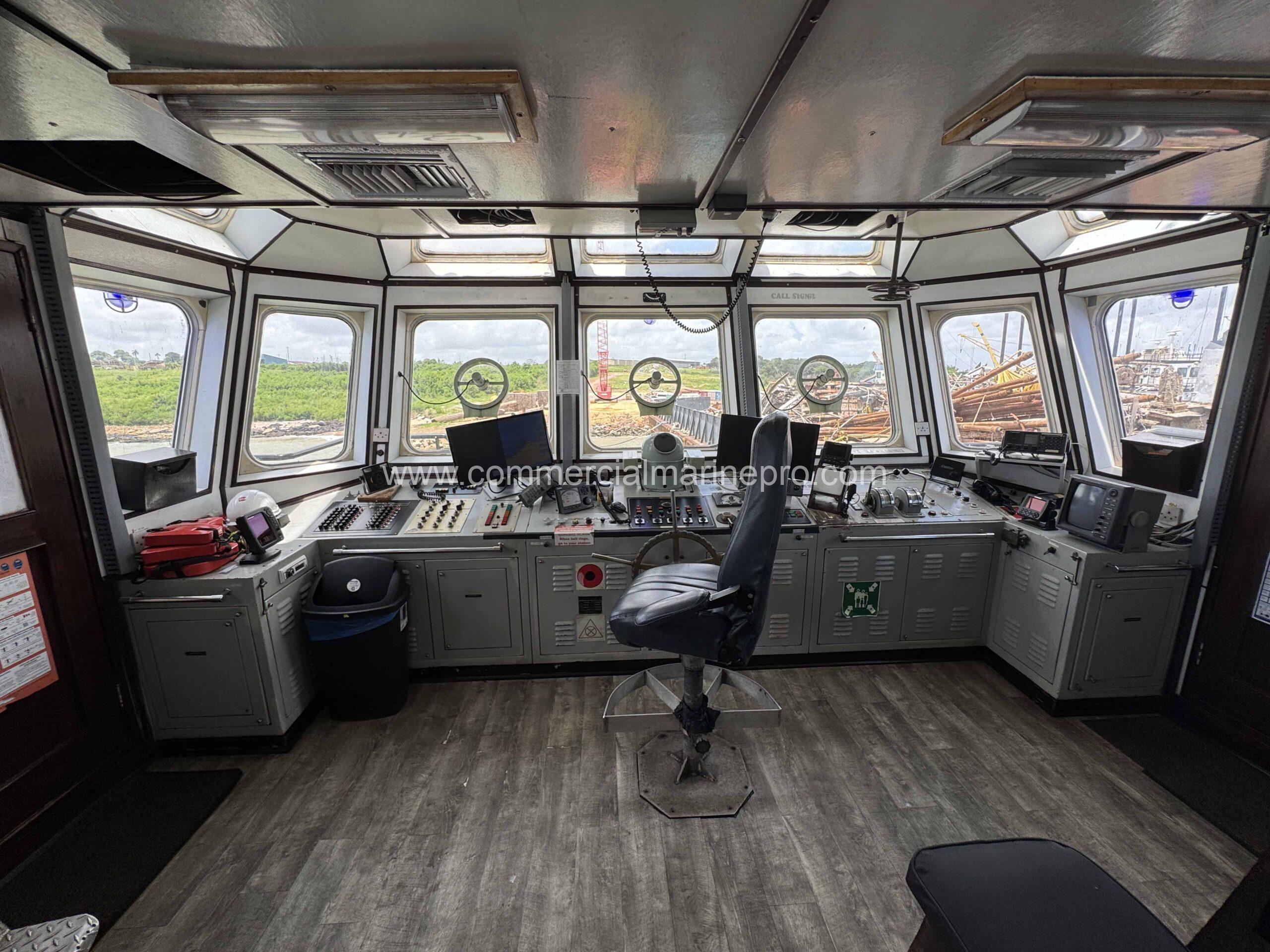

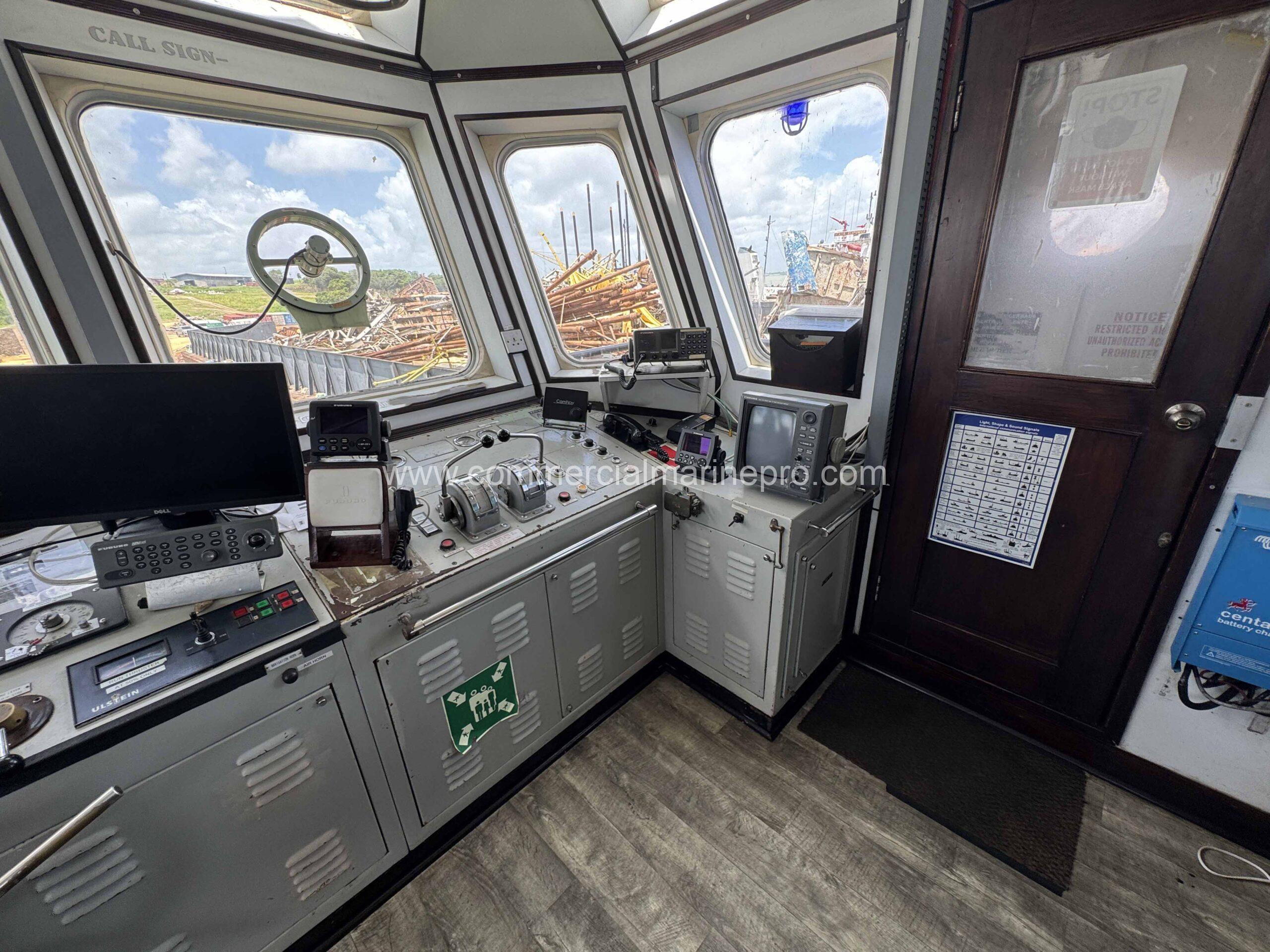

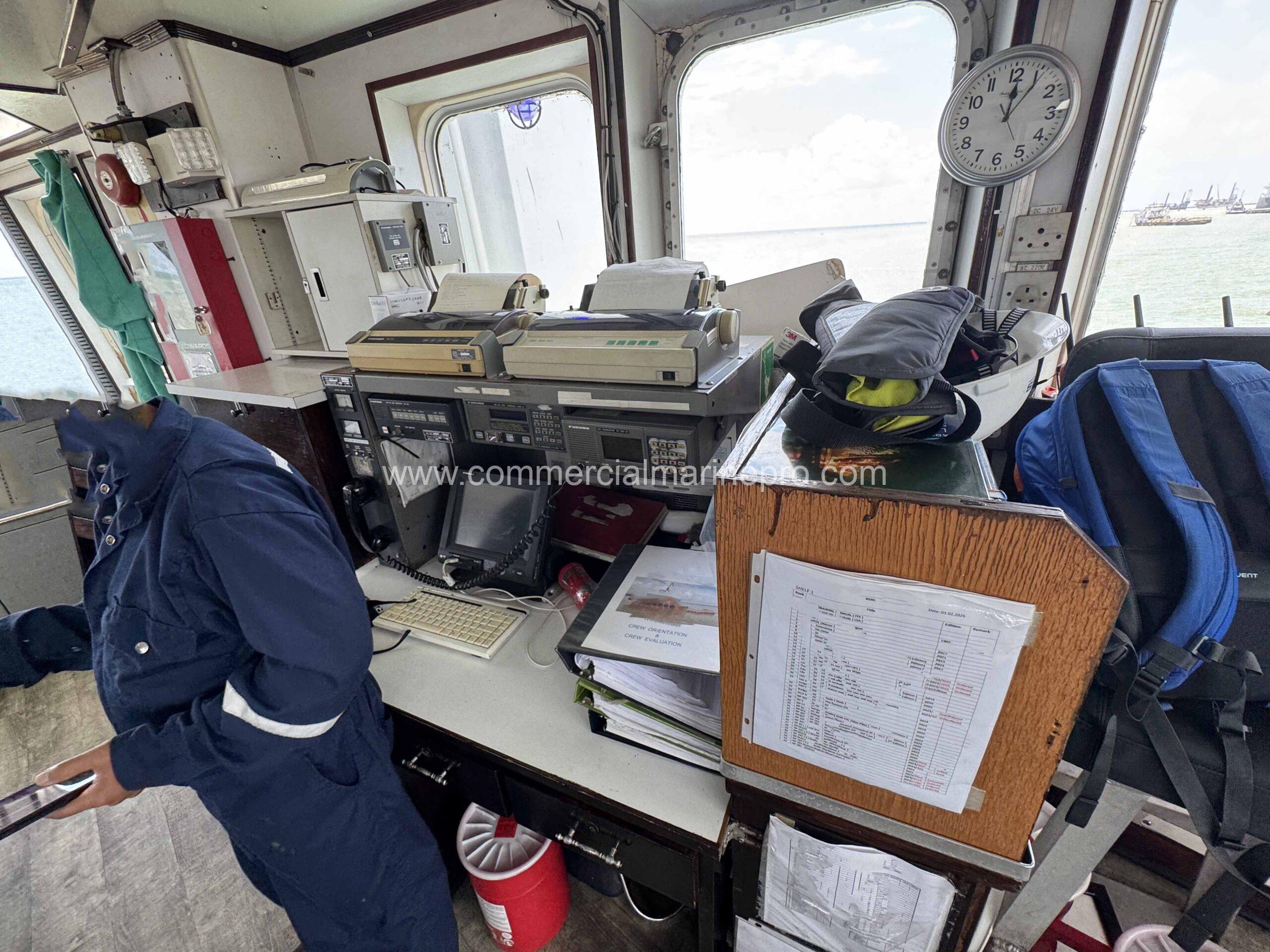

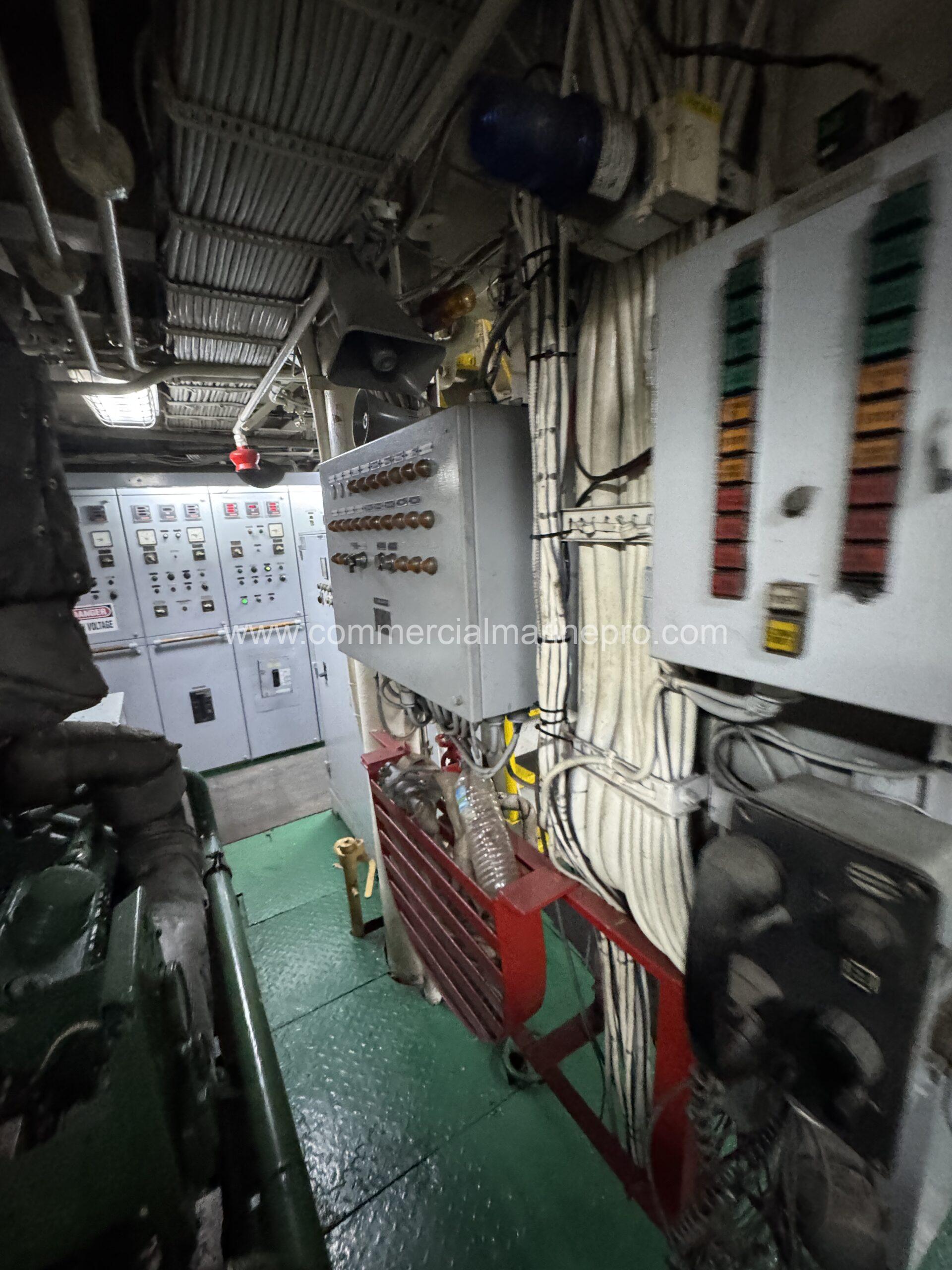

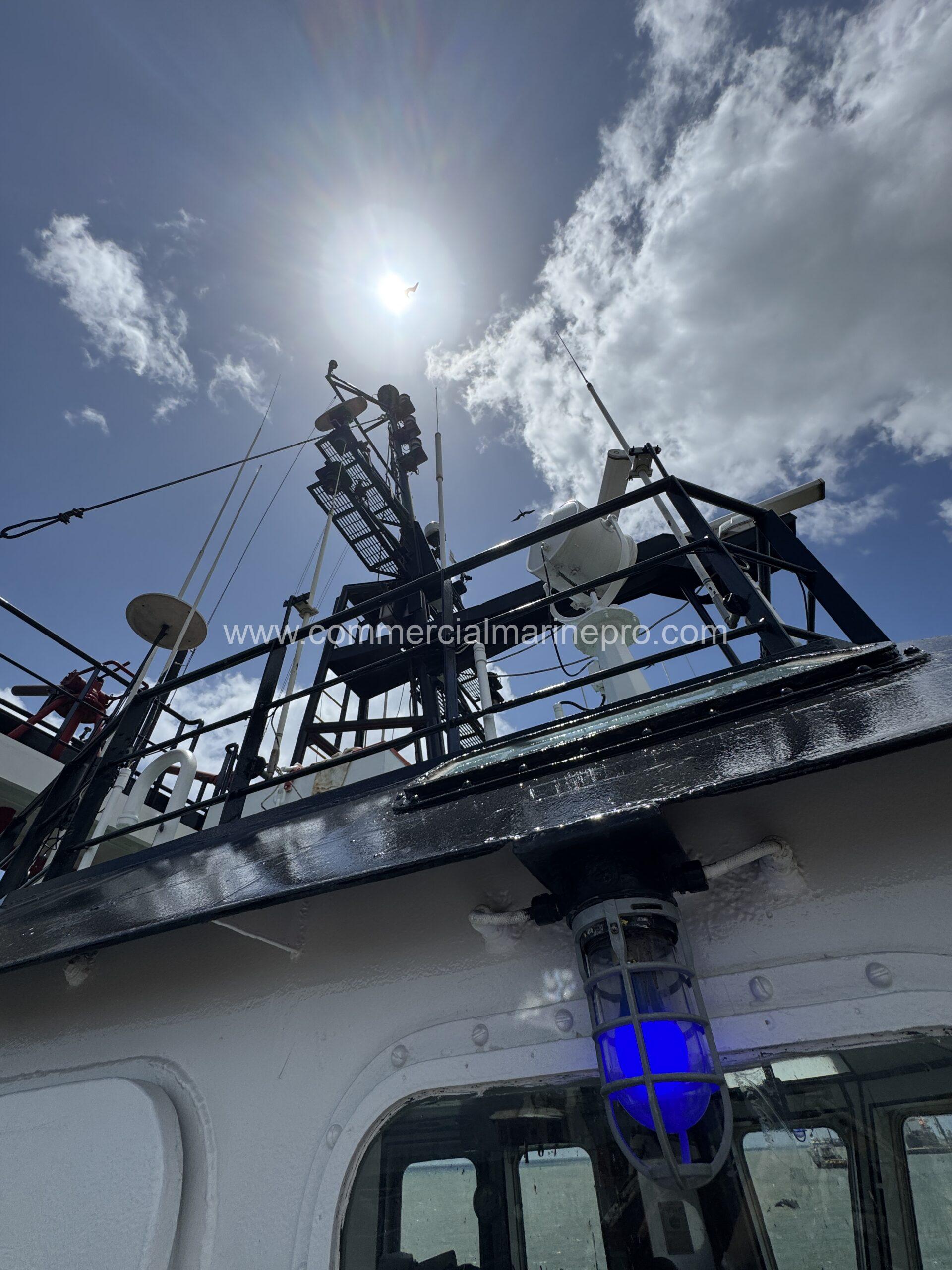

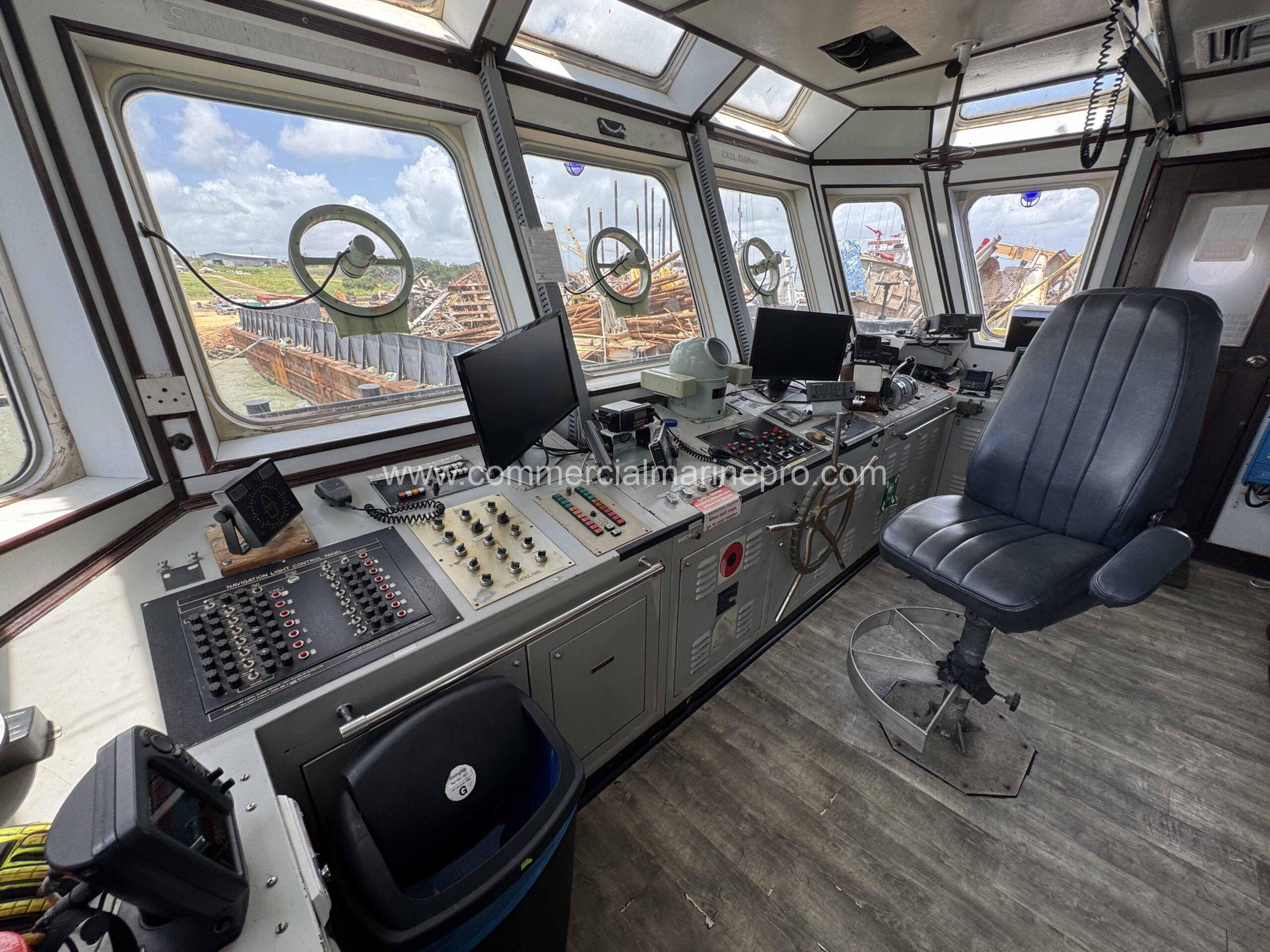

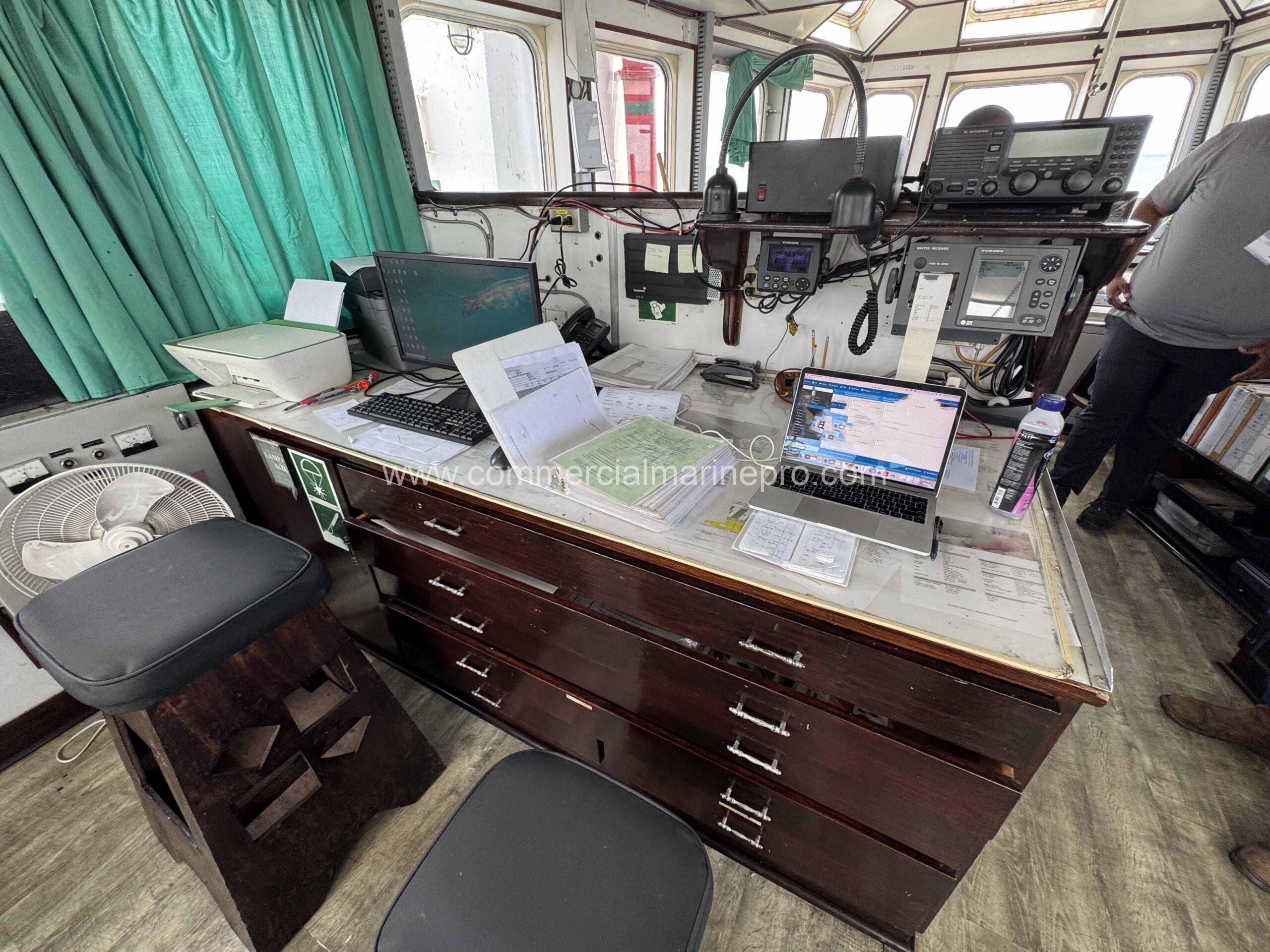

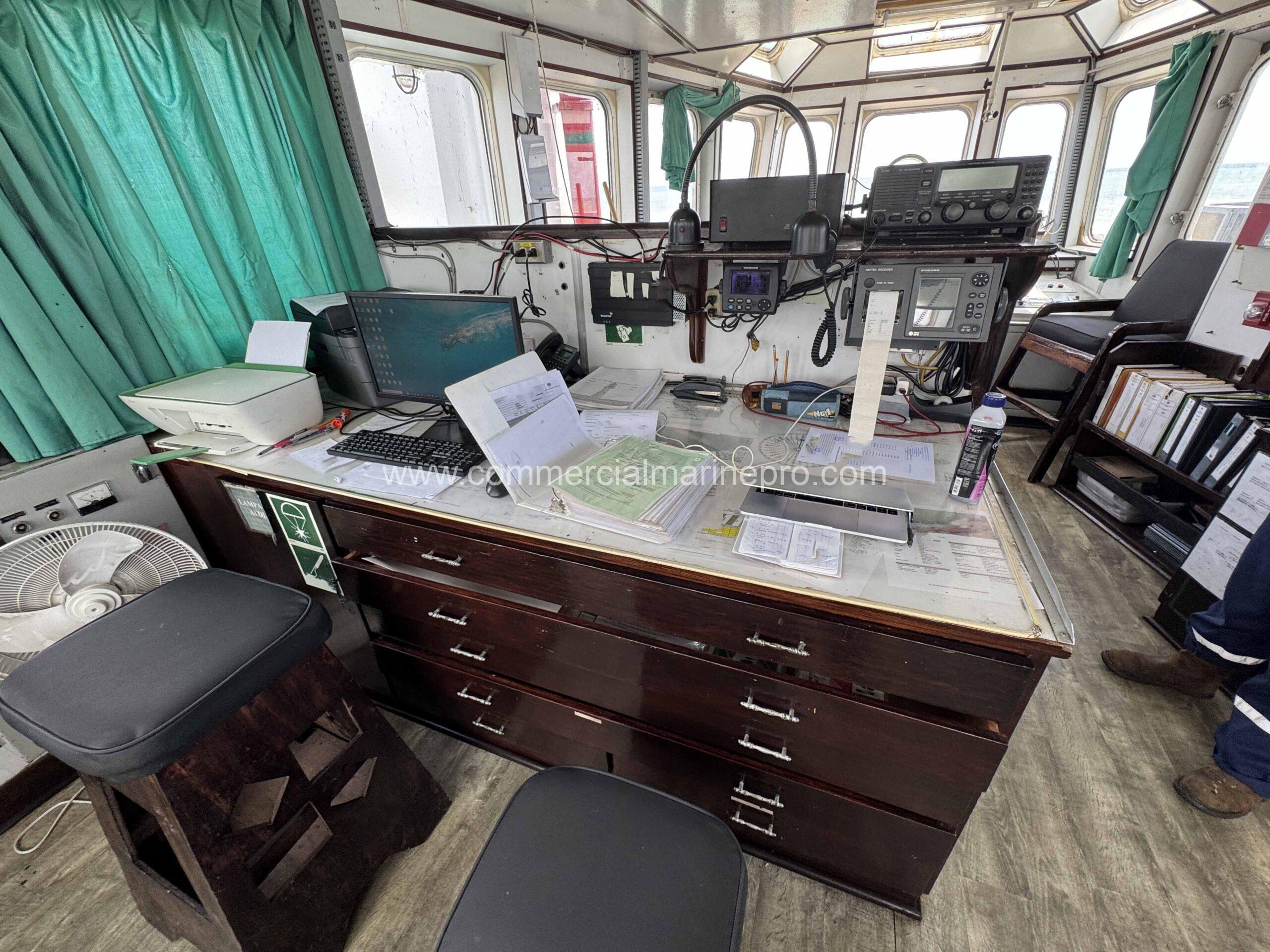

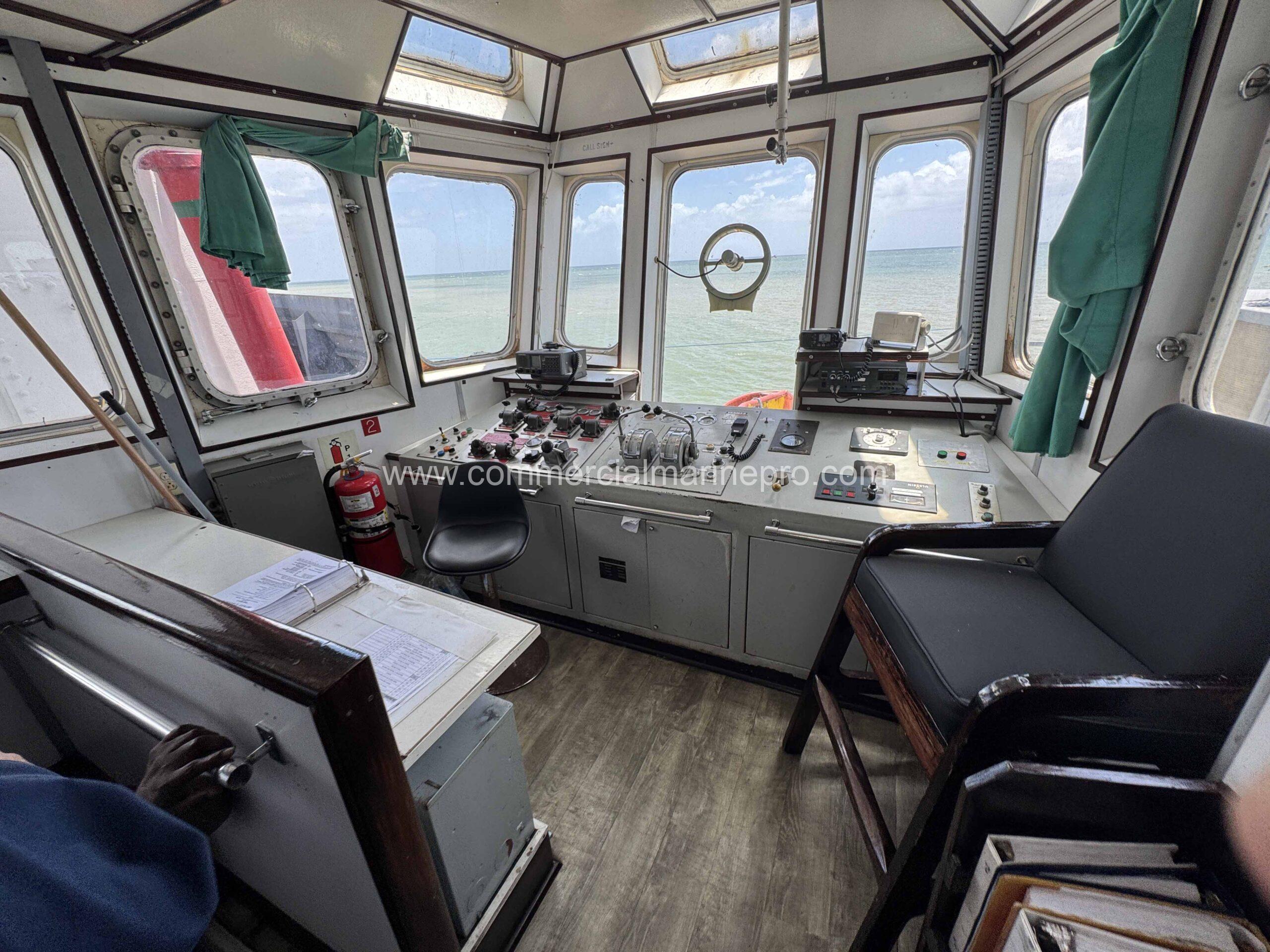

Electronics & Controls
Depth Sounder 1 x Furuno FCV 128
GMDSS A1, A2, A3
Radar 2 x Furuno (ARPA)
VHF 2 x Furuno; 2 x ICOM
SSB 1 x Furuno
Internet E-Mail Fleet Broadband
Magnetic Compass 1 x Daiko Keiki
Gyro 1 x Litton SR-180
Wind Indicator 1 x Young
Weather 1 x Furuno DFax 207
Inmarsat C 2 x Furuno Felcom 18
AIS 1 x Furuno FA 100
Auto Pilot 1 x Furuno 330

Special Equipment
External FIFI Yes
Number of Monitors 2 x fixed foam / water fire monitors of 3000 liters per min @ 1200 M head capacity

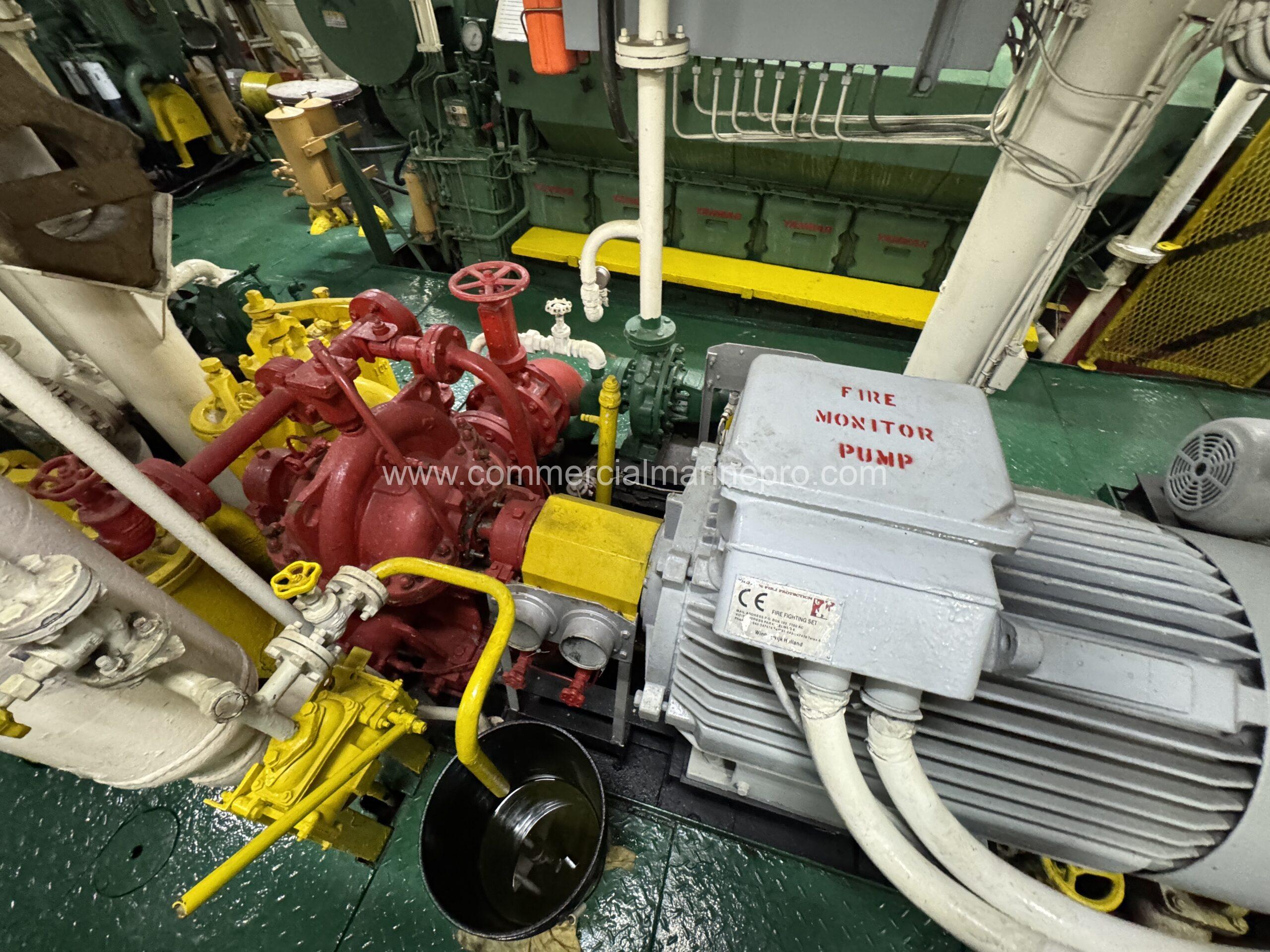

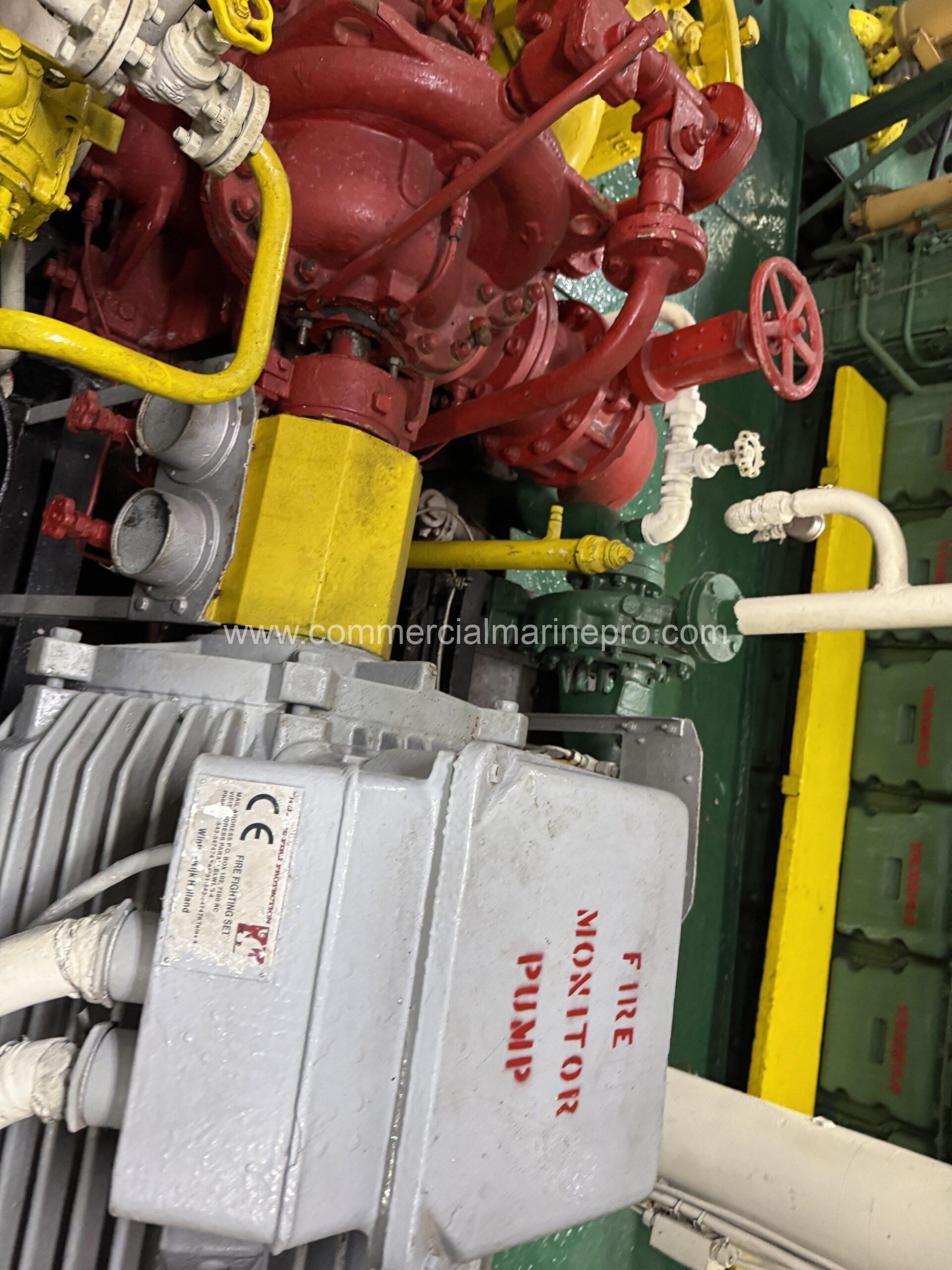

Fire Pump 360 m3 /hour
Fendering 50mm thick plating at forward bow c/w airplane tires.

Side shell protected with tire fenders
