Product Description:

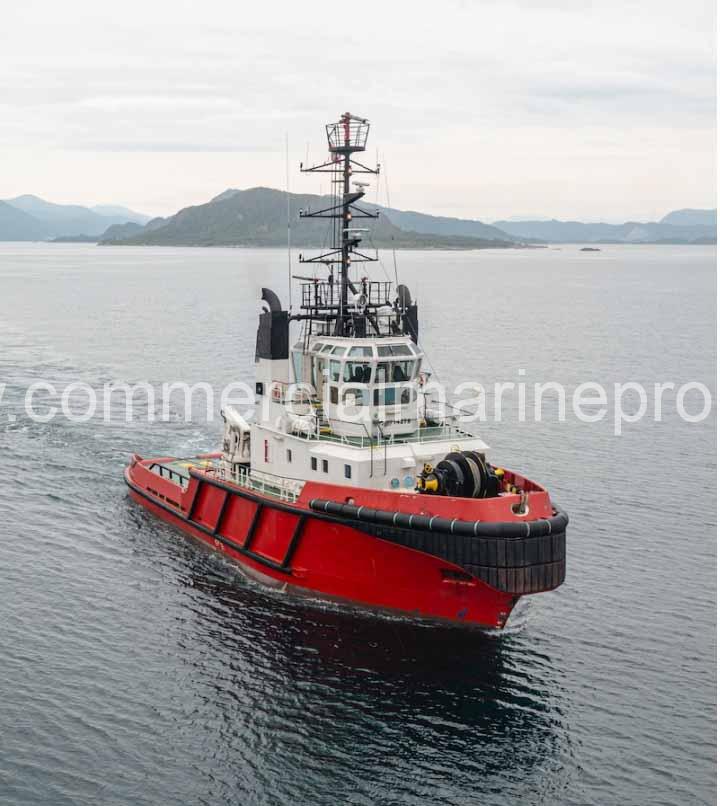

58T BP ASD TUG
Year built: 1988
Length: 33.34 m
Beam: 10 m
Max Draught: 5 m
Air Draft: 20.8 m
N.R.T.: 128 t
G.R.T.: 429 t
Performance
Bollard Pull Ahead: 57 t
Bollard pull Astern: 50 t
Speed Free: 10 knots
Capabilities
Accommodation:1 single cabin and 3 double cabins
Tank Capacity
Fresh Water: 47 m3
Fuel Oil: 168 m3
Oil Recovery: 66 m3
Cargo Deck
Clear Area: 64 m3
Services
The vessel is equipped and fitted for the following
contingency services:
✓Harbour and Escort towage
✓Towing
✓Salvage
✓Anchor Handling
✓Other Marine Services
Main Engines & Propulsion
Main Engines: 2 x MaK Diesel 8M332
Horse Power Rating: 4400
Total
Continuous Output at 1050 rpm
Auxiliaries / Electric Power
Generators: 2 x Volvo Penta
T 121CHC @ 260 BHP
Electric Power: 2 x Stamford Generators
@ 200 kW
Propellers
Maker / Type: 2 x Liaaen Compass Thrusters
TCN 92/68-250
Deck Equipment
Towing Winch Forward: 45 t pull 150 t brake hydraulic combined windlass type: Karm
Towing Winch Aft: 60 t pull
150 t brake hydraulic
Towing Hook: 60 t SWL type Mampaey
Lines Forward: 1 x 110m 58mm Strong line, MBL 184 t
Lines Aft: 1 x 850m 52mm wire, MBL 167 t
Capstan: 3 t pull, type: Karm
Deck Crane
Towing Pins: Hydraulic towing pins wire
stopper type: Karm
Stern Roller: 100 t SWL
Radio & Navigation Equipment
RadarsFuruno FR-2110 10 cm
Furuno FR-803D 3 cm
ECDIS x 2: Maris
GPS: Furuno GPS 90
Gyro: Anschultz 110-106
Autopilot: Robertson AP9
Echo Sounder: JRC FE 881
Doppler Log: JRC JLN 203
AIS: Tech. Interfaced to Chart Display
Rescue & Life Saving Equipment
According to SOLAS and safe manning certificate
Life rafts: 2 x 8 men inflatable rafts
Work Boat: Valiant RB-450
