Product Description:
2016
90x30x4

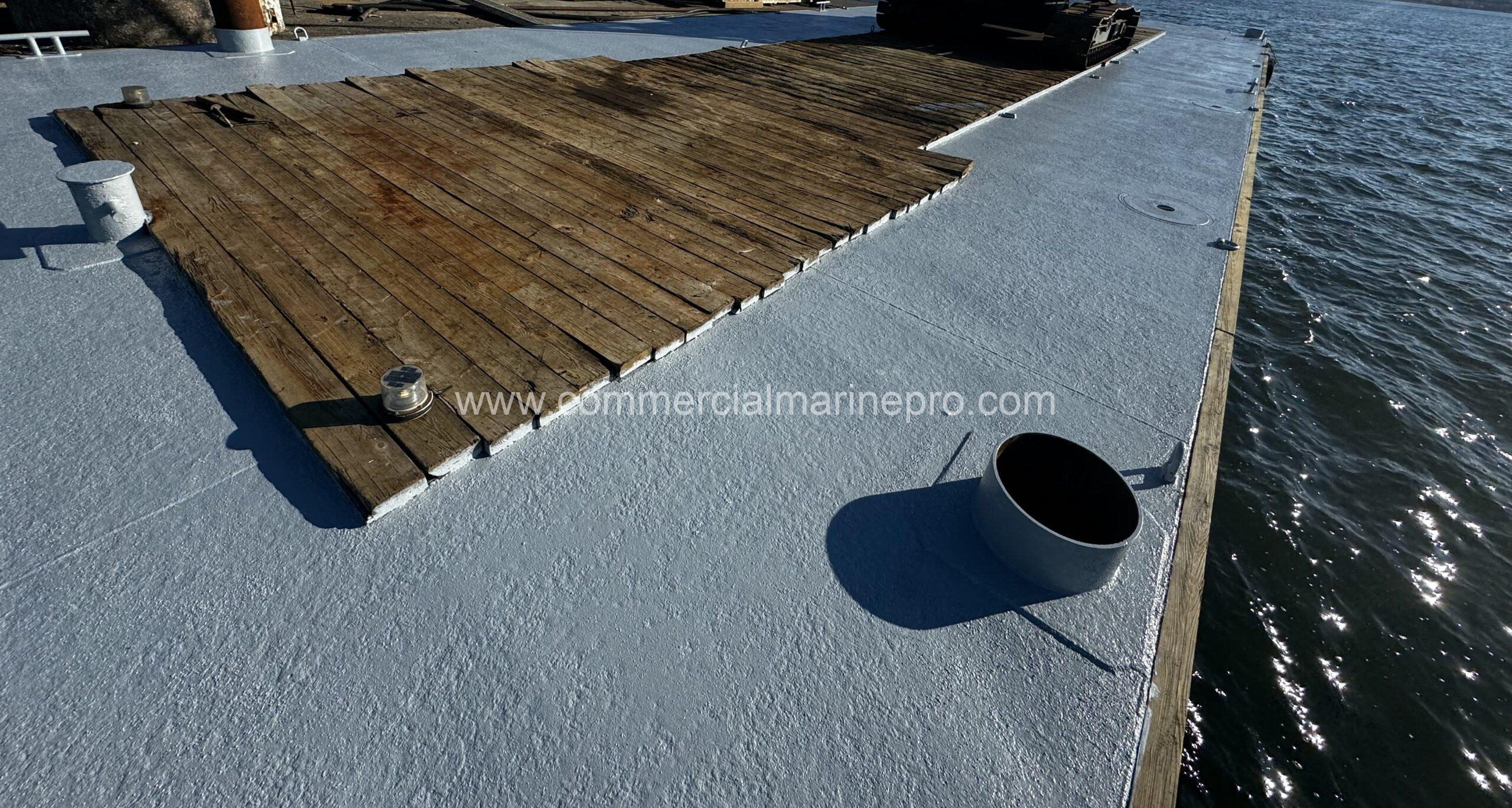

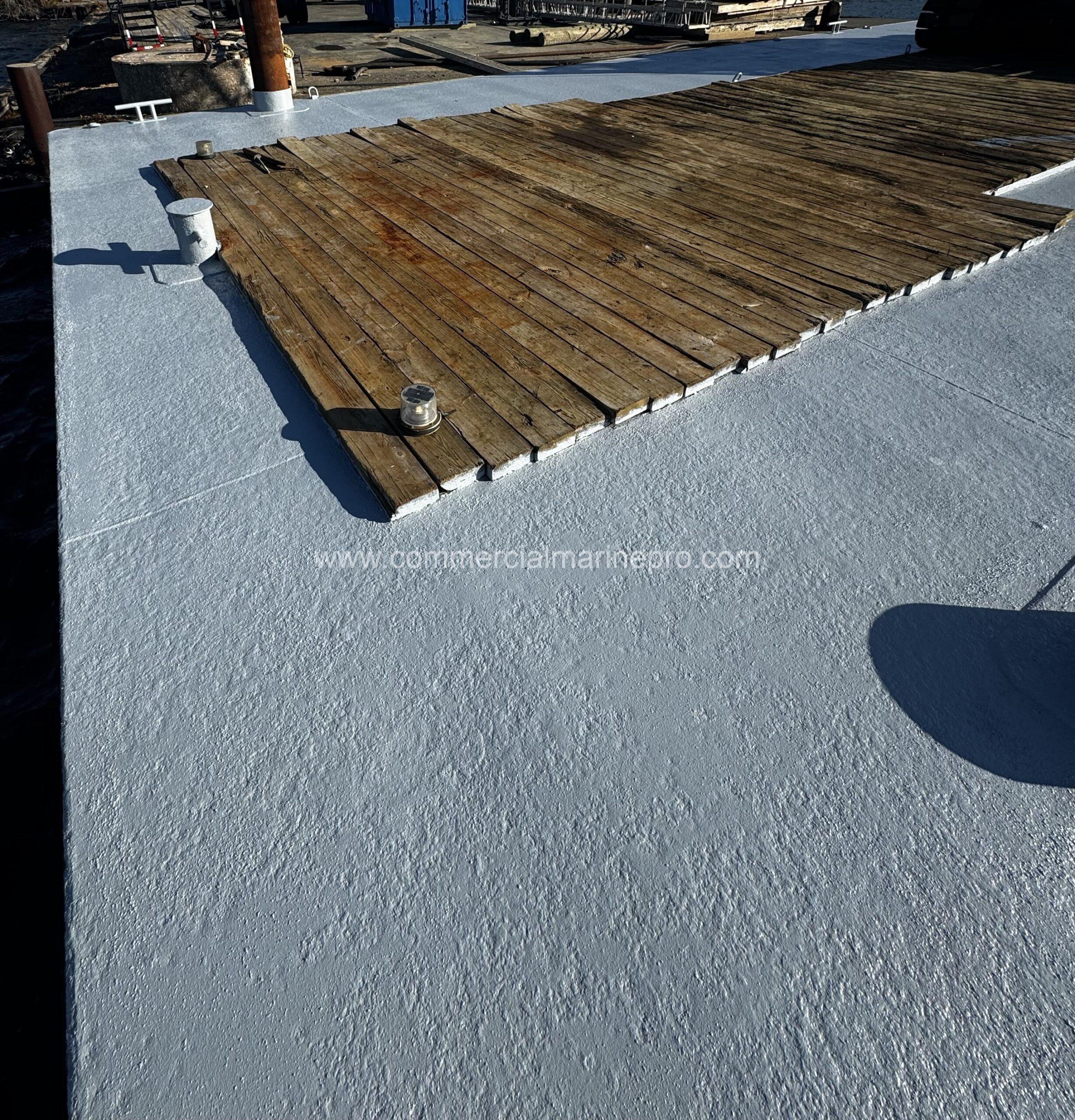

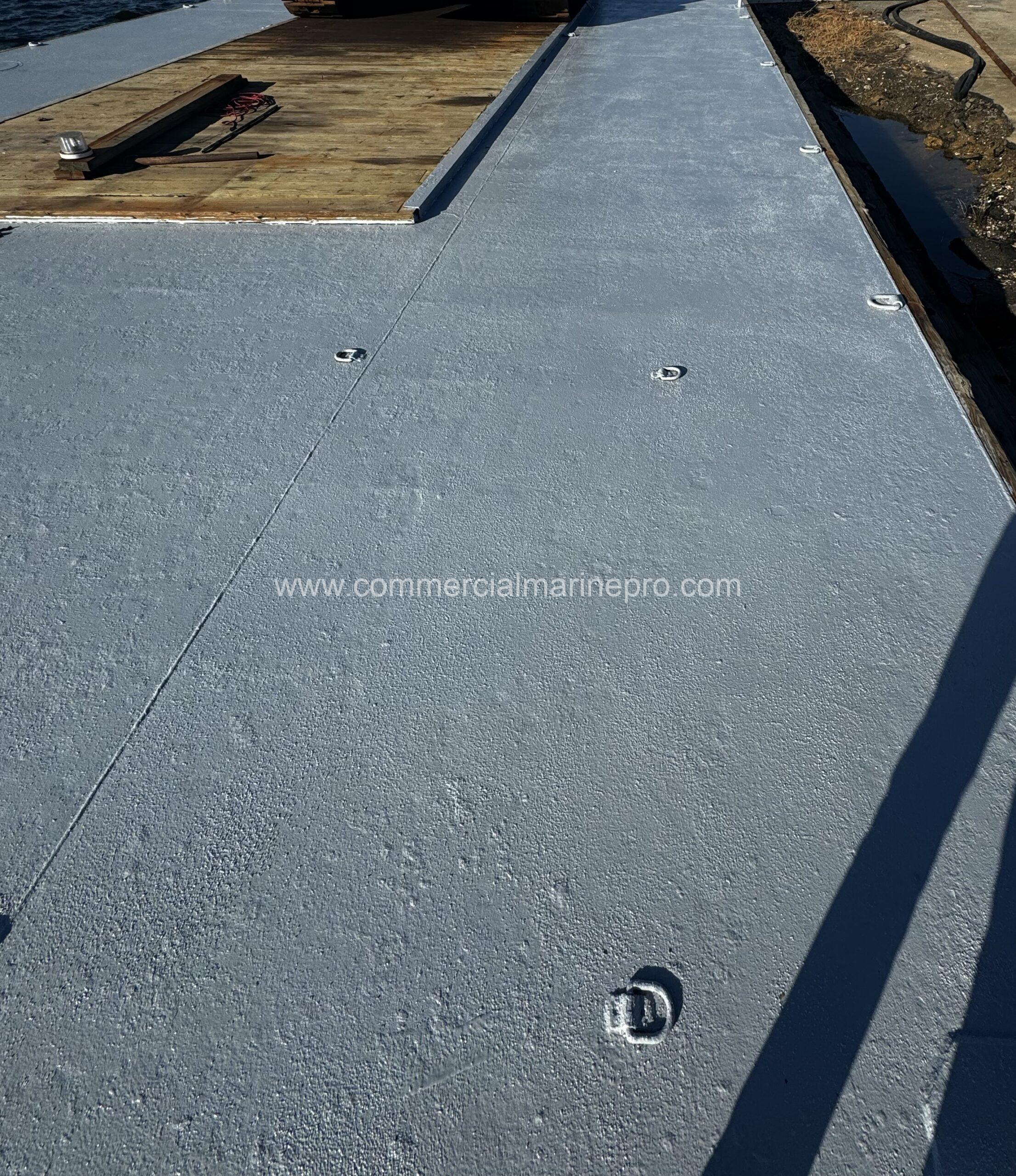

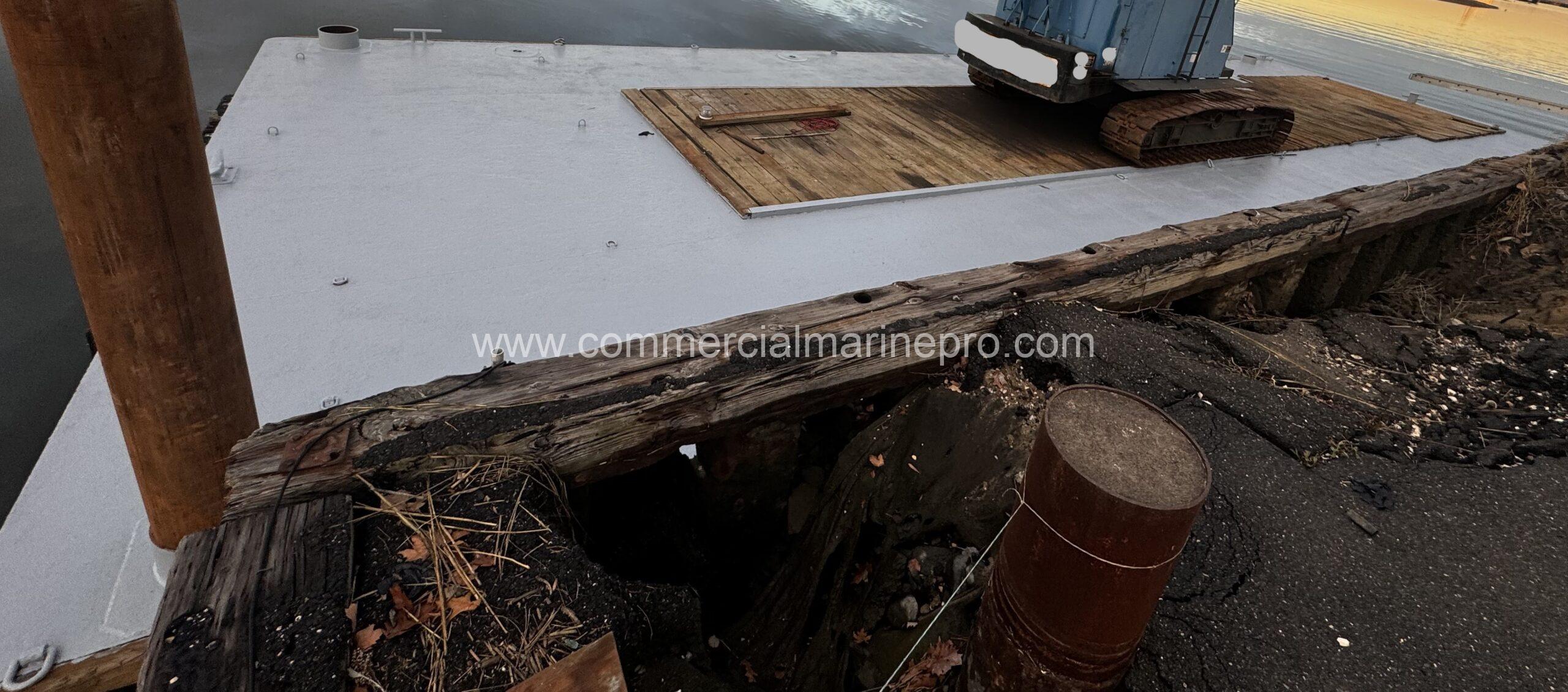

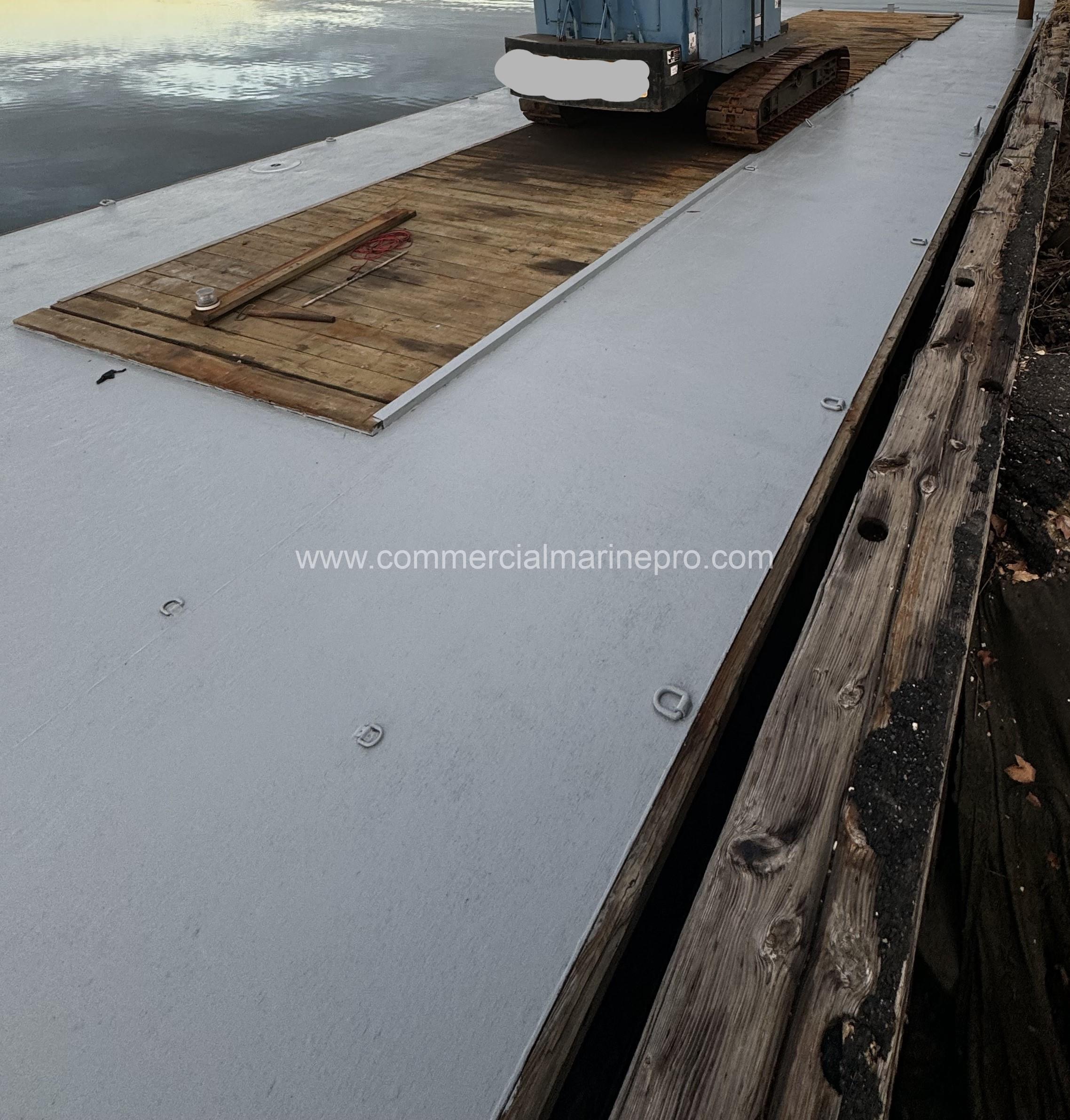

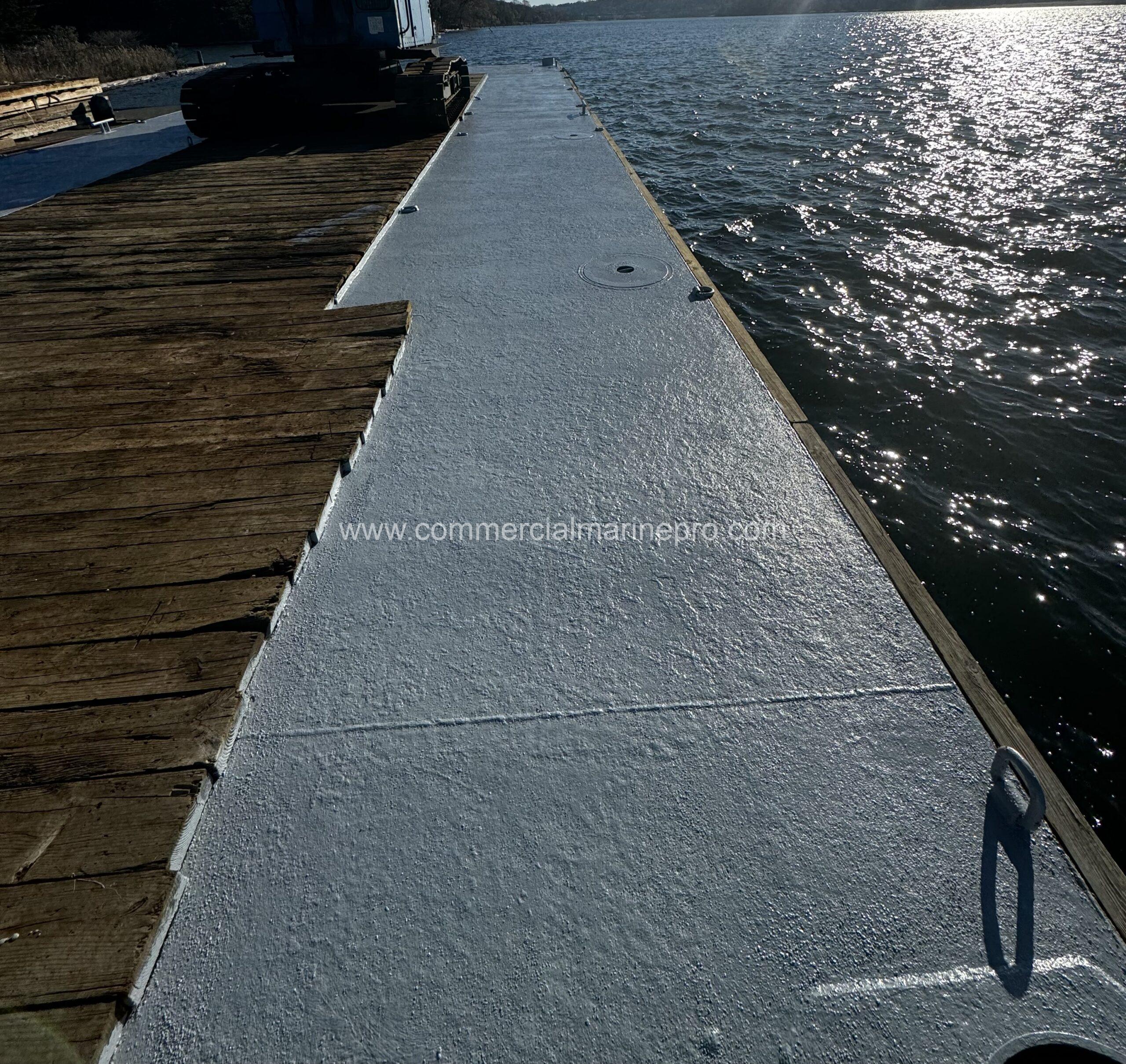

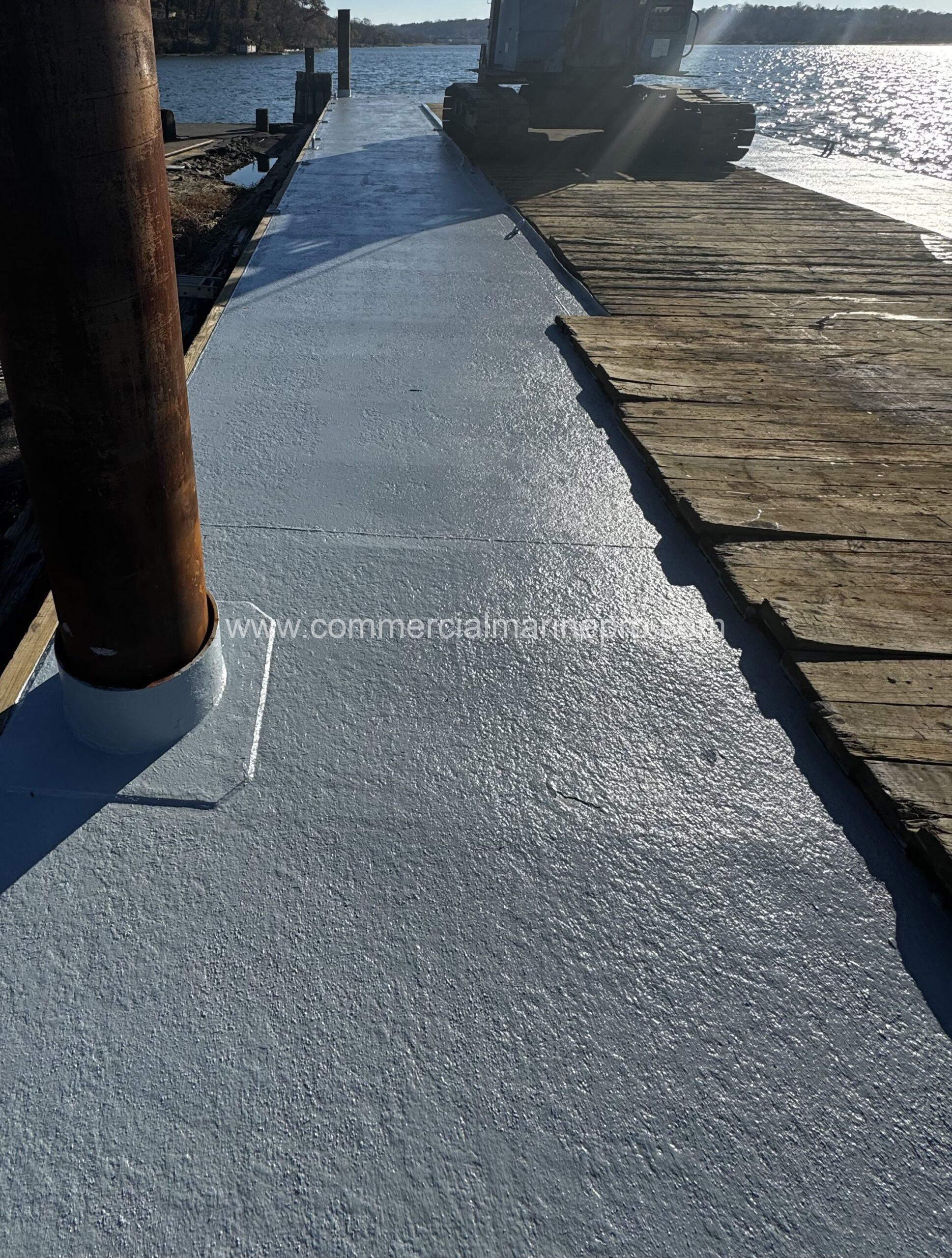

Refurbished and repainted. Recently repainted and installed new 6” x 4” wood rub rails throughout

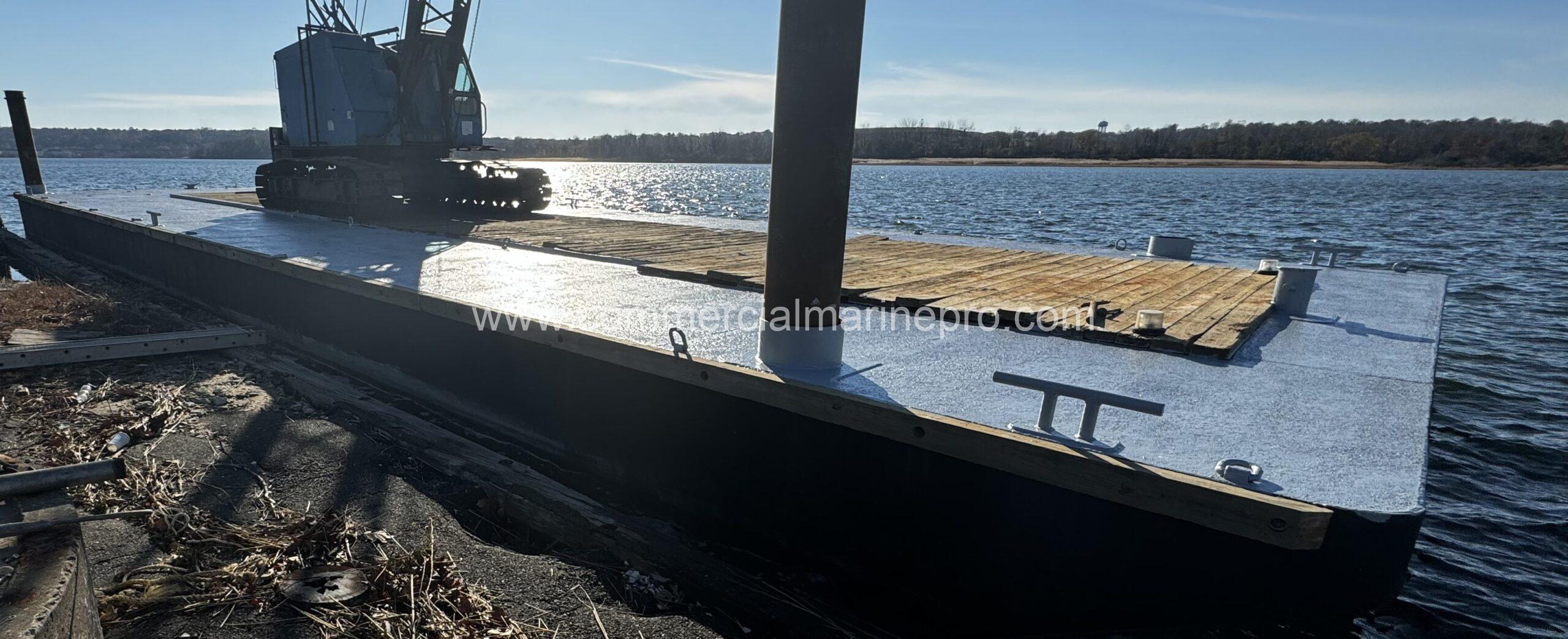

- 30’ wide x 90’ long steel barge
- Front of Barge is raked with 3’8” x 12” head log
- (6) cleats
- Front and center of barge will include 6” toe bitt
- All four side has 6” x 4” wood rub rail
- Bow, stern and side plate is 3/8” steel
- Top and bottom deck is 5/16” steel

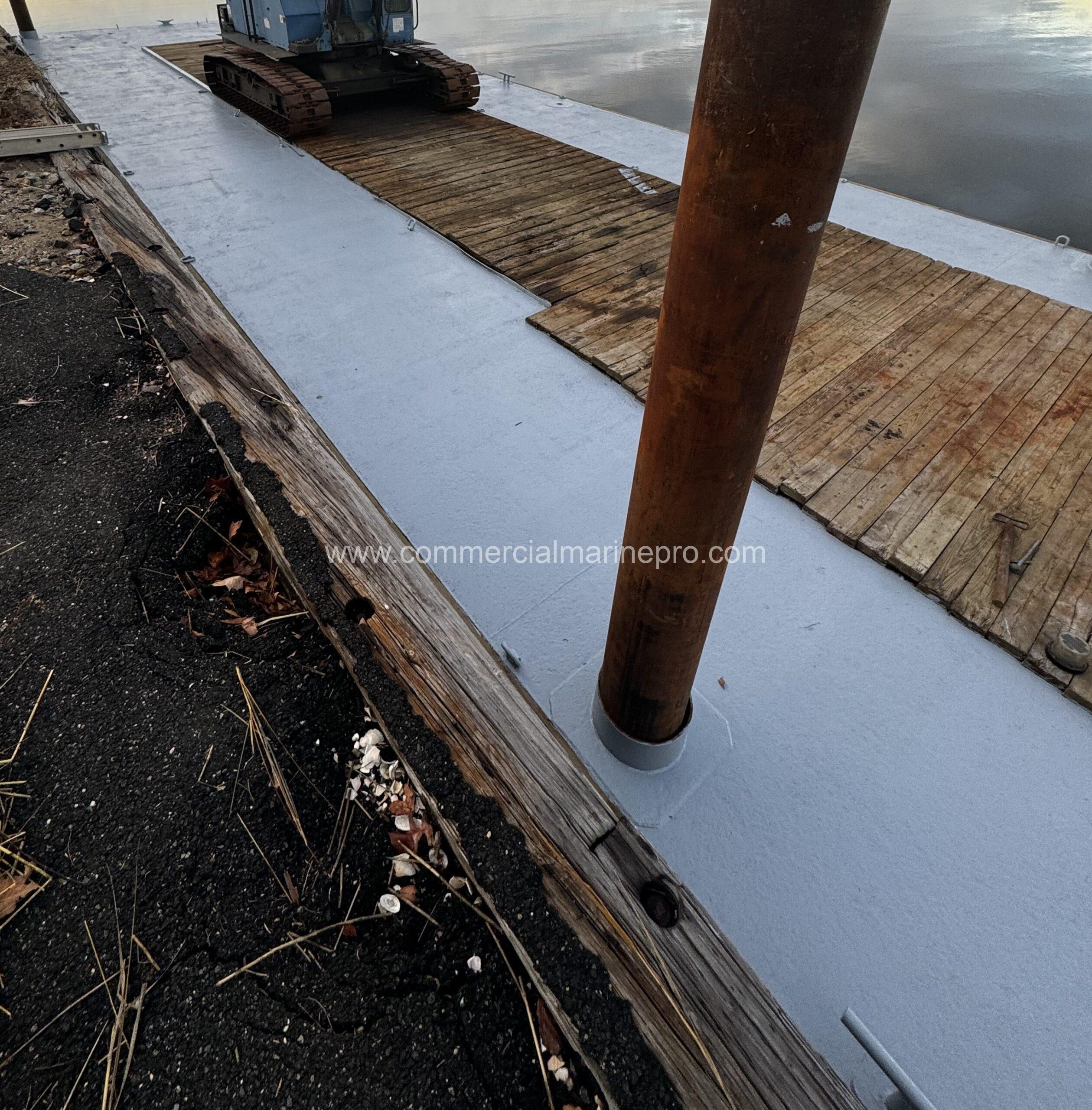

- 3/8” double plate spud wells
- Spud wells are 18” diameter
- (5) water tight compartment – (4) main compartments and one crash bulkhead w/ watertight access hatches
- Truss framing 4” x 3” x ¼” steel angle
- All truss framing 24” on center
- All truss framing is 5’ x 30’
