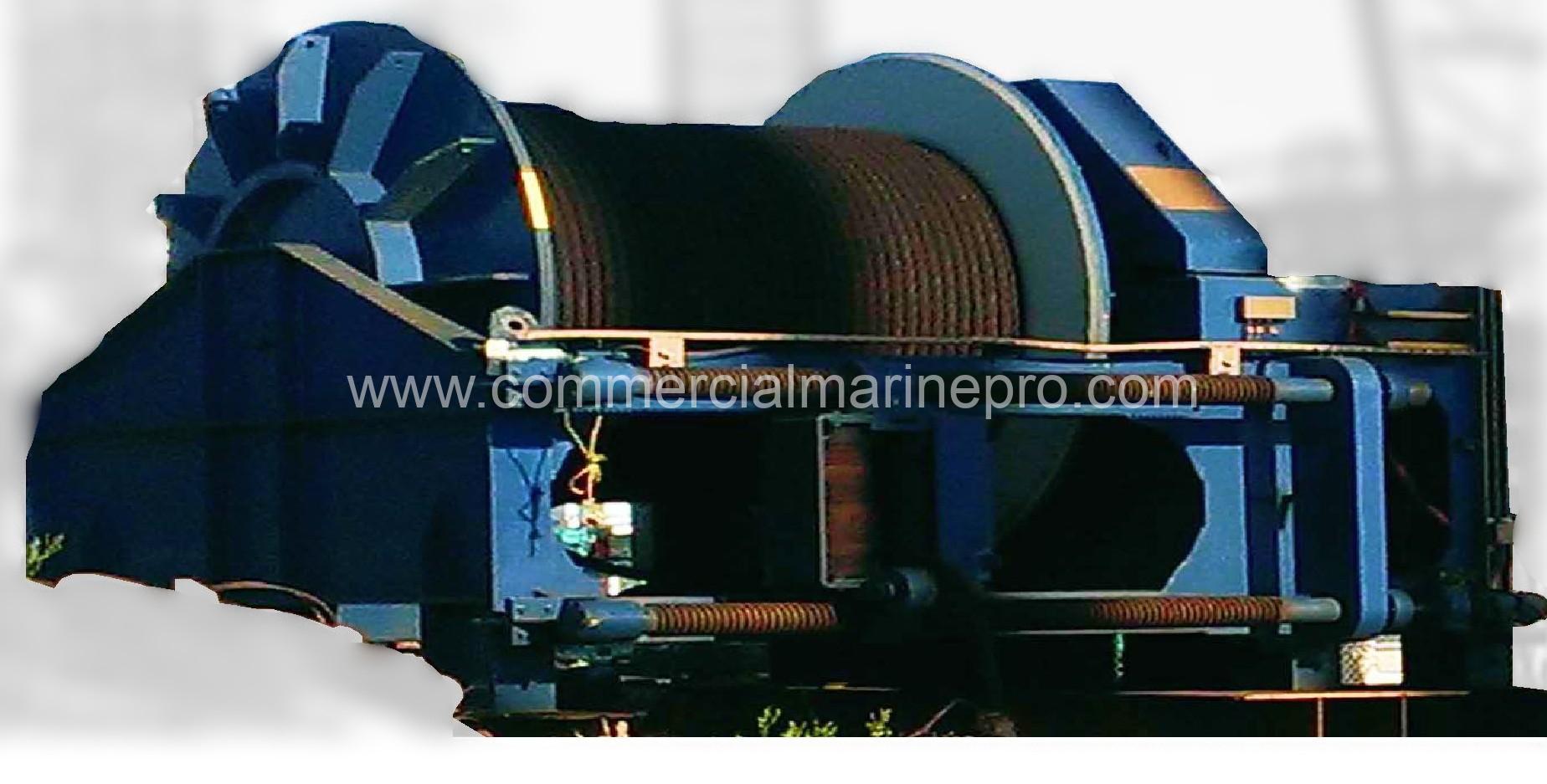

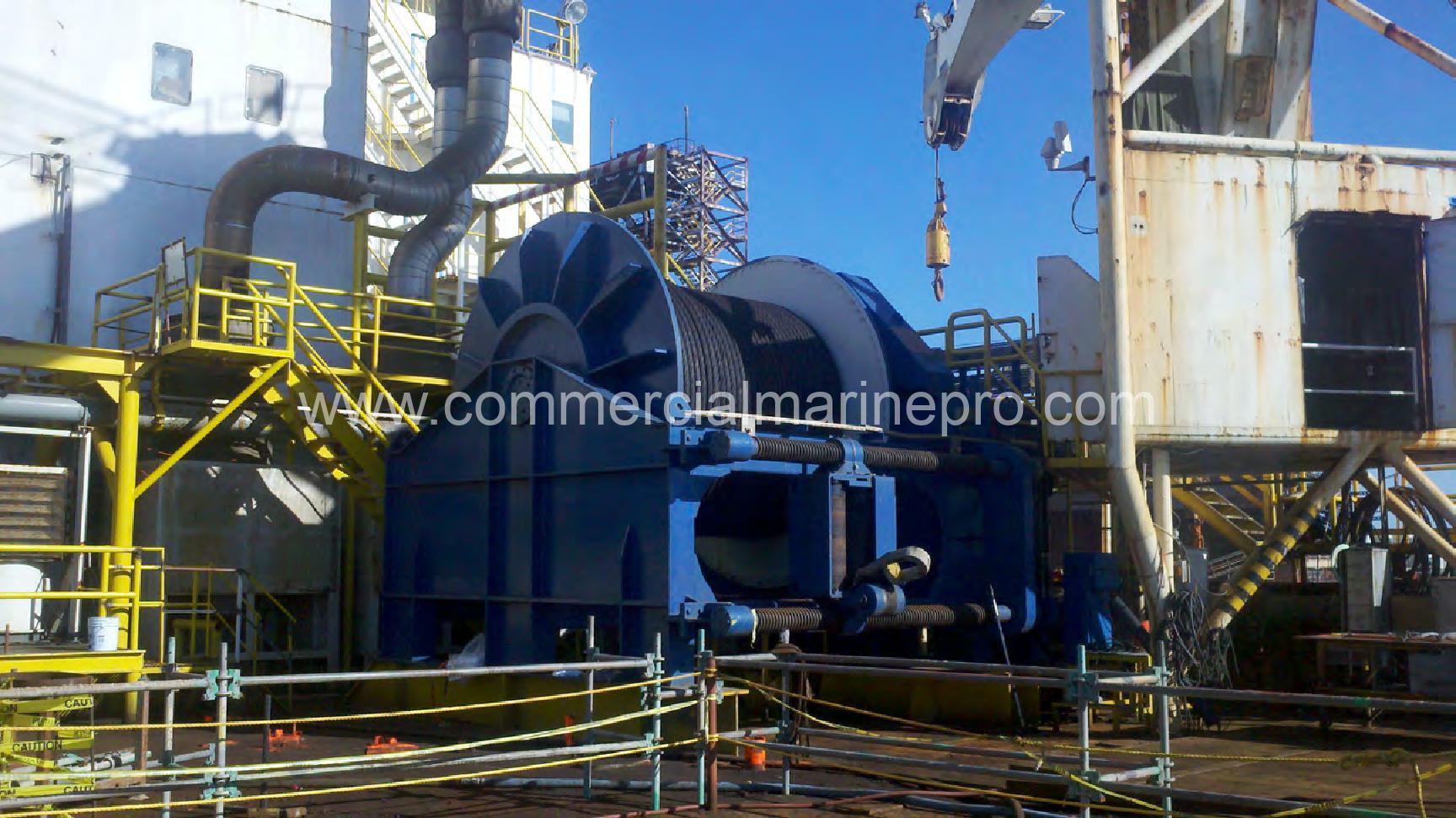

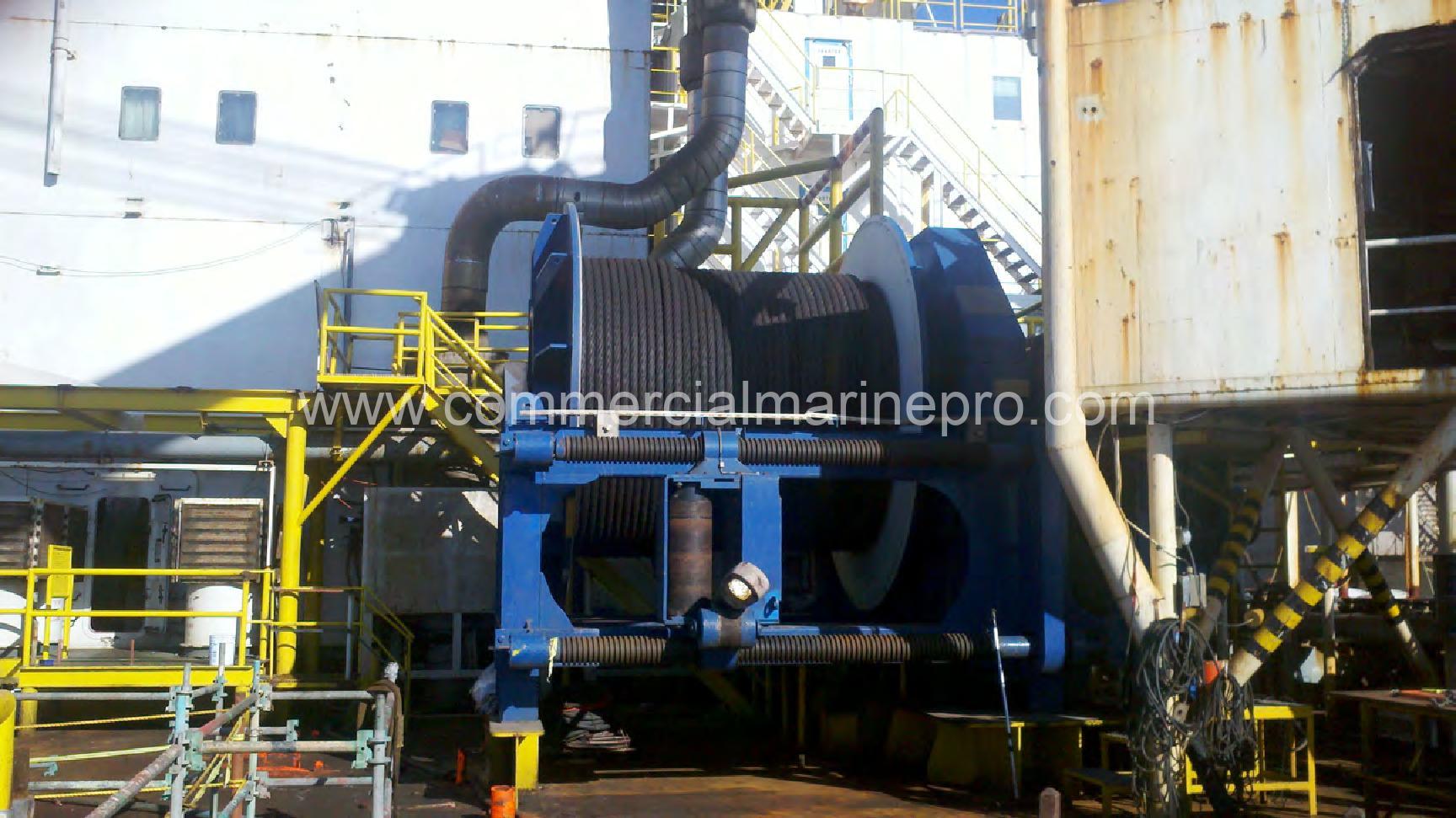

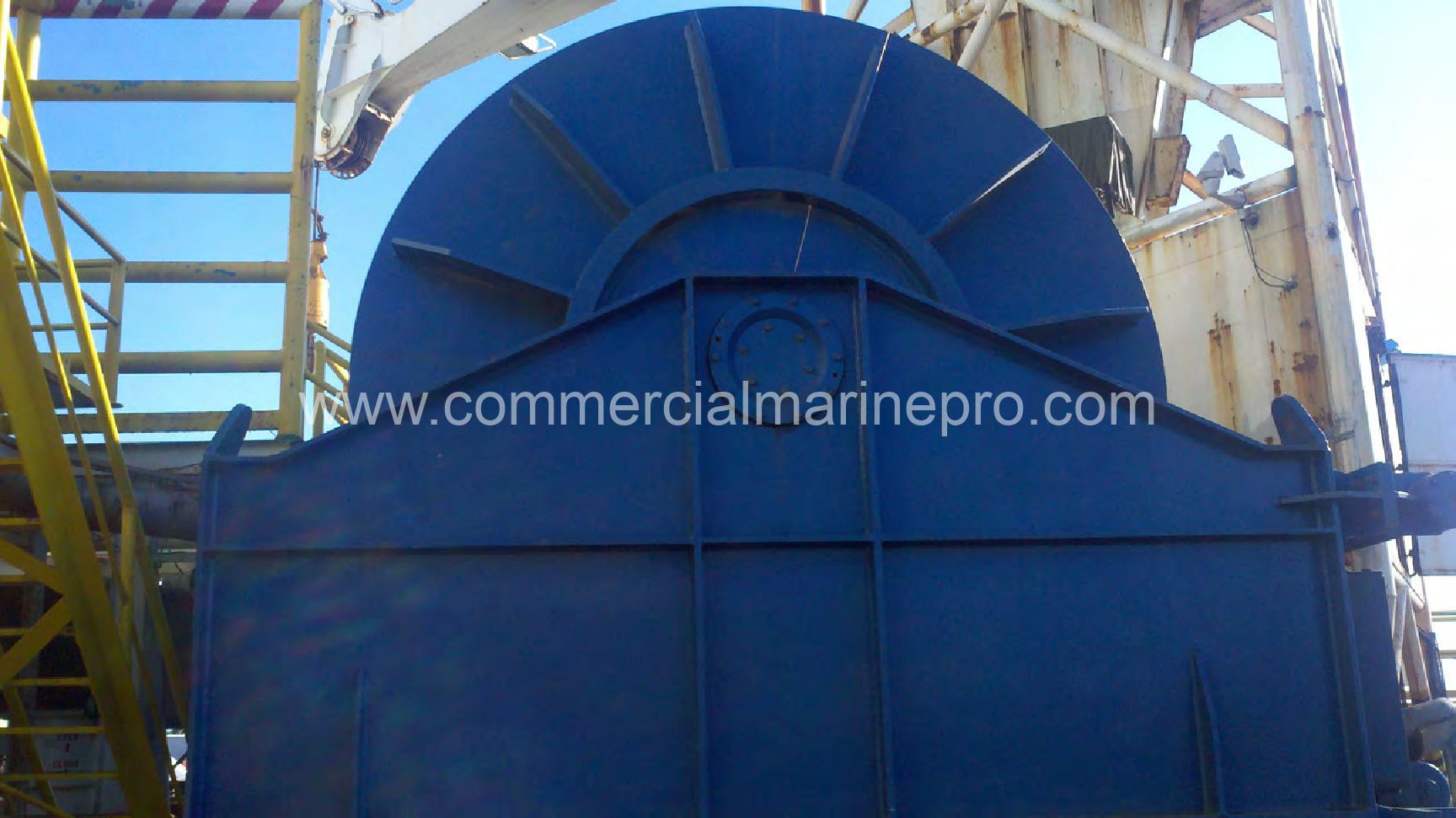

Product Description:

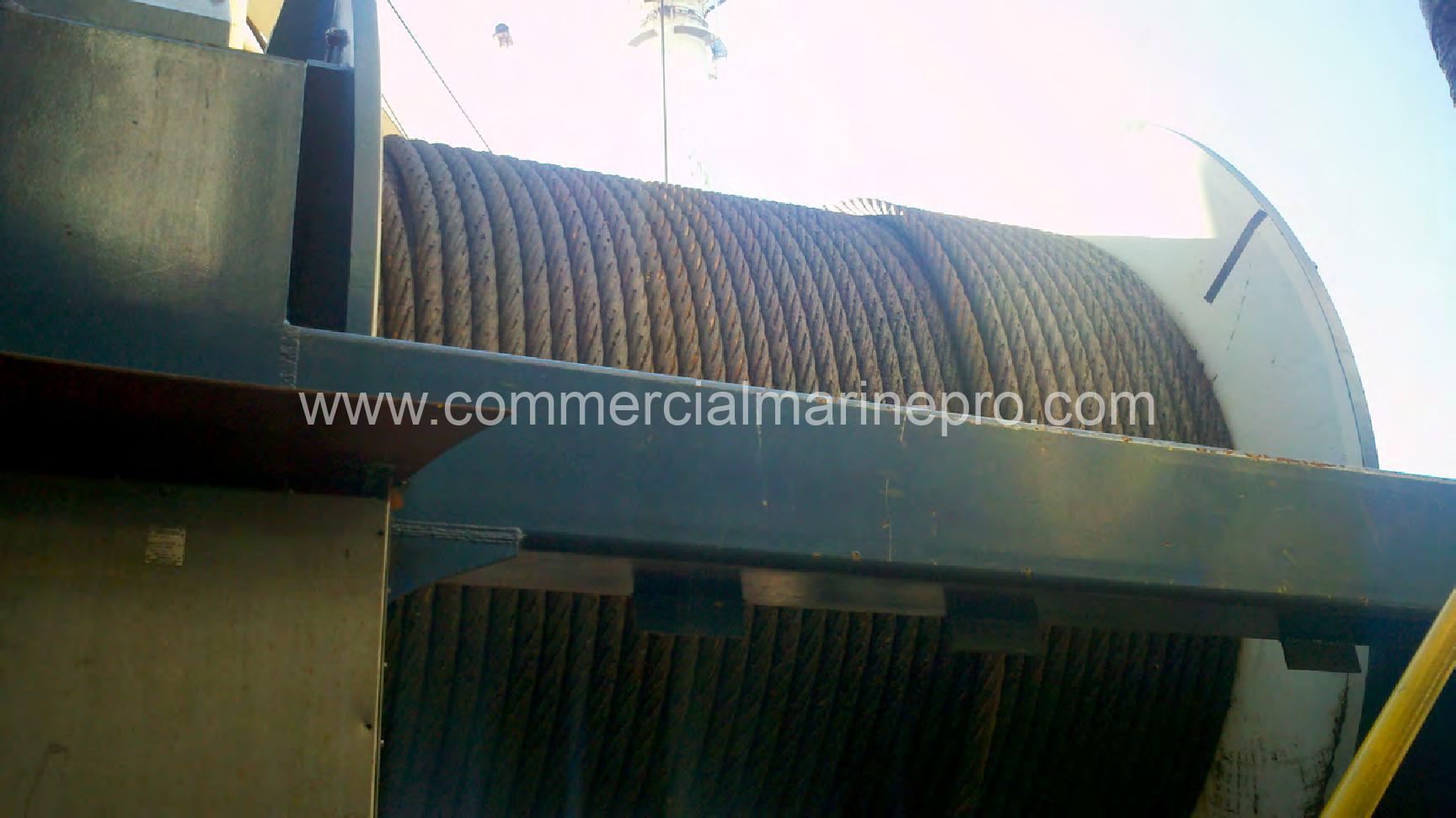

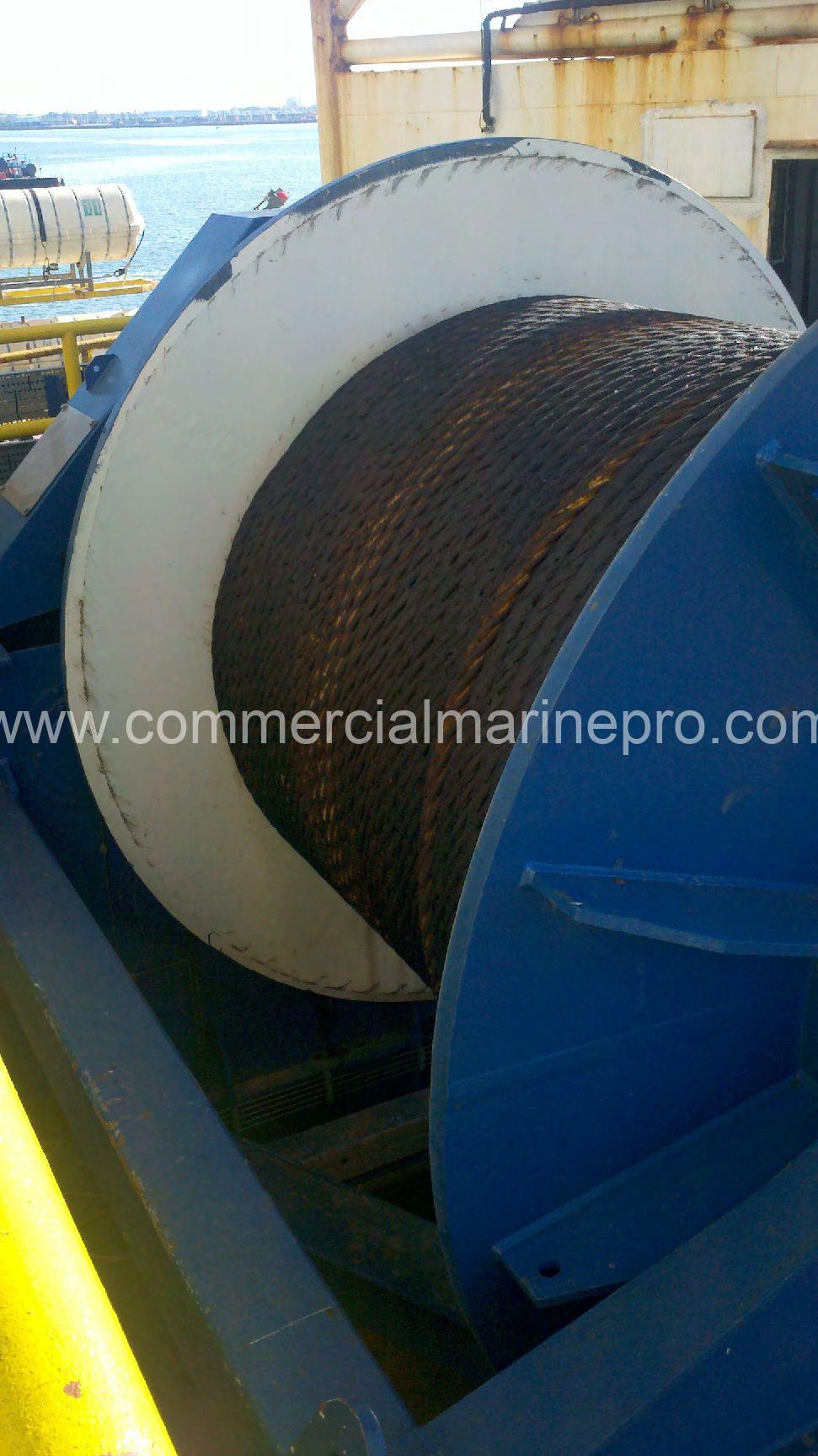

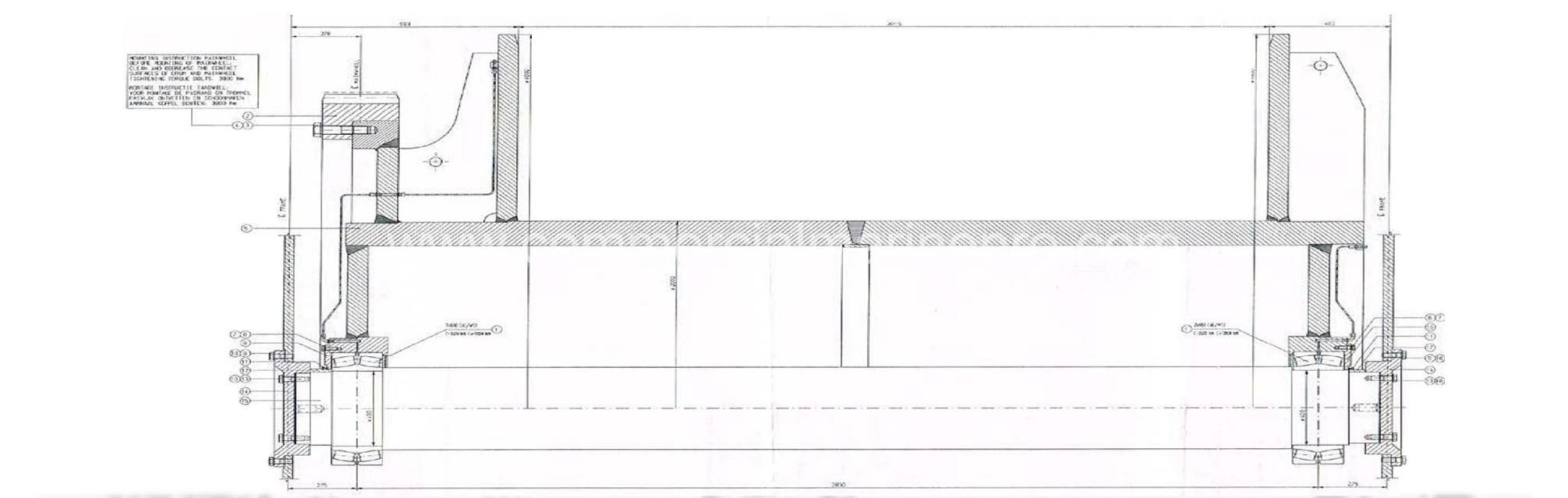

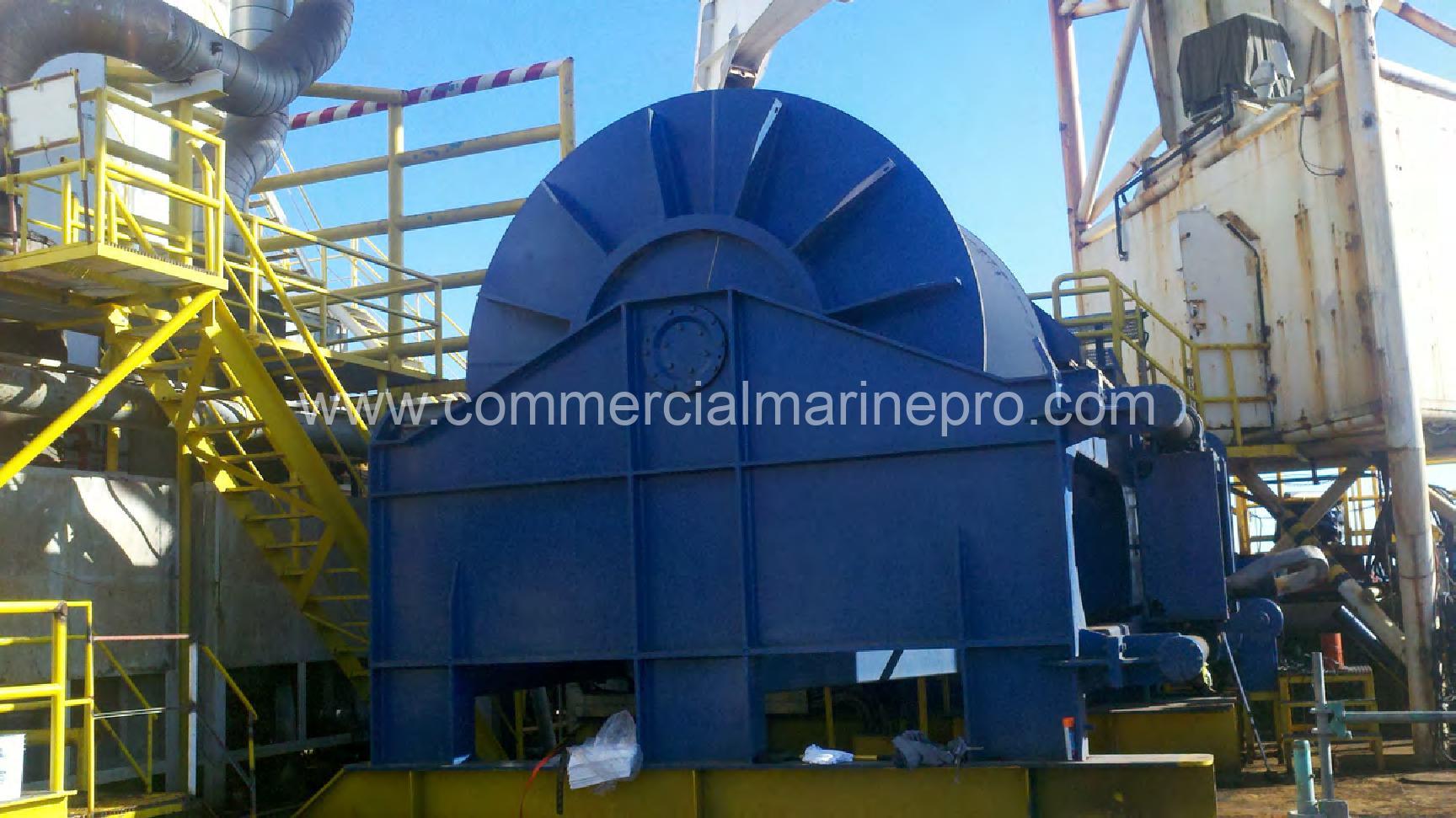

Drum diameter: 2,000 mm
Wire rope diameter: 92 mm

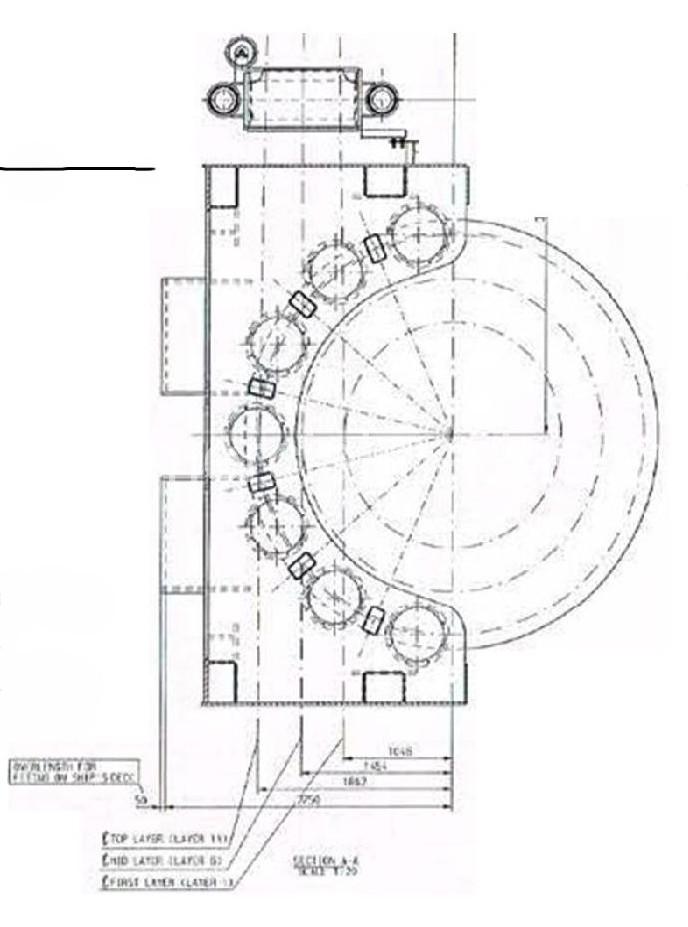

Number of layers on the drum: 11
Drums storage capacity: 3,000 m
Wire: Steel
Total mass of winch: 105 kg
Gear box ratio: 74.2995
Open gear ratio: 7.3333

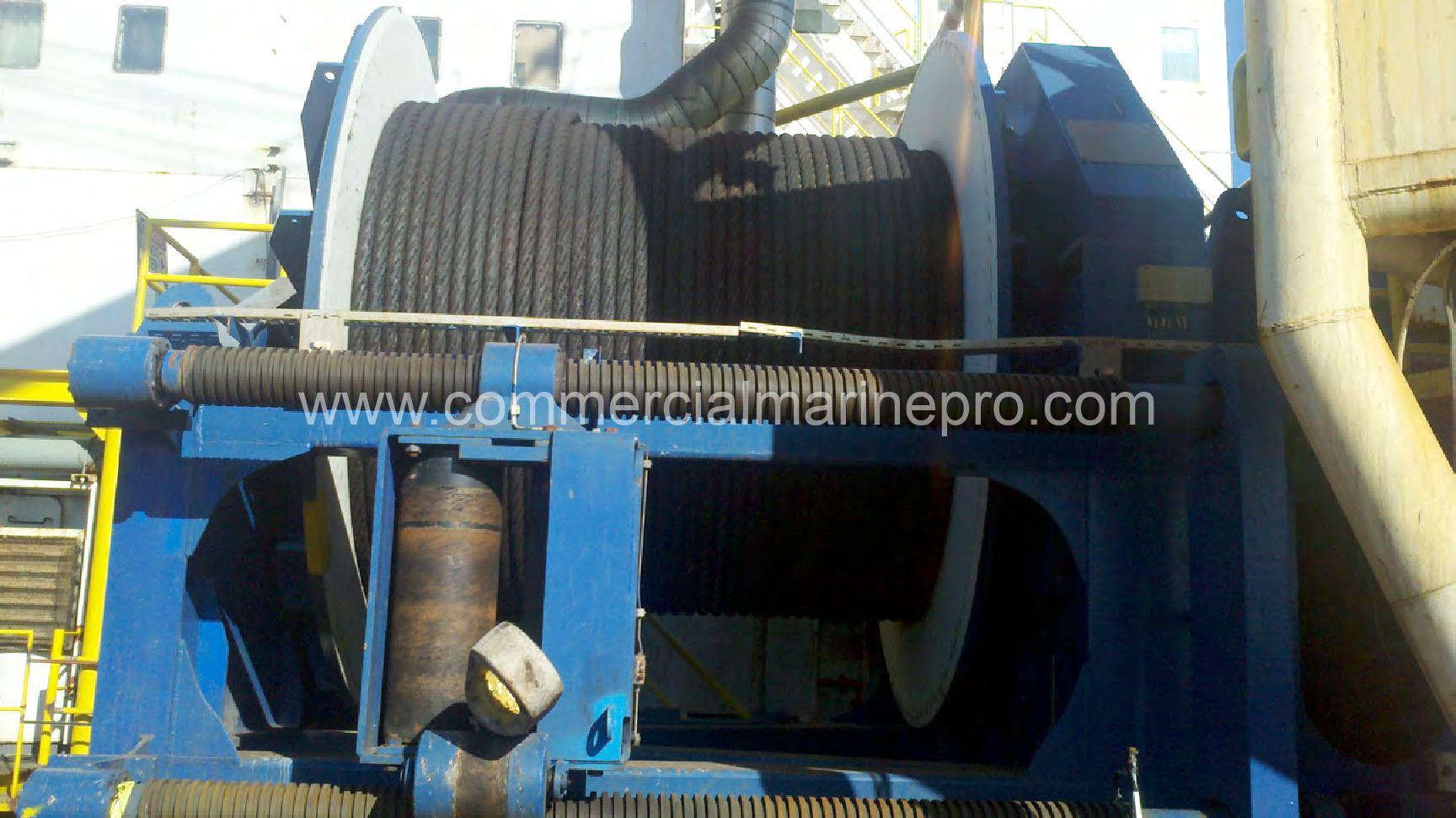

Spooler spindle pitch: 40 mm

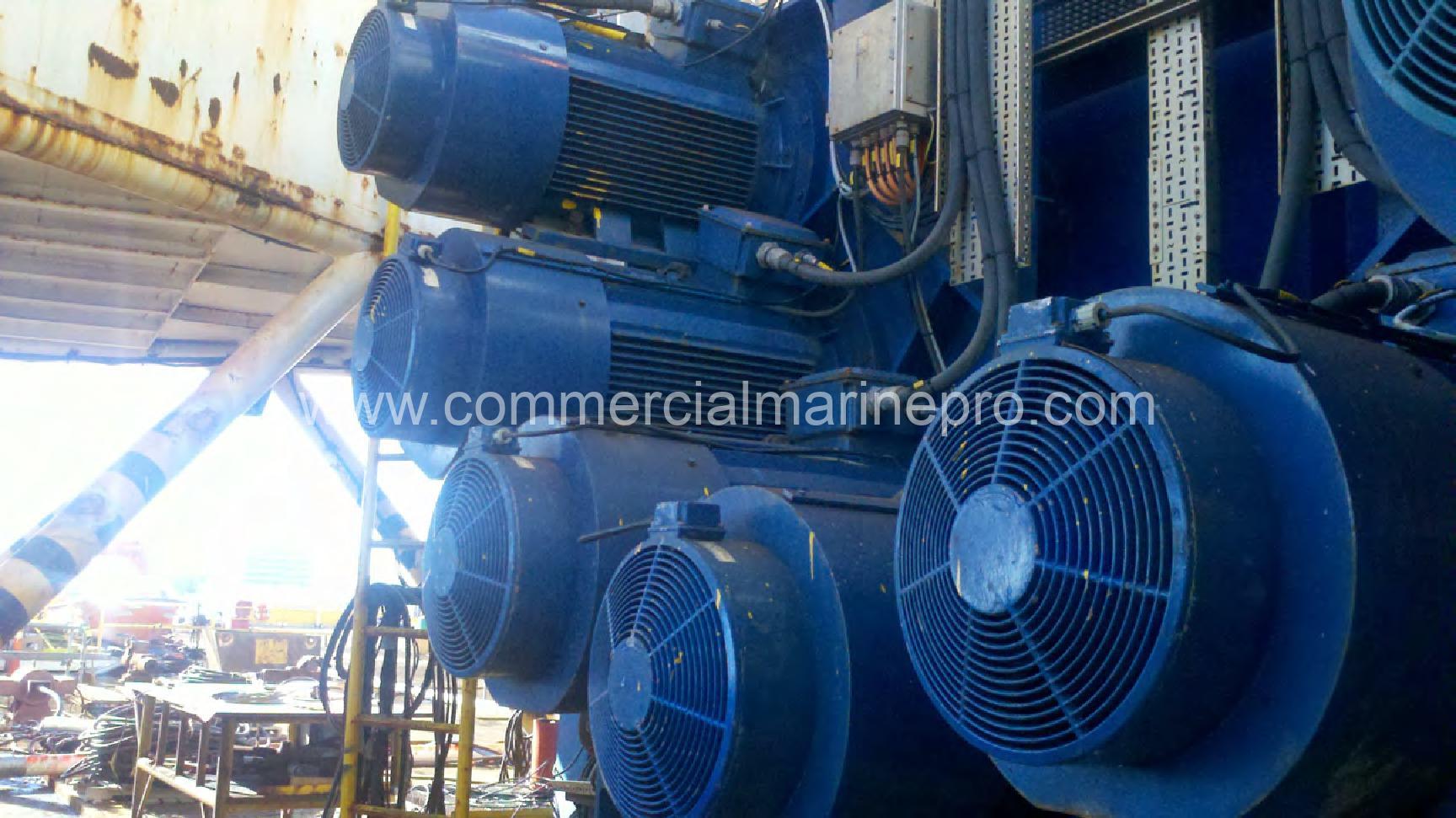

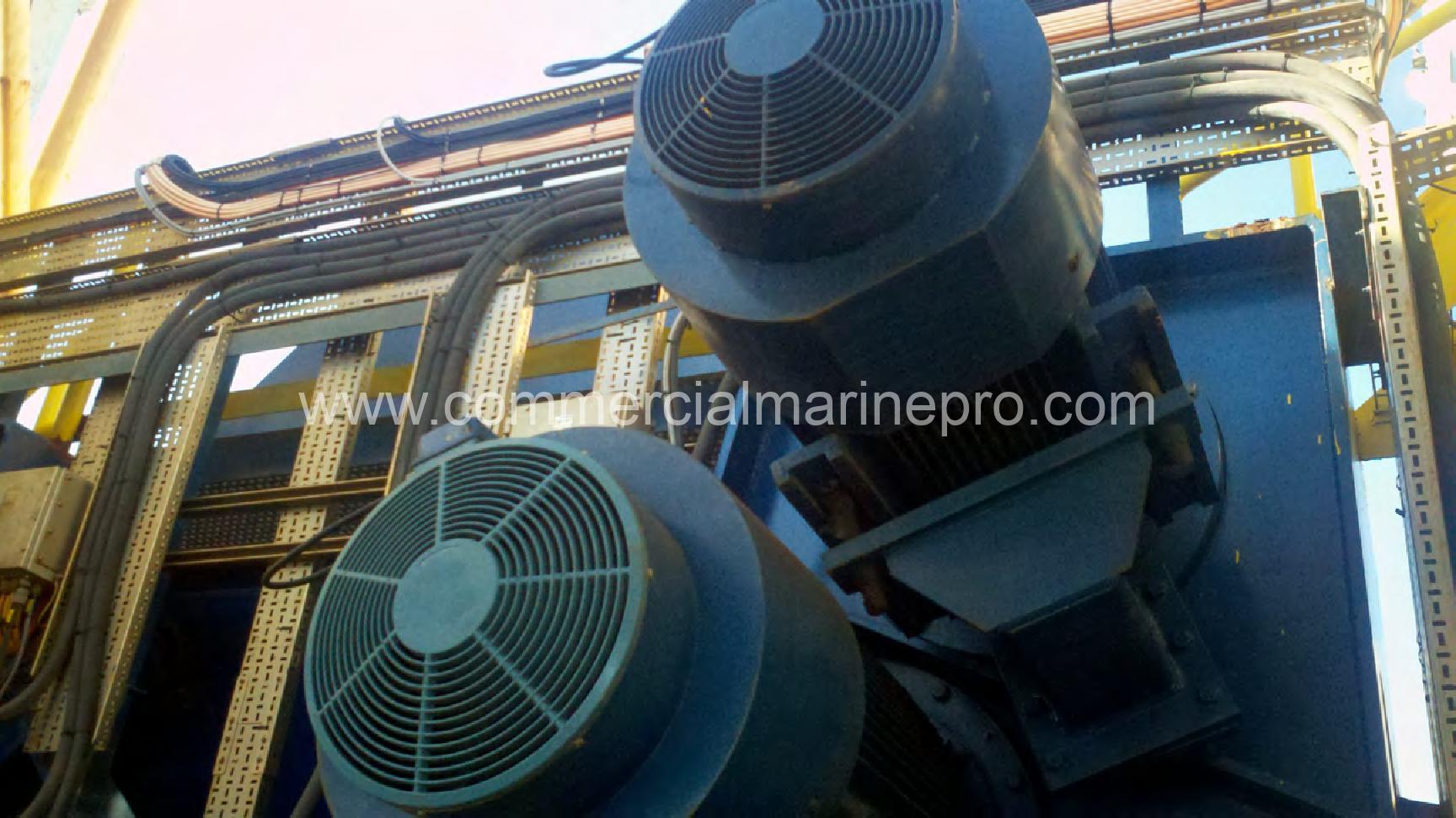

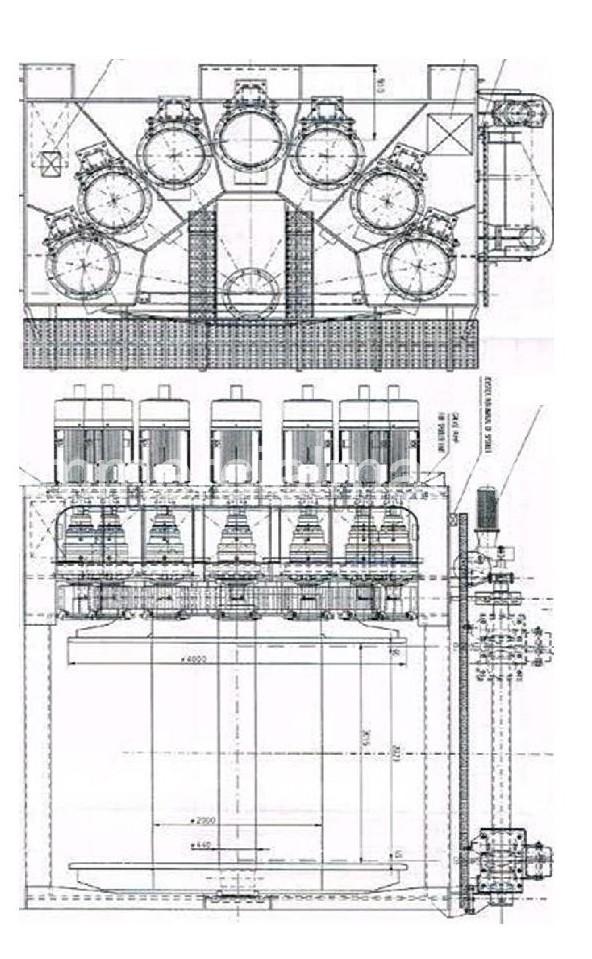

Power Requirements: 460V AC 3ph, 60Hz, 7 x 110 kW
Nominal line pull: 200 mT @ 20m/min
Max holding capacity (brakes): 300 mT @ 0m/min
There is 3000M of 3” cabling apart of the unit.
There is also auxiliary equipment stored that will also come with the unit.
Current owner did not use it but once or twice. The previous owner did not use it.
