Condition:
Rebuilt
Product Description:

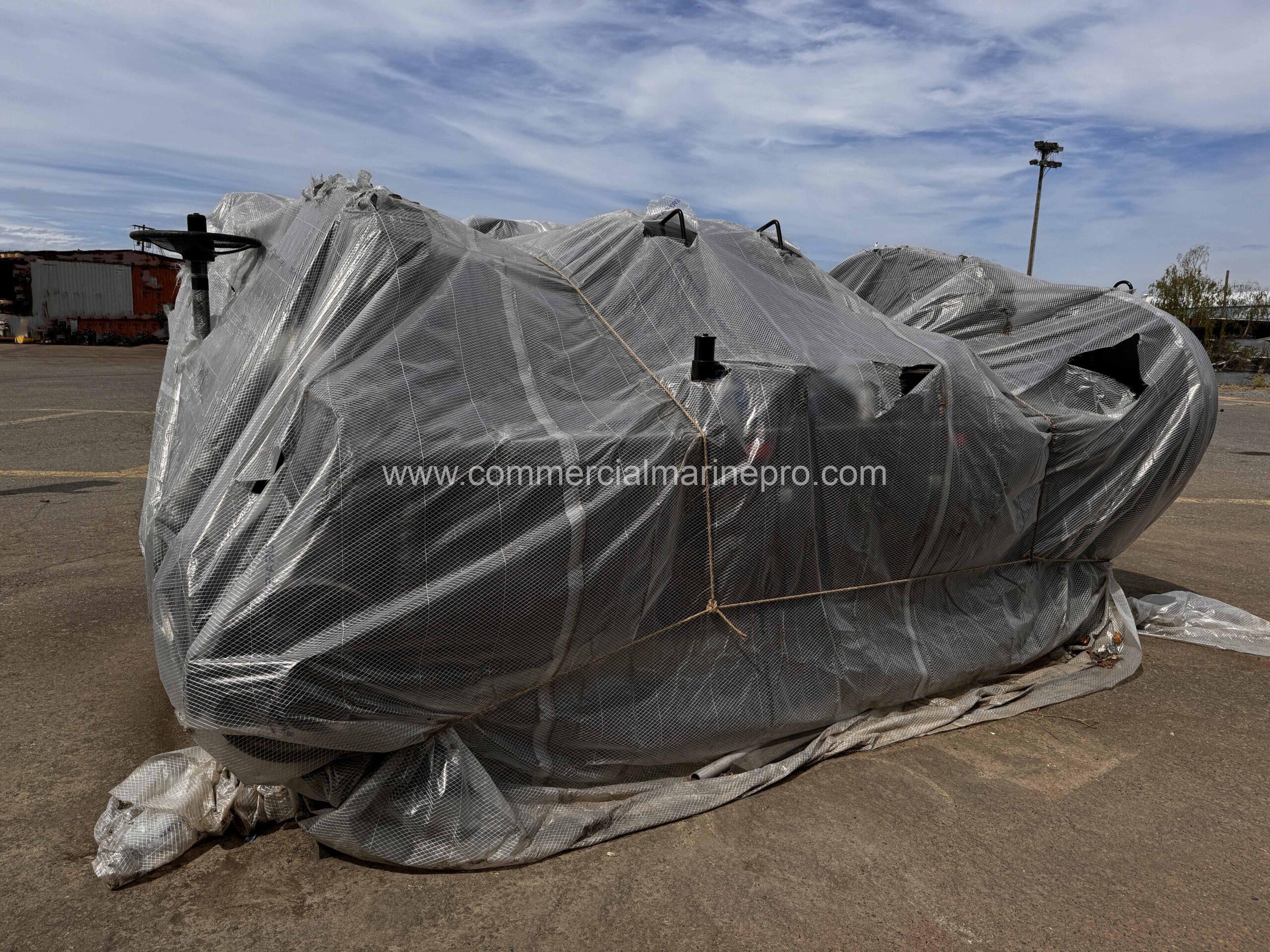

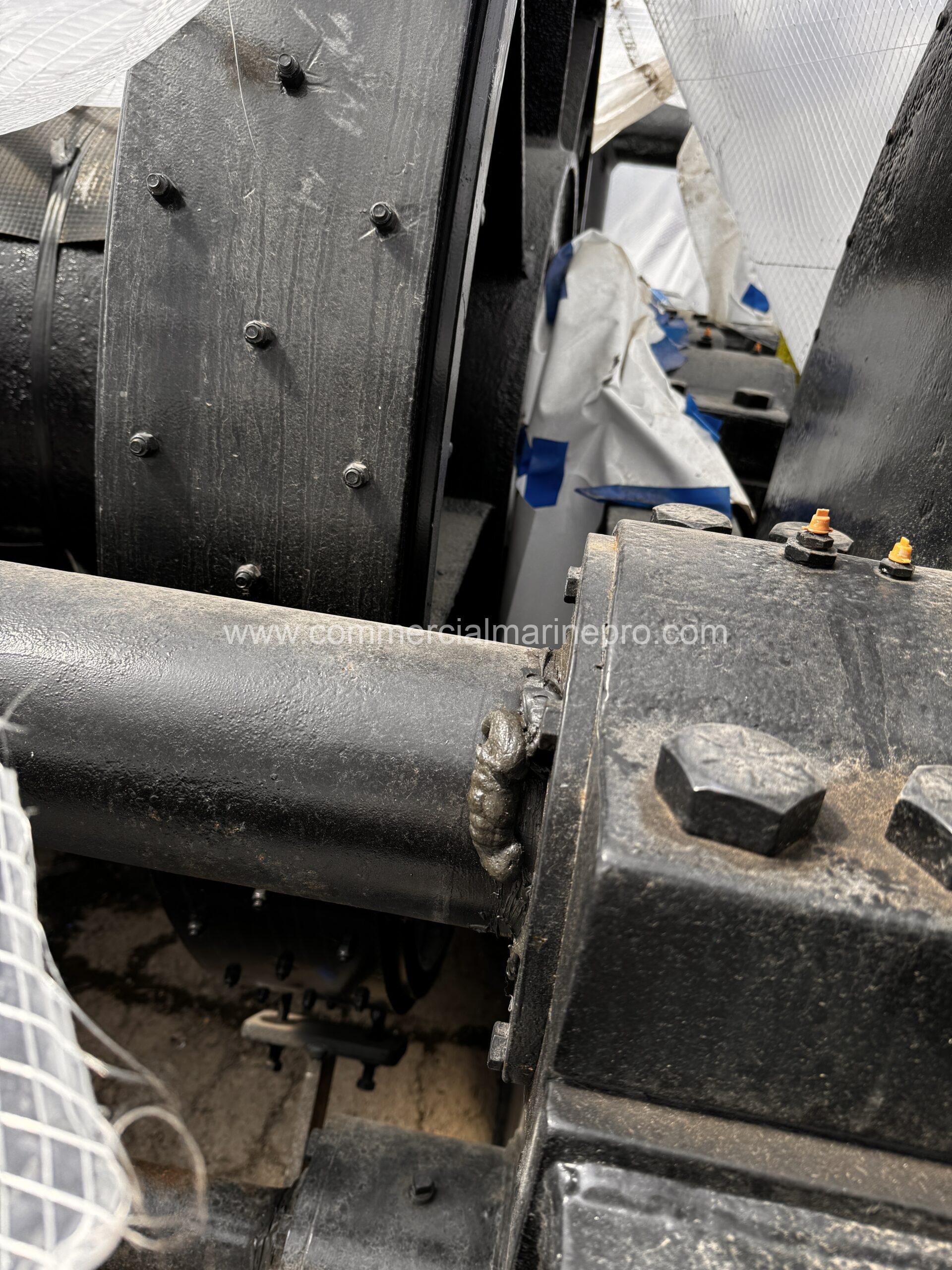

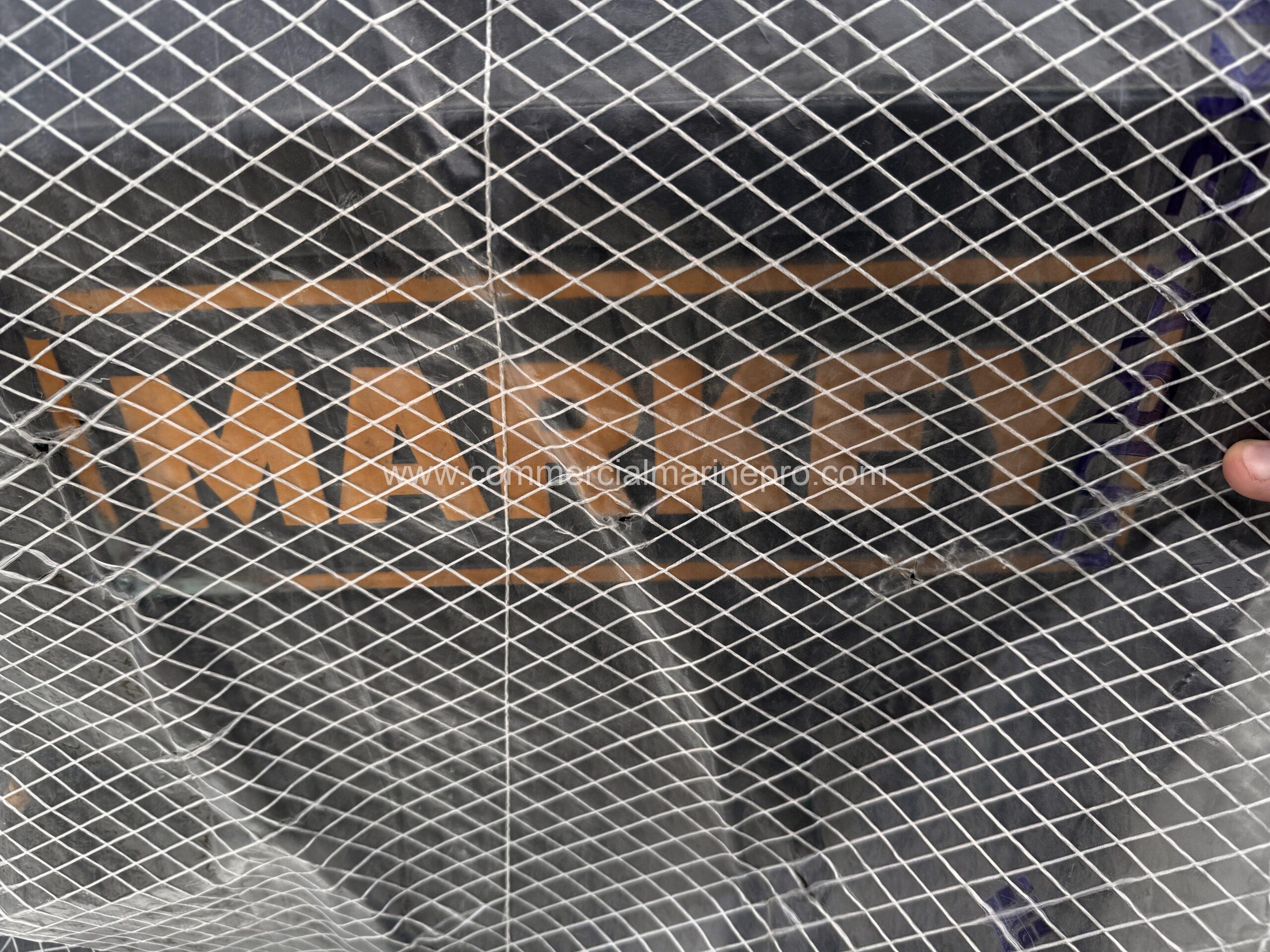

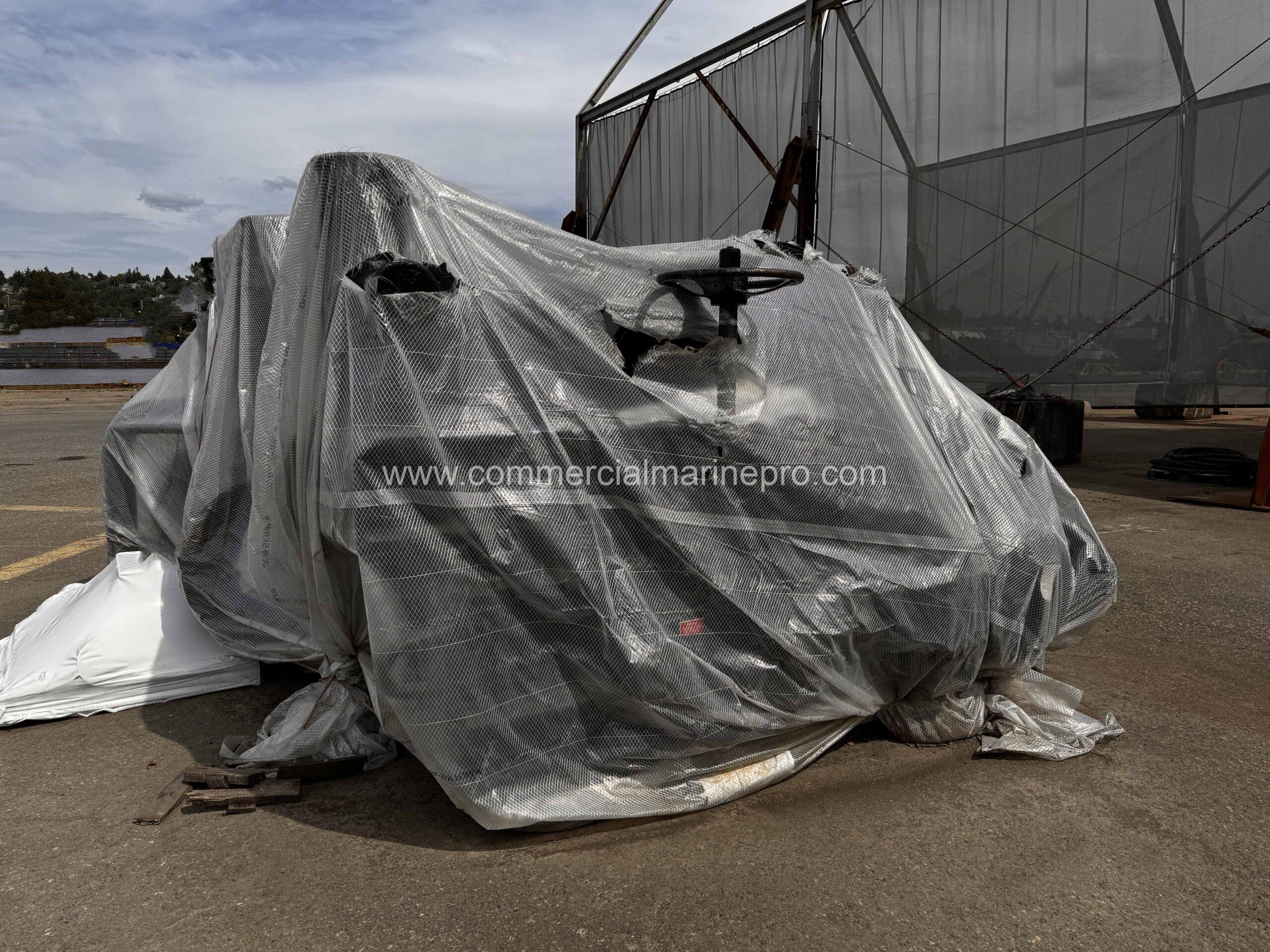

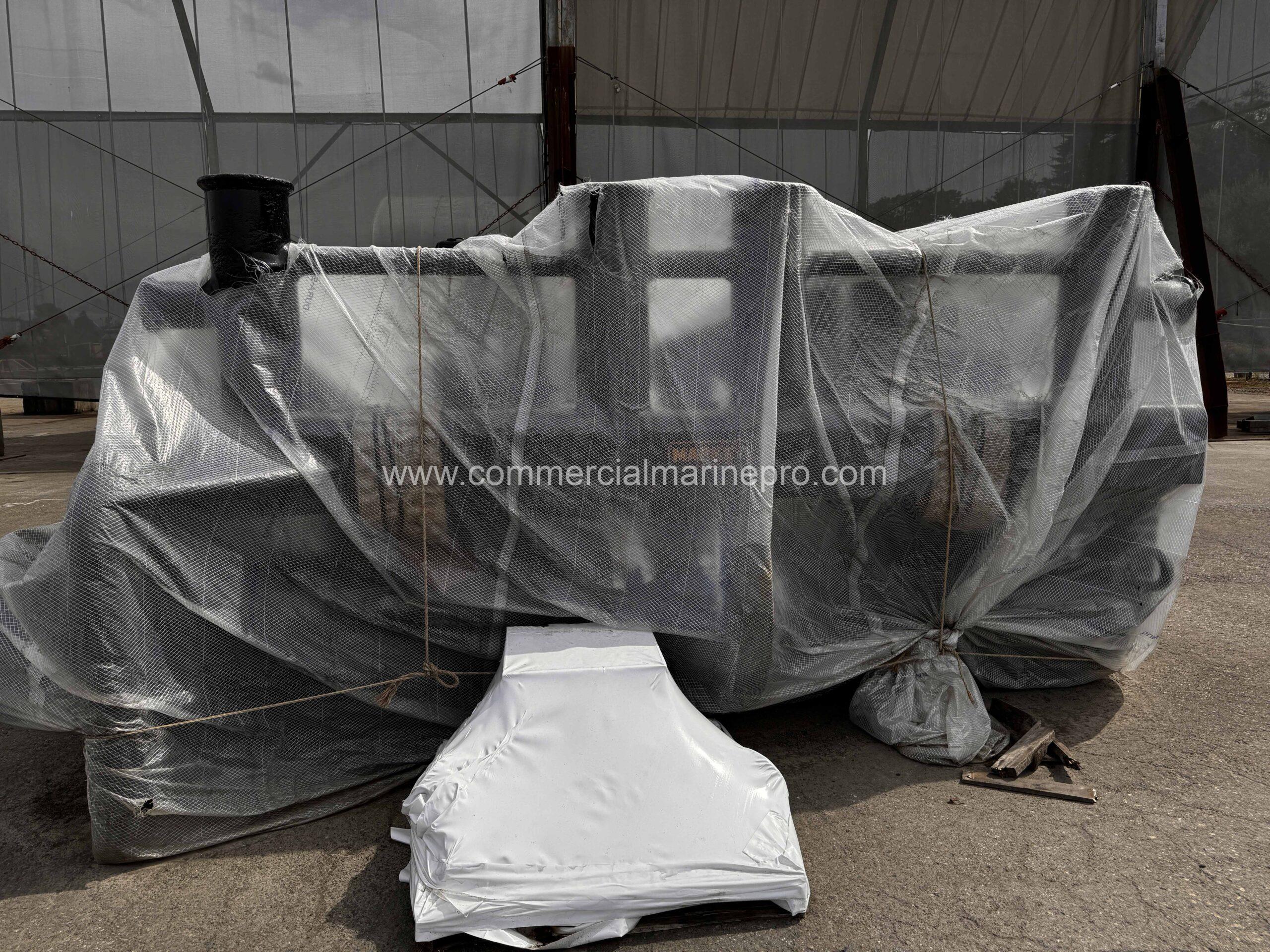

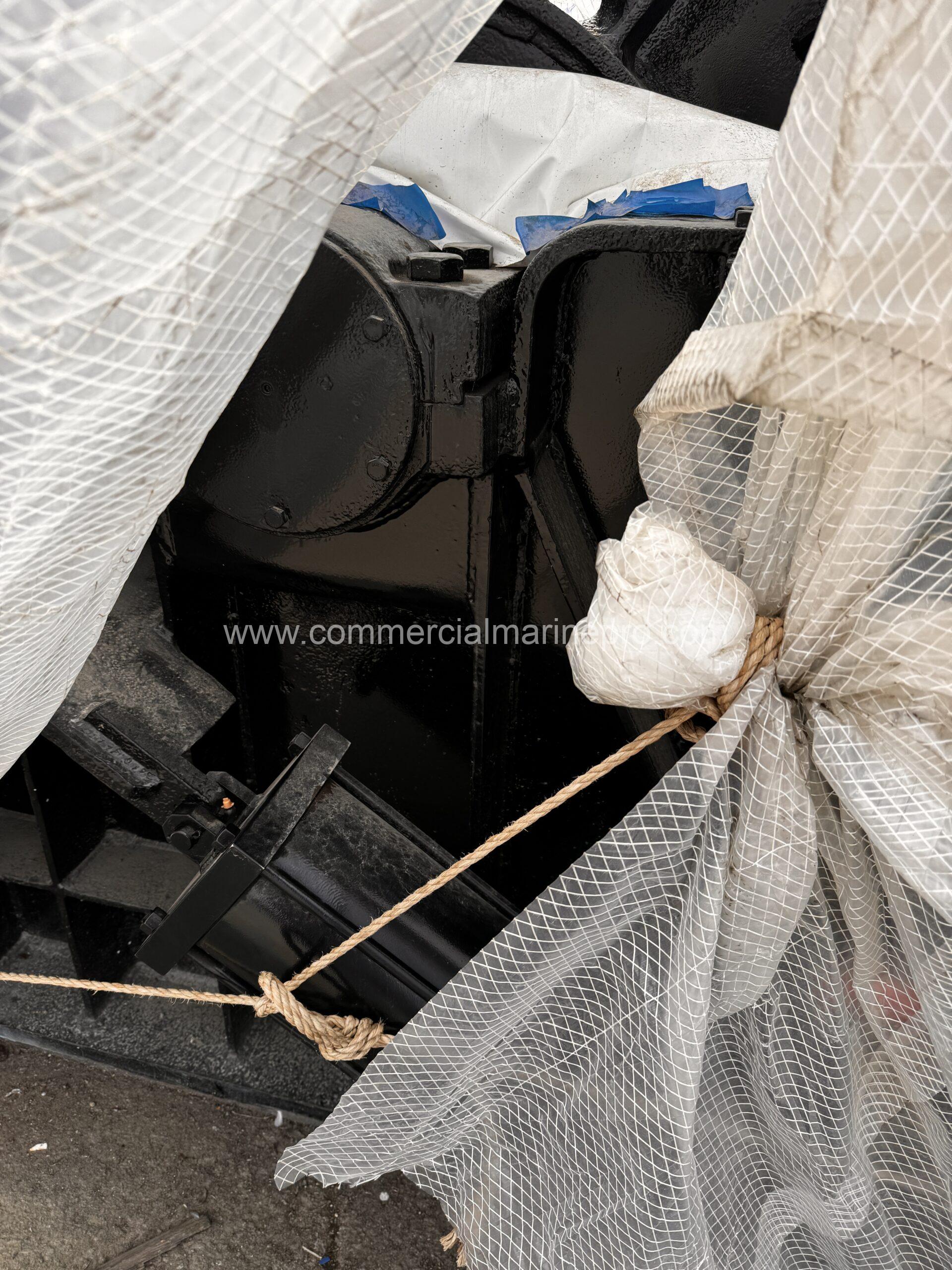

Markey TDSD 32 Double Drum Towing Winch
Fully REBUILT
- Max. Drum Capacity: 2,450 feet of 2″ wire-rope on each drum.
- Rated Line-Pull: 200,000 lbs rated pull (stall) at barrel layer, in first gear.
- Diesel Power Unit: Performance based on John Deere 6068TFM and Funk Series-2000 Transmission.
- Winch Brakes: Air-cylinder set and release, with manual handwheel provided for lock-down.
- Winch Controls: Pneumatic / Electric.
- Winch Dimensions: 82.0″ H x 198.2″ W x 154.0″ D.
- Approximate Weight: 52,000 lbs.
Additional Information:
The TDSD-32 is a reliable diesel-driven double-drum towing winch with high line-pull and
braking capacity, designed specifically for offshore towing or anchor-handling applications.
Ruggedly built to provide decades of high performance with low maintenance requirements,
the TDSD-32 is a proven industry workhorse.
Originally built in 1976, it was refurbished by Markey in 2020.ย Markey offers a one year warranty (as long as they approve the installation and commission the winch) and can provide more data (including the complete Sentinel statement of work) upon request.
Some winch line pull & speed, wire capacity, and other particulars may differ slightly from the standard model as detailed in the general brochure, provided for reference.
