Cooling Method:
Surface Cooled
Condition:
Surplus
Winch Manufacturer / Brand
BROHL
Number of Drums
1
Product Description:

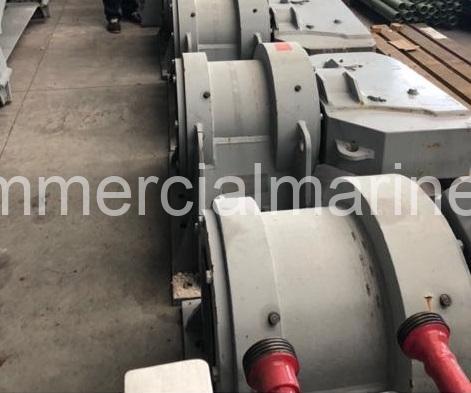

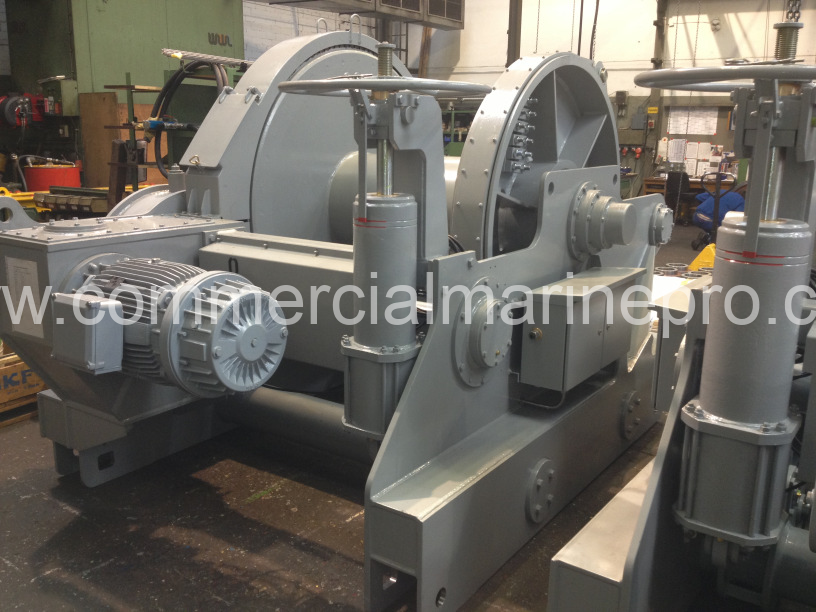

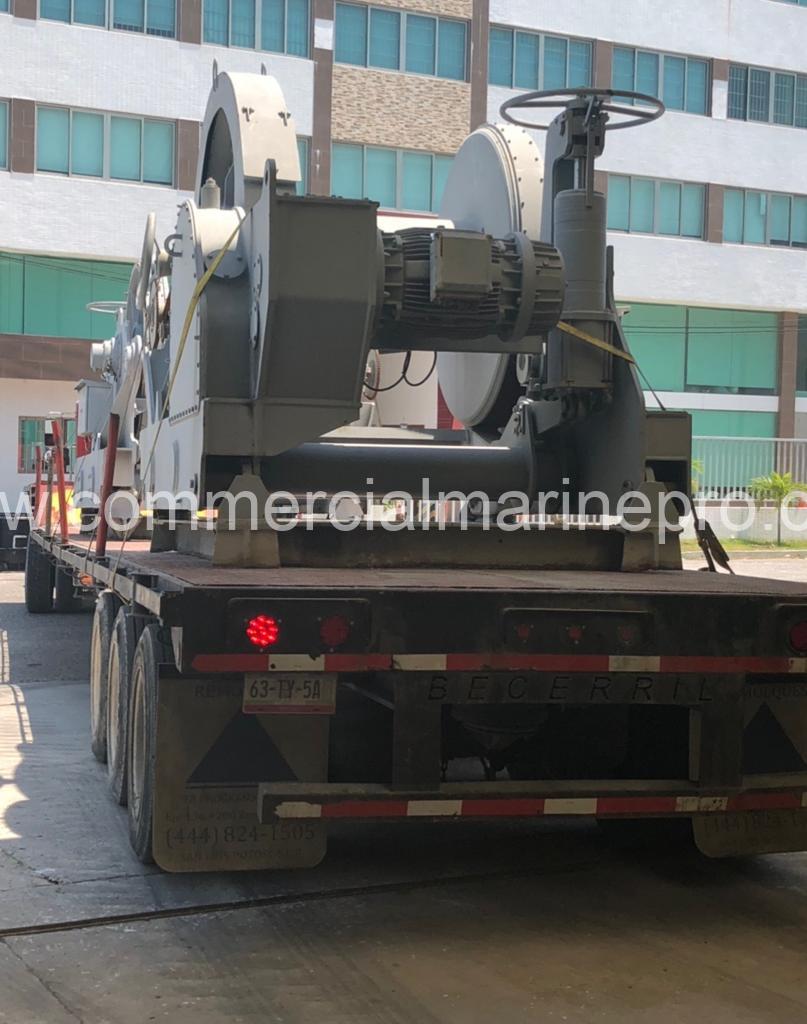

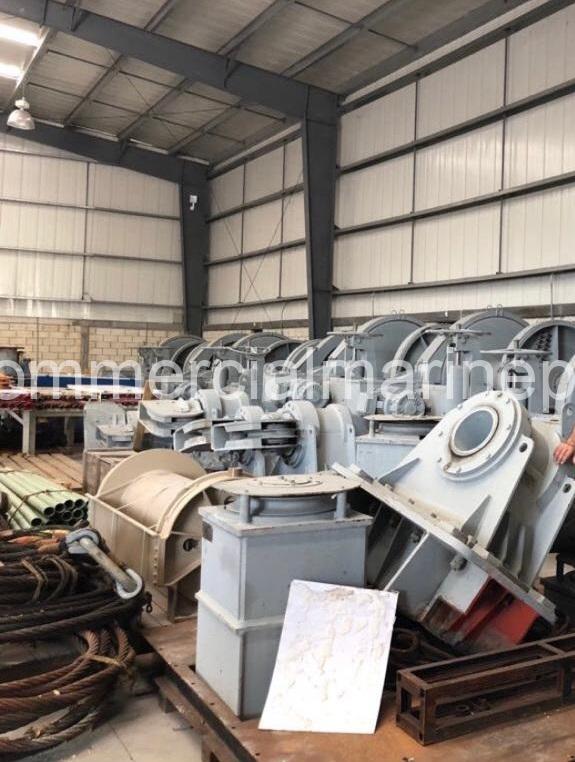

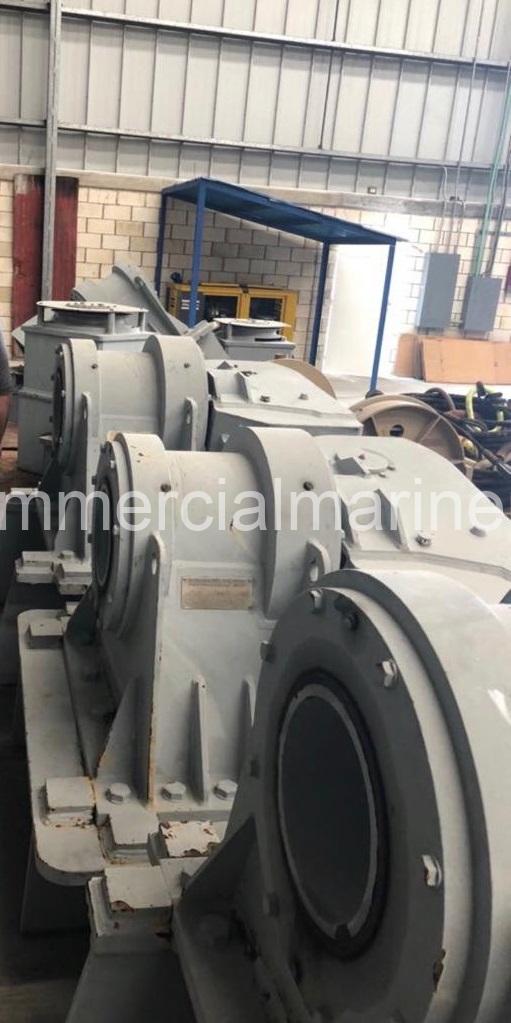

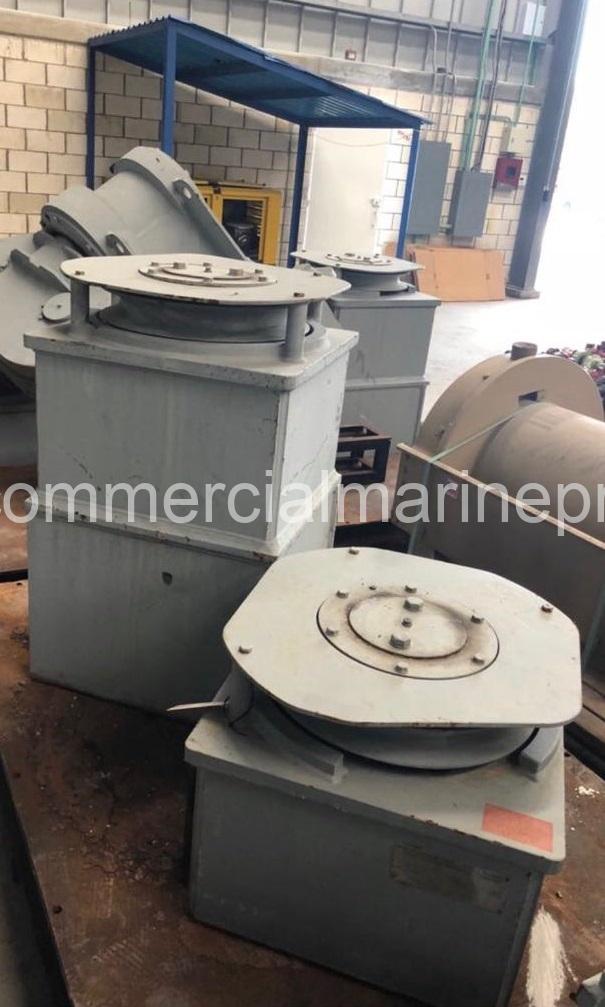

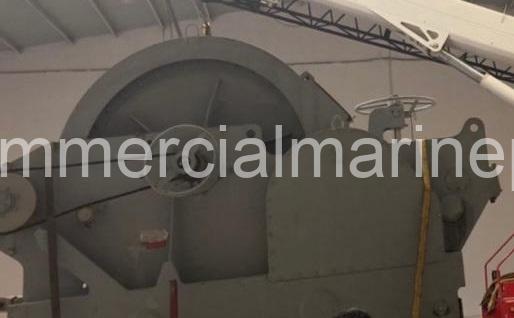

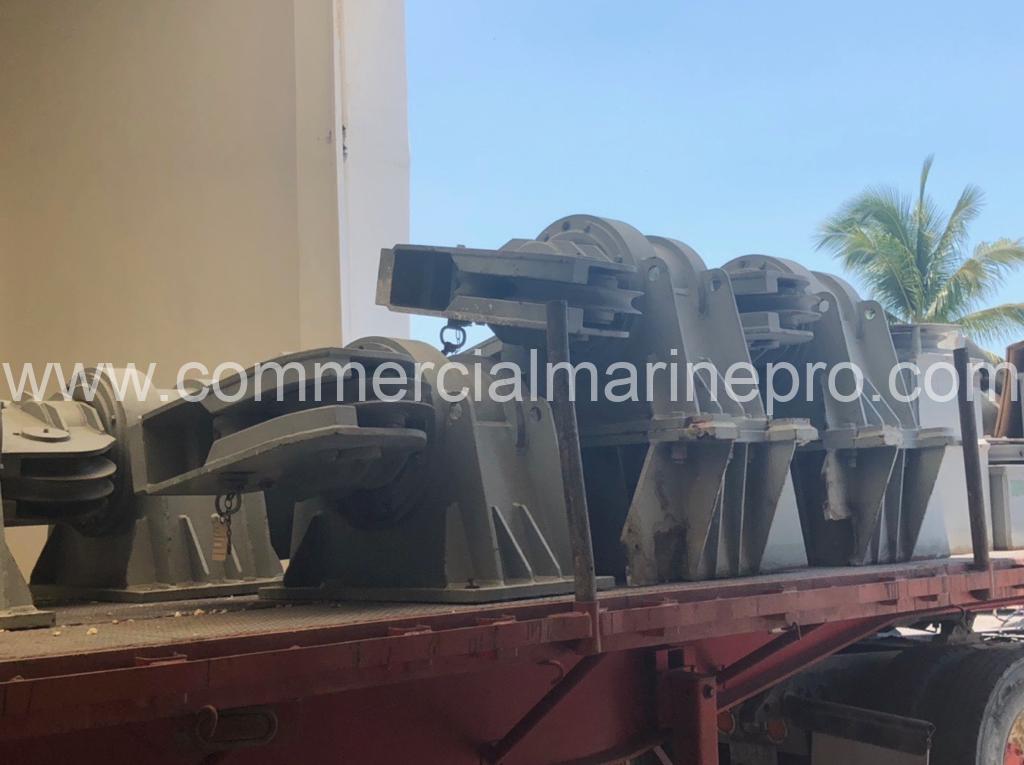

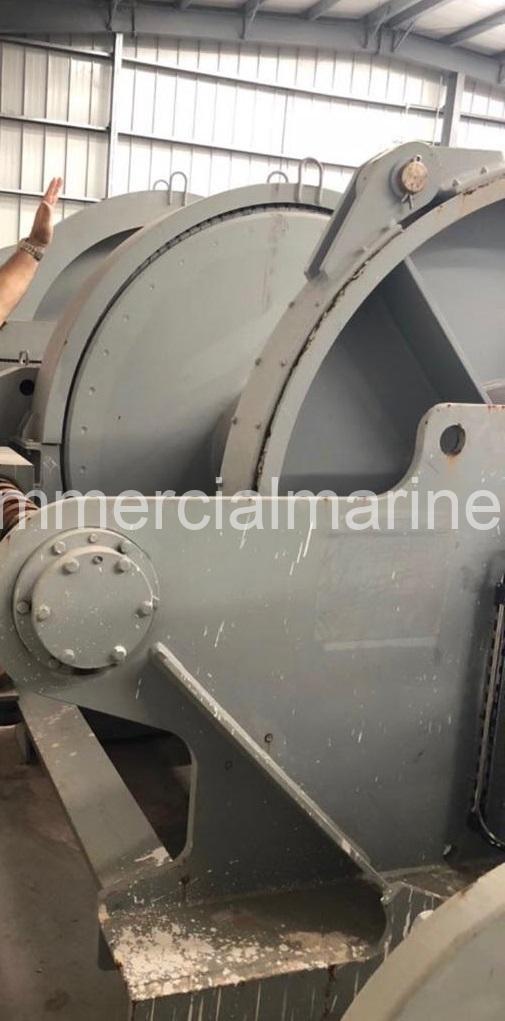

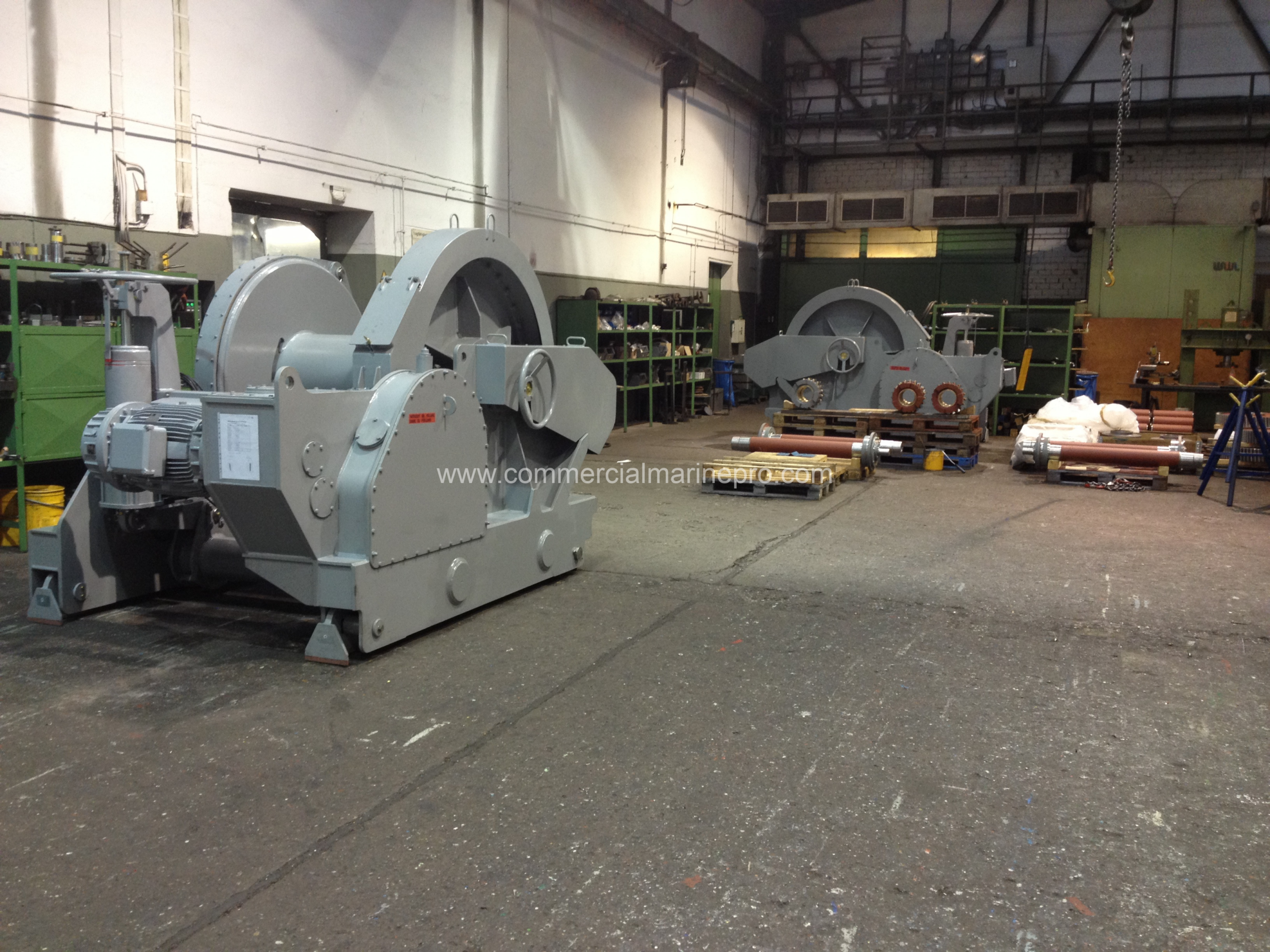

Five BROHL 250kN Mooring Winches Available – Never Used
Specifications:
Line Pull 1st Layer: 250 kN
Line Speed 1st Layer: 5,8 m/min / 11,7 m/min
Line Pull 10th Layer: 119 kN
Line Speed 10th Layer: 12,2 m/min / 24,6 m/min.

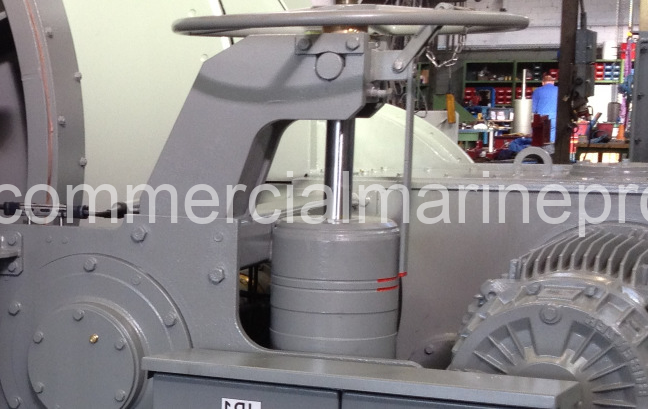

Brake holding force:
Band Brake 1st Layer: 600 kN
Brake Holding Torque: 174 kNm
Electromagnetic Brake 1st Layer: 600 kN
Rope: Steel Rope 38 mm ∅
Drum Dimensions: ∅ 580/1690 x 1080 lg.
Storage Capacity: 775 m in 10 layers
Drive:
Three-Phase Squirrel Cage Motor
Type: KDKF200L-8/4/TF/ST/OD/BR
Rated Voltage (see E-part): 480 V AC 3ph 60 Hz
Power: 27 kW / 27 kW
Speed: 870 rpm / 1760 rpm
Poles: 8 / 4
Cooling: Surface Cooled
Build in Electromagnetic Brake: SFB 63/ 630 Nm
Voltage: 110 V D.C.

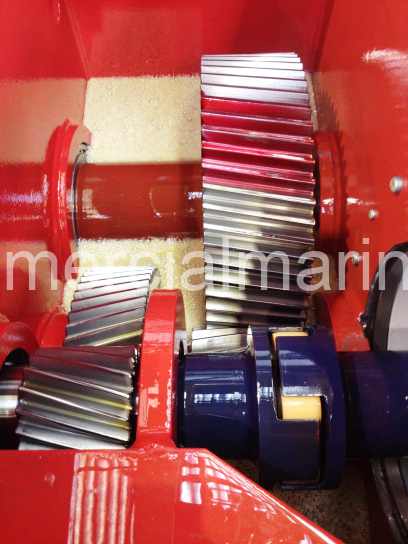

Gear:
Gear Ratio: 287:1
Oil Contents: Approx. 85 ltr.
Additional Information:
Operations and Maintenance Manual Is Available.

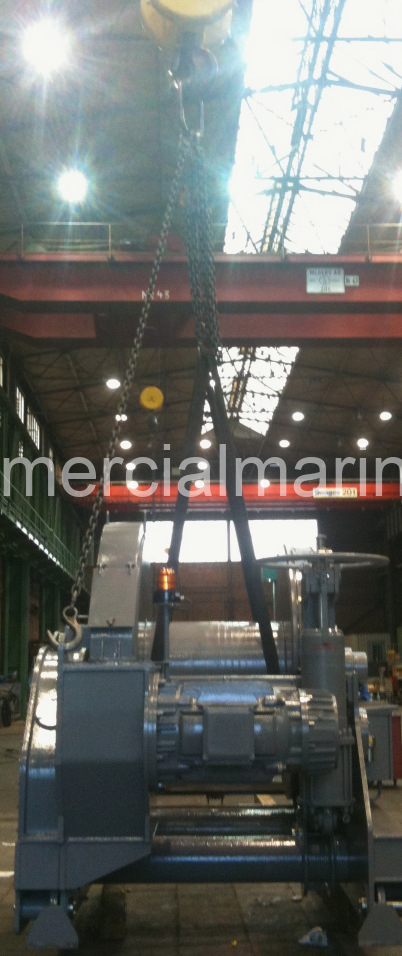

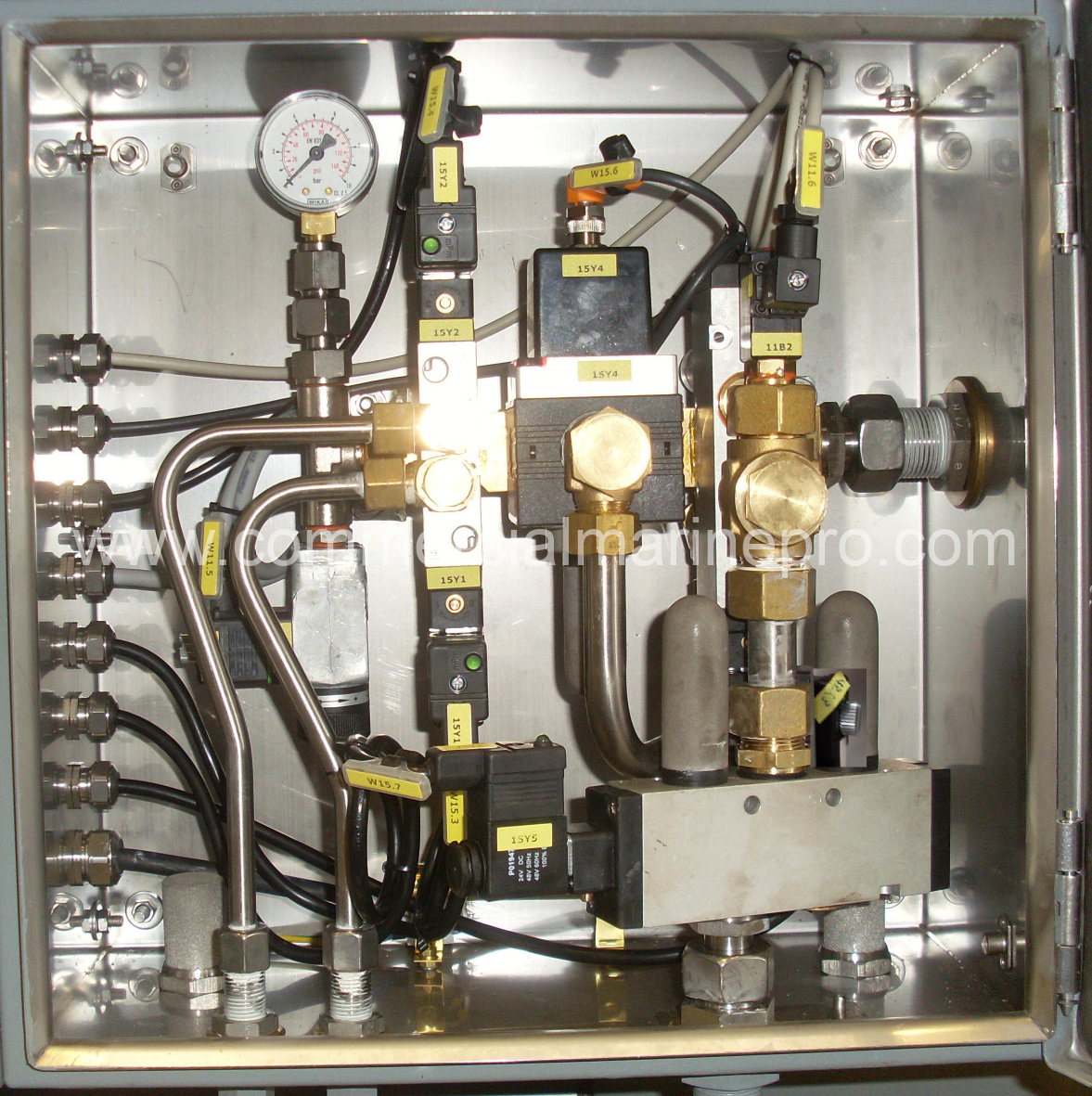

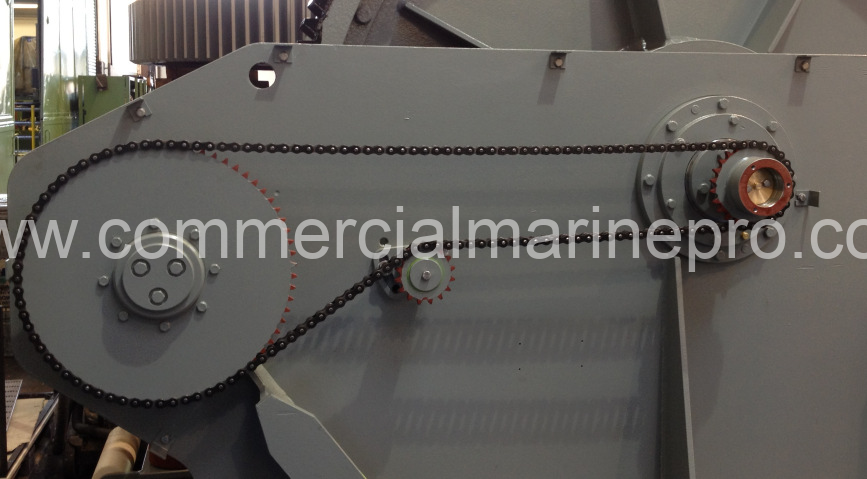

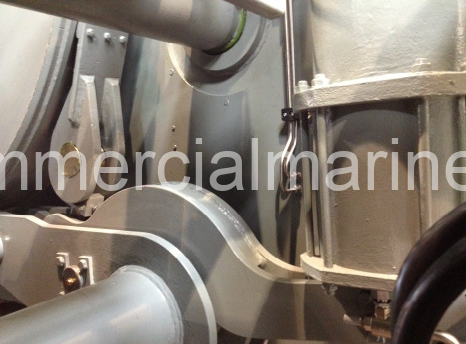

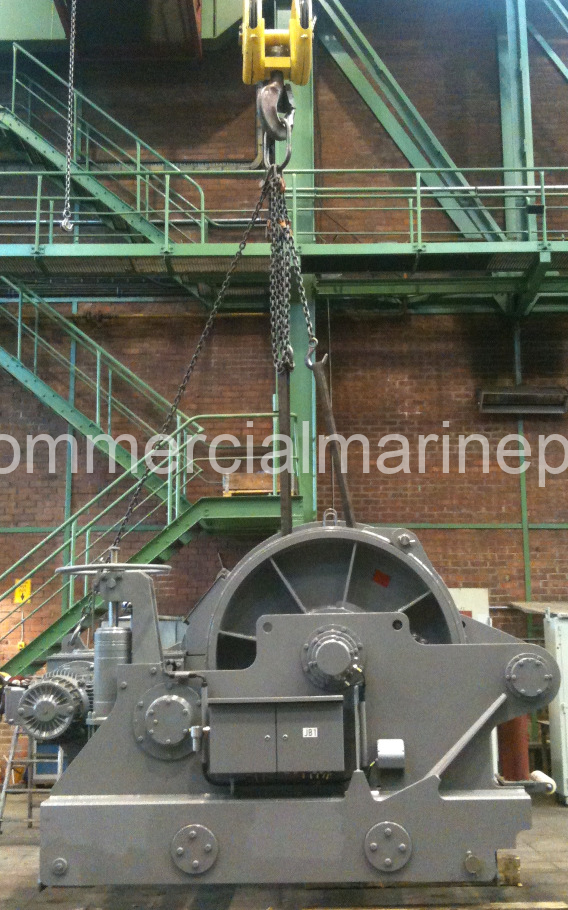

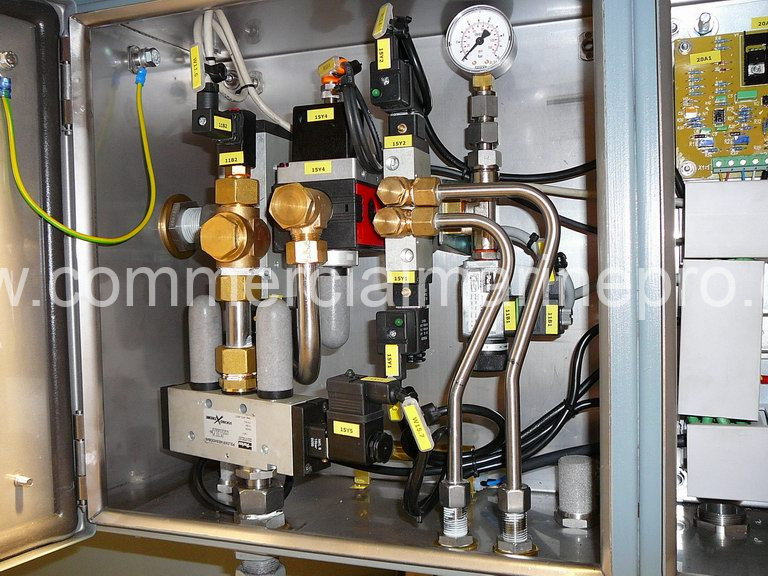

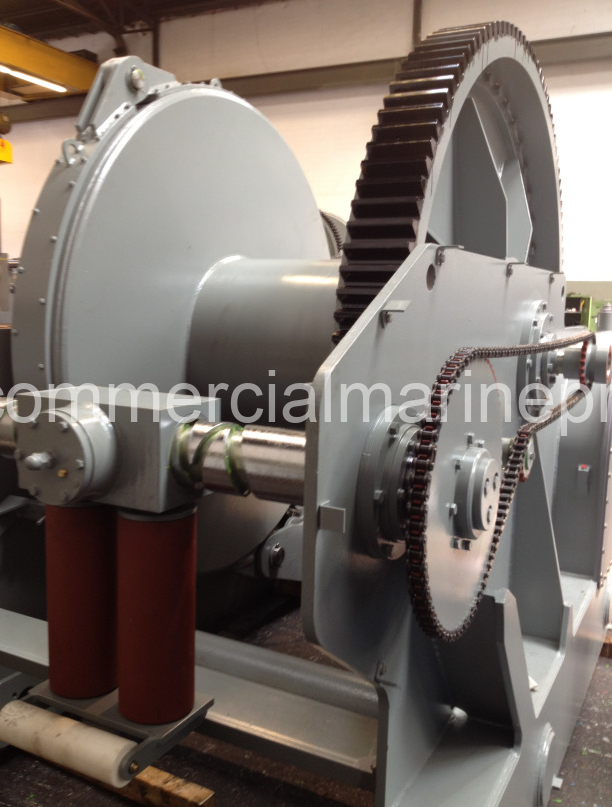

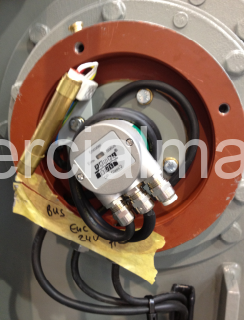

Some Images Come From Operations and Maintenance Manual.
