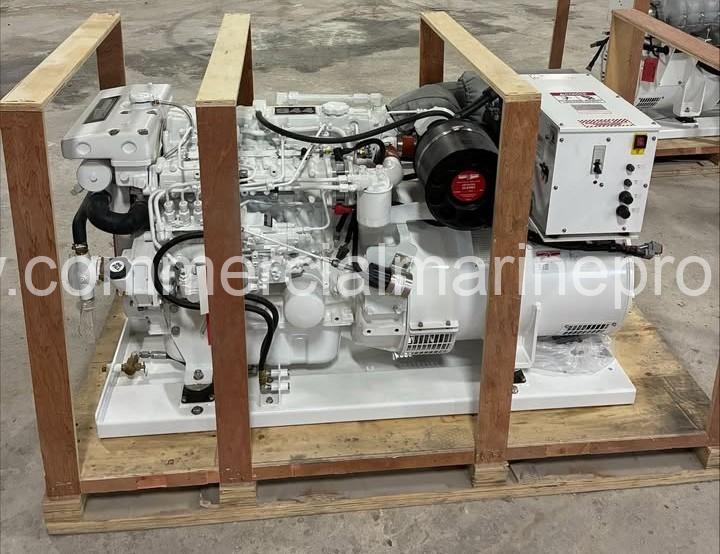

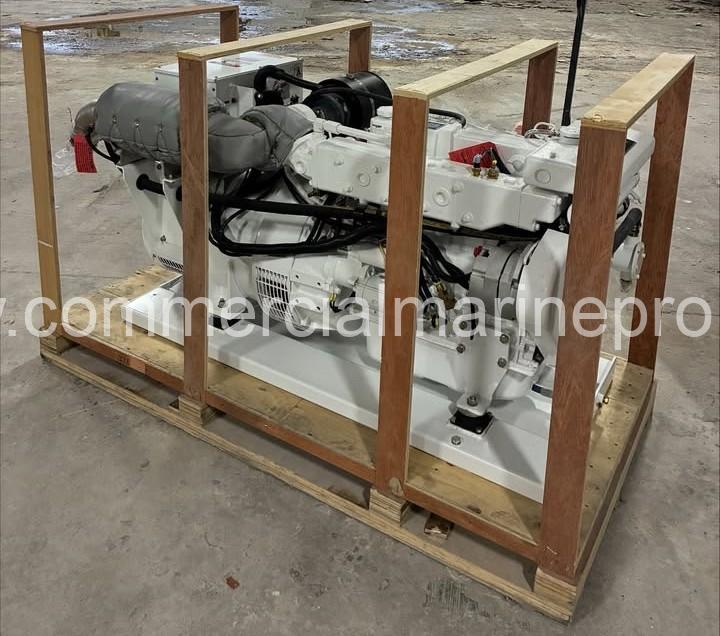

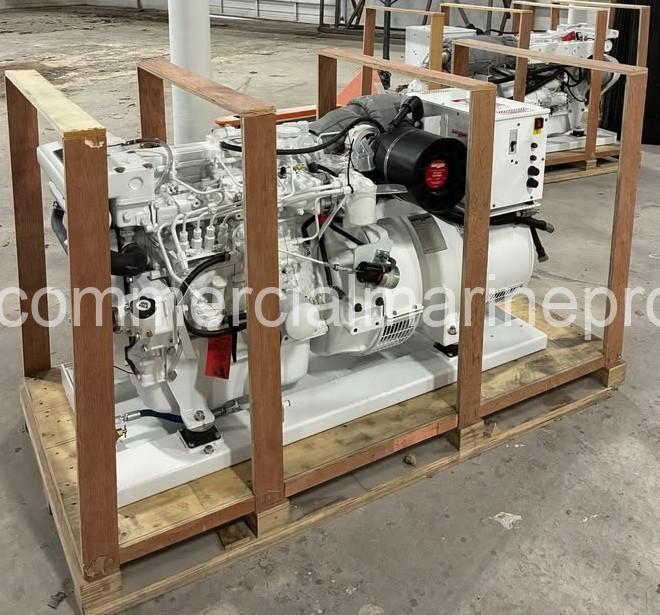

Generator Manufacturer / Brand:
Northern Lights
kW Rating:
36
Product Description:
Zero hours with full warranty.
36KW@1800RPM 1PH
Heat Exchanger Cooled
SAE#3/#11-1/2 with DPF Specifications: 36KW 120/240 Volts 1.0PF 1 Phase 1800 RPM
60 Hertz
24 Volt DC electrical system
Standard DC Ground ( – to engine block) Heavy duty engine – Tier 2 compliant.
Oil drain system with shut-off valve plumbed to base pan.
Engine mounted Spin-on oil filter. Dry element air filter element.
Fresh water cooled cast iron exhaust manifold with water cooled exhaust elbow on heat exchanged models and dry exhaust elbow on keel cooled units.
Fresh water cooling system with heat exchanger, expansion tank and raw water pump or connections to keel cooler.
USCG A-1 / ISO 7840 Fuel lines plumbed to base pan connections.
12 volt negative ground marine grade electrical system with battery charging alternator. Northern Lights brushless generator with voltage regulator.
Automatic safety shutdown system for low oil pressure, high coolant temperature and high exhaust temperature. Single side service. Stainless steel fasteners.
S-3C remote panel with control switch, shutdown bypass switch, engine hour meter, oil pressure gauge, water temperature gauge, DC voltmeter, and wire harness.
20 foot wire harness extension. Belt guard. Steel base frame with integral drip sump
